Product Description

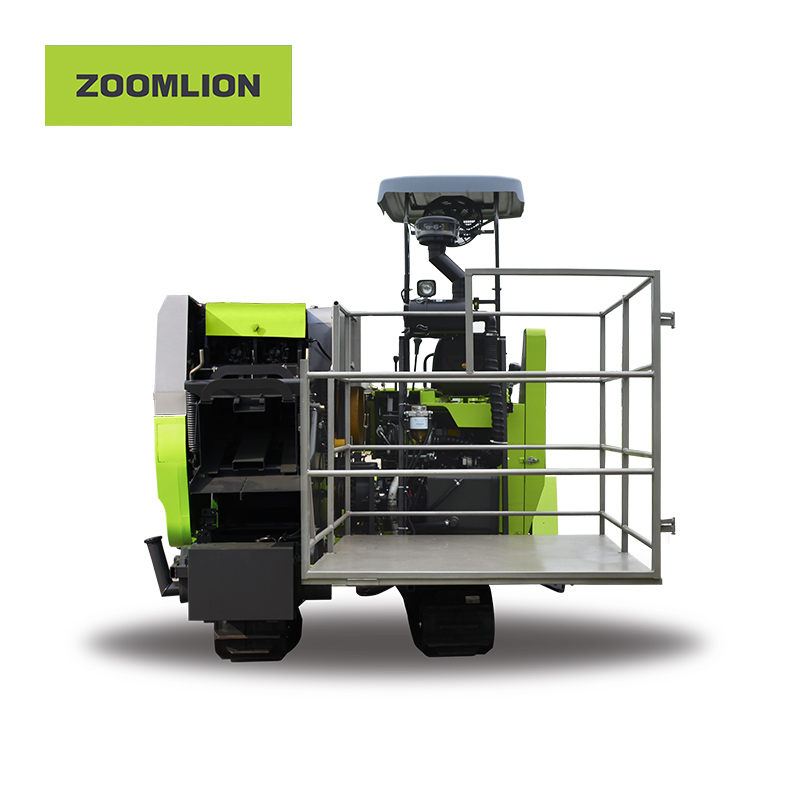

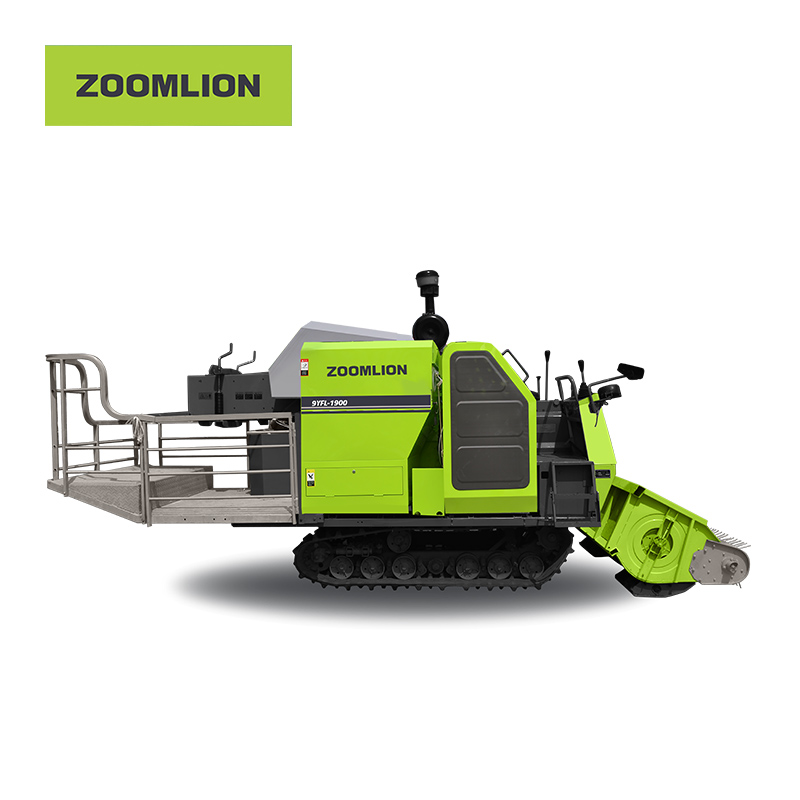

9YZ-1900FA Crawler Self-propelled Type Square Baler

High efficiency

Equipped with 60 kW quality motor and HST + 60A mechanical gearbox, the 1.9 m pickup unit has stronger powerful and better operation efficiency;
Double down-beater straw conveying structure is designed for wet straws, which can efficiently avoid straw clogging at the conveying part and greatly improve operation efficiency;

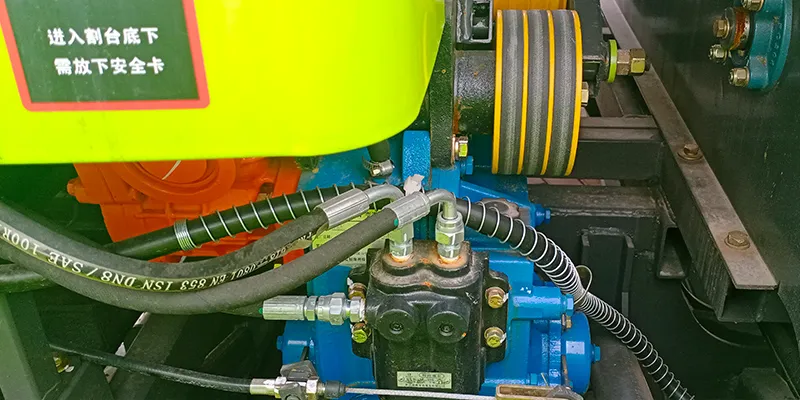

37cc/r large displacement HST and short machine length facilitate control, flexible steering and faster operation speed;
Manipulator is optional, which can save labor and improve efficiency.

High reliability

Double beam structure made of high strength manganese steel is adopted for the chassis, with higher bearing capability;

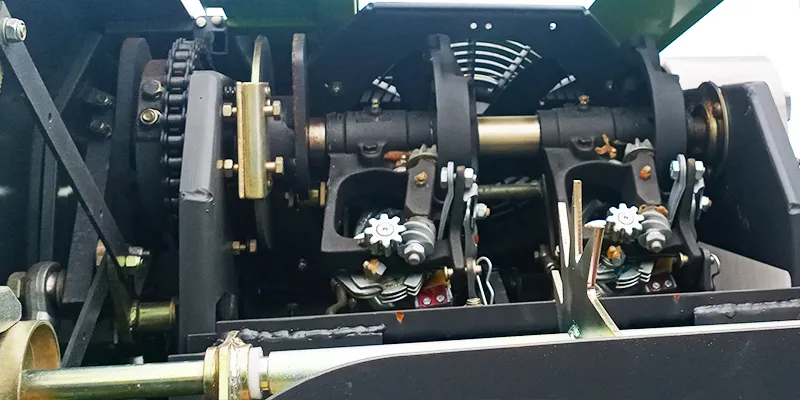

High-end knot-tying device from Germany is adopted. The bale frame, piston parts and other key parts are made by ourselves, which efficiently ensure the high reliability of the machine.

High adaptability

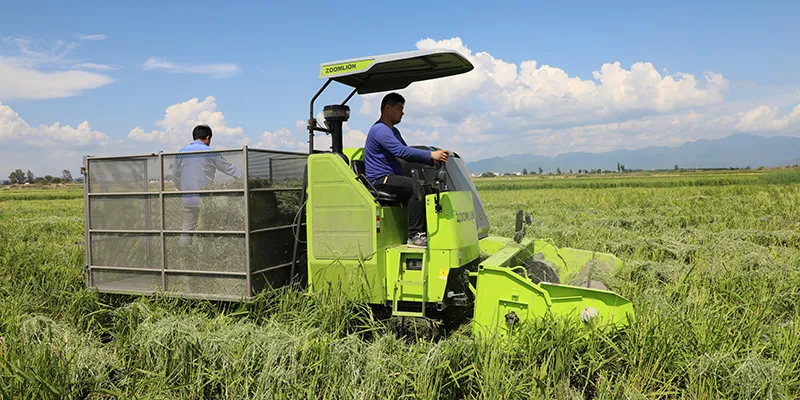

258 mm ground clearance and standard 400 mm wide crawler effectively reduce the ground pressure and brings strong paddy field passing capability;

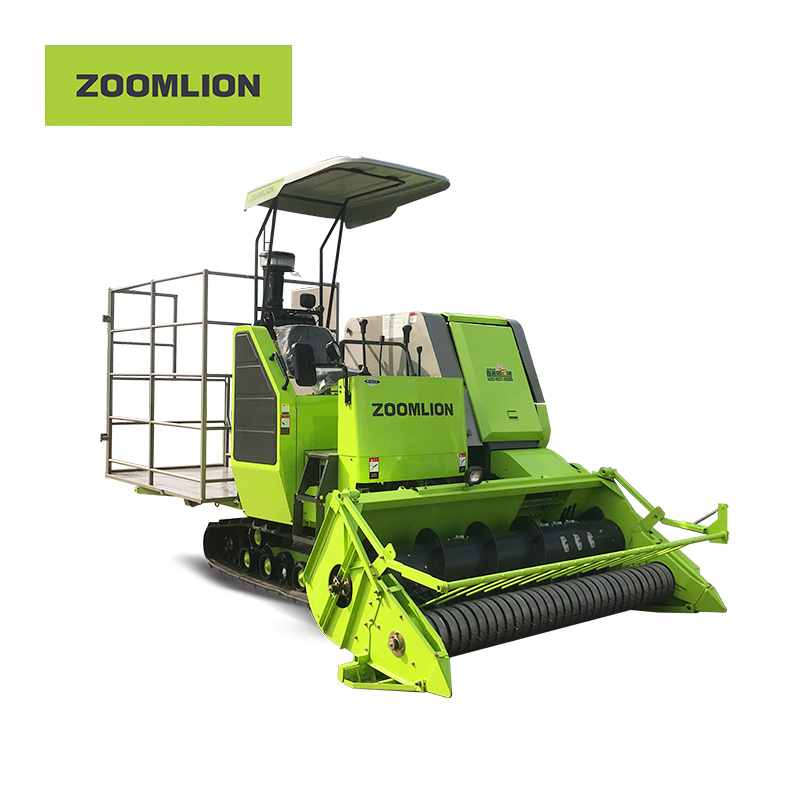

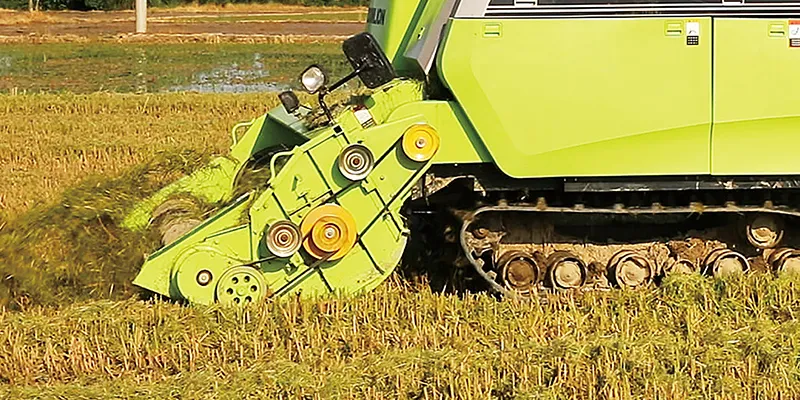

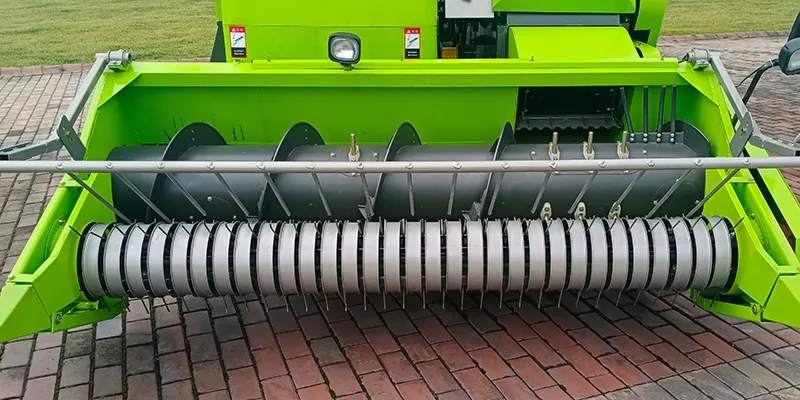

The front-mounted pickup unit can avoid the crawler crushing, meet the operation needs of different pickup width; thoroughly pickup;
The 3.56m³ large mower rake can effectively reduce the intensity of the field pickup, so it is more suitable for paddy field operation;
To improve the adaptability of the pickup system, rubber belt is added to the spacing chassis at both sides of the pickup unit and both sides of the drum to reduce clogging rates.

Type		Unit	9YZ-1900FA
Pickup width		mm	1900
Structural type		/	Crawler self-propelled
Type of knot-tying device		/	Type D
Number of knot-tying device		Pcs.	2
Compression chamber sectional dimension (width × height)		mm	480×360
Reciprocating times of baling pistion		t/min	100
Overall dimensions in operating state (L × W× H)		mm	5150×2500×2830
Matched power		kW	60
Bale length		mm	350~1200
Capacity of mower rake		m³	3.5
Crawler size		mm	400×90×51 section
Operation efficiency	Wheat	Mu / hour	8~12
Operation efficiency	Rice	Mu / hour	5~8
Bale compactness	Wheat (moisture content ≤20%)	kg/m³	≥100
Bale compactness	Rice (water content ≤30%)	kg/m³	≥130
