New Dl210kn Bulldozer & Wheel Dozer
NEW Dl210kn Bulldozer & Wheel DozerProduct DescriptionDL210KN wheel bulldozer is an industry-leading high-end model built elaborately by XCMG and XCMG owns the proprietary intellectual property rights for all of its core parts. Featuring high mobility and powerful bulldozing force, this product......
Send Inquiry
Product Description

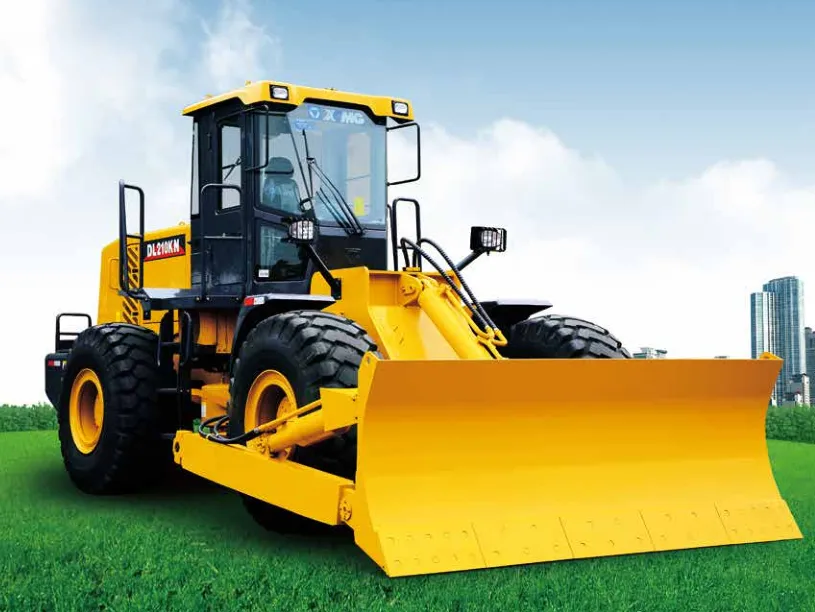

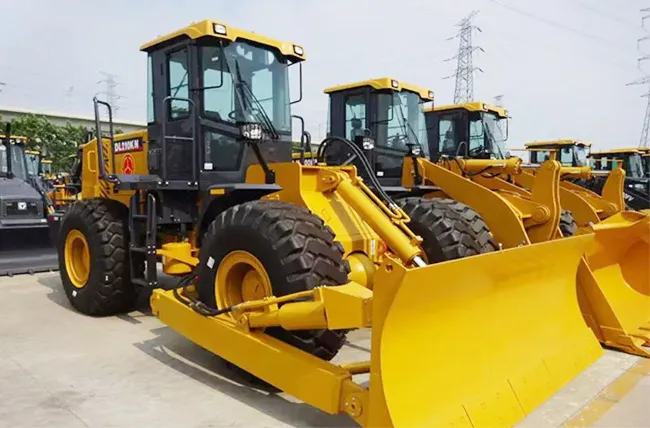

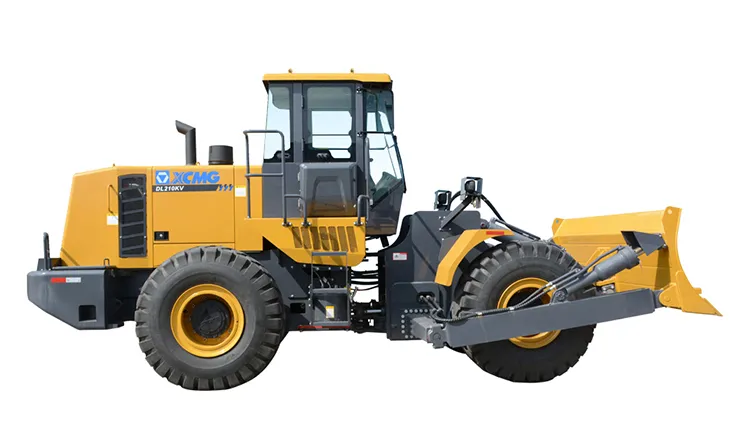

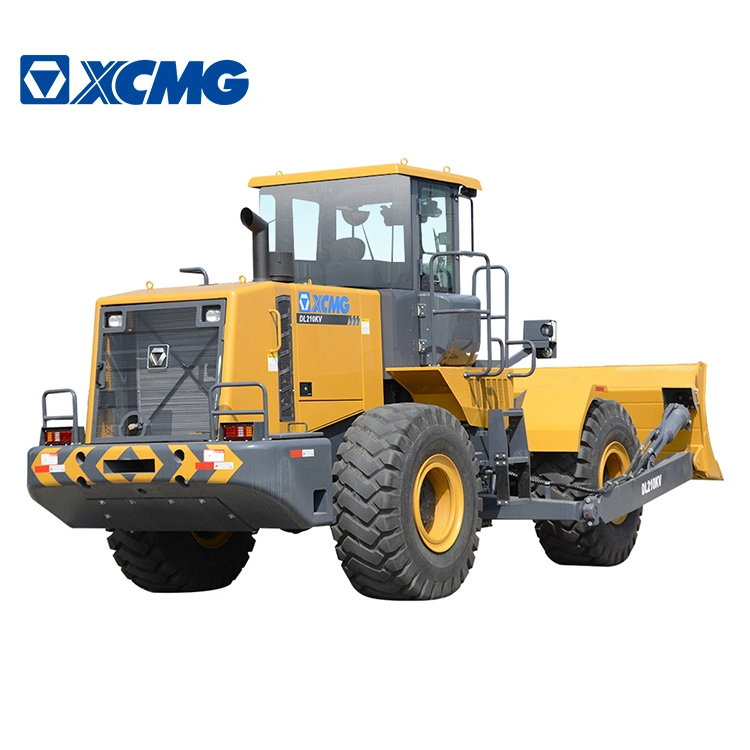

NEW Dl210kn Bulldozer & Wheel DozerDL210KN wheel bulldozer is an industry-leading high-end model built elaborately by XCMG and XCMG owns the proprietary intellectual property rights for all of its core parts. Featuring high mobility and powerful bulldozing force, this product is a kind of multi-purpose and high-efficiency construction machinery that can be used for the rapid clear-up of land and road structures and is applicable for the disaster relief and roadblock clear-up applications.
Performance Characteristics:

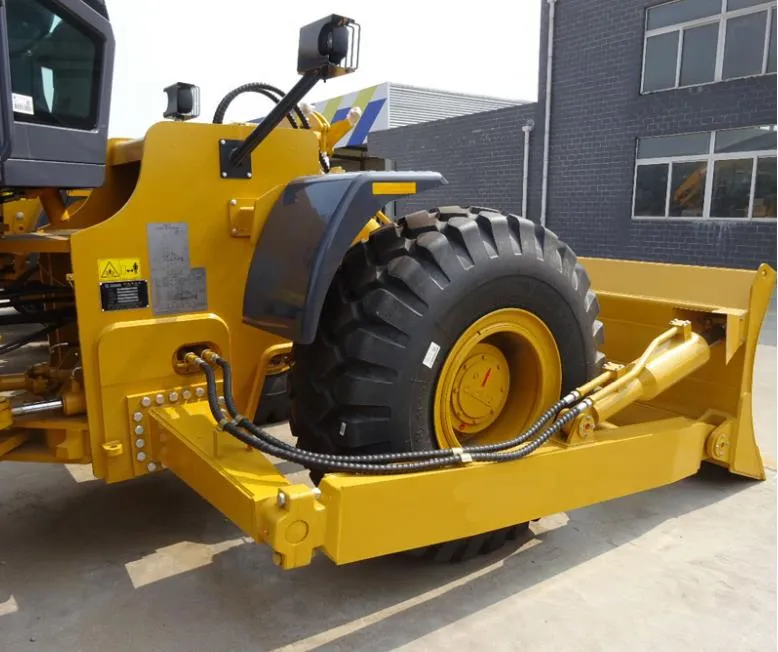

* The multi-DOF adjustable blade can meet the construction needs under diversified working conditions.
* The non-road high-horsepower diesel engine equipped features strong power.
* The heat dissipation system designed especially for bulldozing applications guarantees more durable and reliable working of engine and transmission.
* The three-segment special construction machinery drive shaft features high torque transmission.
* The extended wheelbase design ensures excellent operation stability of the machine.
* Small turning radius, large ground clearance, high mobility, and excellent trafficability.
* The low-noise cab and the adjustable steering column realize high driving/riding comfort.
* The integral skeleton structure engine hood with large upturning side gate realizes convenient one-stop services and maintenances.
Description | Unit | Specifications | |
Dozer Max.lift heigh | mm | 1000 | |
Dozer Max.cutting depth | mm | 380 | |
Dozer Max.titing range | mm | 500 | |
Max.drawing force | kN | 136 | |
Articulation angle | . | 36 | |
Min.turn radius | mm | 6985 | |
Climb ability | . | 30 | |
Wheel base | mm | 3410 | |
Tread | mm | 2180 | |
Speeds | 1st(F/R) | km/h | 13/17 |
2st(F) | km/h | 40 | |
Engine Model | WD10G220E21 | ||
Rated power/speed | kW/(r/min) | 162 | |
LxWxH | mm | 7430X3354X3515 | |
Operating weight | t | 16.5 | |
Tires | 23.5-2.5 | ||
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
