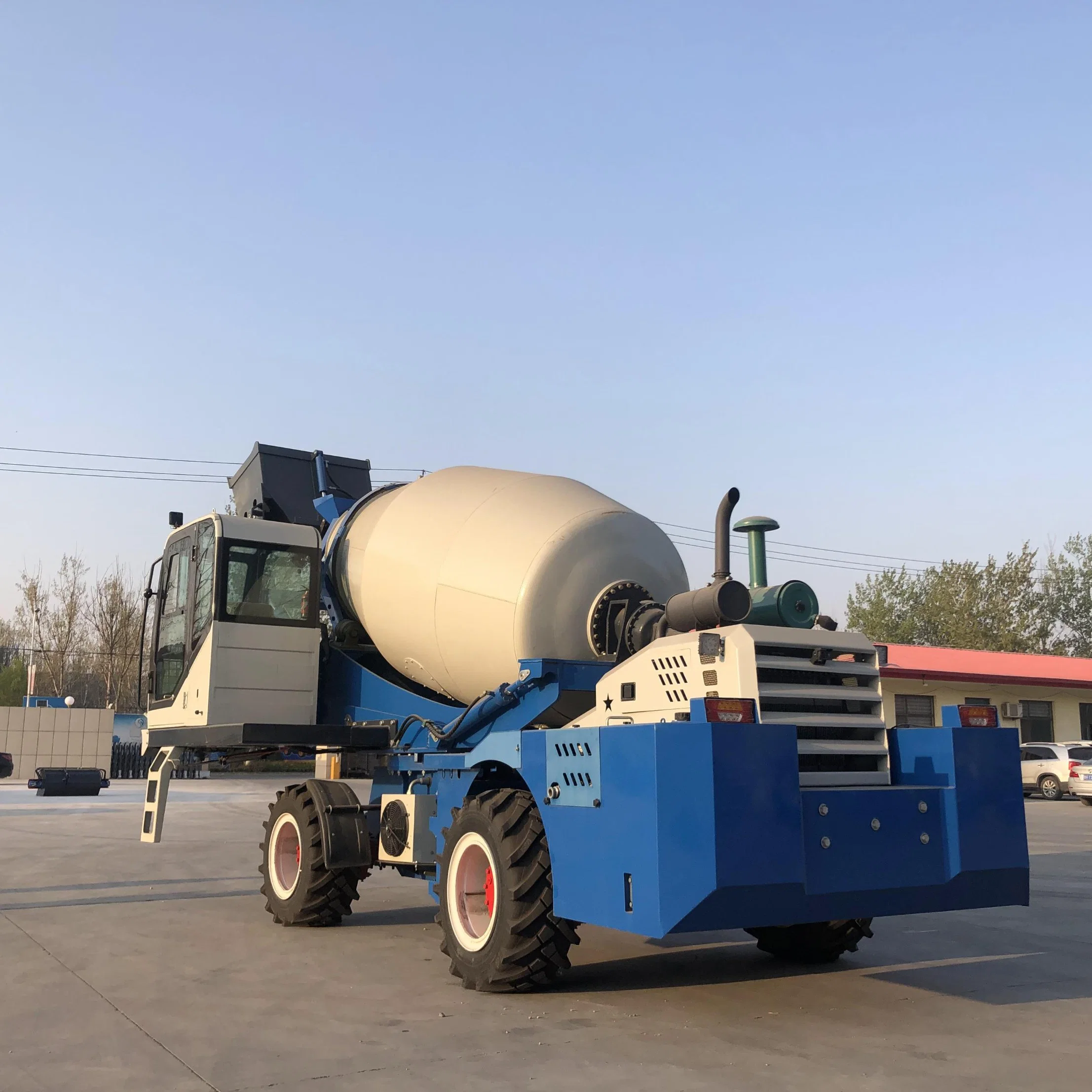

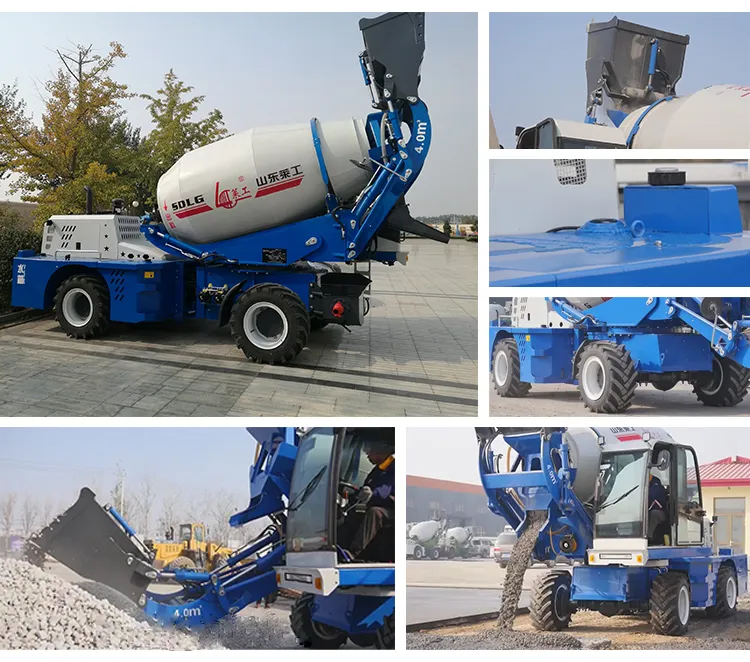

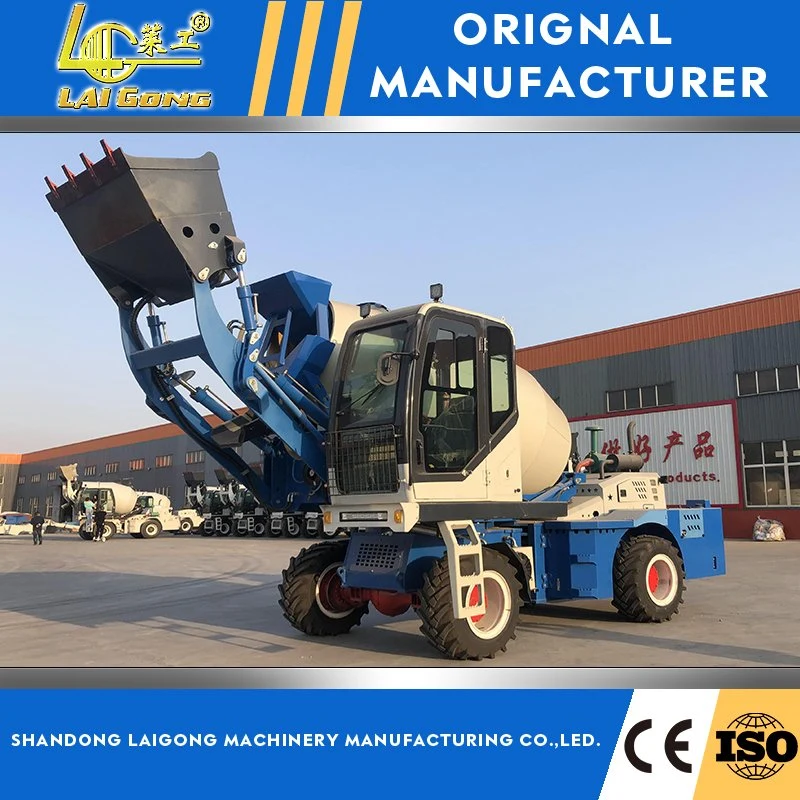

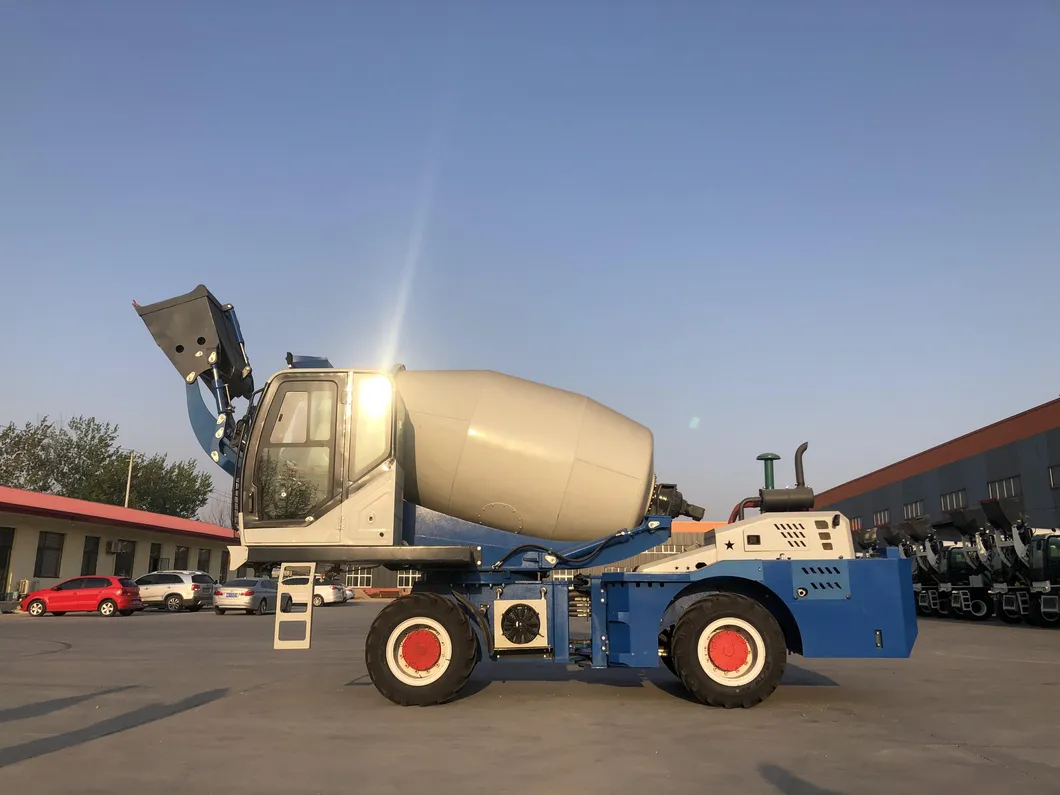

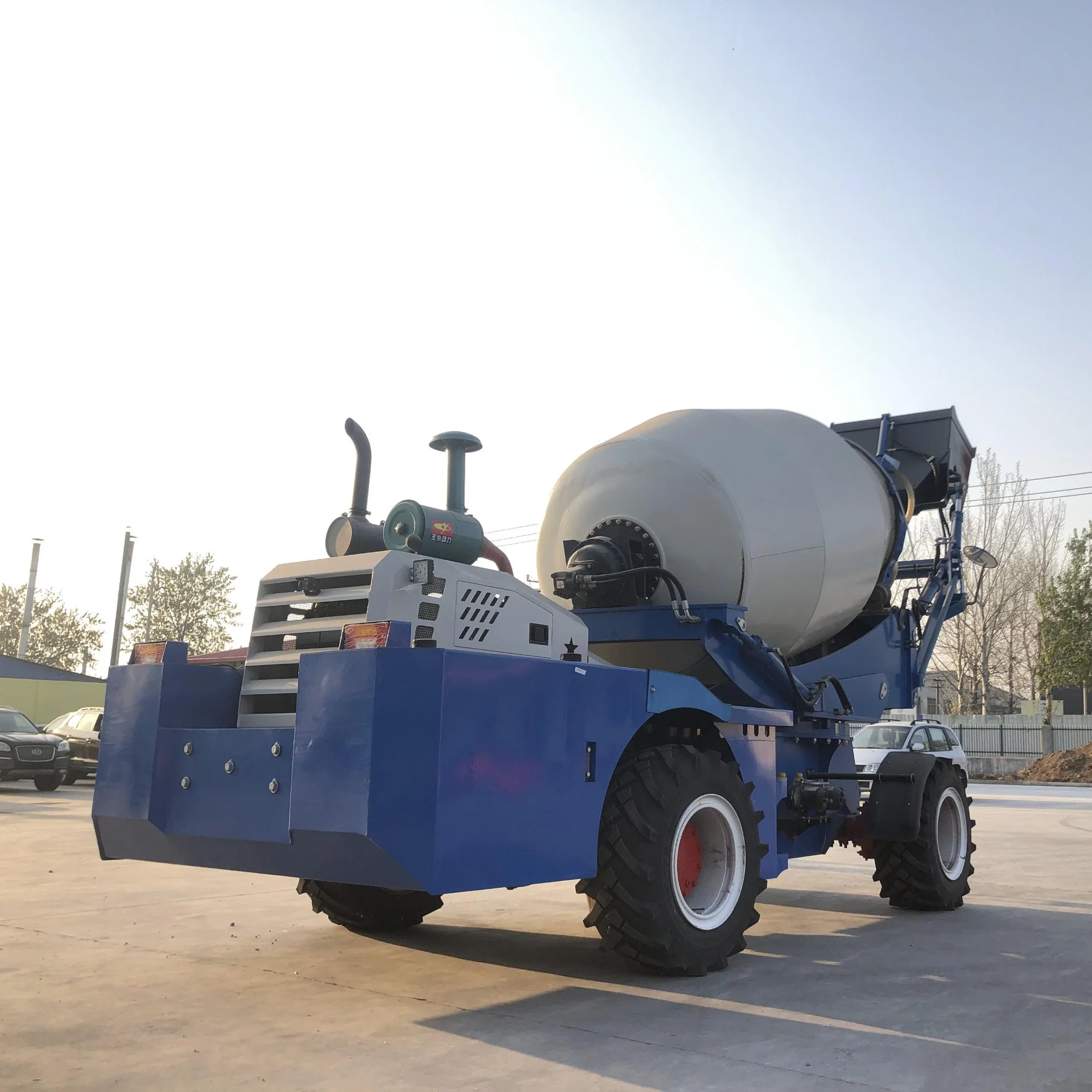

Laigong Brand 4cbm Mini Mobile Self Loading Concrete Mixer Truck

Product Description

Product description
1. Independence: independently operate and complete the functions of charging, mixing,transporting and discharging.
2. Multi-function: The self loading concrete mixer replaces the functions of wheel loaders, cement mixers, transporters, generator sets, etc. Multi-angle 270-degree rotary discharge is suitable for various regional environments.
3. Easy to operate: only two people are needed when using it for production.
4. High cost performance: the self loading concrete mixer saves equipment costs and labor costs ,and at a reasonable price and high cost performance.
5. Have strong power can apply to various operation scenes

LG No.
LG No.		Unit	Value
H40	Engine Type		Weichai 6105 Turbocharging
	Engine power(KW)	KW	92
	Drum Capacity(m³)	m³	6.5
	Valid output(m³)	m³	4
	Overall dimension LengthWidthHeight(mm)	mm	665028603350
	Axle base	mm	3200
	Front wheel base	mm	2000
	Rear wheel base	mm	2000
	Dumping height	mm	1500
	Minimum ground clearance(mm)	mm	300
	Total weight(KGS)	KGS	10500
	Fuel consumption (Theoretical)L/H	L/H	10.0-12.0
	Maximum drive speed	KM/H	30
	Tank rotation speed	Turn/minute	20
	Tank rotation angle	°	270
	Drive Bridge		ZL-30
	Gear box		315
	Tire Dimensions (Front)		12R24(Double tire)
	Tire Dimensions (Rear)		12R24
	Braking distance	mm	1000
	Engine oil capacity	L	22
	Hydraulic oil capacity	L	150
	Hydraulic oil type	L	No. 46 efficient wearable
	Fuel tank	L	150
	Water tank	L	750
	Small pump displacement	L/MINUTE	150
	Big pump displacement	L/MINUTE	150
	Radius of turning circle		7
	Bucket capacity	m³	0.6
	Transmission oil type/capacity	L	No. 8 transmission oil/50
	Axle gear oil type/capacity	L	No. 18 double curve bight/3.5
	Hub reduction gear oil type/capacity		No. 18 double curve bight/1.8
	Double tire pressure	Bar	10
	Single tire pressure	Bar	6
	Tank pressure	Bar	4.0-8.0

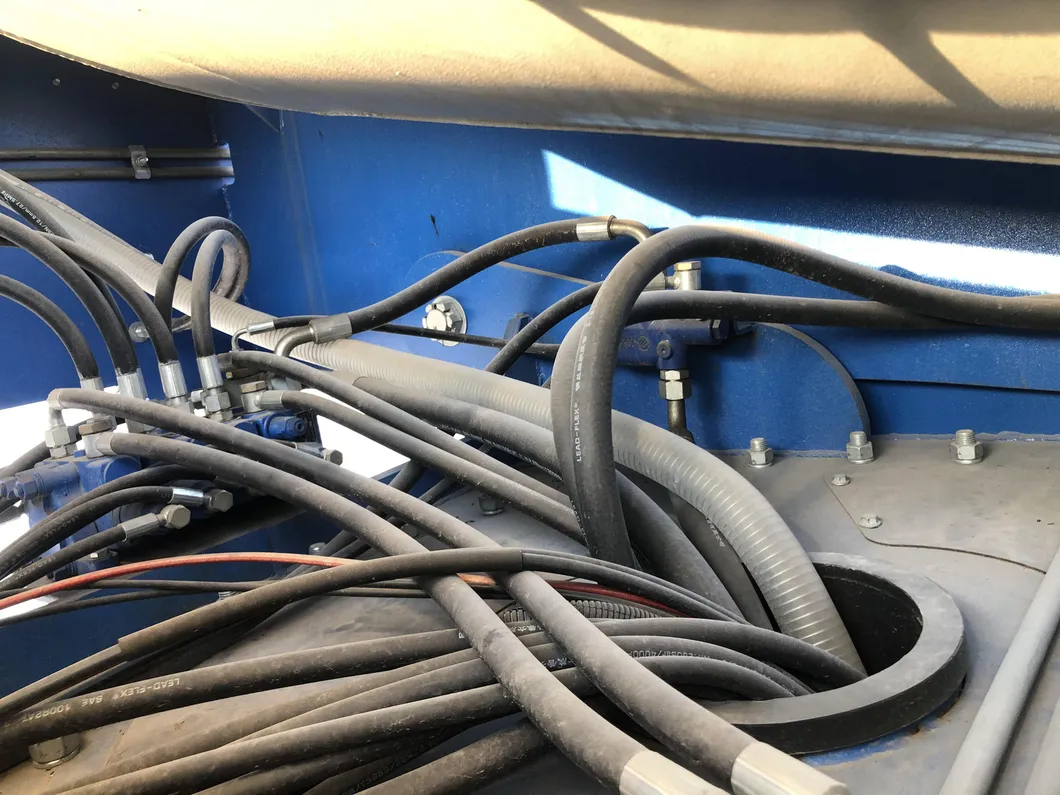

Parts

Certificate
We have obtained a series of national and international certificate, such as ISO9001:2008 international quality control systerm certification and special equipment production license; and ownthe property right of our product and 11 related patents. We now have advanced production facility and detection means, and implement strict institution on quality control and detection.

Our loaders,mini excavators and forklifts have been verified by market and win highreputation among customs for the advanced design, easy operation and reliable quality.

LAIGONG international will follow thedoctrine of "Quality first,honesty first", take "to provide the best cost effective product" as the objective, and explore sincere cooperation, mutual support and common development with old and new friends.

After sales Service
We provide long-term consultation as well as warranty by our highly competent and skilled technical personnel. Consistentasministration of users' files. and friendly, patient and attentive technical consultancy is our promise. Users' training sessions and symposiums are conducted on a regular basis.After the after-sales service of Laigong , the authorized dealer or authorized service provider is responsible for the after-sales service. Laigong provides technical support in areas that have not yet been covered. Laigong's service network welcomes more business entities to join in and create brilliance.

FAQ

What are laigong's advantages in mini wheel loader?

1) Being designed in scientific and reasonable manner, vehicles have compact and smart appearance, and are of good internal quality and suitable for operating in construction site and yeards for its small size.
2)Gearbox and Axle are petented. The gearbox has double high and low speed gear positions, enables it work more powerful and move faster by balancing the power ratio as well as save oil by 25%.The service life of the wheel side drive axle is five time longerthan average manufacturer.
3) The split type gearbox has good heart dissipation effect, conveient maintenance and strong work. The back-installed engine can produce mating effect,while joint installation may not.
4)It has high-position automatic flattening function.the streching big arm can skip the shovel at big angle, discharging more efficient. Load sensor has the advantages of full hyfraulic priority steering, being stable, reliable, energy saving. The bucket pin shaft has a rubber dust-proof ring, extending the service life of the pin shaft andbushing.
5) The double-air filtration protects theengine, improves the service life limit. The horizontal addition type silencer improves the stability of the engine itself, eliminates noise. The edge of the anterior soliton improves the stability and the safety of the bottom of the large arm and the lifting arm cylinder, maintaining its shape.

2. What are the laigong's advantage in mini wheel loader service?

1) we offer full set of pre-sale and after-market service.and also spare-parts supply.
2)Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquires and question all the time. Most problems can be solved within 12 hours.
3) Fast delivery. we have a variety of resources, locally and nation widely, in 70% circustance, we can have an immediate delivery of regular machines for our clients.

3. Which payment term can we accept?

Normally we can work on T/T term or L/C term.
1) On T/T term, 30% deposit in advance, and 70% balance shall be settled before shipment, or against the copy of oraginal B/L for sole agent.
2) On L/C term, a 100% irrevocable L/Cwithout any "soft clause" can be accepted. please seek advice form the individual sales manager whom you worked with.

4. How long will our quotation valid ?

We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations;
1) The rate of USD:RMB variessignificantly according to the international currency exchange rates.
2) Factory adjusted the machine price, because of the increasing labor cost, and raw material
