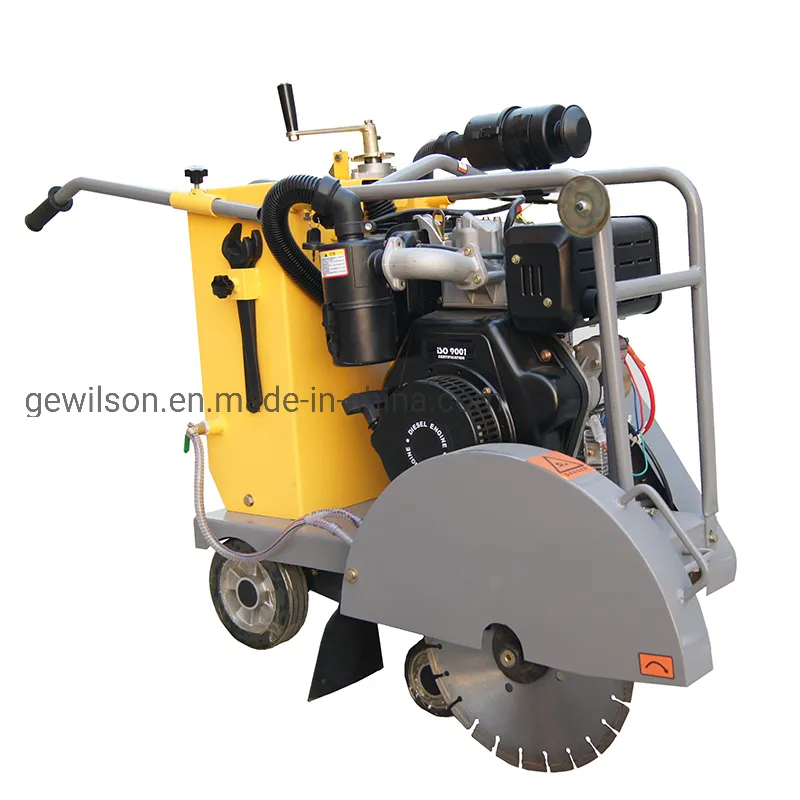

Semi Automatically Propelled Diesel Concrete Cutter
DIESEL GE186F ENGINE CONCRETE CUTTER For compaction of granular materials and mixed materials with some cohesive content, and hot or cold asphalt in confined areas such as parking lots, hightway and bridge construction, next to structures, curbs, and abutments.FeaturesSmooth cutting and dir ectiona......
Send Inquiry
Product Description
For compaction of granular materials and mixed materials with some cohesive content, and hot or cold asphalt in confined areas such as parking lots, hightway and bridge construction, next to structures, curbs, and abutments.
Features
Smooth cutting and dir ectional stability is achieved due to the optaimum position of the machine's center of gravity. The result: High degree of economy thanks to the reduced lateral wear of the cutting blade. Efficient and economic cutting blade drive: Long service life and low maintenance costs due to heavy duty belt tightener. Large integrated, removable water tank with over-size fill opening and adjustable sprinkling system and large capacity.
Parameters
| Model | GFS500D186 |
| Engine model | Diesel GE186F |
| Max. output Hp | 10 |
| Shipment weight kg | 156 |
| Blade diameter mm | 500 |
| Dia. of blade aperture mm | 25.4 |
| Max. cutting depth mm | 220 |
| Cutting balde speed rpm | 1910 |
| Depth adjustment | Handle rotation |
| Driving | Manual push or semiautomatic propelled via worm gear |
| Water tank capacity L | 45 |
| Sprinkling system | gravity fed |
| Engine type | Air-cooled, 4 cycle, diesel engine |
| Starting system | Recoil or electric start |
| Shipment dimension mm | 1250x620x1020 |

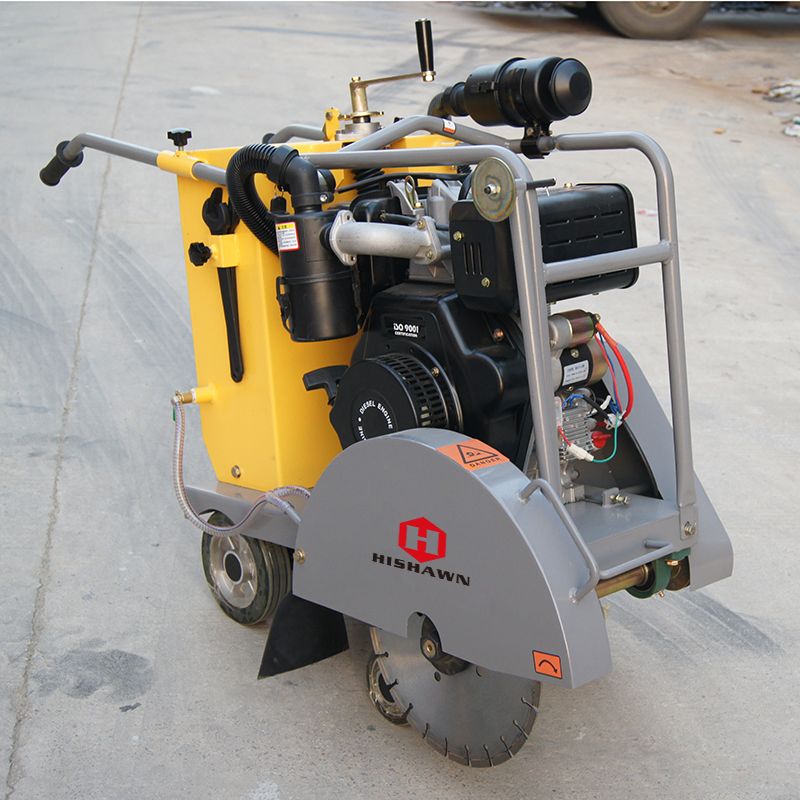

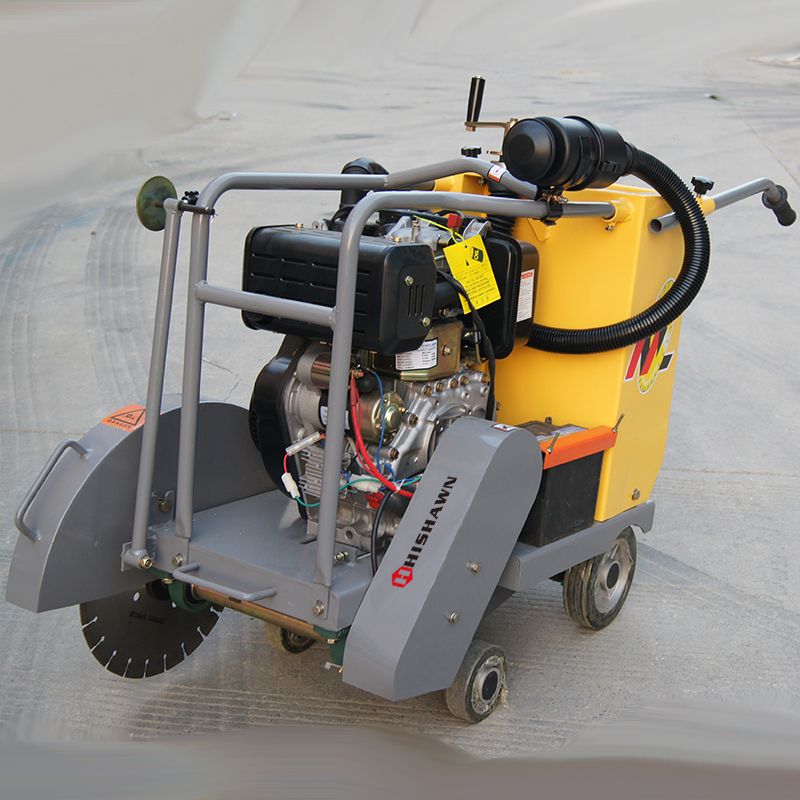

Product Show

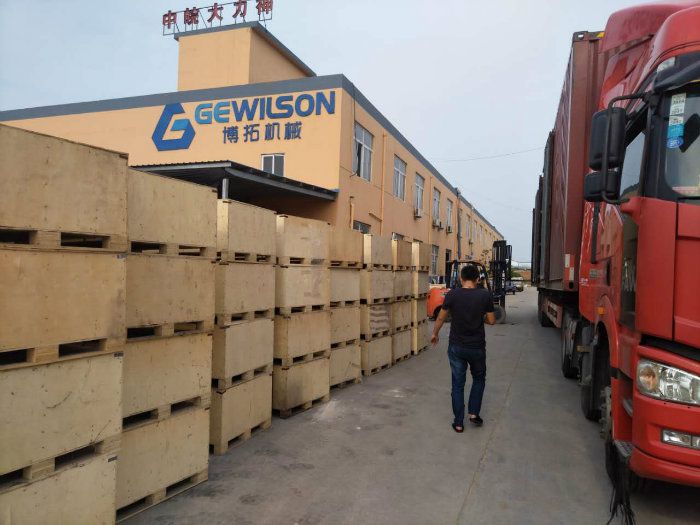

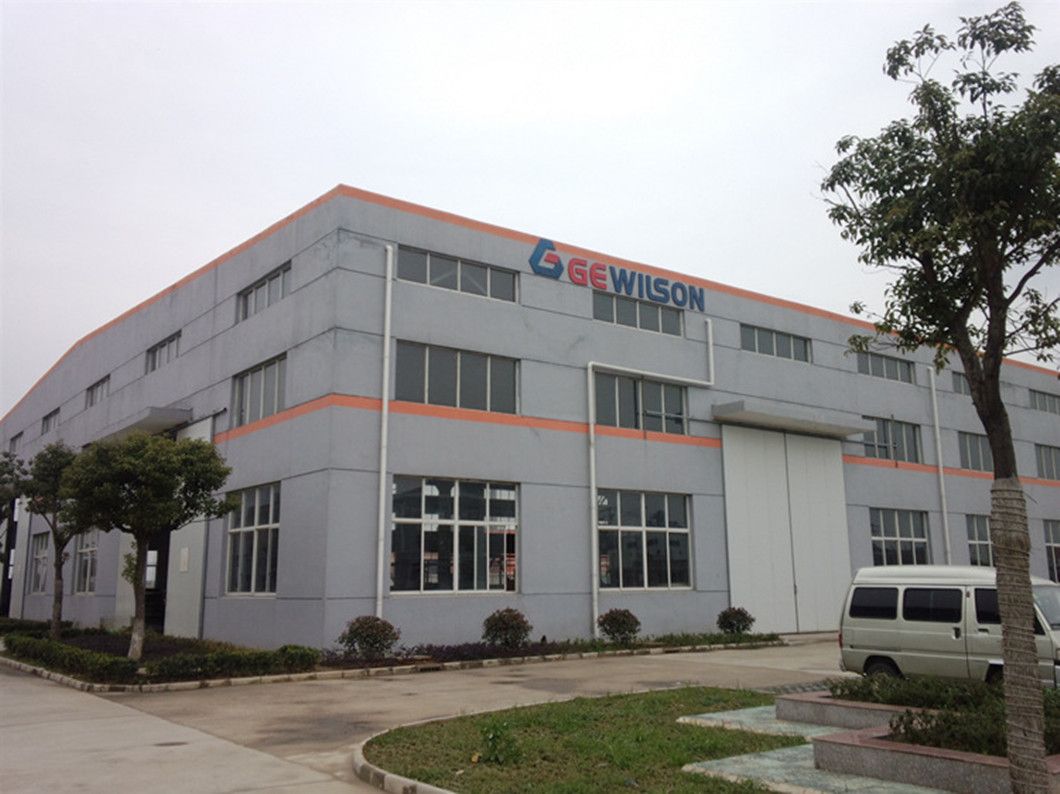

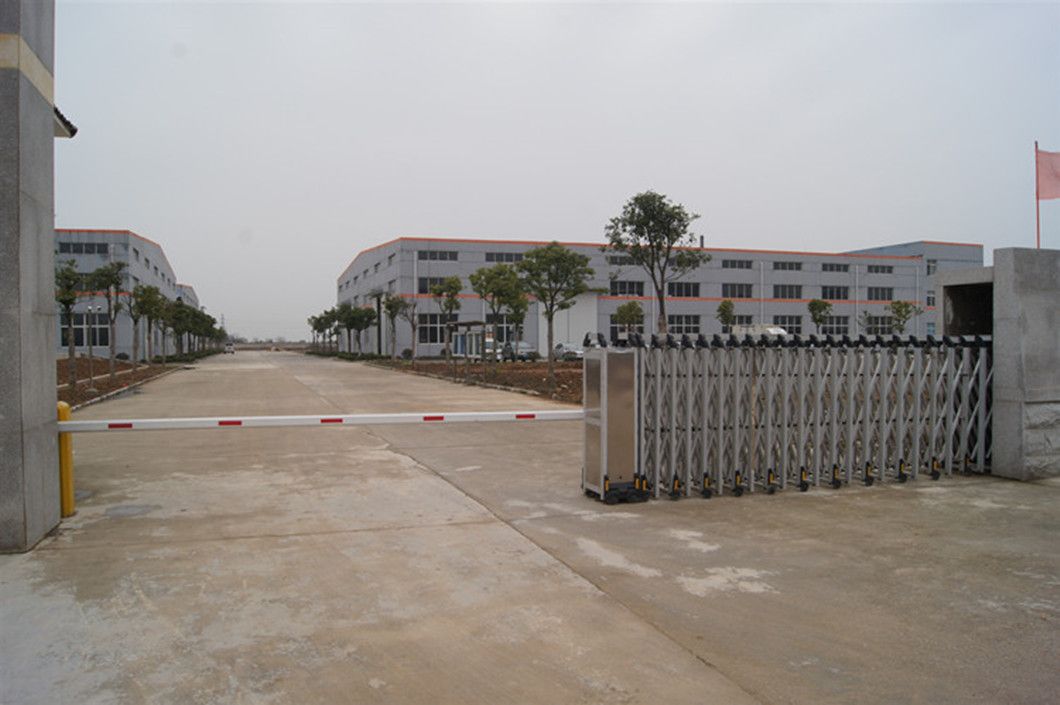

Factory Show
Canton Fair and Cooperation
Certificate&Authorization
Company Introduction
Gewilson is one the national leading manufactures and exporters of powered equipment in China ,It is specialized in generator ,gasoline and diesel generator sets.
gasoline and diesel engine ,water pump,garden machinery,small construction equipment and so on. The company has approved ISO9001 quality system certificate, the products have approved the certificate of CE, EPA, etc.80% of our products are exported abroad, mainly to USA, Europe,Australia, South Asia and Africa.
If you are interested in our products, please feel free to contact us , we will give a detailed introduction to your questions.
