Concrete Pump Reducer Pipe From Hebei Ximai Machinery in 2021

Product Description

Product description.......................................................................................................................................................

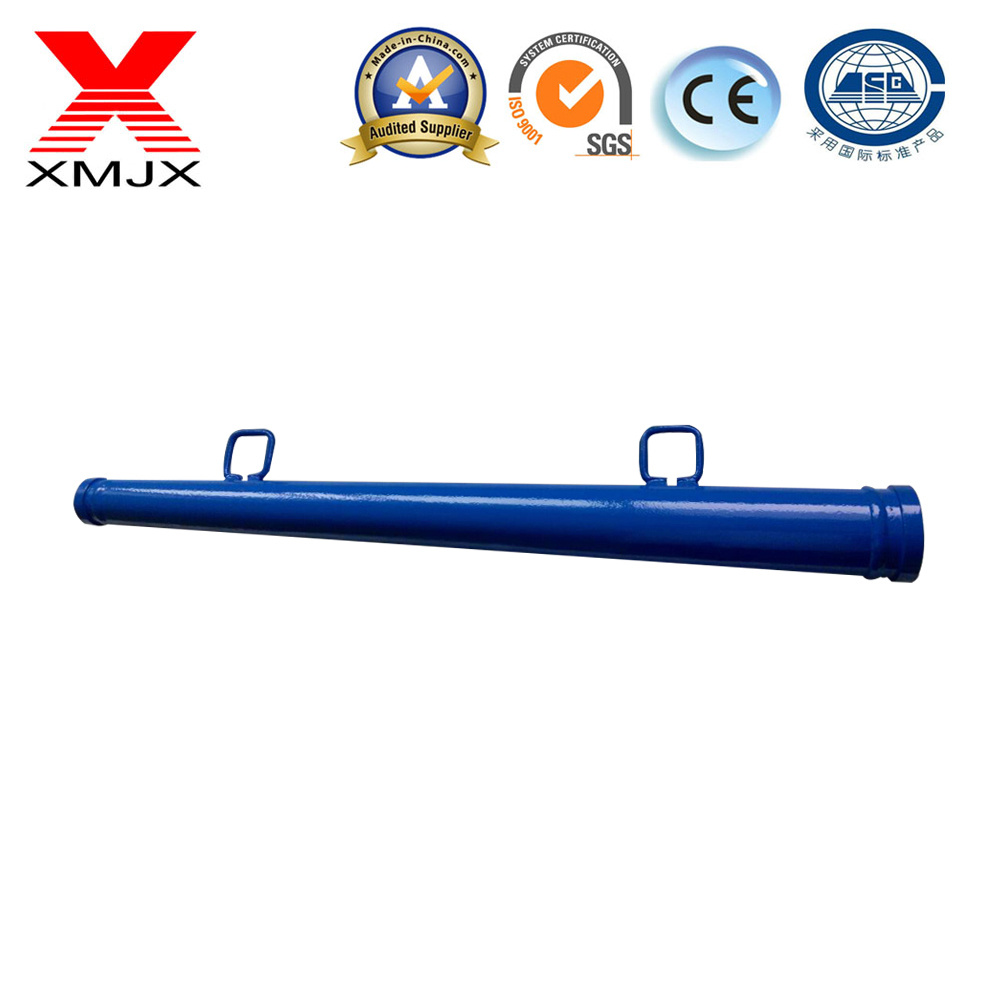

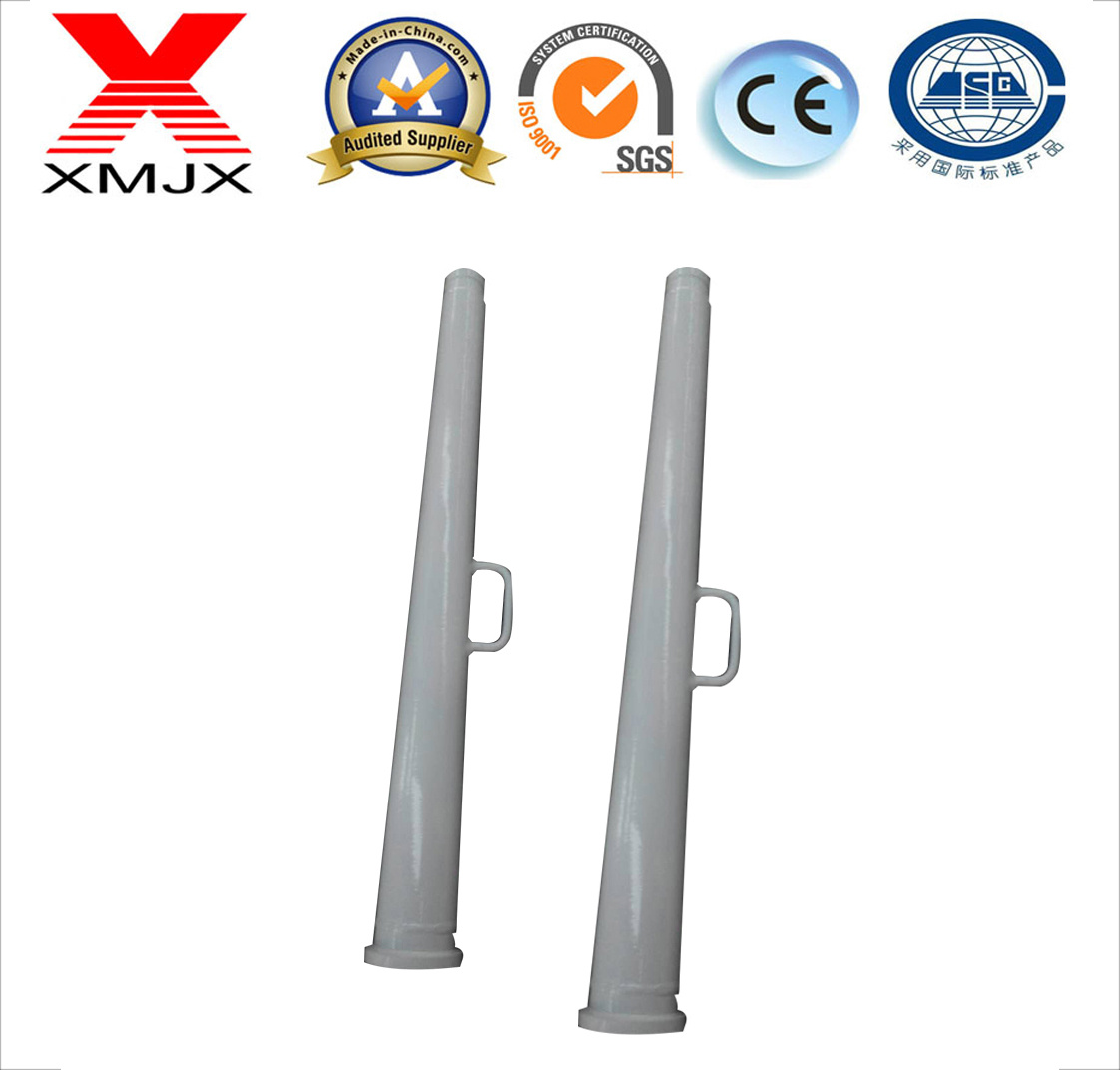

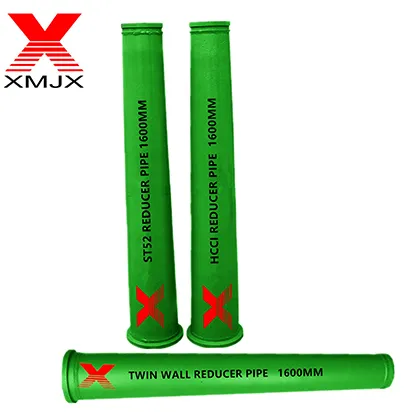

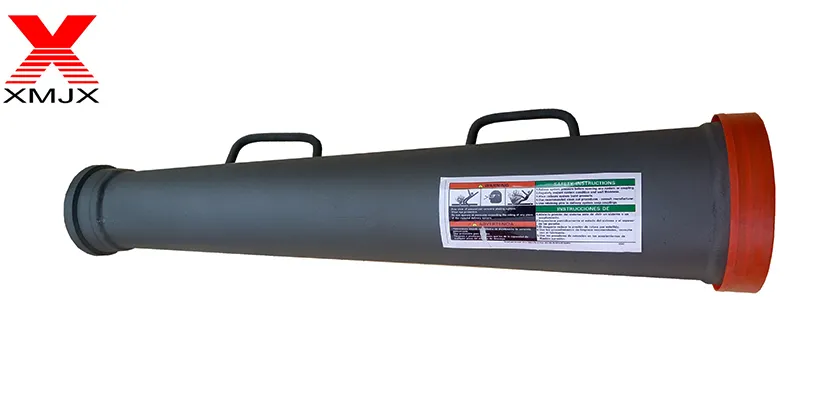

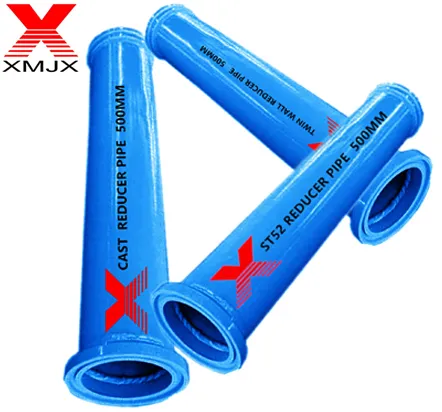

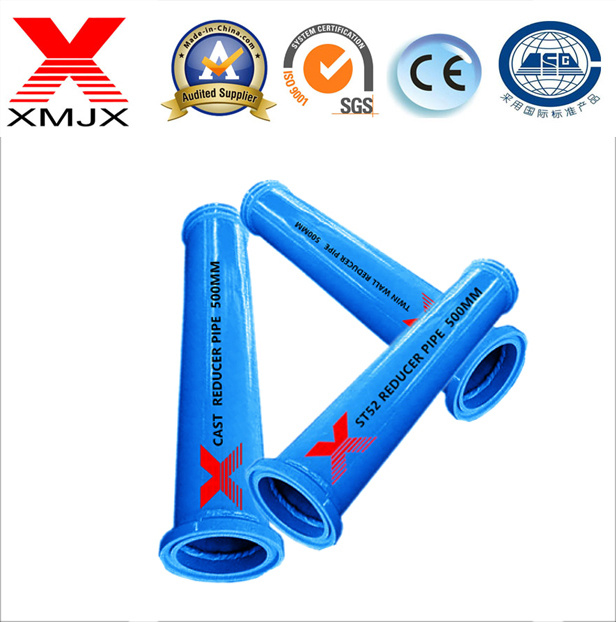

High quality concrete pump reducer pipes

ST52 REDUCER PIPE 500MM(19.7 In.)
Specification	Structure	Material	Wall thickness(mm)	Weight(kg)	Dimension tolerance	Pressure	Weld tensile strength
150-125×500	Single wall	ST52	8mm	31/14.1	<1mm <1°	260bar	>890bar
HCCI REDUCER PIPE (High chromium cast iron reducer pipe) 500MM(19.7 In.)
Specification	Structure	Material	Approximately Wall Thickness (mm)	Shipping Weight lbs/kg	Dimension tolerance	Pressure	Weld tensile strength
150-125×500	Single wall	High chromium cast iron	10	35.6/16.2	<1mm <1°	280bar	>890bar
Mn13-4 REDUCER PIPE 500MM(19.7 In.)
Specification	Structure	Material	Approximately Wall Thickness (mm)	Shipping Weight lbs/kg	Dimension tolerance	Pressure	Weld tensile strength
150-125×500	Single wall	Mn13-4	10	36/16.3	<1mm <1°	280bar	>890bar
TWIN WALL REDUCER PIPE 500MM(19.7 In.)
Specification	Structure	Material	Approximately Wall Thickness (mm)	Shipping Weight lbs/kg	Dimension tolerance	Pressure	Weld tensile strength
150-125×500	Twin wall	Chromium cast iron×6.0mm/ ST52×4.0mm	10	36/16.3	<1mm <1°	200bar	>650bar

Our service...........................................................................................................................................................

High Quality:
ISO9001, CE, CO certifications etc. All components adopt the qualified materials.
100% quality check and durable testing for every product before shipment.

Competitive Price

Large scale production and well trained workers reduce cost greatly,
Ximai use the Bottom Price to make you become the most competitive seller in your region.

One-Stop Shopping

Our major is concrete pump pipe and forged coupling, we also have several partners,
supplying related products so that can meet customers' needs.

Short Lead Time

We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.
We can have your urgent orders ready in short time.

Standard export package

Our package is in conformity with export requirements.
We ensure it's very safe and firm in the course of shipping.

Customer Service

Top sales with professional skills make you never feel difficult to communicate with a factory,
all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

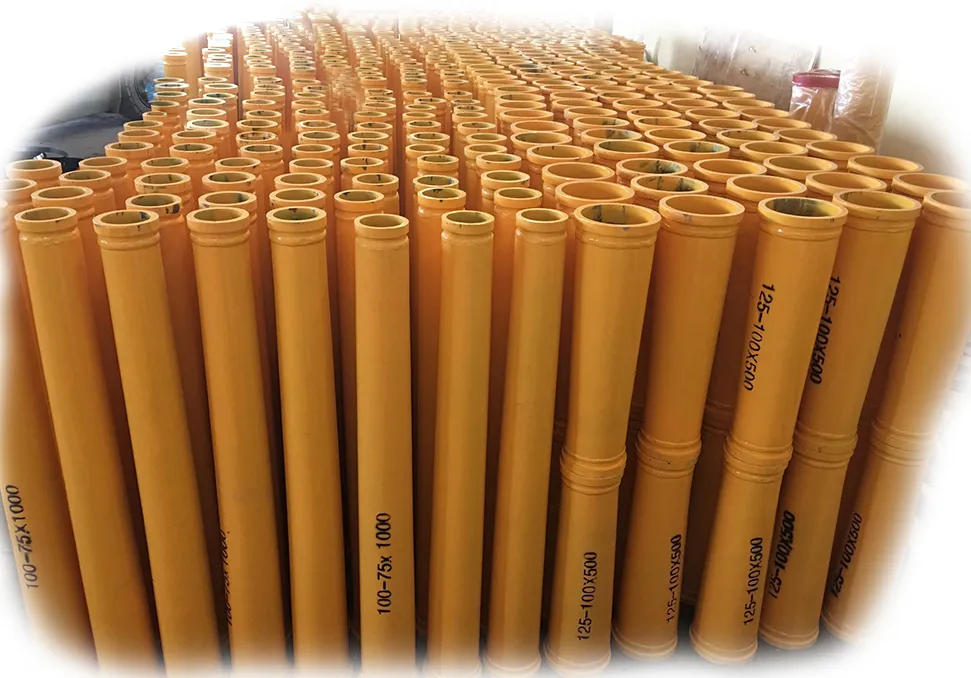

Production display...........................................................................................................................................

Concrete Pump Reducer Pipe From Hebei Ximai Machinery in 2020

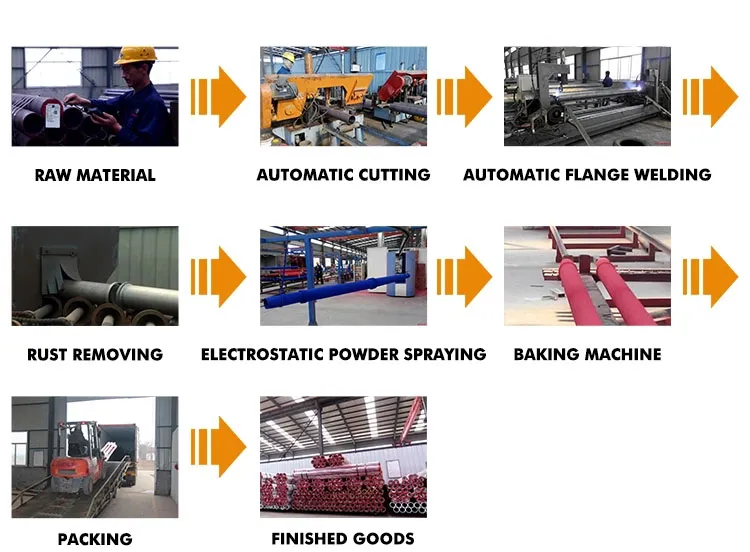

Product process............................................................................................................................................................

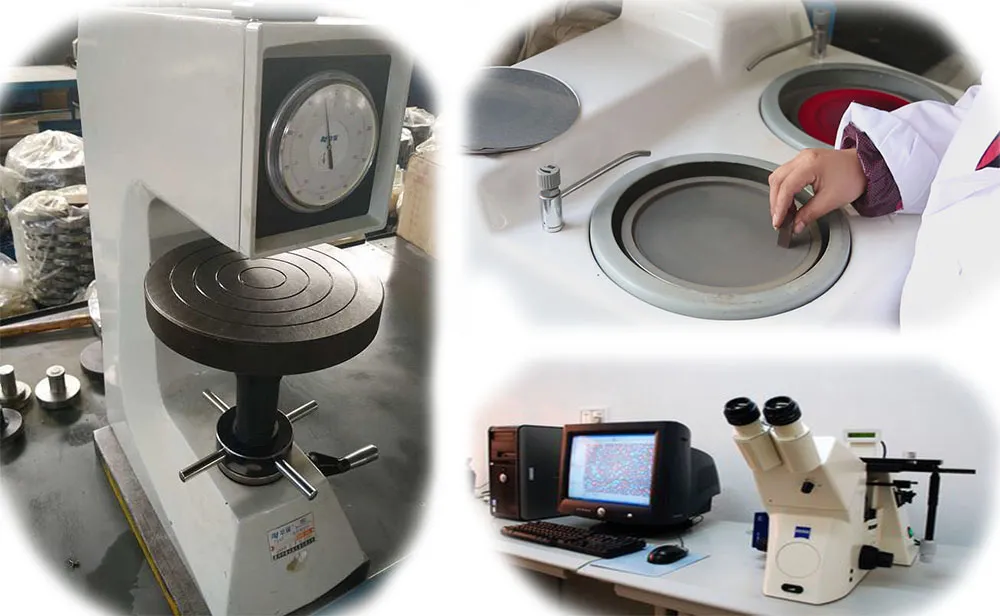

Product test..........................................................................................................................................................

Concrete Pump Reducer Pipe From Hebei Ximai Machinery in 2020

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

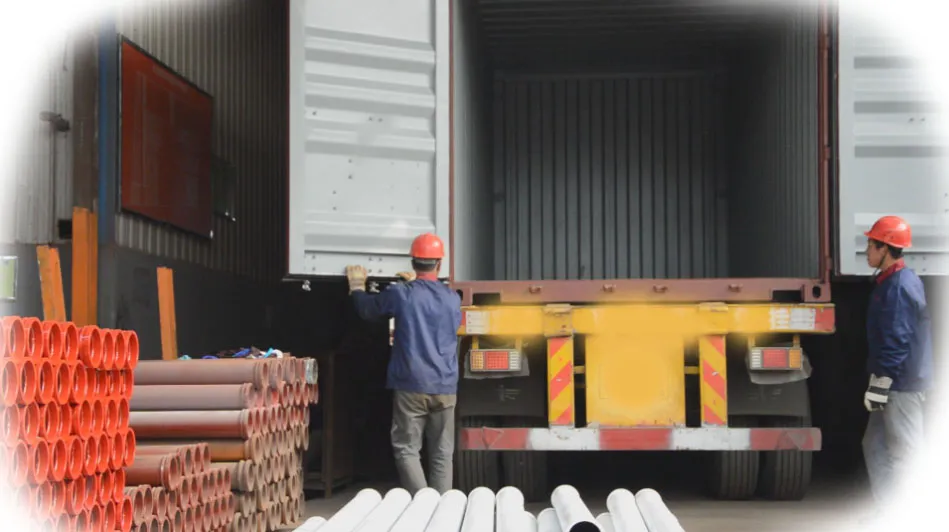

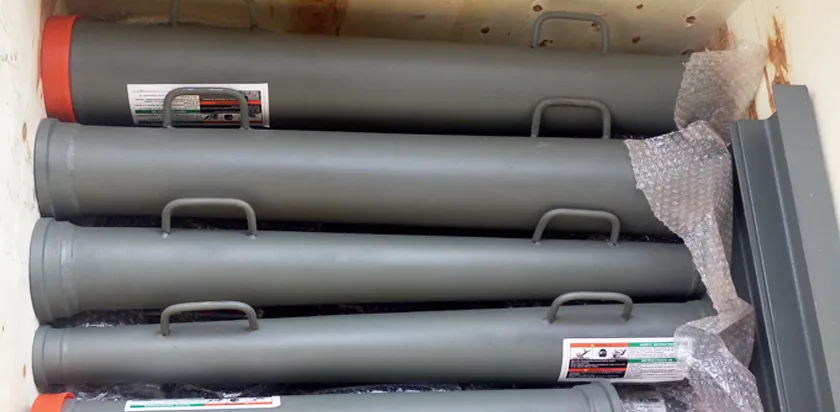

Packaging&Shipping.................................................................................................................................................

Concrete Pump Reducer Pipe From Hebei Ximai Machinery in 2020

Contact us.................................................................................................................................................................

FAQ.....................................................................................................................................................................................
