Rubber Track System Py -160 for Agricultural Machine/Wheelchairs

SPECIFICATIONS:

Frame Construction: ---------------------------------------------------------------------------Steel
Assembly Weight: -------------------------------------------------------------------------25kg/PC
Spec: ------------------------------------------------------------------------ 780mm× 160mm× 480mm
Ground Contact Length: -----------------------------------------------------------480mm
Recommended Operating Temperature: ---------------------------------(-40° C to +55° C)

Wheel: ----------------------------------------------------------------------------UHMW-PE
Wheel Material: --------------------------------------------------------------UHMW and Rubber

Standard Paint: ------------------------------------------------------Silver. Optional: Other Colors
Track Material: ----------------------------------------------------NR90multiple natral rubber
Track Style: -------------------------------------------------------All-Terrain Self-Cleaning
Recommended Max. Speed: ------------------------------50Km/h
Terrian: --------------------------------------------------------All Terrain Including Hard Surface


Description of the rubber track system:

1. Wide used on ATV/SUV/snowmobileehicles/trucks as wheels

2. Easy for vehicles to run on hill land, mud road, sand ground...

Rubber track system Material: Rubber/ UHMW-PE

Application: All terrainason

Warranty: 12 months

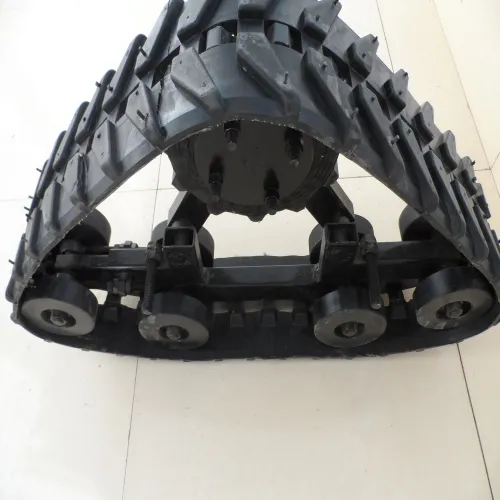

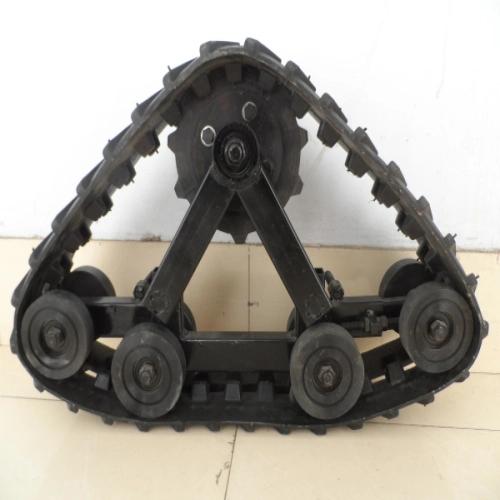

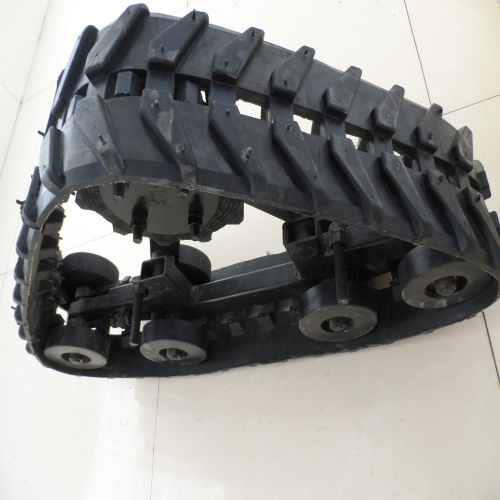

The rubber track system is mainly composed of the rubber track, triangular frame, driving wheels,

Supporting wheels, guide pulley as well as connecting plated device...

It's an integrated mechanical assembly which can make your car run well at all terrain whatever is

Snow, mud, sand, loose surface, even hill terrain...

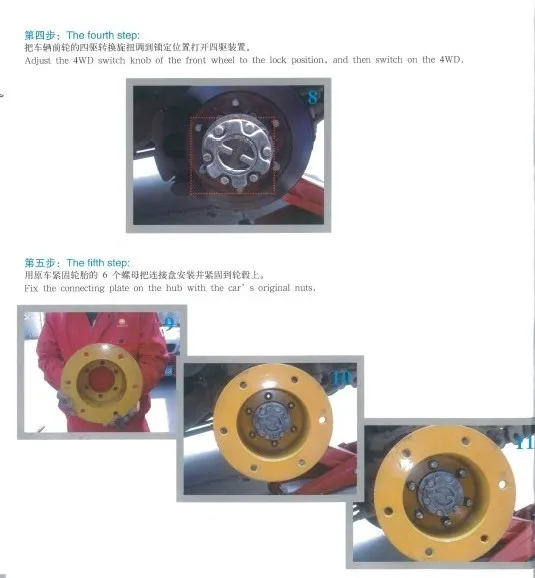

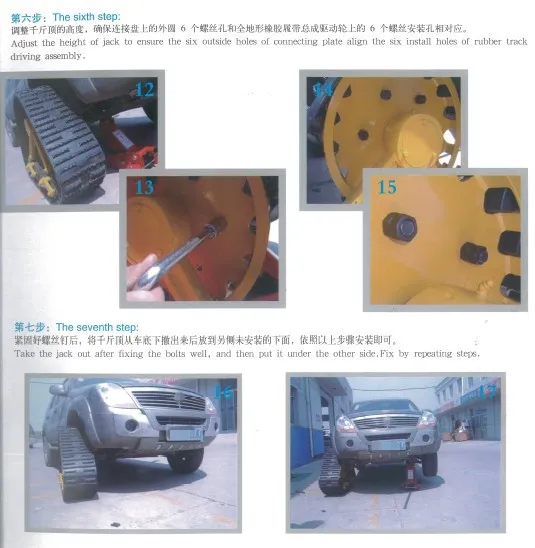

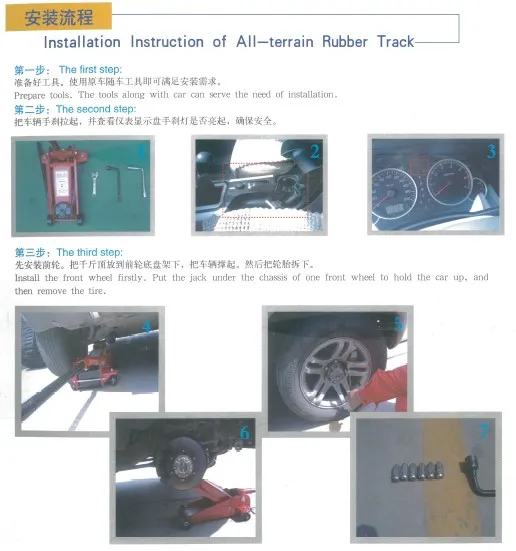

We can also design the mounting hole according to your wheel bolt pattern so that you can

Install it on your car directly without using complicated tools...



The features and advantages of the rubber track system:

1. The track system is light weight building, using lightweight wheels and structural steel frame or

Aluminum frame, that keep the track units durable, without sacrificing performance.

2. Our track system is all season tracks, molded rubber composite design provides additional stability.

The track is designed without perforated openings, preventing debris from entering through the

Track. Specially designed internal drive lugs continually work on sand, snow, mud out of the track,
