China 1 Ton Changchai Engine Crawler Hydraulic Mini Digger Excavator

Product Description

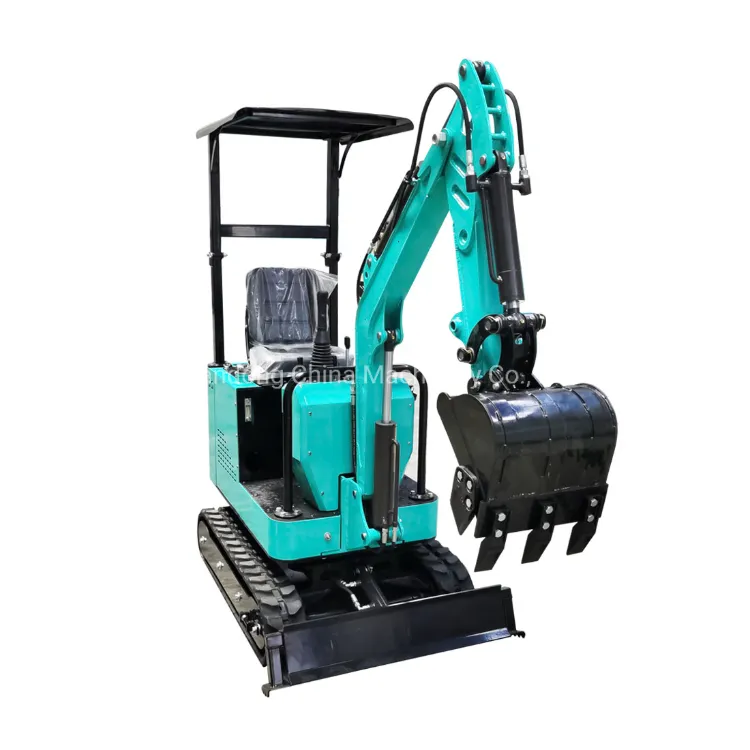

1 Ton Changchai engine Crawler hydraulic Mini digger excavator

What kind of excavator is needed to repair the garden?

If your garden area is narrow, then the large excavator can not enter the work at all. At this time, the small size and convenient operation of the small excavator is your most suitable choice. However, with so many models of excavators on the market, how do you choose? Don't worry, the PC08 mini excavator must be what you want This excavator has the following advantages

1.Unique big arm structure design, not easy to break
2.The operation front pipeline is clear, and the protective cover protects the pipeline from being destroyed.
3.The boom cylinder adopts the well-known brand, the cylinder is designed integrated, which is more advanced than the welding technology.

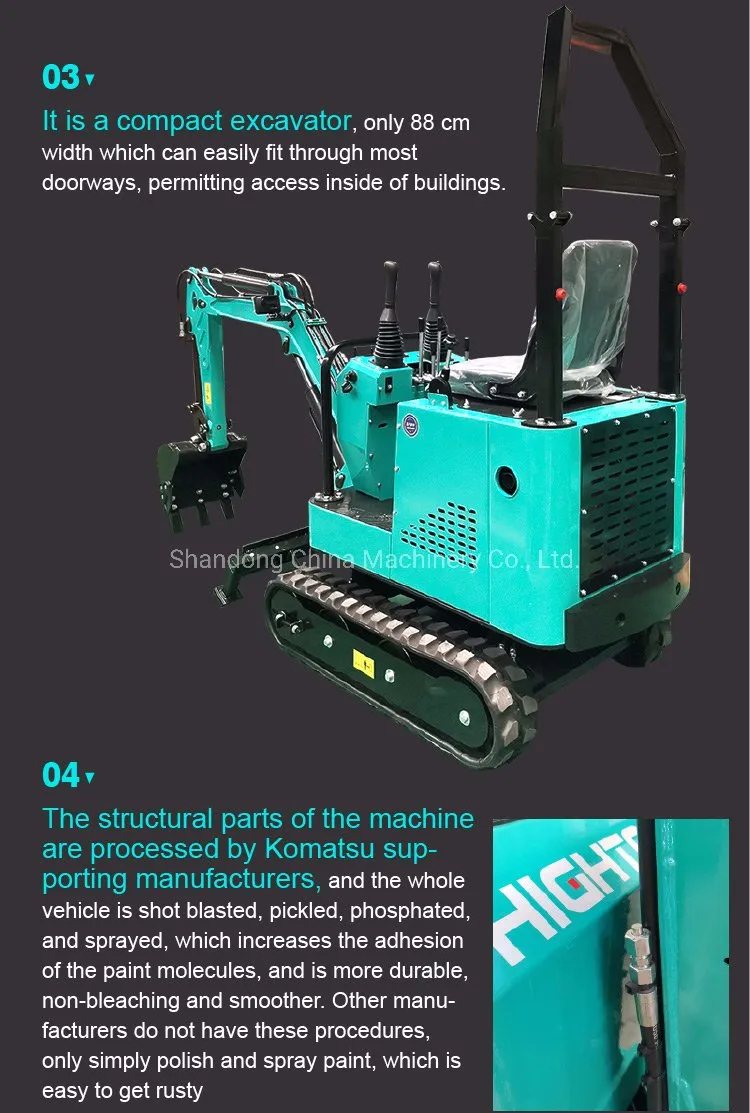

4.All structural parts are finely processed, and shot blasting, pickling, and baking finish process are adopted. The surface has high gloss and high paint adhesion.
5.The hydraulic pump is a pure cast iron pump, which is more wear-resistant than aluminous pump under the 3600 rpm engine high speed.

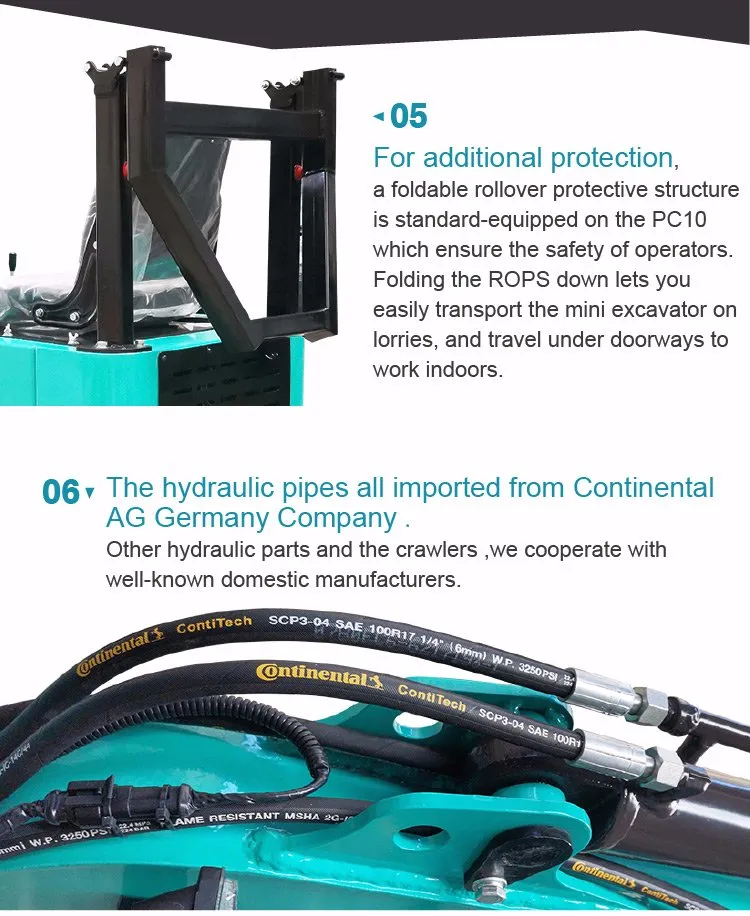

6.All hydraulic pipes adopt high-quality German imported pipes
7. For rubber track which uses Jin Lilong/Yuanchuang brand, a well-known crawler brand in China .
8.French company design concepts and elements are added PC08 micro excavator can also be used with various accessories, such as grabble, Auger, plain bucket, ripper, rake, Trailer, etc.
We believe it will become your good helper.

CE Euro 5 EPA engine 0.8ton/1ton Household Hydraulic Small Digger Crawler Mini Excavator Price is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking.

One set comes with one standard digging bucket 380mm and canopy.
Package: One set packing by Wooden case, 20' Containter can hold 6 sets, 40' Containter can hold 12 sets.
1 Ton Changchai Engine Crawler Hydraulic Mini Digger Excavator

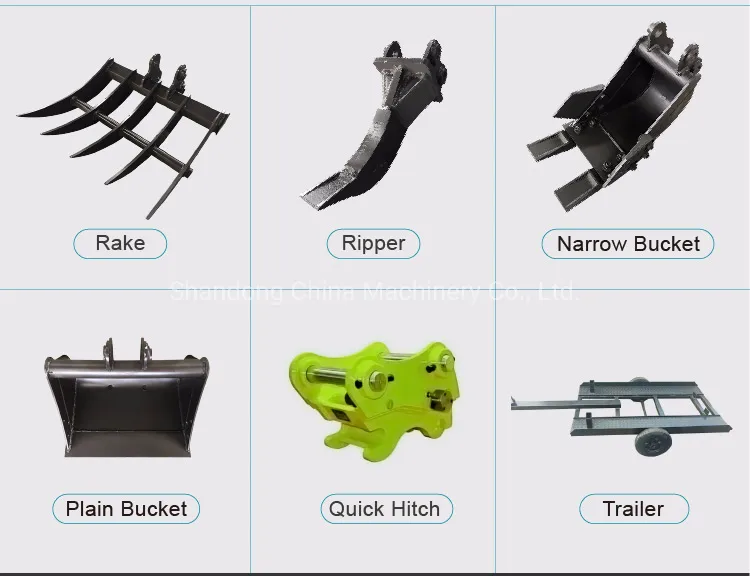

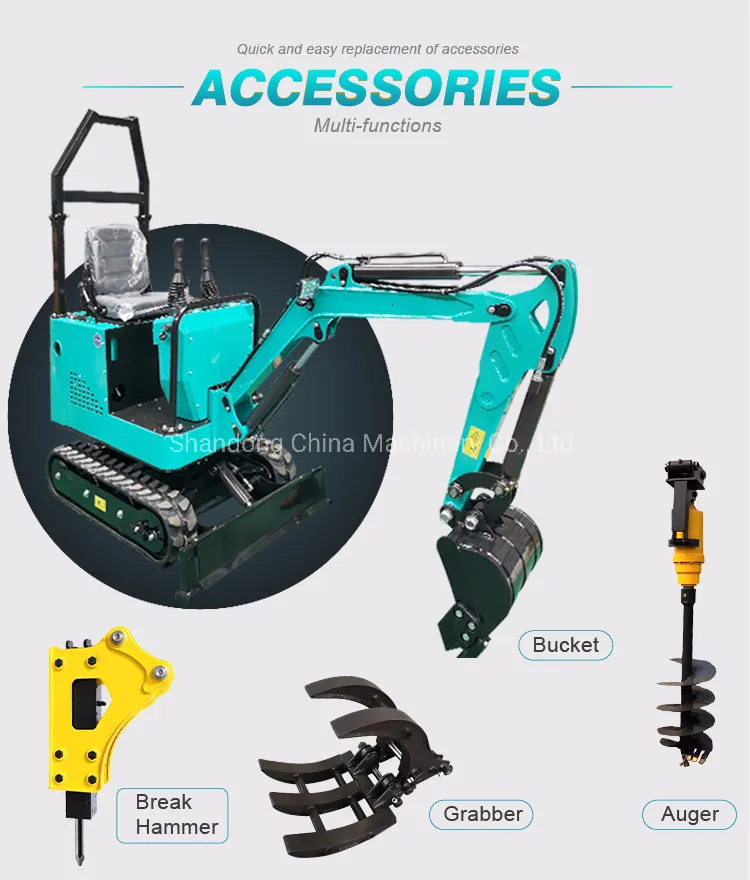

Optional Accessory : Narrow bucket(200mm width), Plain bucket (500mm width), Ripper, Grabber, Rake, Auger and etc.

Specifications:

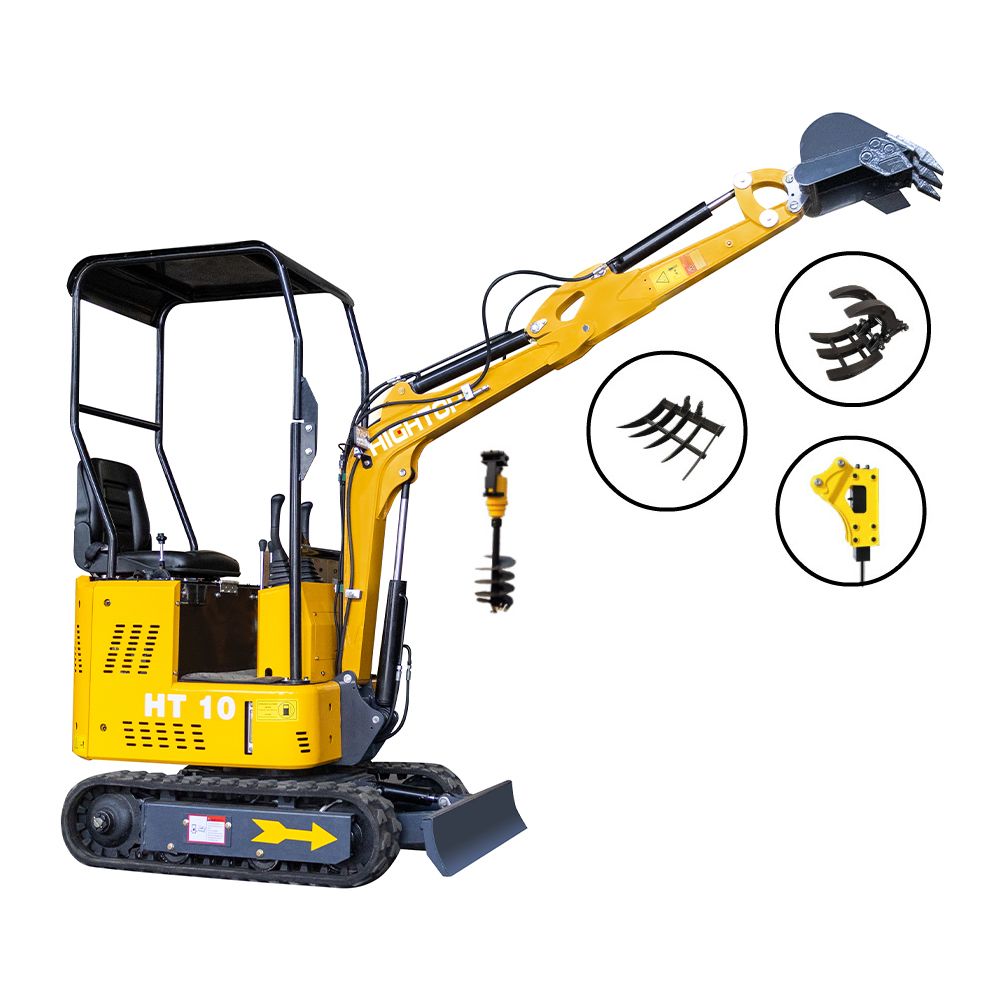

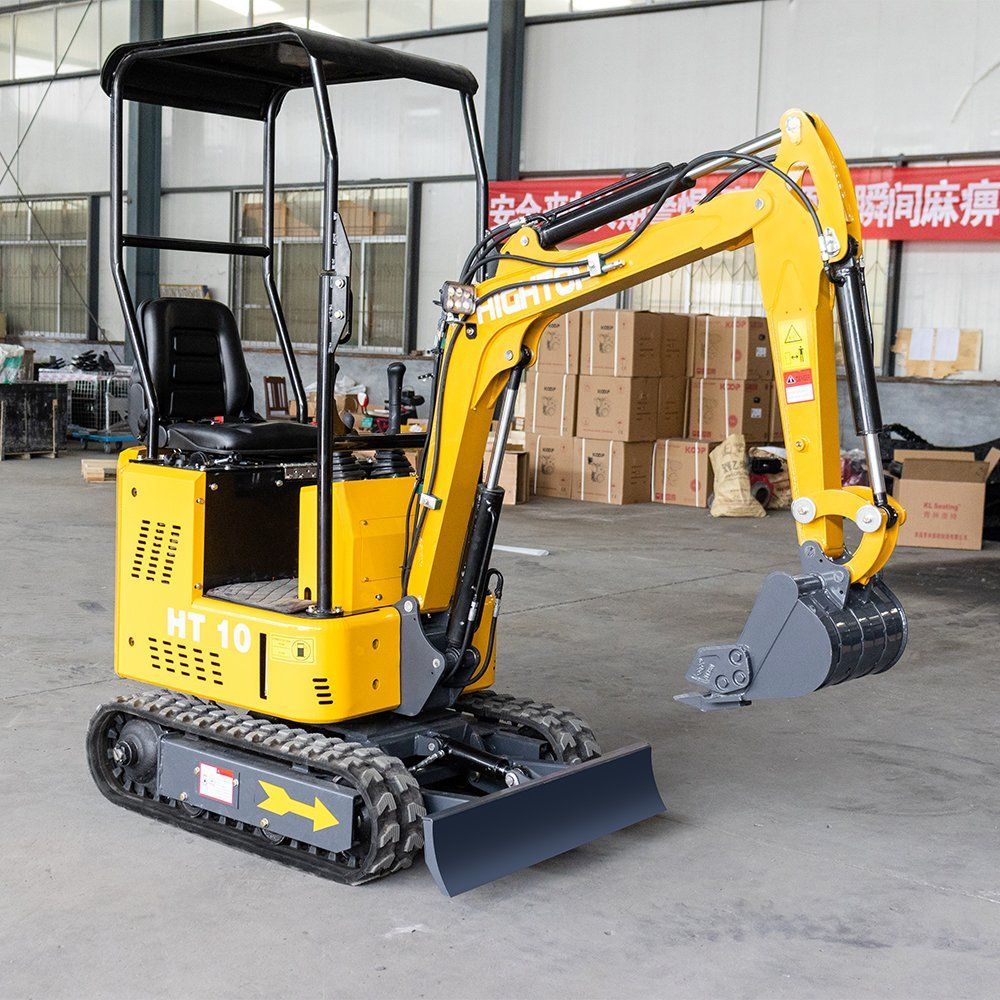

Model	HT10
Operate Weight	1000KG
Digging bucket capacity	0.025cbm/120kg
Bucket width	380mm

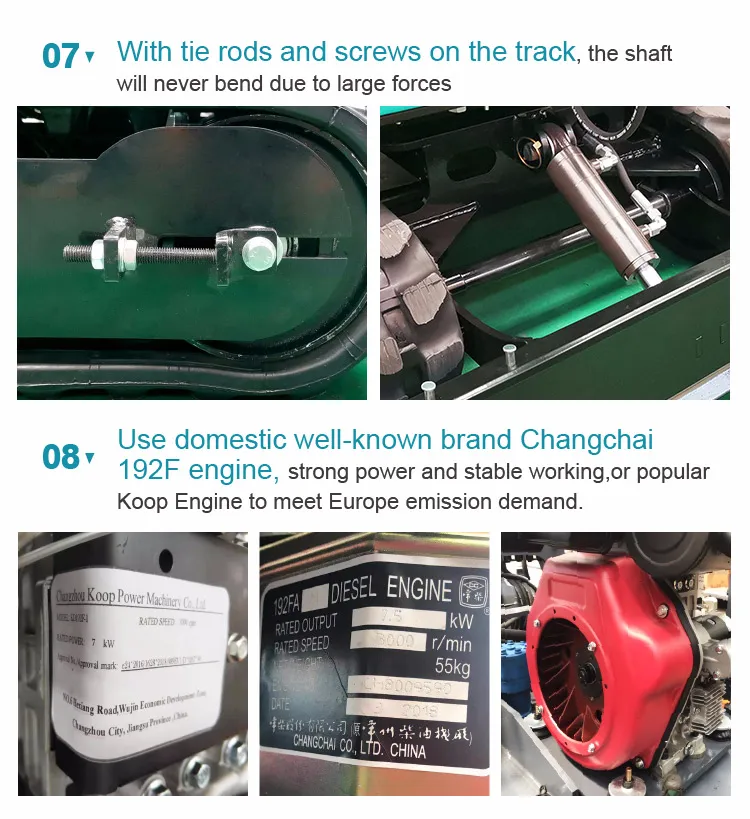

Engine	CHANGCHAI (KD192),Single cylinder, fan cool
Optional engine	BRIGGS & STRATTON/LCT EPA, Euro 5
Rated power	8.2kw/3600r/min
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN(OMS-2450)
Travel speed	1.2km/h
Overall dimension( LxWxH)	2590x800x1250 mm
Max. Digging depth	1200mm
Max. Vertical digging depth	1375mm
Max. Digging height	2350mm
Max. Dumping height	1600mm
Max. Digging radius on ground	2450mm
Min. Rotation radius	1100mm
Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255mm

Feasure:
1. Easy to operate
Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
2. BIG PERFORMANCE IN A COMPACT DESIGN
Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
3. SAFETY ON THE JOB SITE
Your safety is our top priority. The mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.
4. LOWER OPERATING COSTS
Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the mini excavator was designed with reducing your operating costs in mind.

Details image:

1 Ton Changchai Engine Crawler Hydraulic Mini Digger Excavator
