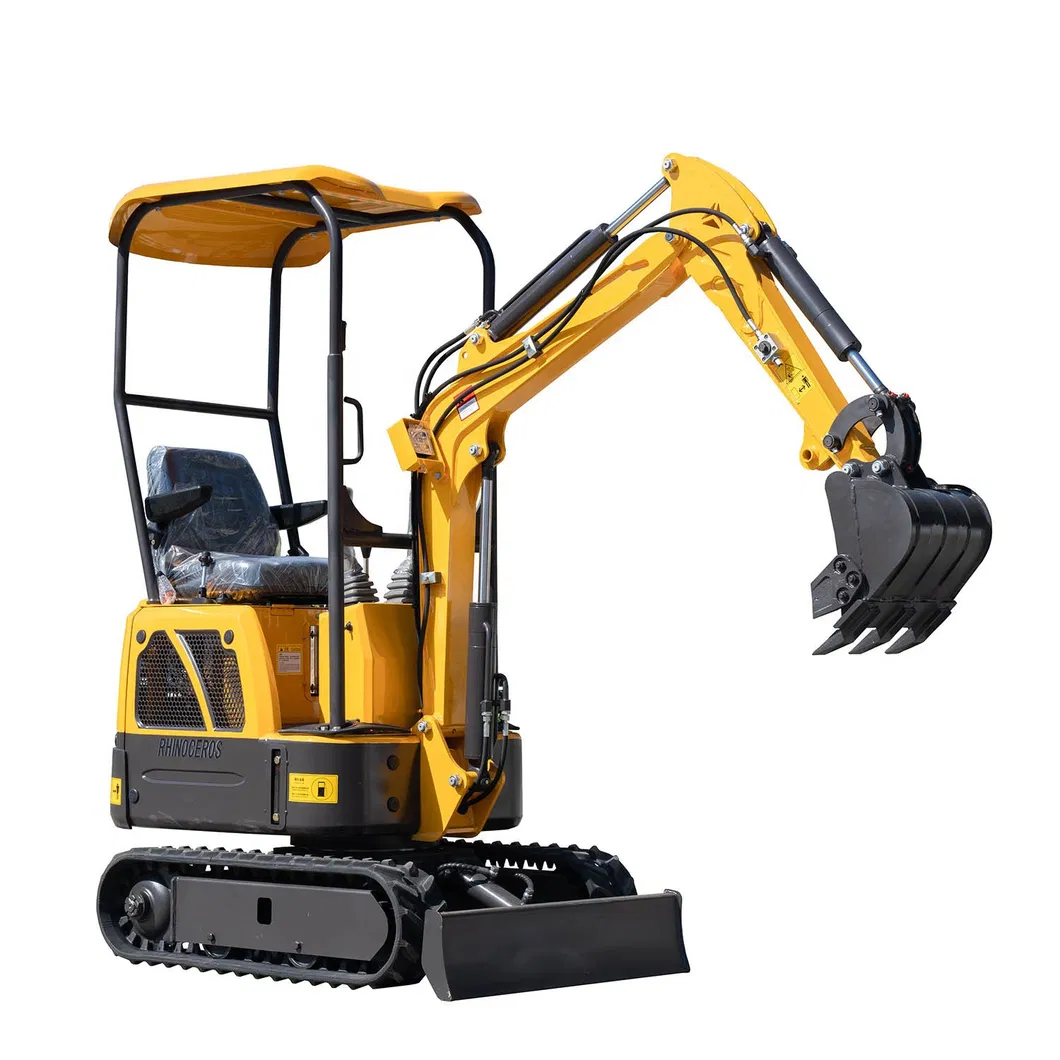

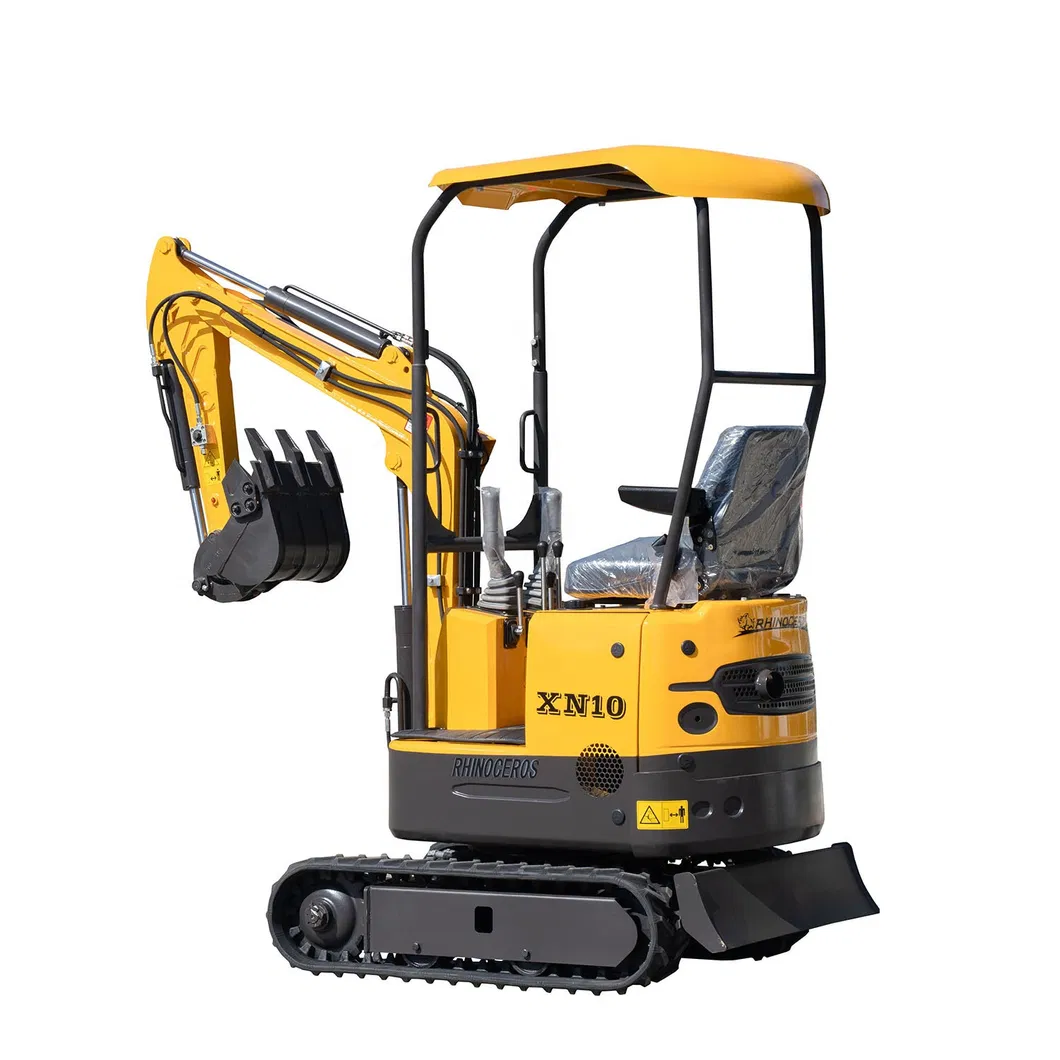

1 Ton Small Digger New Mini Excavator Prices with EPA Engine
High quality small digger XN10 mini excavater with competitive price Product OverviewFeatures1) Simple structure and compact design ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Give full considerat......
Send Inquiry
Product Description
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.

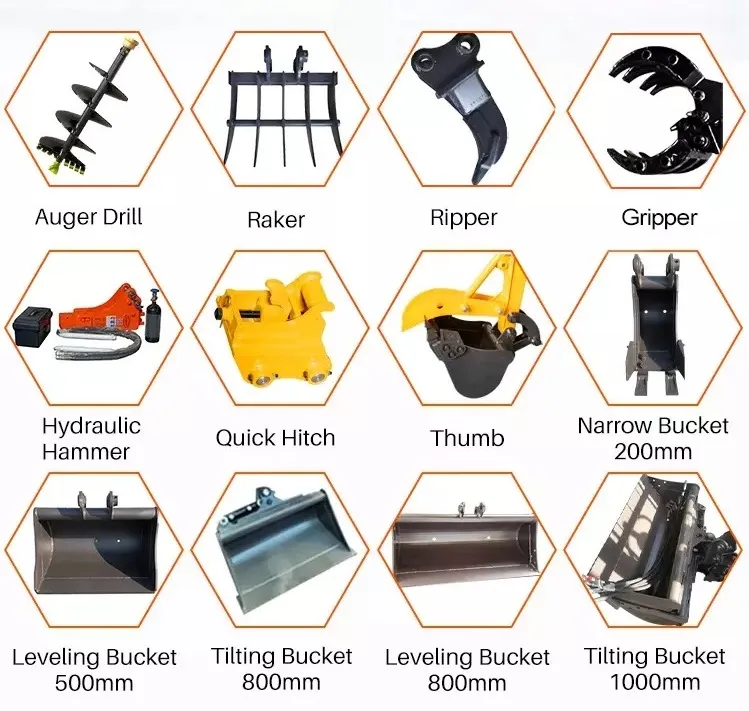

4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return. small excavators for sale mini excavators hydraulic excavator for rent
Operating Weight | 1000kg |
Digging bucket capacity | 0.025cbm |
Digging bucket width | 350mm, can add narrow bucket is 200mm |
Engine | KOOP(KD192F) |
Rated power | 8.6kw/1800r/min |
Displacement | 0.211 L |
Bore stroke | single cylinder, fan cool |
Main pump | SAISIDA |
Valve | BEIFANG |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Wheelbase | 910 mm |
Total length of track on land | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 130 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |

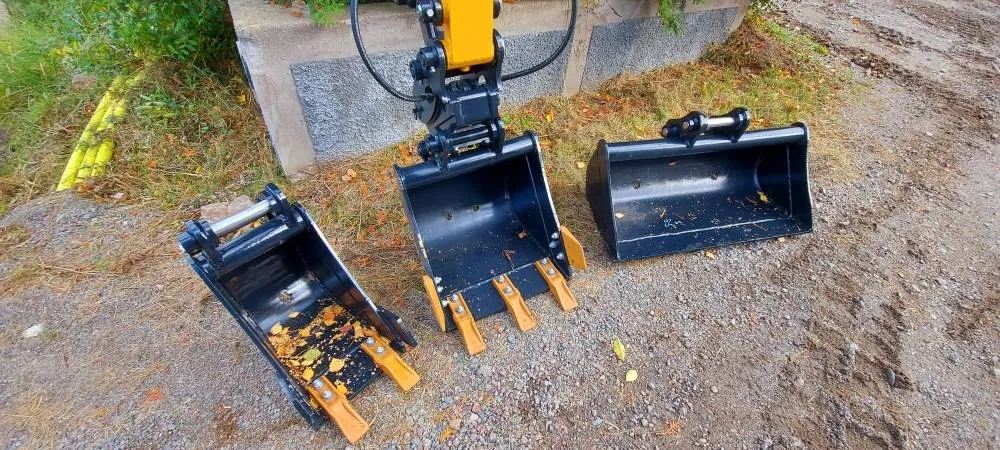

You can install more and more accessories to discover more functions of the mini excavator
If you need 1-3 units would be Wooden box, More than 4 units will loading by container
Within 7 days we will ship your goods when we received the advance payment

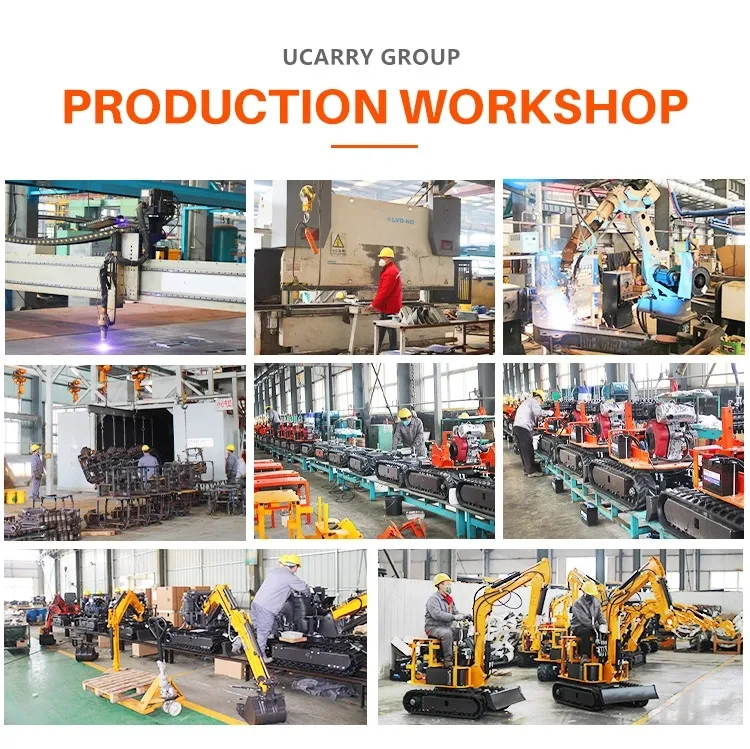

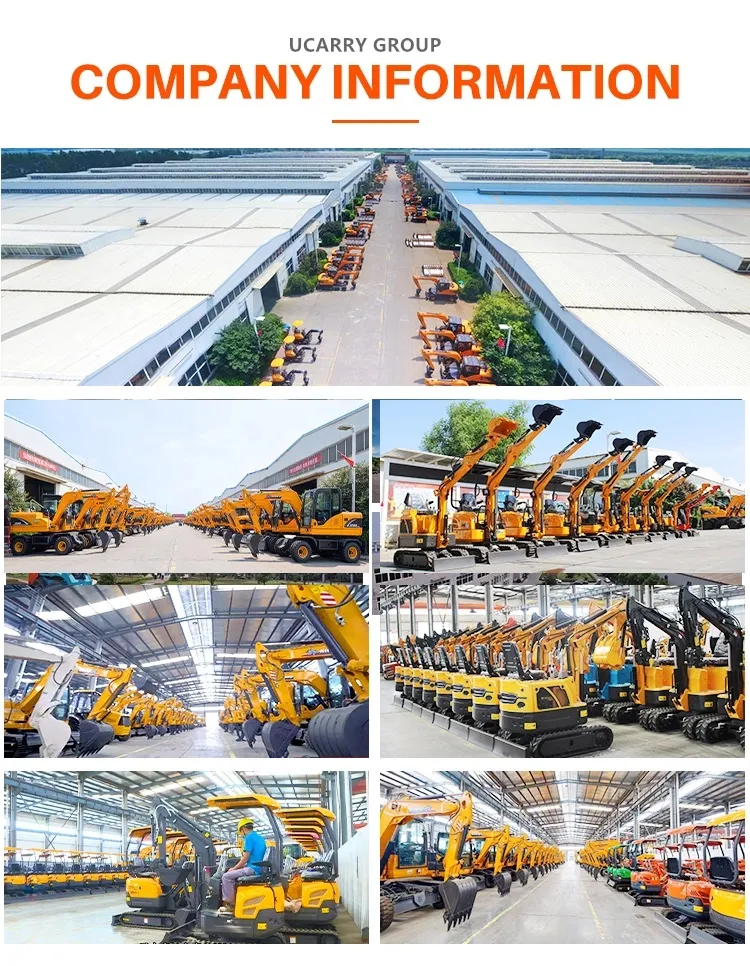

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.
Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our patents design.
All of our products have CE/ ISO Certificate
