1600kg Lx16-9b Mini Crawler Excavator Cheap Price
1600KG LX16-9B Mini Crawler Excavator Cheap PriceProduct DescriptionLX16-9B 1.6 ton crawler excavator has beautiful design, its platform can rotate 360 degrees.The excavator is equipped with rubber track, it's reliable and of user-friendly.With multiple functions of digging, grabbing, drilling, ......
Send Inquiry
Product Description
Product Description

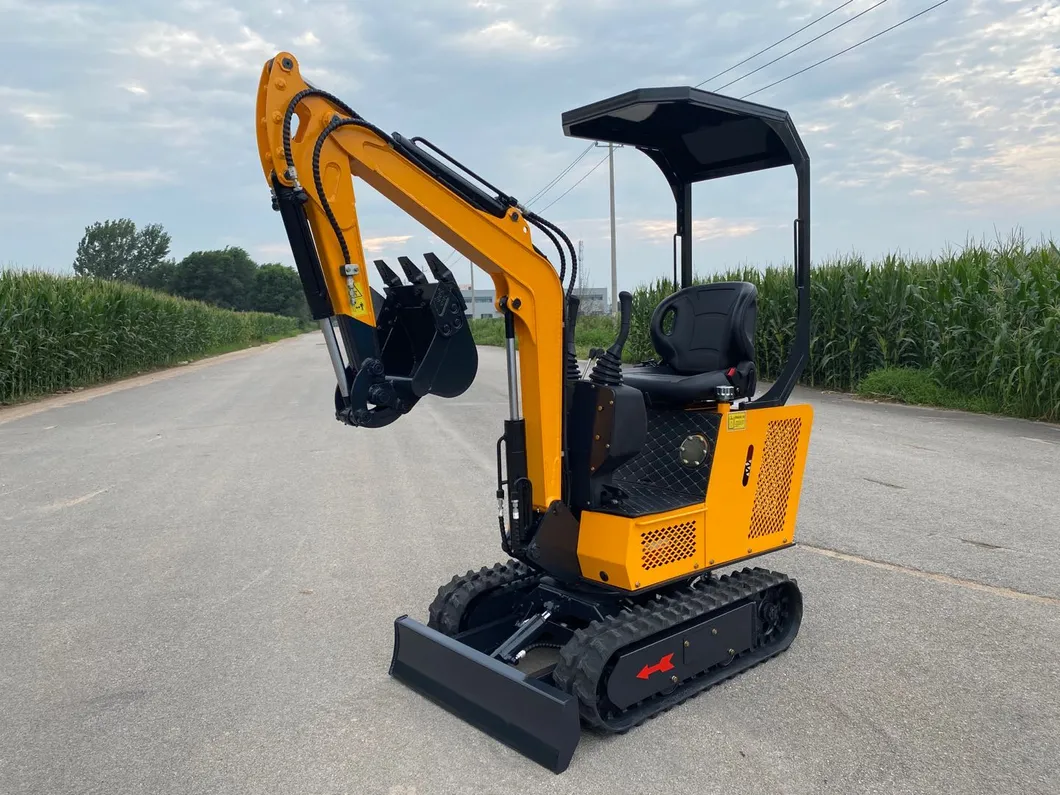

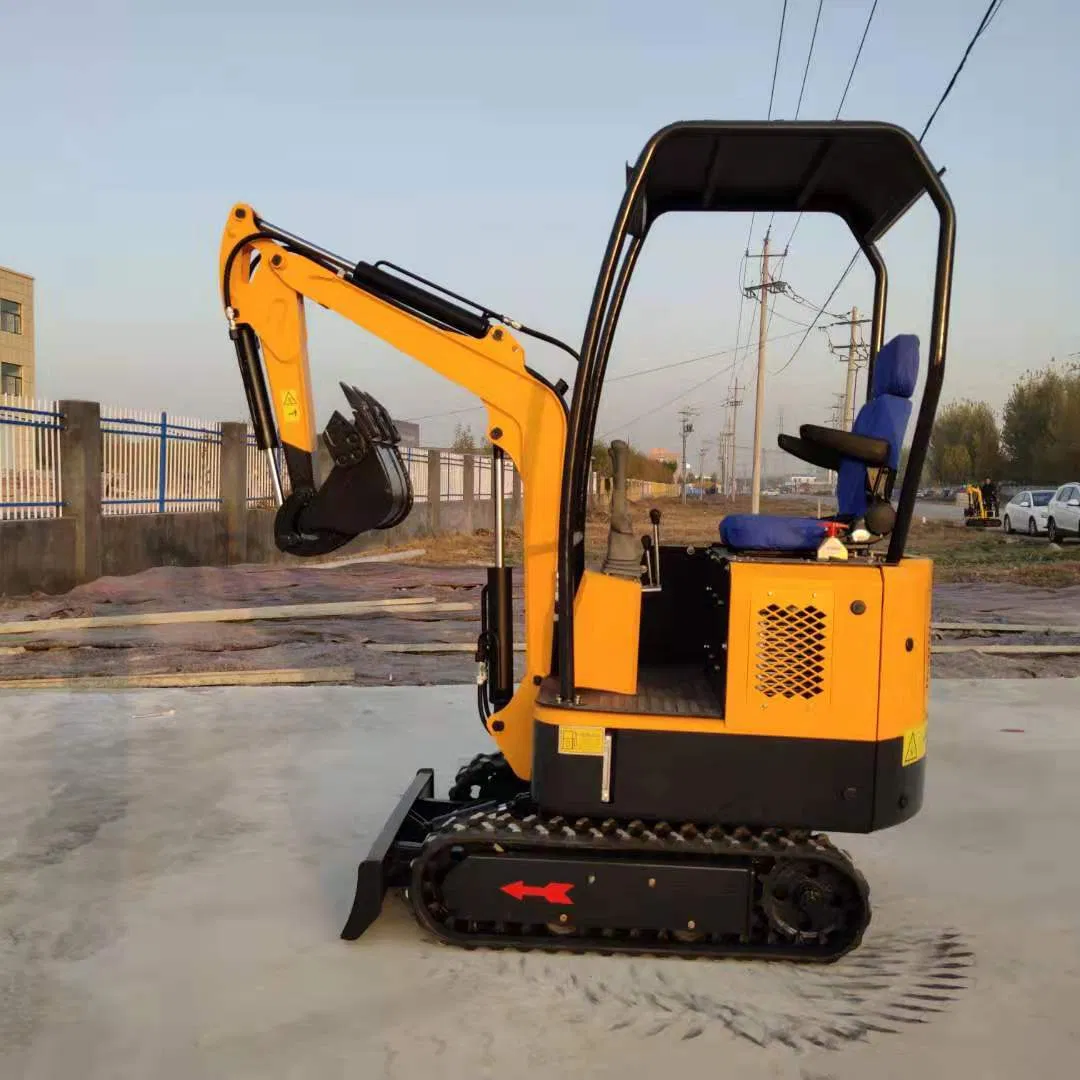

LX16-9B 1.6 ton crawler excavator has beautiful design, its platform can rotate 360 degrees.
The excavator is equipped with rubber track, it's reliable and of user-friendly.
With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
1.The hydraulic system and Multi-valve of Korea and Japan adopt loop pressure compensation, load sensitive type valve, and non-pressure interference, so make the operation coordination.
2.Structural parts holes are made by full automatic numerical control fine boring, gap precision, well lubrication; surface with shot blasting, paint surface has strong adhesive force; cab and covering parts are processing with electroscopes.
3.Full-Automatic welding, weld joint adopts ultrasonic flaw detection, achieved zero defect in weld.
4.Beautiful cab specially designed according to human engineering, and equipped with all-weather air conditioner, and a built-in cushion pad to reduce vibration. Making the driving environment safer and more reliable. It is featured by compact design, flexible movement and convenient operation
Technical parameters
Model
LX16-9B
Operating Weight
1600kg
Digging bucket capacity
0.045cbm/400kg
Digging bucket width
400mm, can add narrow bucket is 200mm
Engine
Yanmar EPA
Rated power
11.2kw/2200/r/min
Displacement
0.854L
Bore stroke
three cylinder, water cool
Main pump
KDK
Valve
BEIFANG
Displacement
6.8ml/r
Swing motor
EATON
Traveling motor
DONGHYUAN
MAIN DEMENSIONS
Overall dimension( LxWxH)
3160x1040x2377mm
Total length of track on land
1670mm
Platform ground clearance
460 mm
Platform back turning radius
740 mm
Chassis width
1040 mm
Track width
180 mm
Chassis ground clearance
460 mm
Bucket digging force
10.5kn
Arm digging force
6.5kn
Track height
320 mm
OPERATING RANGE
Max. Digging depth
2150 mm
Max. Vertical digging depth
1740 mm
Max. Digging height
3275 mm
Max. Dumping height
2310 mm
Max. Digging radius on ground
3470 mm
Min. Rotation radius
1440 mm
Max. Upgrade height of bulldozer blade
262 mm
Max. Digging depth of bulldozer blade
192 mm

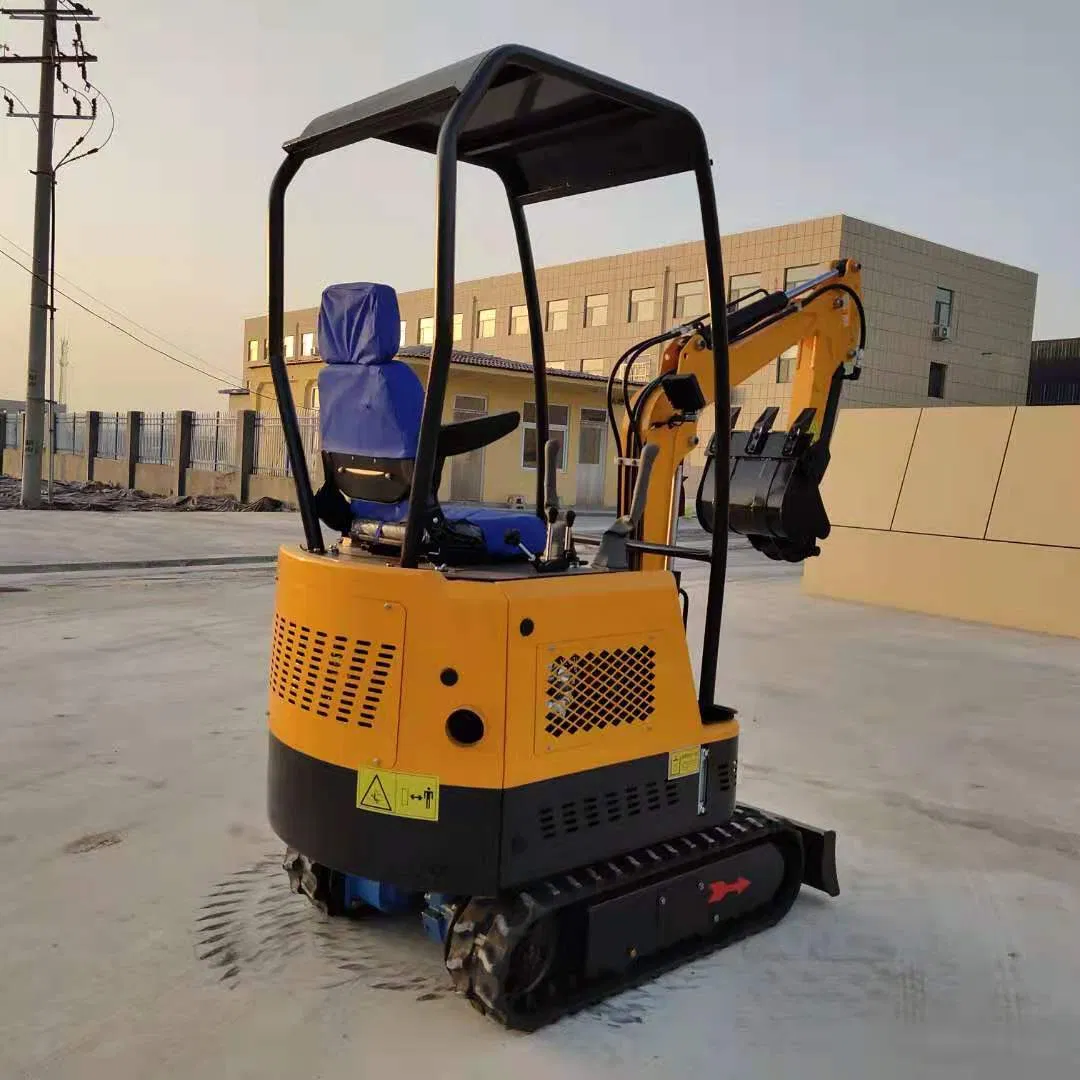

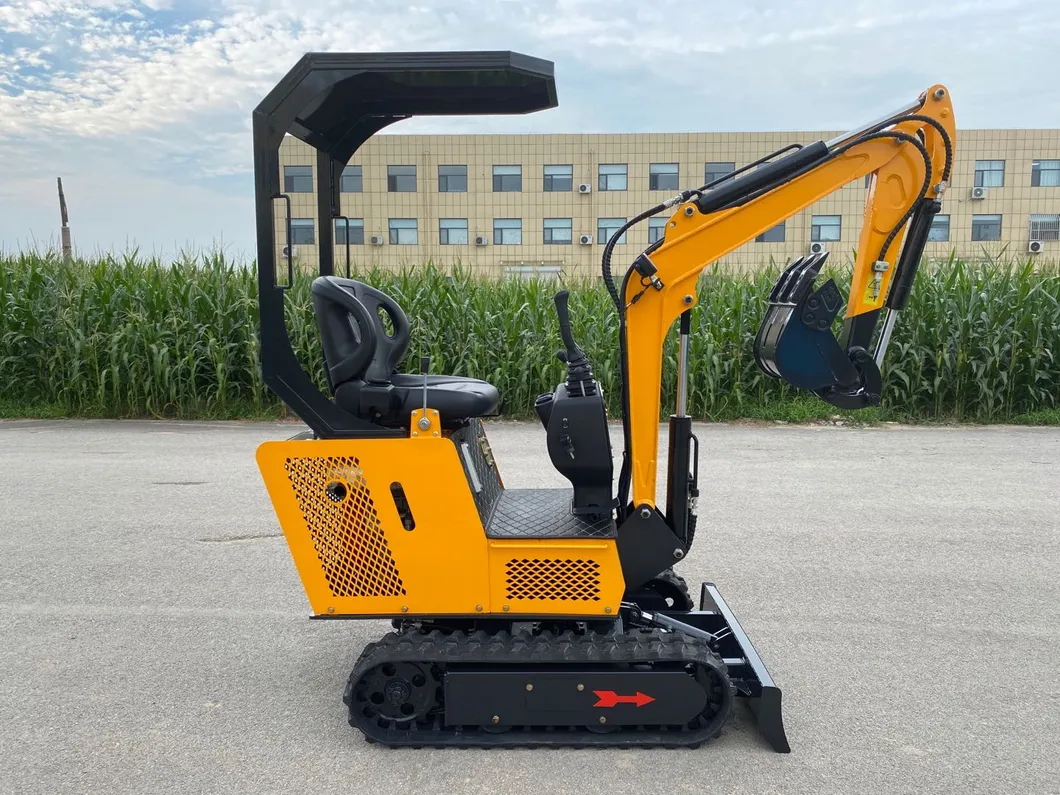

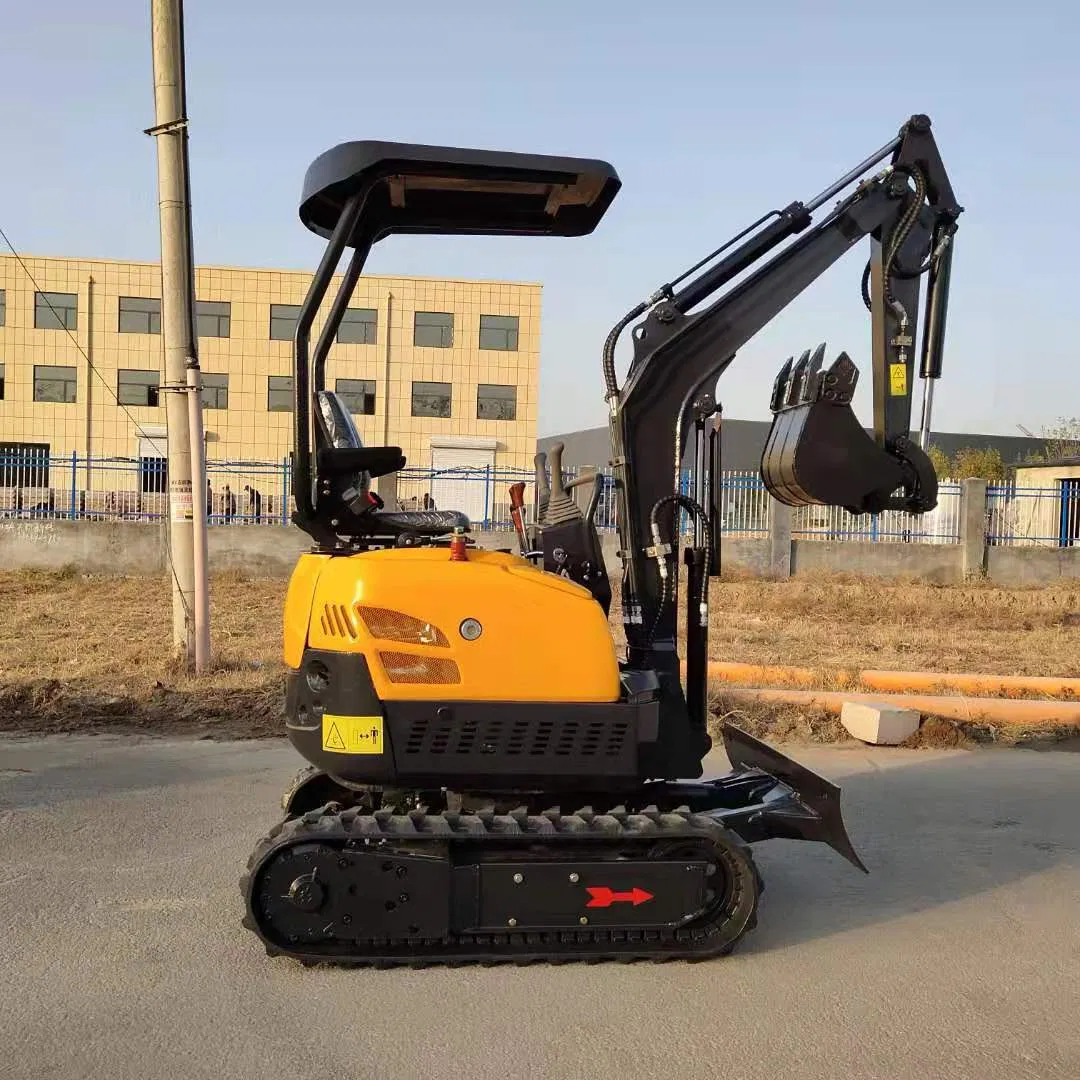

Pictures
