4 Ton Mini Excavators Ripper Micro Excavator

Product Description

4 Ton Mini Excavators Ripper Micro Excavator

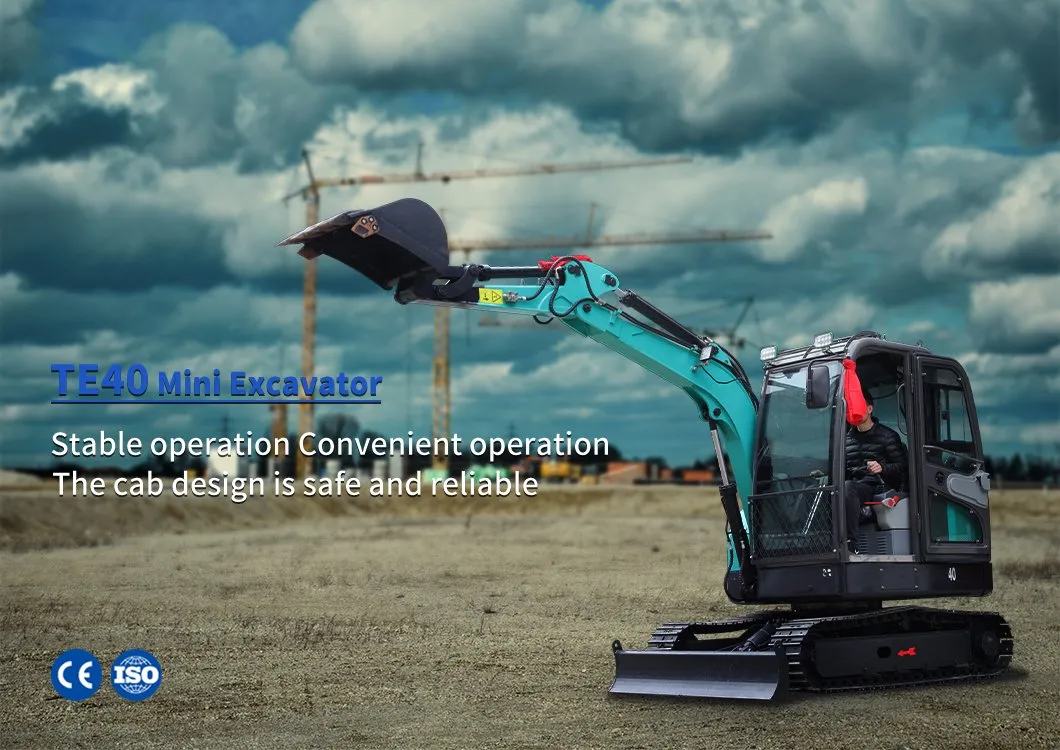

TE 40 Stable operation Convenient operation The cab design is safe and reliable

TE40 crawler excavator is a collection of beautiful design, high configuration, good performance, low fuel consumption with wide operating ranges. It is suitable for loosing soil of vegetable greenhouse, municipal departments' landscape engineering, digging holes for tree planting in orchard, crushing concrete surface and sand-gravel mixing material, small space working sites etc. Adopting quick hitch that make you change working attachment easy and fast, and also can reduce maintenance and operating cost.

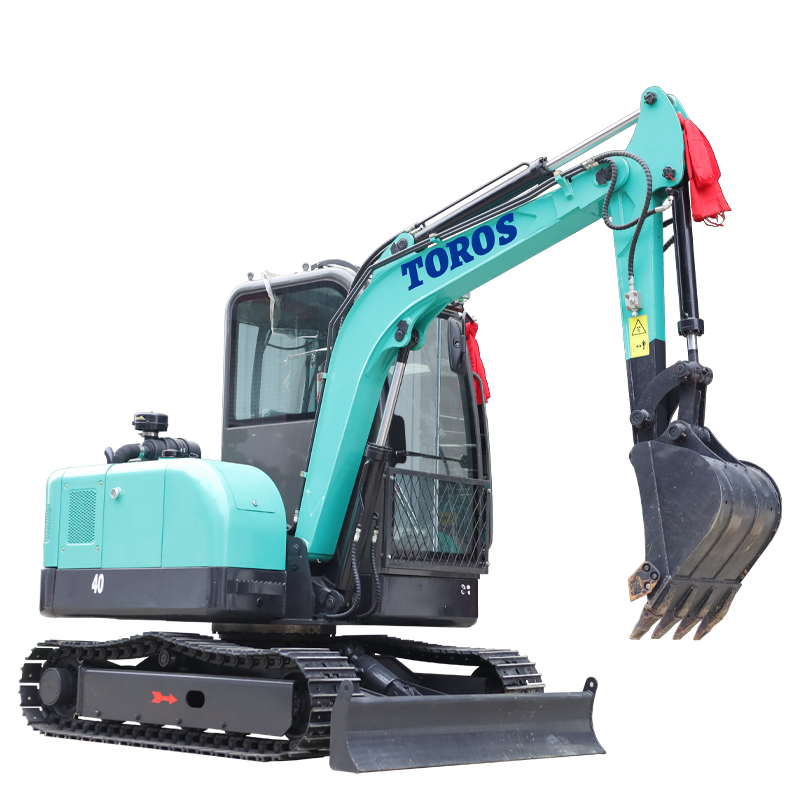

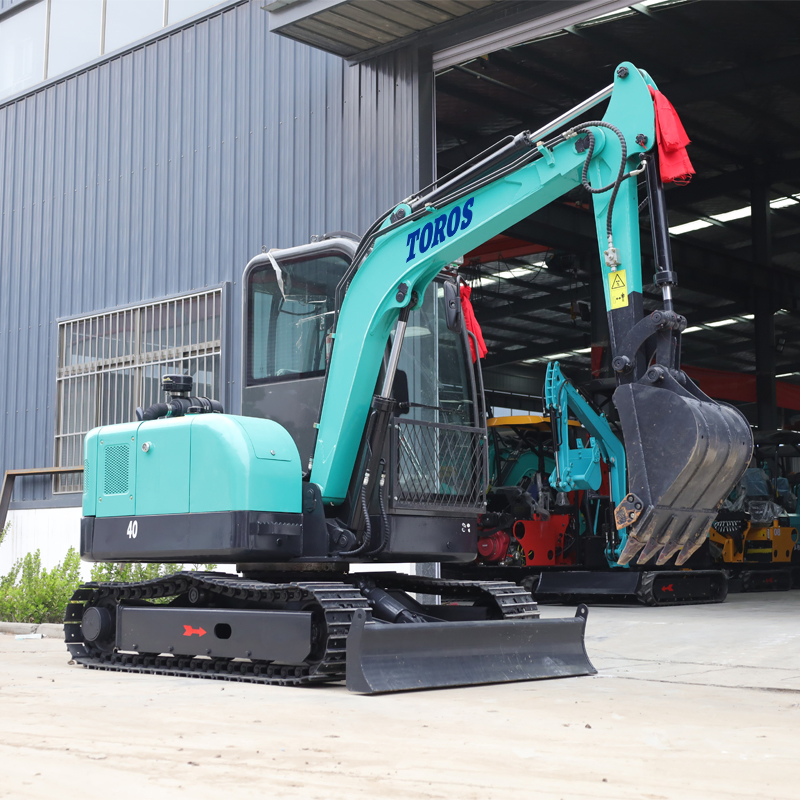

TE40 Mini Crawler excavator
METRIC		IMPERIAL
Bucket Capacity	0.03m³	Bucket Capacity	1.06ft³
Excavator Width	1600mm	Excavator Width	62.99in
Track Length	2200mm	Track Length	86.61in
Chassis Ground Clearance	550mm	Chassis Ground Clearance	21.65in
Track Width	300mm	Track Width	11.81in
Transport Length	4400mm	Transport Length	173.23in
MAX.Digging Force	35kN	MAX.Digging Force	35kN
Gradeability	35°	Gradeability	95ºF
Excavator Height	2200mm	Excavator Height	86.61in
Overall Dimension( LxWxH)	440016002200mm	Overall Dimension( LxWxH)	173.2362.9986.61in
Multi-way Valve	NACHI Traveling Motor	Multi-way Valve	NACHI Traveling Motor
Engine	XINCHAI / YANMAR	Engine	XINCHAI / YANMAR
Engine Power	36.8kw/2400rpm 19.6kw/2200rpm	Engine Power	49.34hp/2400rpm 26.28hp/2200rpm
Turning Radius	2400mm	Turning Radius	94.49in
Max.Digging Height	4450mm	Max.Digging Height	175.20in
Max.Dumping Height	3050mm	Max.Dumping Height	120.08in
Max.Digging Depth	2550mm	Max.Digging Depth	100.39in
Max.Digging Radius	4730mm	Max.Digging Radius	186.22in
Max.Vertical Digging Depth	2400mm	Max.Vertical Digging Depth	94.49in
Fuel Tank Capacity	45L	Fuel Tank Capacity	9.9UK gal
Weight	4000kg	Weight	8818lb 7.86oz
Swing Motor	Taifeng Plunger Hydraulic Pump	Swing Motor	Taifeng Plunger Hydraulic Pump
