China Agricultural Farm Use Carter Mini Digger Mini Excavator

Product Description

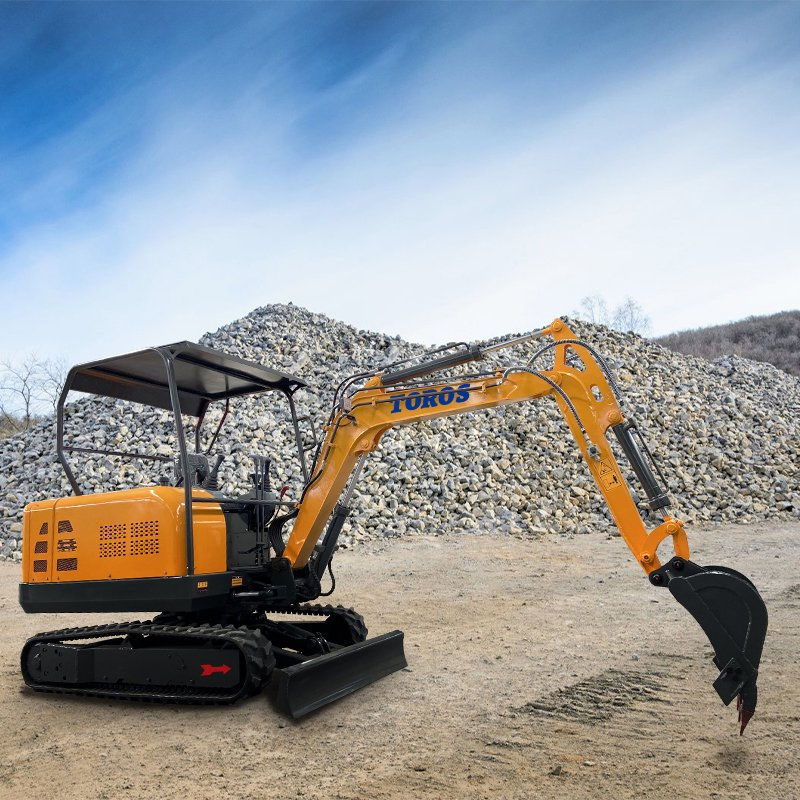

Agricultural Farm Use carter Mini Digger Mini Excavator

TE 30 Rugged and durable, low investment and high return.

TE30 mini excavator using Changchai three-cylinder water-cooled engine, can meet tier II&III standard, supply first-class fuel supply capacity; Using high-quality full hydraulic system:Taifeng plunger pump, northern multi-way valve, Eaton travel and swing motor, extend the service life of the machine and strengthen the working ability; Standard rubber crawler equipped mechanical walking, ensure the maximum walking speed while protecting the ground and reducing noise;The canopy/cab can be adjusted, and various assistive devices can be selected to make your work handy. Really achieve "fast", "strong", "economical" and "long-term".

TE30 Mini Crawler excavator
METRIC		IMPERIAL
Bucket Capacity	0.1m³	Bucket Capacity	3.53ft³
Excavator Width	1350mm	Excavator Width	53.15in
Track Length	2000mm	Track Length	78.74in
Chassis Ground Clearance	240mm	Chassis Ground Clearance	9.45in
Track Width	230mm	Track Width	9.06in
Volume of fuel tank	20L	Volume of fuel tank	4.4UK gal
Gradeability	30°	Gradeability	86ºF
Transport Length	4180mm	Transport Length	164.57in
Excavator Height	2200mm	Excavator Height	86.61in
Overall Dimension ( LxWxH)	418013502200mm	Overall Dimension ( LxWxH)	164.5753.1586.61in
Multi-way Valve	EATON Traveling Motor	Multi-way Valve	EATON Traveling Motor
Engine	CHANGCHAI / YANMAR	Engine	CHANGCHAI / YANMAR
Engine Power	24.5kw/2200rpm 19.6KW/2300rpm	Engine Power	32.86hp/2200rpm 26.28hp/2300rpm
Turning Radius	1300mm	Turning Radius	51.18in
Max.Digging Height	3900mm	Max.Digging Height	153.54in
Max.Dumping Height	2600mm	Max.Dumping Height	102.36in
Max.Digging Depth	2500mm	Max.Digging Depth	98.43in
Max.Digging Radius	5486mm	Max.Digging Radius	215.98in
Max.Vertical Digging Depth	2300mm	Max.Vertical Digging Depth	90.55in
MAX.Digging Force	22KN	MAX.Digging Force	22KN
Weight	2700kg	Weight	5952lb 7.70oz
EATON Swing Motor	Taifeng Plunger Hydraulic Pump	EATON Swing Motor	Taifeng Plunger Hydraulic Pump
