Brand New Xiniu Xn12 800kg 1.2 Tons 2t 0.025 Bucket Mini Digger Crawler Excavator

Product Description

Brand New Xiniu Xn12 800KG 1.2 Tons 2T 0.025 Bucket Mini Digger Crawler Excavator

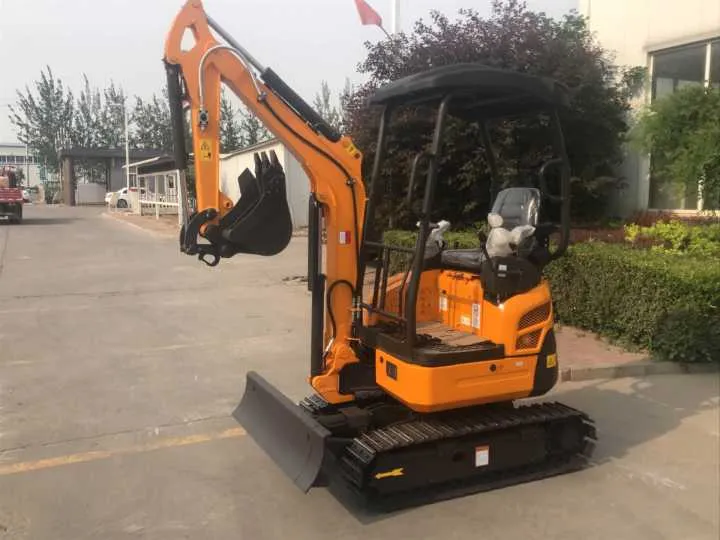

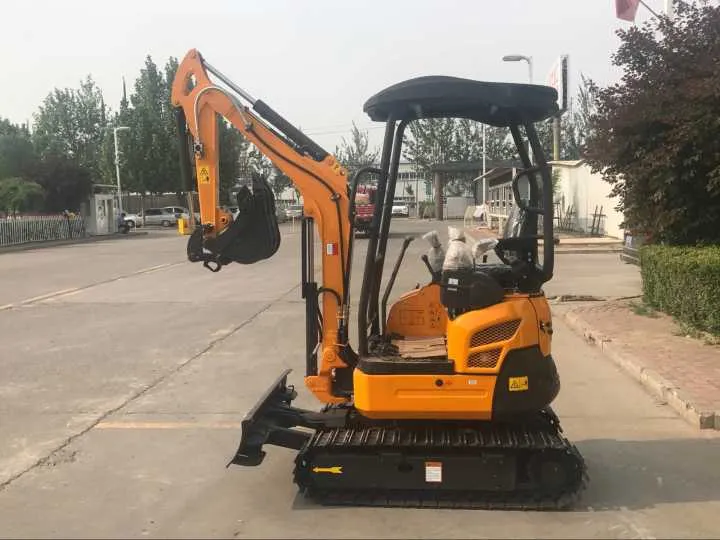

RHINOCEROS MINI EXCAVATOR: XN12
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.

Parameter:

Model	XN12
Brand	RHINOCEROS
Operating Weight	1040kg
Digging bucket capacity	0.025cbm/120kg
Digging bucket width	380mm
Engine	YANMAR(3TNV70)
Rated power	10kw/2200/r/min
Displacement	0.854L
Bore stroke	three cylinder, water cool
Main pump	JINXING
Pump flow	16L/min
Hydraulic pump perssure	16Mpa
Valve	BEIFANG
Swing motor	KEERSEN
Traveling motor	USA EATON
Hydraulic oil tank	16.5L
Diesel oil tank	7L
Arm digging force	5.0Kn
Bucket digging force	9.5Kn
Electric pressure	12V
Electrick power	5W
MAIN DEMENSIONS
Overall dimension( LxWxH)	2770x896x1490 mm
Wheelbase	910 mm
Total length of track on land	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm
