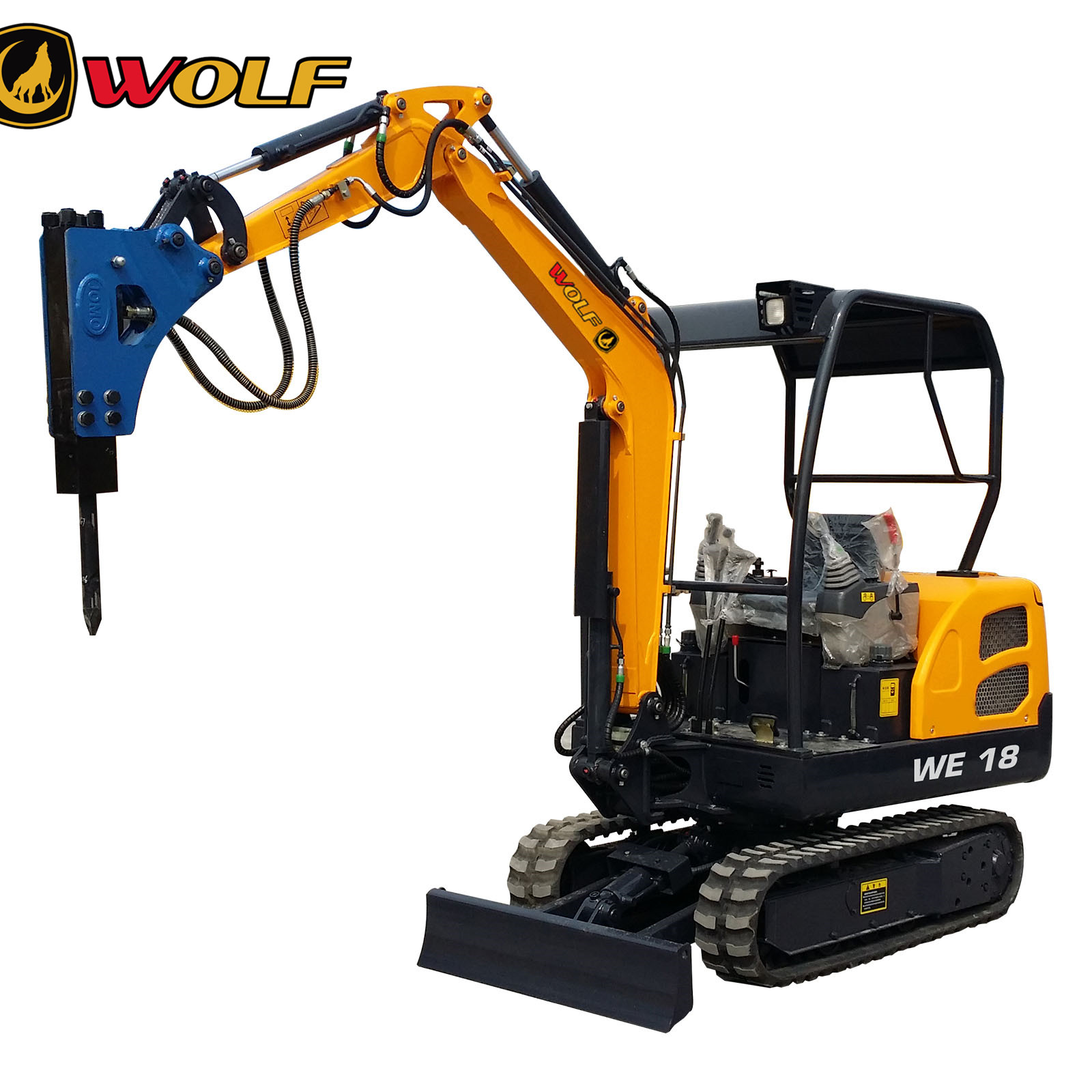

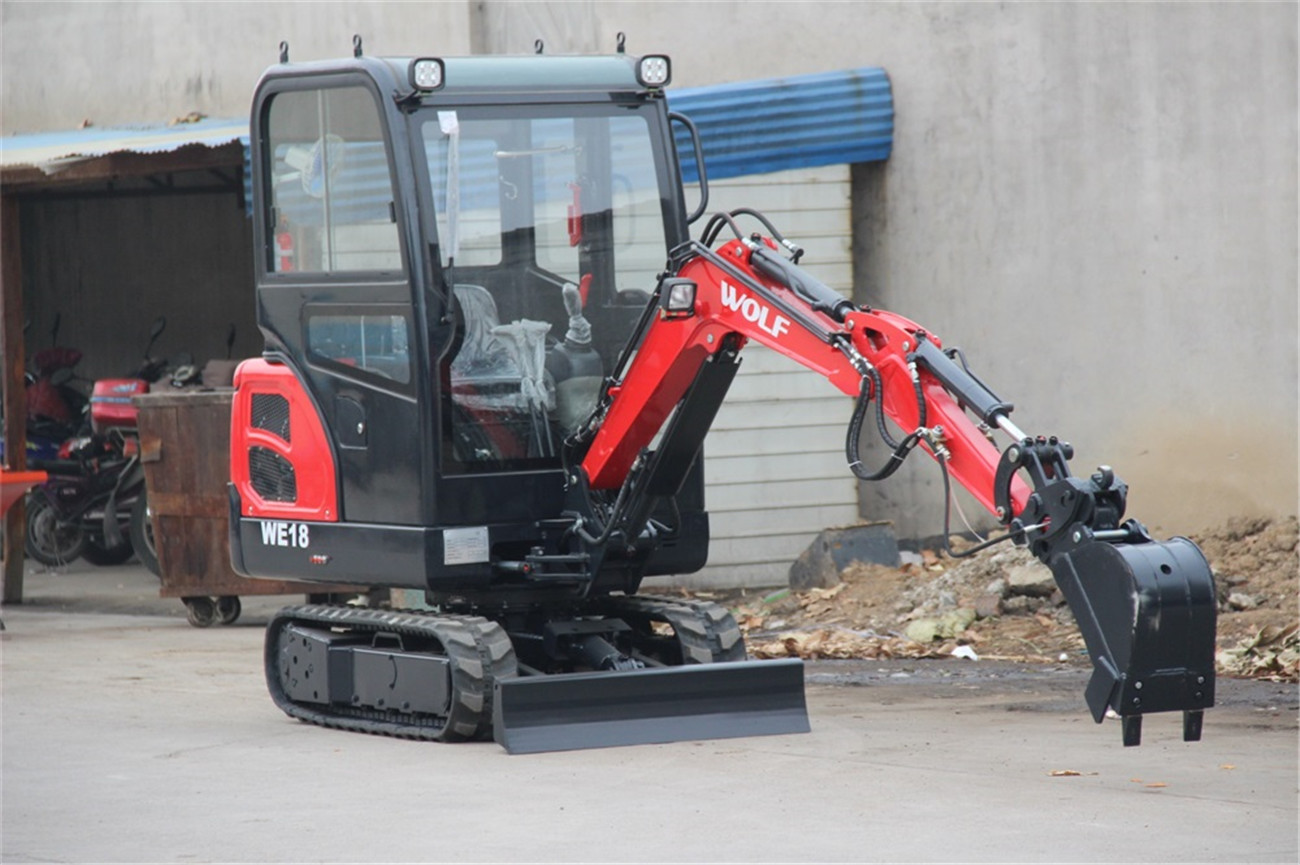

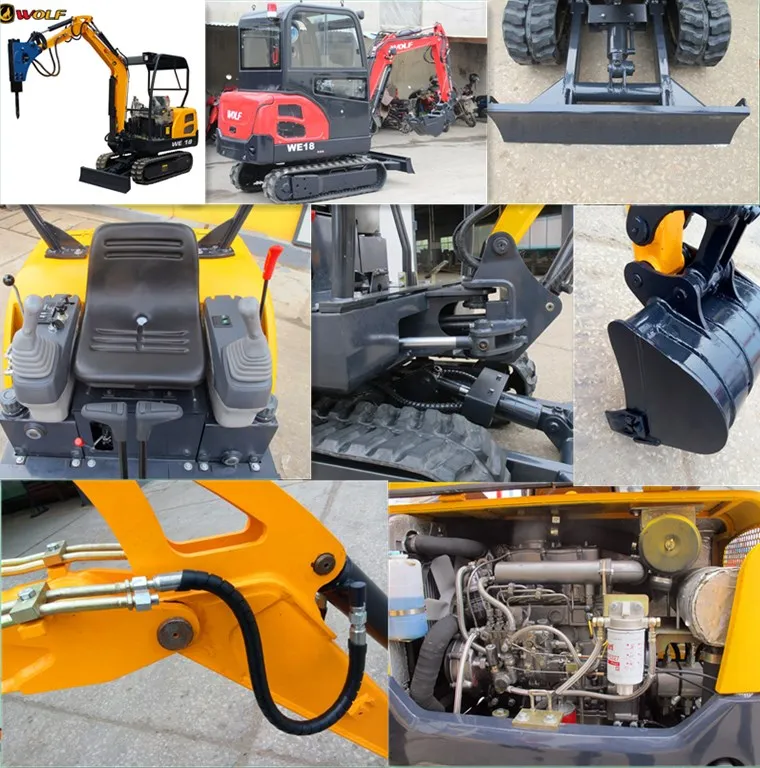

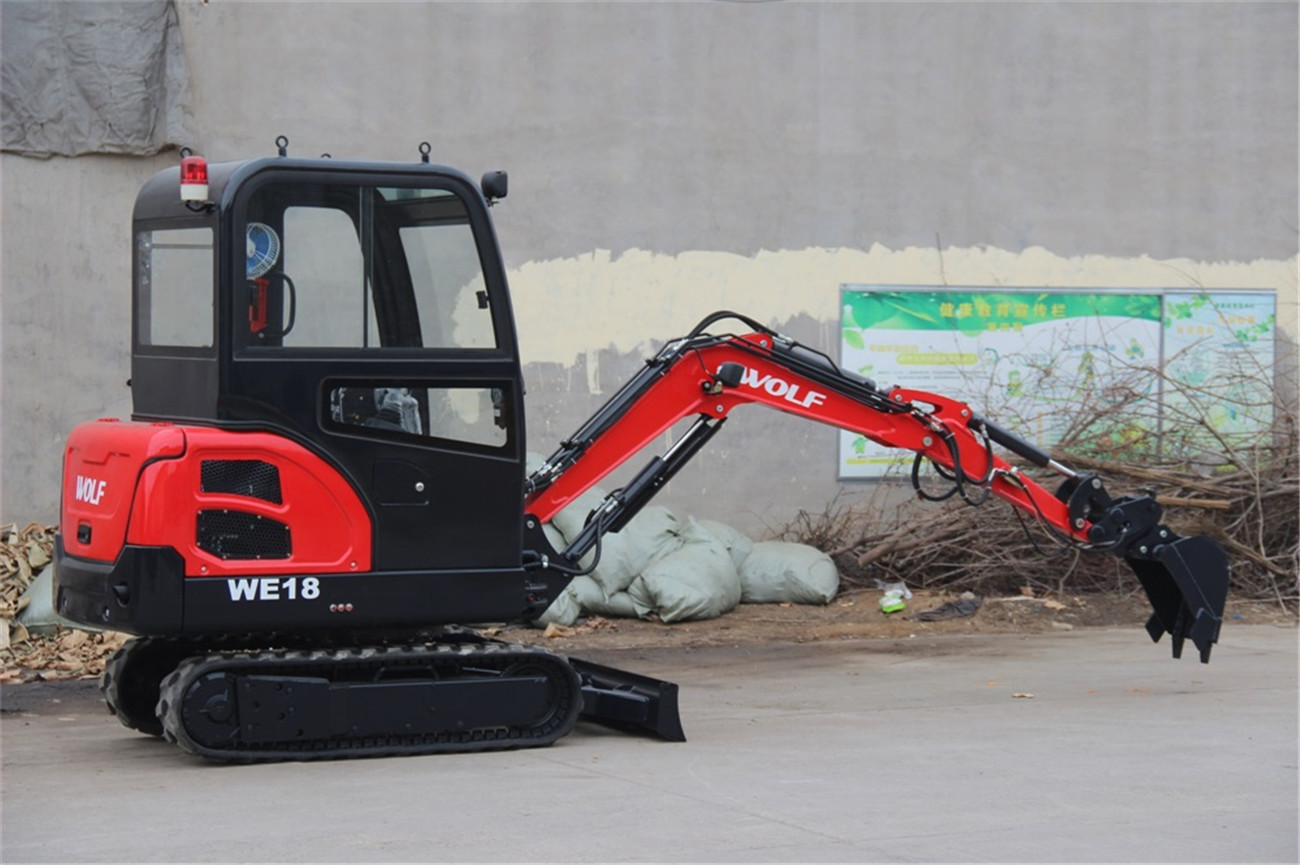

Ce Approved We18 Compact Tractor Excavator with Grapple
Overall dimensionOverall dimension( LxWxH) (mm)3800x1050x2280Ground clearance (mm)485Track length (mm)1630Track width(mm)230Undercarriage width (mm)1050Undercarriage ground clearance width (mm)235Dozer Blade (mm)1050x240EngineEngine modelLaidong KM385BEngine power (kw)18.1Rated speed (rpm)2200Main ......
Send Inquiry
Product Description
| Overall dimension | Overall dimension( LxWxH) (mm) | 3800x1050x2280 |
| Ground clearance (mm) | 485 | |
| Track length (mm) | 1630 | |
| Track width(mm) | 230 | |
| Undercarriage width (mm) | 1050 | |
| Undercarriage ground clearance width (mm) | 235 | |
| Dozer Blade (mm) | 1050x240 | |
| Engine | Engine model | Laidong KM385B |
| Engine power (kw) | 18.1 | |
| Rated speed (rpm) | 2200 | |
| Main performance | Swing speed (r/min) | 10~12 |
| Traveling speed (km/h) | 2.7 | |
| Grade ability (°) | 35 | |
| Traveling tracking force (KN) | 15 | |
| Bucket Digging Force (KN) | 11.5 | |
| Arm Digging Force (KN) | 9.3 | |
| Hydraulic system | Hydraulic system working pressure (Mpa) | 16 |
| Hydraulic Pump Gear pump | TJHD | |
| Hydraulic pump flow (L/min) | 2×22+8.8 | |
| Swing Motor | Eaton | |
| Traveling Motor | Eaton | |
| Fuel Tank Capacity (L) | 26 | |
| Hydraulic Tank Capacity (L) | 27 | |
| Operation dimension | Operating Weight (kg) | 1800 |
| Digging bucket capacity (m3) | 0.1 | |
| Max. Digging Depth (mm) | 2050 | |
| Max. Digging Height (mm) | 3370 | |
| Max. Dumping Height (mm) | 2390 | |
| Max. Dozer Cutting | 270 | |
| Max. Dozer Lifting | 235 | |
| Tail Swing Radius | 1125 | |
| Front Min. Swing Radius | 1720 |
