Ce Certification 1t Xiniu Electric Mini-Excavator (XN12)
CE Certification 1t Xiniu Electric Mini-Excavator (XN12)This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain. ModelXN12ManufacturerSHANDONG RHINOCEROS ENGINEERING MACH......
Send Inquiry
Product Description

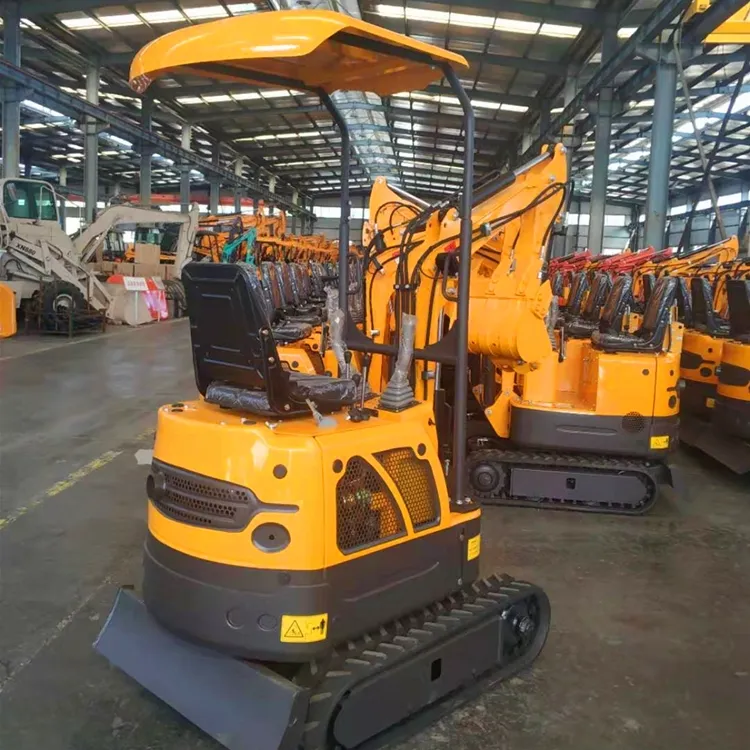

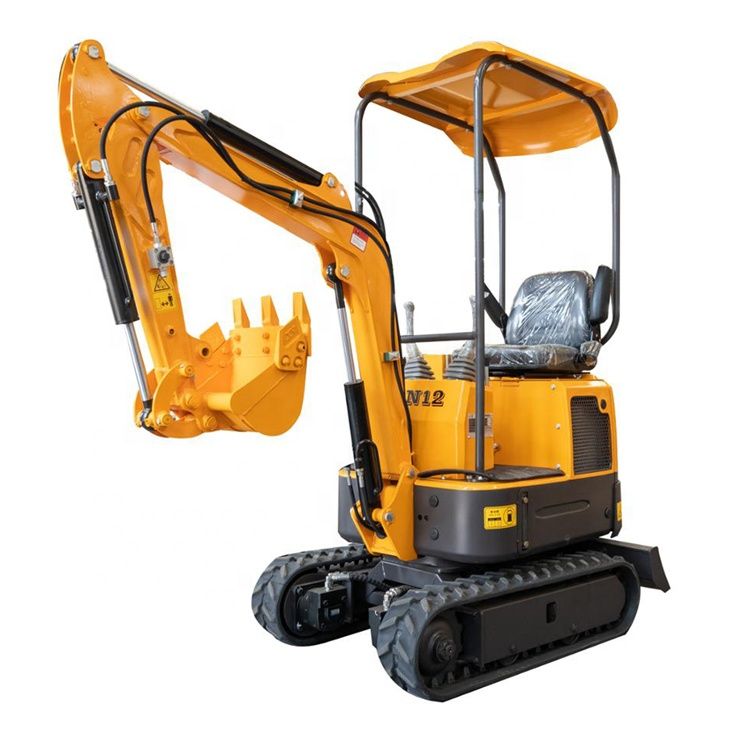

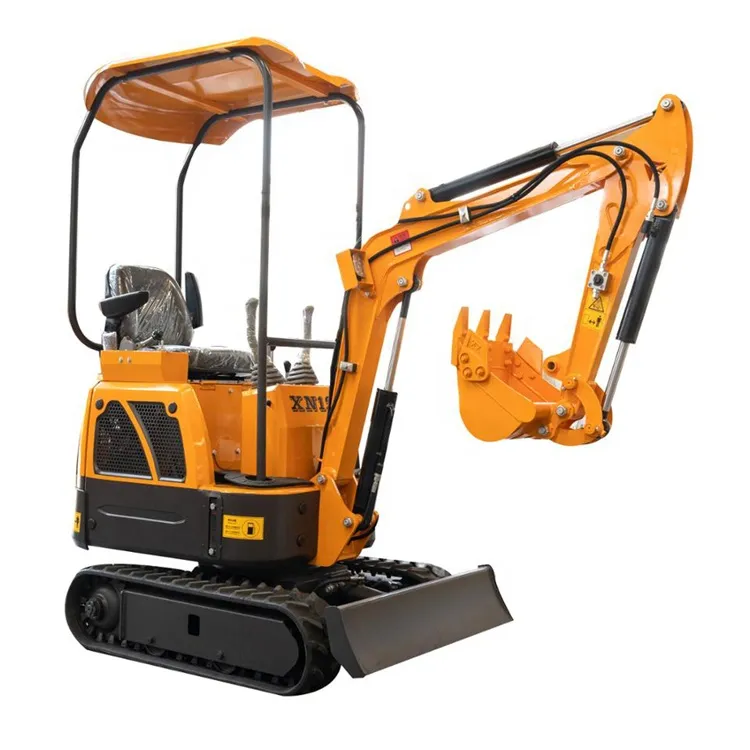

CE Certification 1t Xiniu Electric Mini-Excavator (XN12)
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
| Model | XN12 |
| Manufacturer | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
| Brand | RHINOCEROS |
| Operating Weight | 1040kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Digging bucket width | 350mm, can add narrow bucket is 200mm |
| Engine | YANMAR(3TNV70) |
| Rated power | 10kw/2200/r/min |
| Displacement | 0.854L |
| Bore stroke | three cylinder, water cool |
| Main pump | SAISIDA |
| Pump flow | 16L/min |
| Hydraulic pump perssure | 16Mpa |
| Valve | BEIFANG |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN (OMS-2450) |
| Hydraulic oil tank | 16.5L |
| Diesel oil tank | 7L |
| Arm digging force | 5.0Kn |
| Bucket digging force | 9.5Kn |
| Electric pressure | 12V |
| Electrick power | 5W |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2770x896x1490 mm |
| Wheelbase | 910 mm |
| Total length of track on land | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
