China We12 Small Track Excavator Mini Digger with High-Performance Japanese Engine
WOLF WE12 mini Excavator Standard Configurations:Yanmar 3TNV70-S engine, 10kw, Bucket capacity 0.02m3/100kg, operating weight 750kg, max. digging depth 1500mm, max. digging height 2365mm,Standard bucket 200mm/380mm, Rubber track. Specifications:Operating Weight 980kgDigging bucket c......
Send Inquiry
Product Description

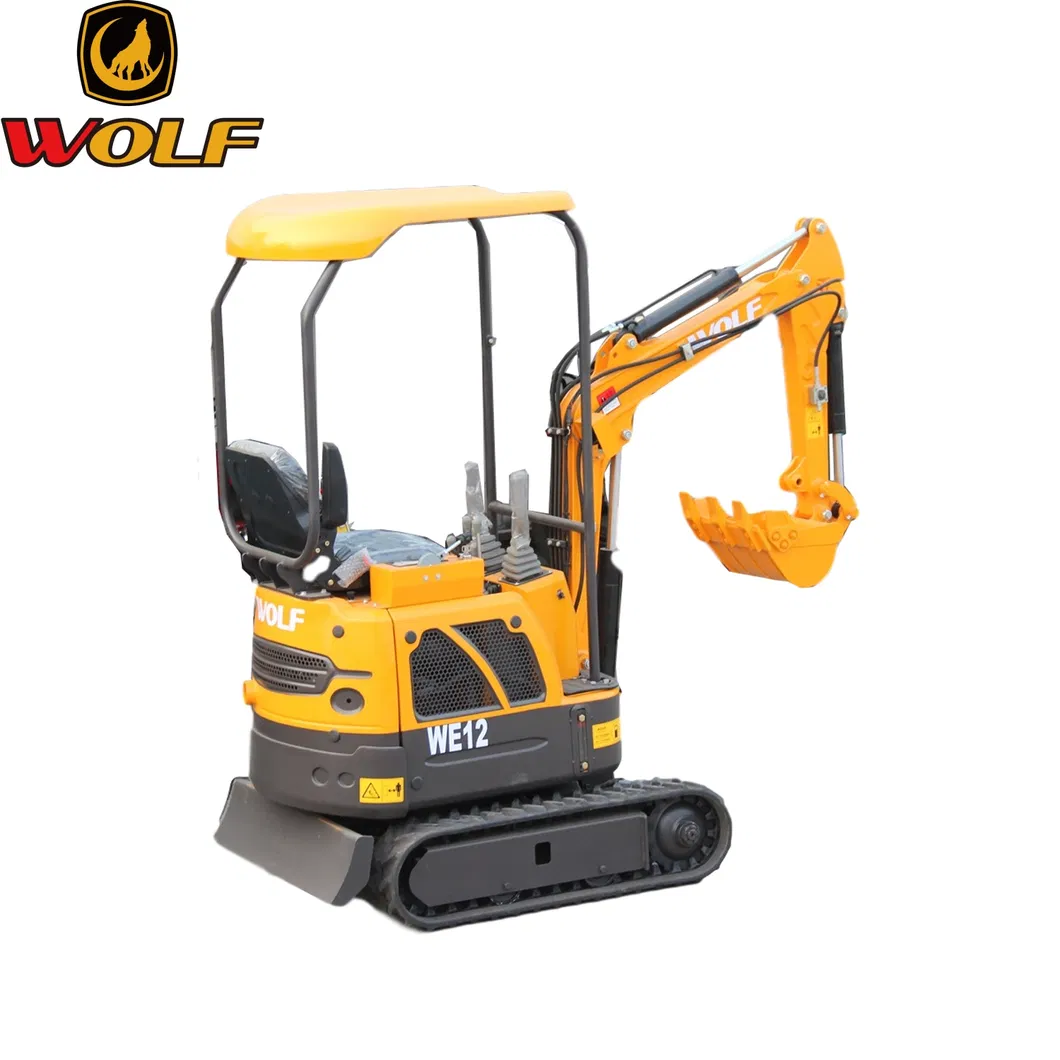

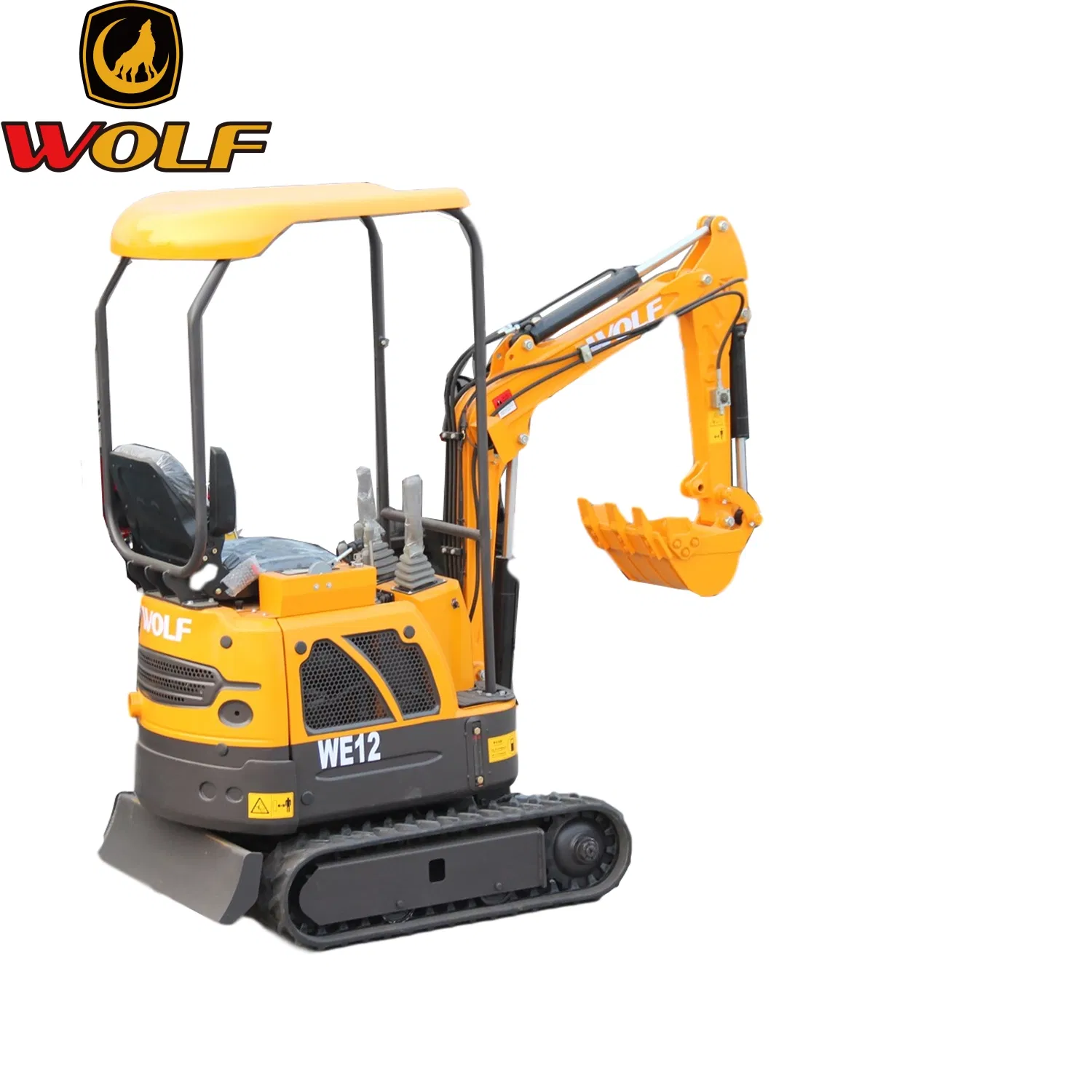

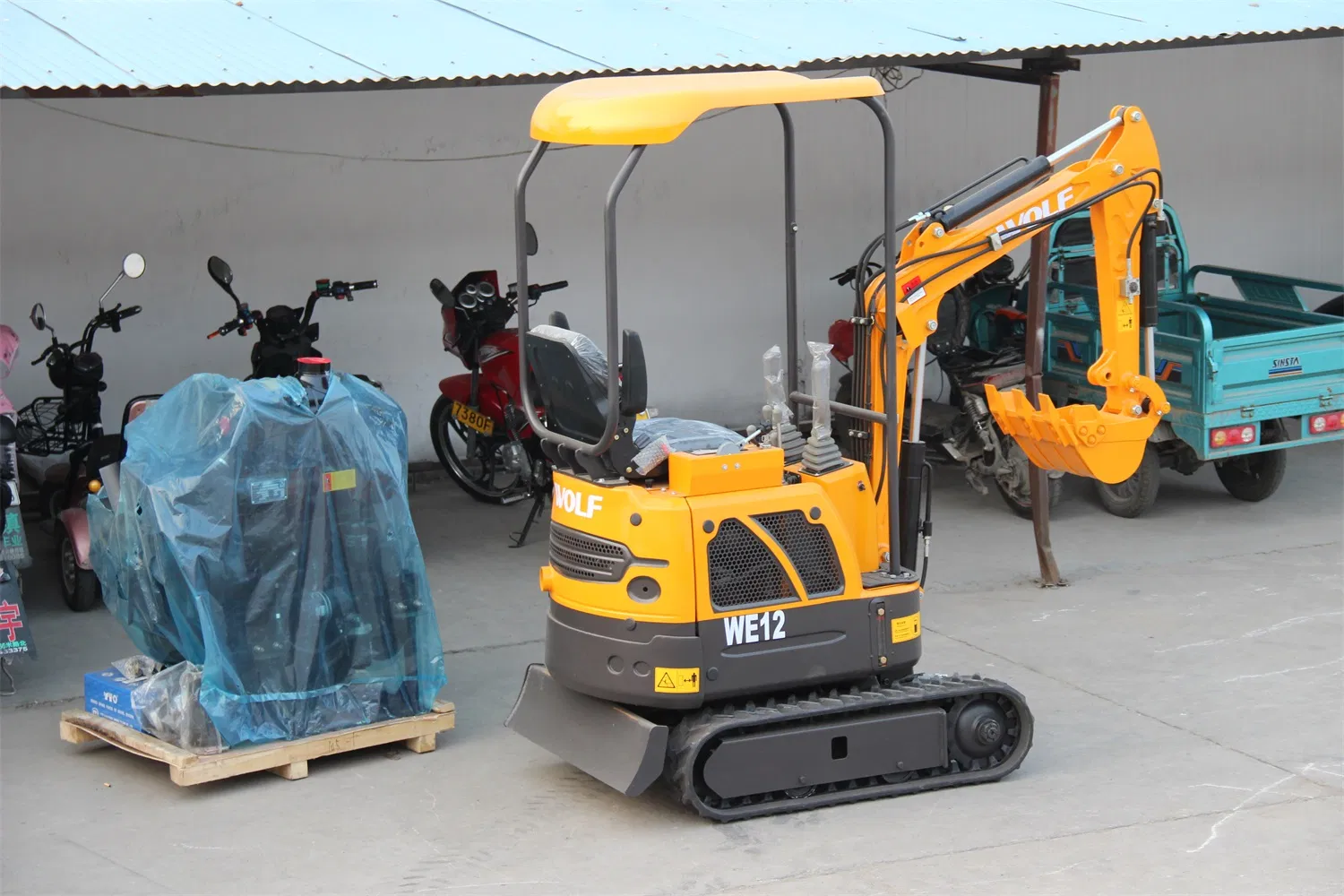

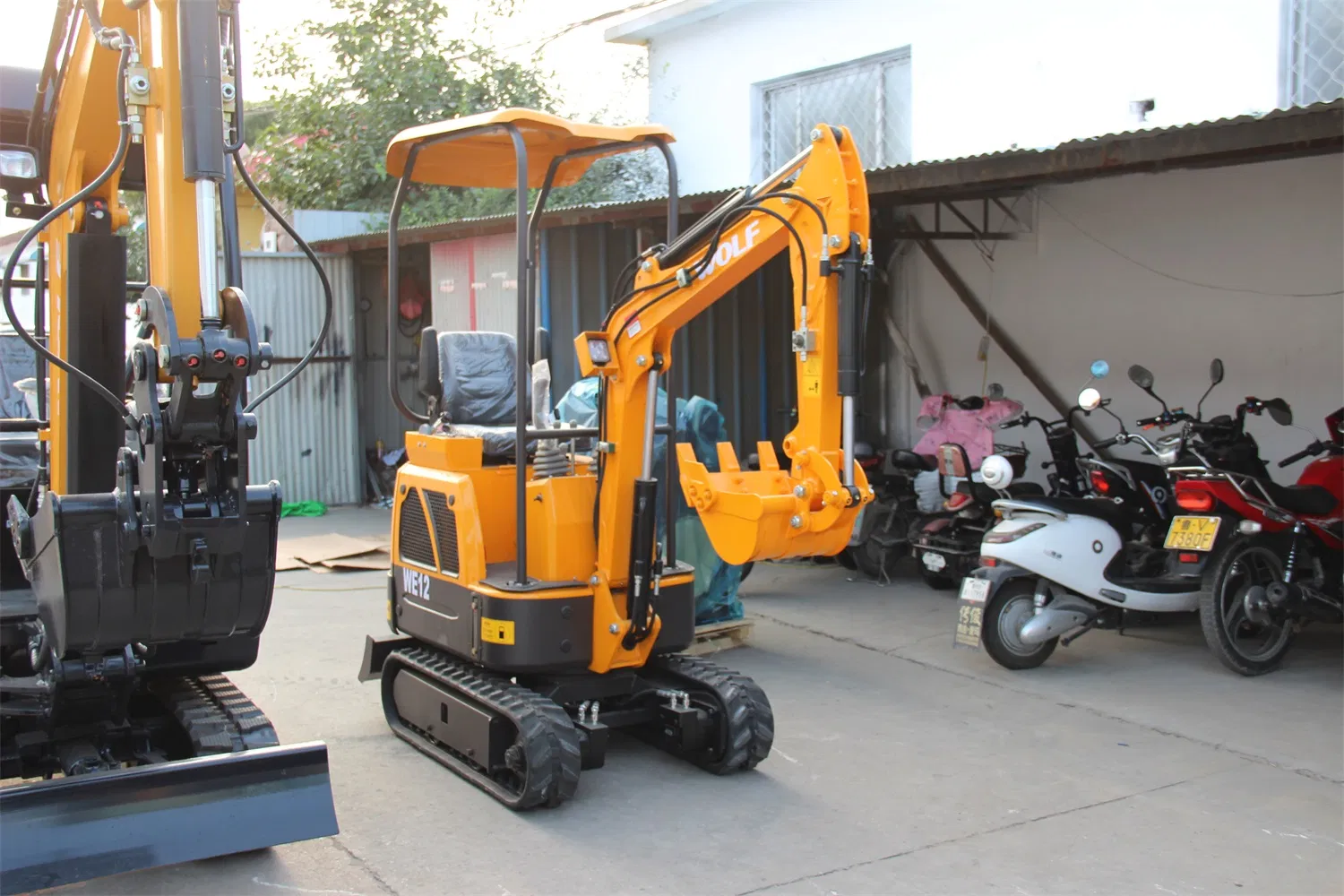

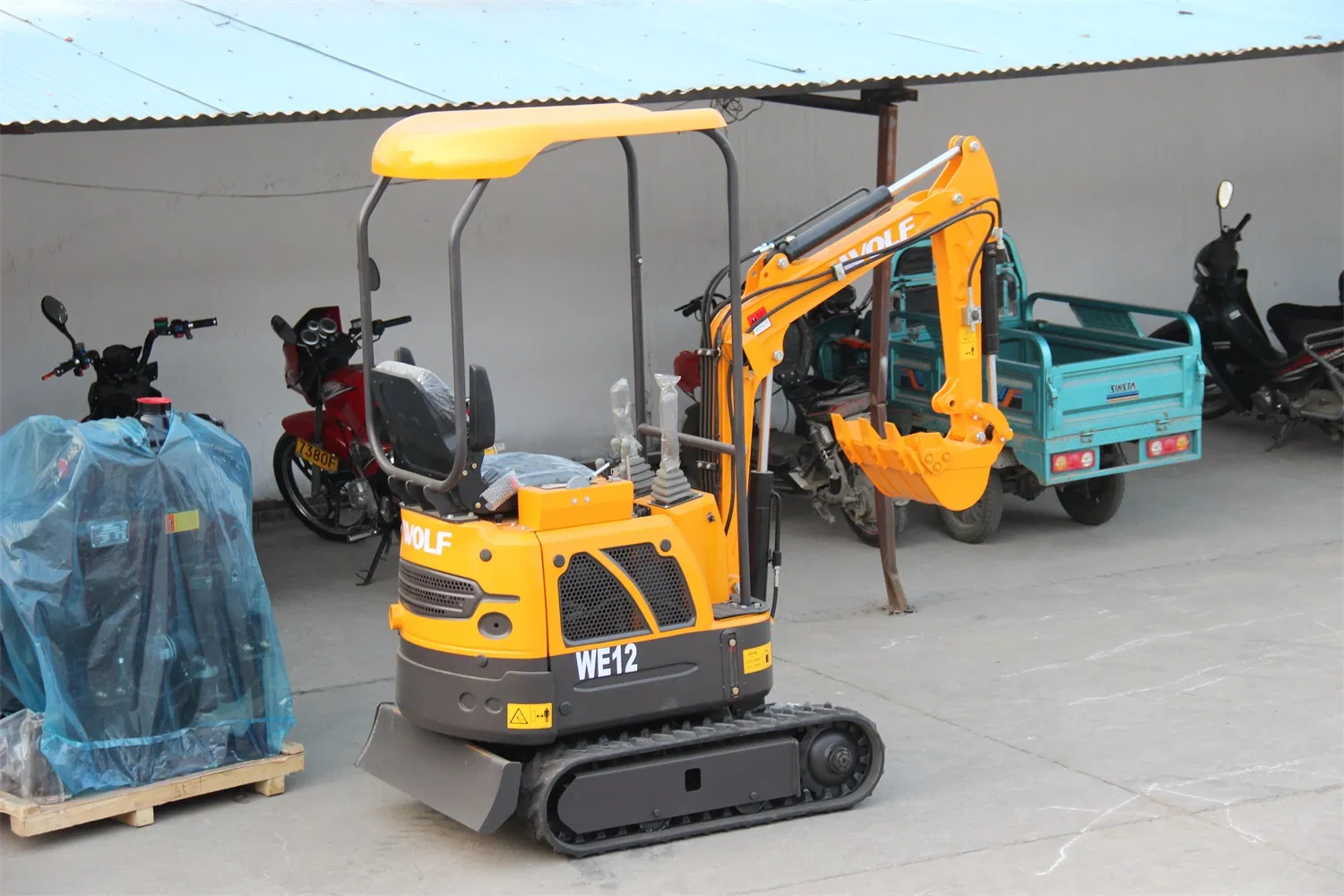

WOLF WE12 mini Excavator
Standard Configurations:
Yanmar 3TNV70-S engine, 10kw, Bucket capacity 0.02m3/100kg, operating weight 750kg, max. digging depth 1500mm, max. digging height 2365mm,
Standard bucket 200mm/380mm, Rubber track.
Specifications:
| Operating Weight | 980kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Digging bucket width | 350mm, can add narrow bucket is 200mm |
| Engine | Yanmar 3TNV70/3TNV74F |
| Rated power | 10.3kw/ 11.2kw/2400rpm |
| Displacement | 0.854L |
| Main pump | CBK-F6.8 |
| Displacement | 6.8ml/r |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN (OMS-2450 |
| Travel speed | 1.5km/h |

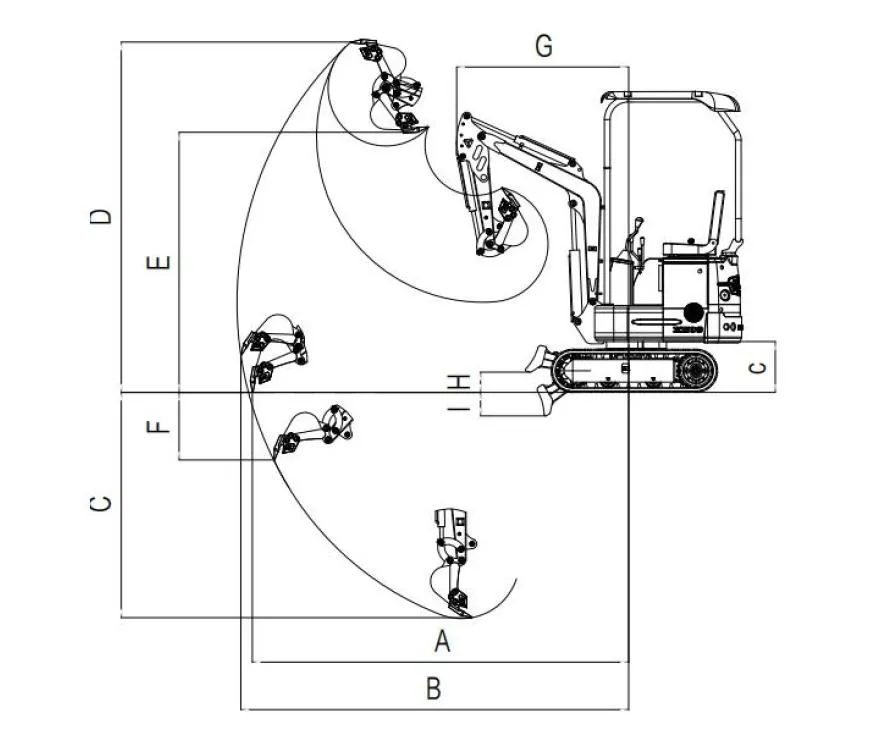

| Range of working | Unit(mm) | |
| A | Max. Digging radius on ground | 2400 mm |
| B | Max. Digging radius | 2920mm |
| C | Max. Digging depth | 1400 mm |
| D | Max. Digging height | 2490 mm |
| E | Max. Dumping height | 1750 mm |
| F | Max. Vertical digging depth | 1320 mm |
| G | Min. Rotation radius | 1190 mm |
| H | Max. Upgrade height of bulldozer blade | 325 mm |
| I | Max. Digging depth of bulldozer blade | 175 mm |

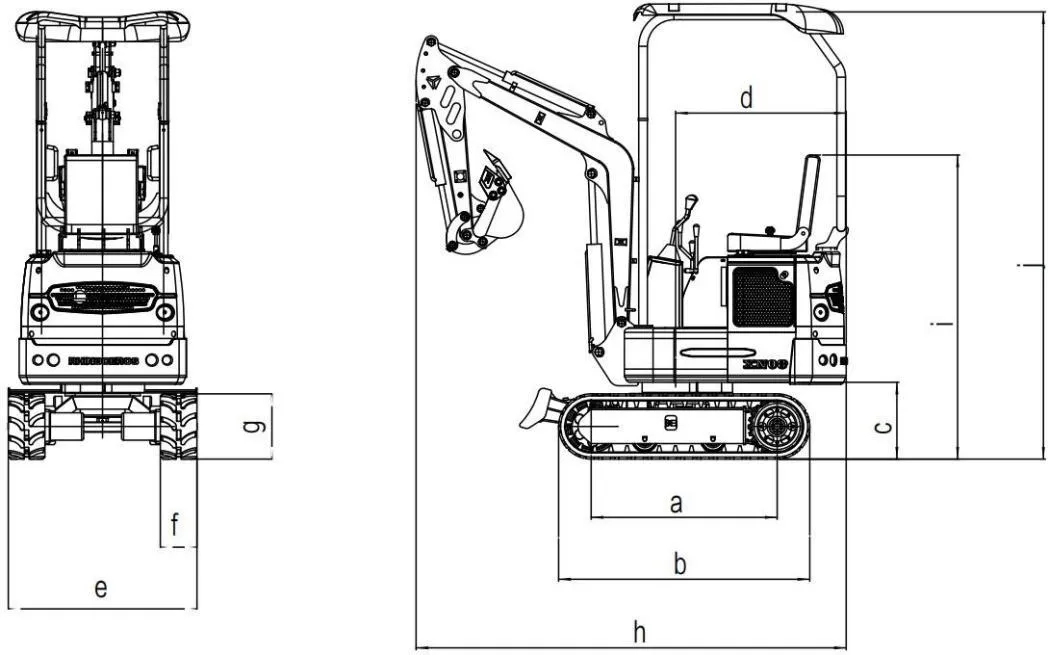

| Overall dimension ( LxWxH) | Unit (mm) | |
| a | Wheelbase | 910 |
| b | Total length of track | 1235 |
| c | Platform ground clearance | 370 |
| d | Counterweight turning radius | 795 |
| e | Chassis width | 930 |
| f | Track width | 180 |
| g | Track height | 320 |
| h | length | 2120 |
| i | Height (From seat to ground) | 1500 |
| j | Total height | 2210 |

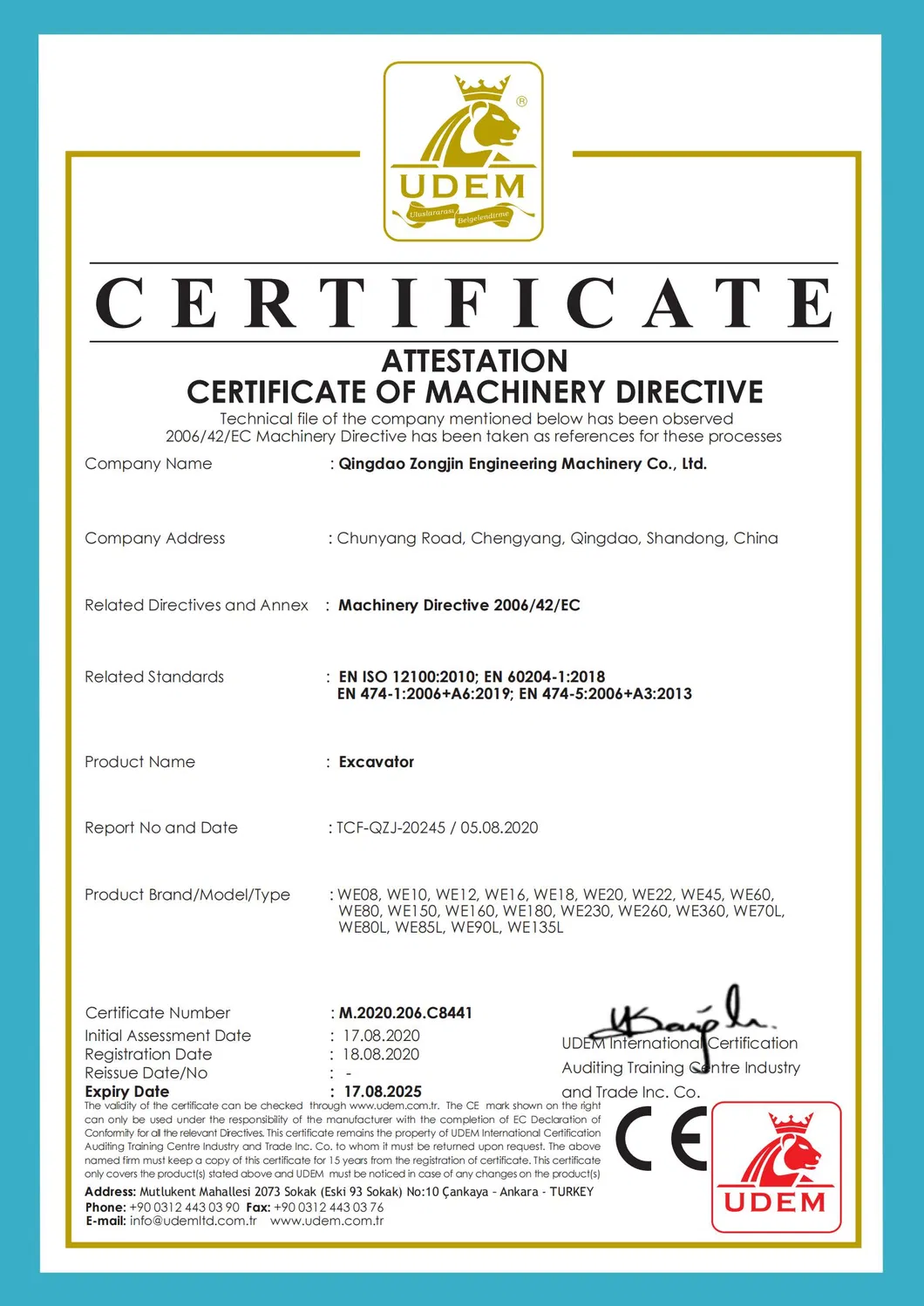

All of the excavators are CE approved.

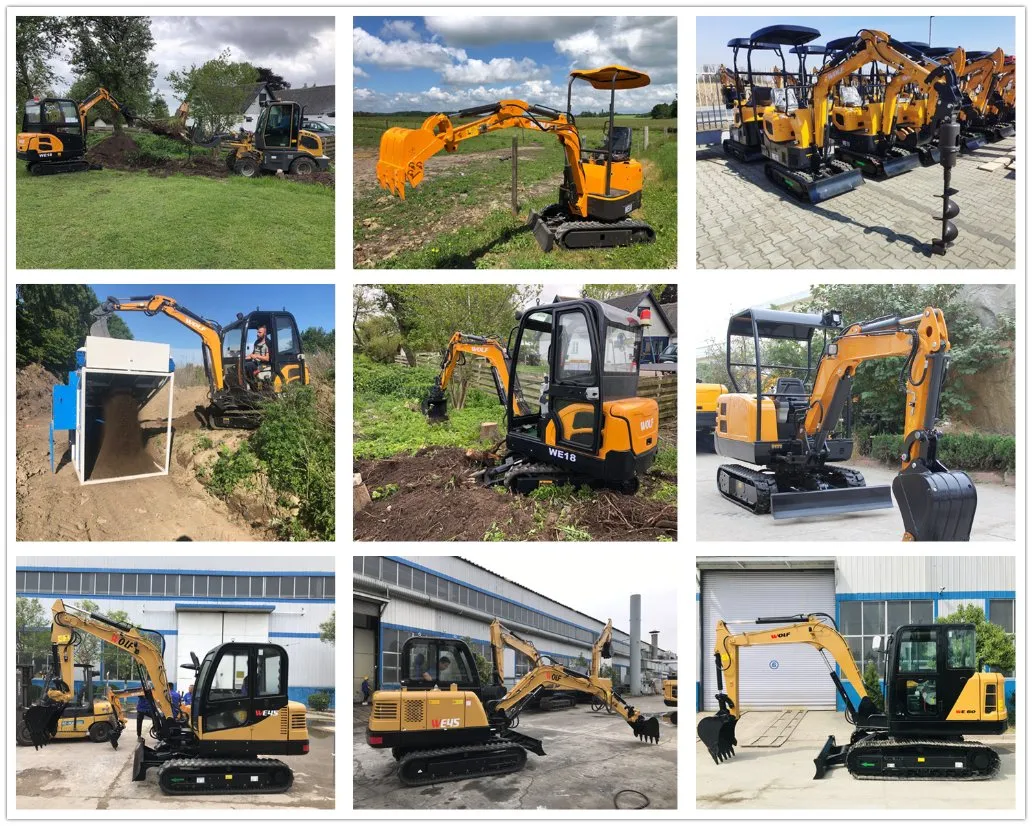

WOLF excavators in all over the world.
