Chinese Brand Have CE EPA Construction Newest Ht30 3000kg with Kubota/Laidong Engine Mini Excavator
Brief Indruction The crawler excavator is a compact excavator ,which matched China Laidong engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and sl......
Send Inquiry
Product Description
Brief Indruction
The crawler excavator is a compact excavator ,which matched China Laidong engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Basic specifications
Diagrammatic drawing
Conditions:
when order.
The crawler excavator is a compact excavator ,which matched China Laidong engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Basic specifications
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make | LAIDONG |
| Model | 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 2.5km/h |
| Width of track shoe(Rubber & steel track) | 230mm |
| Number of track shoe per side(Steel track only) | 38 pcs |
| Number of upper roller/ bottom roller(per side) | 0/4 |
| PERFORMANCE PARAMETER | |
| Standard bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 14KN |
| Max. Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1800kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 820mm |
| Min.Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Max. Digging height | 3365mm |
| Max. Dumping height | 2385mm |
| Max. Digging depth | 2050mm |
| Max. Vertical digging depth | 1725mm |
| Max. Digging radius | 3860mm |
| Min .swing radius | 1720mm |
| Max. Lifting height of blade | 230mm |
| Max. Cutting depth of blade | 275mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |

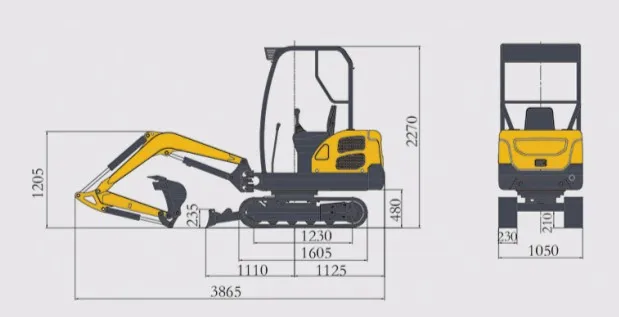

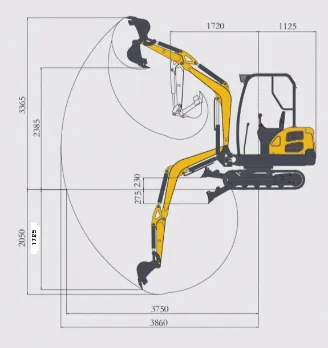

Diagrammatic drawing
Conditions:
QUOTATION TERMS:
Based on FOB Qingdao or Tianjin port or shanghai port
30 days validity since issuing date.
PACKING DETAILS:
Based on FOB Qingdao or Tianjin port or shanghai port
30 days validity since issuing date.
PACKING DETAILS:
4 pcs in 20GP container.
8 pcs in 40GP container.
Nude
DELIVERY TERMS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmedDELIVERY TERMS:
when order.
PAYMENT TERMS:
By T/T: 30% as deposit and the balance paid after finishing production before shipment.
ACCESSORIES:
Tools box, operator's manual and a list of spare parts.WARRANTY:
Generally, 6 months or 1000hours since first receiving the goods,whichever first.ORIGINAL: China
