EPA Euro 5 Diesel 1.2 Ton Small Digger Mini Crawler Excavator with 20L Big Size Diesel Tank and Hydraulic Oil Tank
1.2 T Mini Crawler Excavator with Kubota Euro 5 EPA Diesel engine1.2 ton caterpillar excavators small digger/micro digger/mini crawler excavator machine is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, sim......
Send Inquiry
Product Description
1.2 T Mini Crawler Excavator with Kubota Euro 5 EPA Diesel engine
1.2 ton caterpillar excavators small digger/micro digger/mini crawler excavator machine is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, simple design, easy to maintain.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton and 2.2 ton mini Excavator for you too choose
One set with one standard digging bucket 380mm and 4 pillars canopy.
Color:it can choose yellow, blue, red,black accepted customized

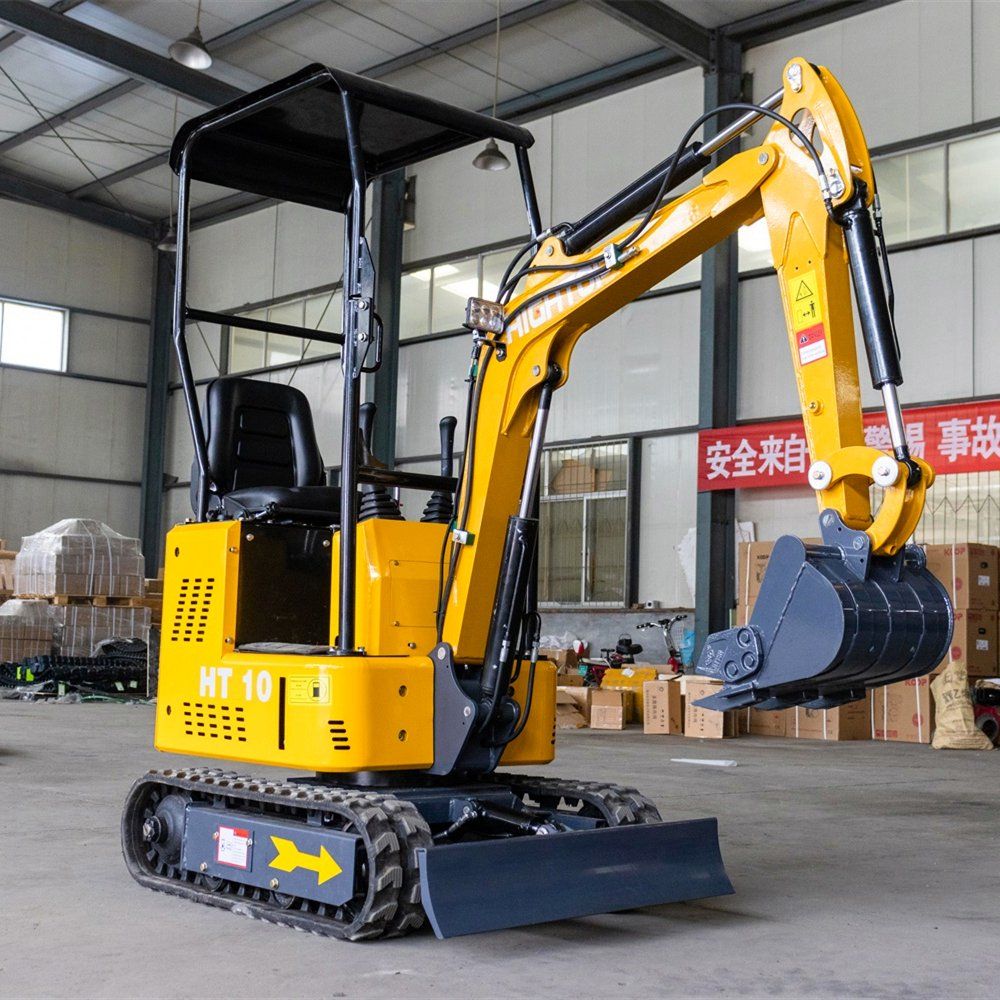

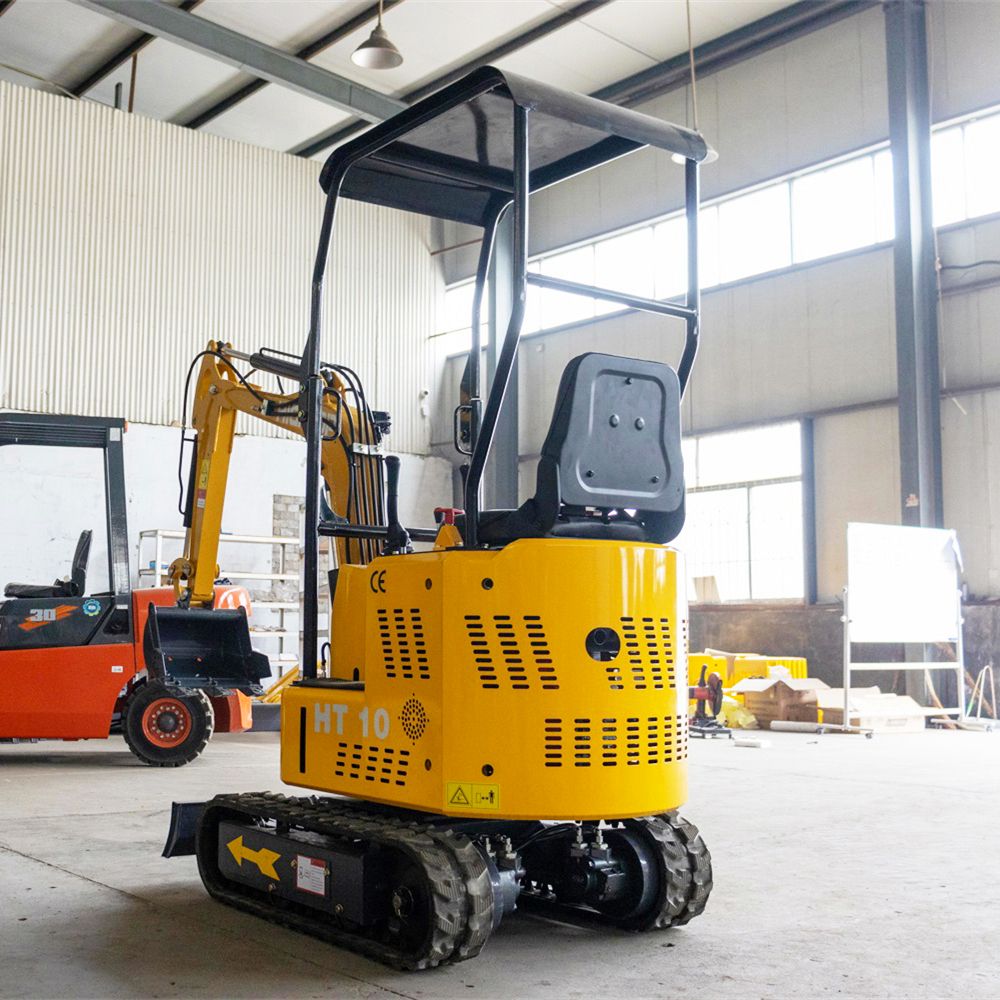

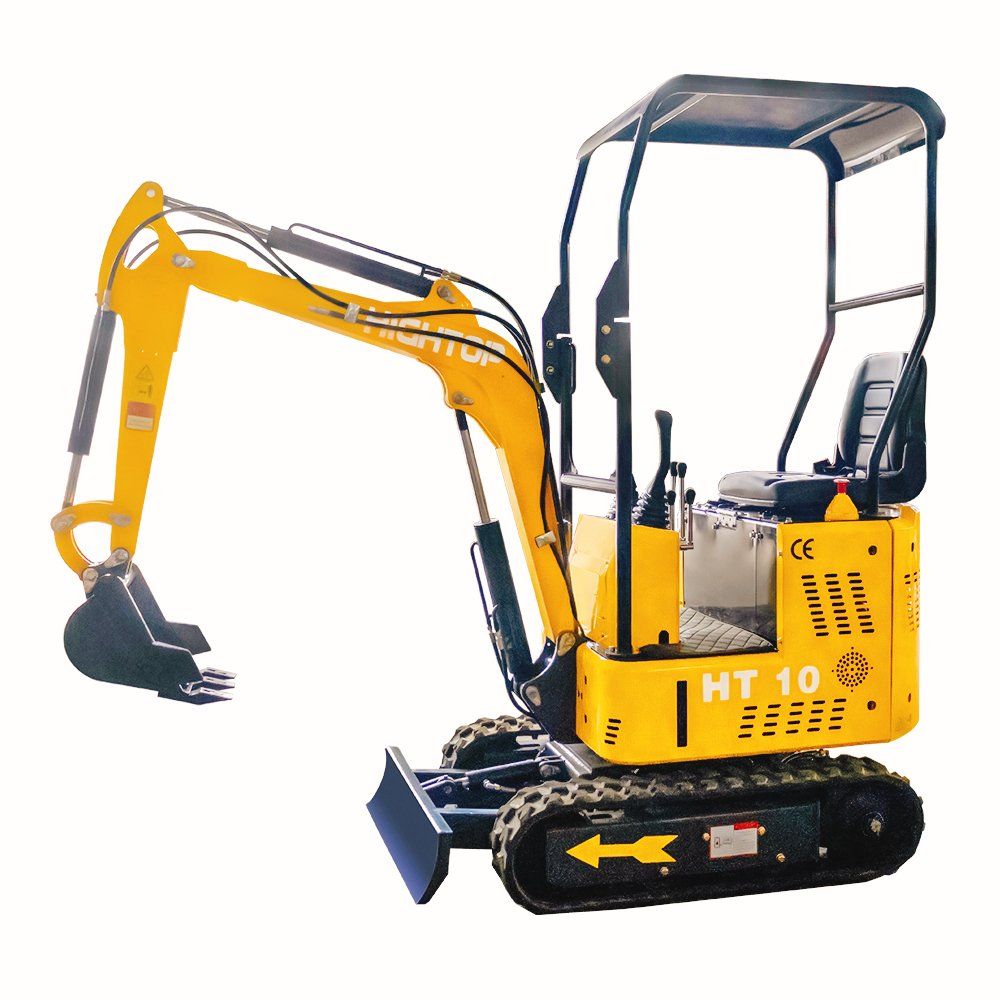

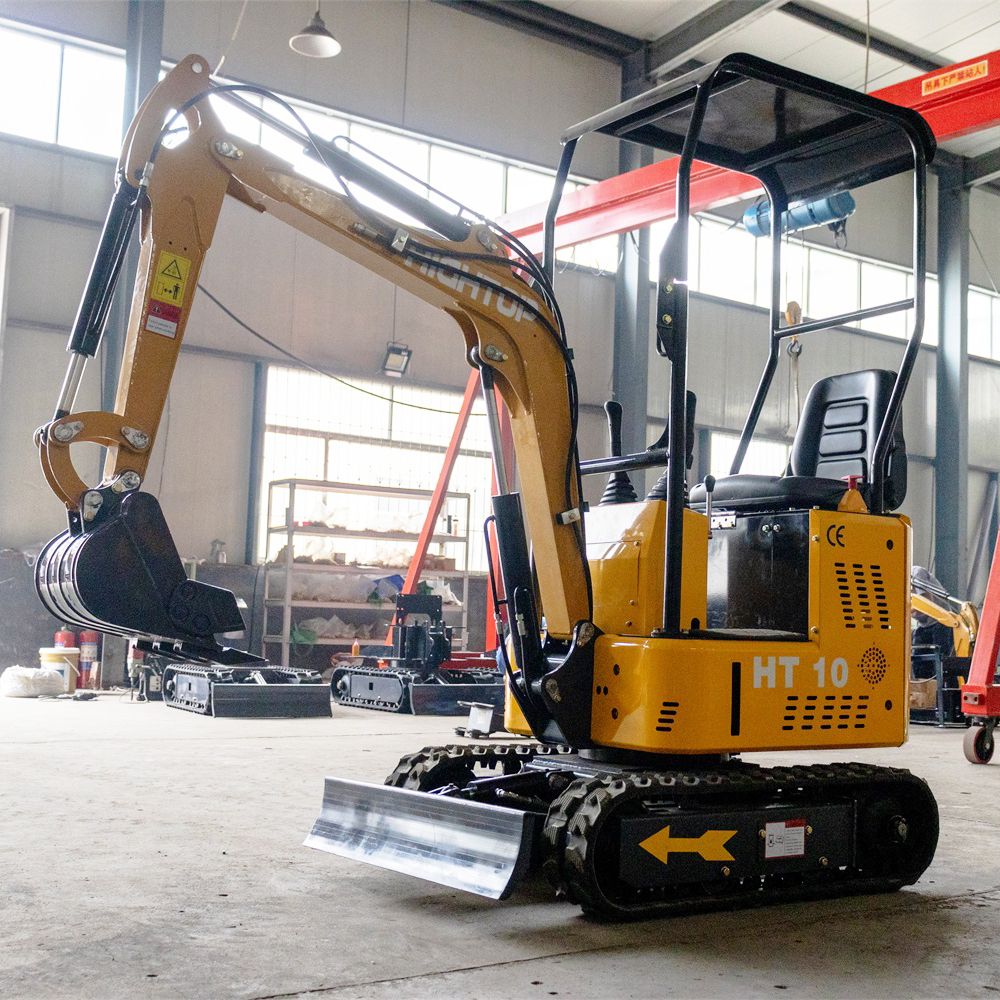

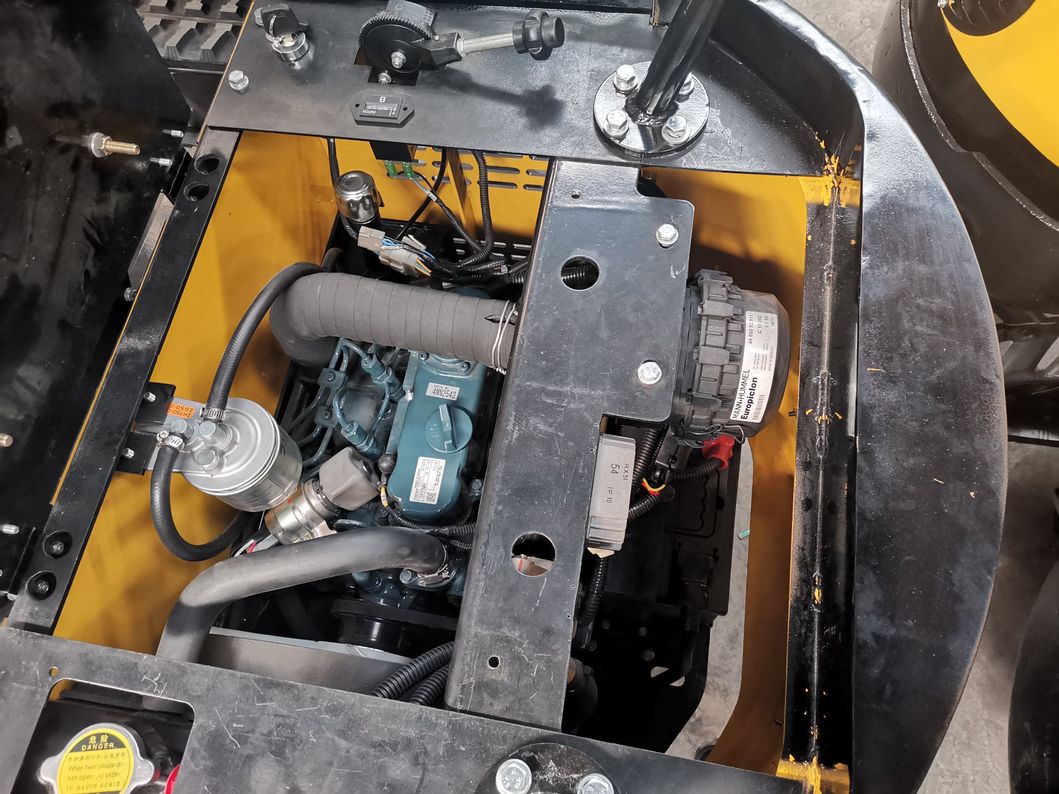

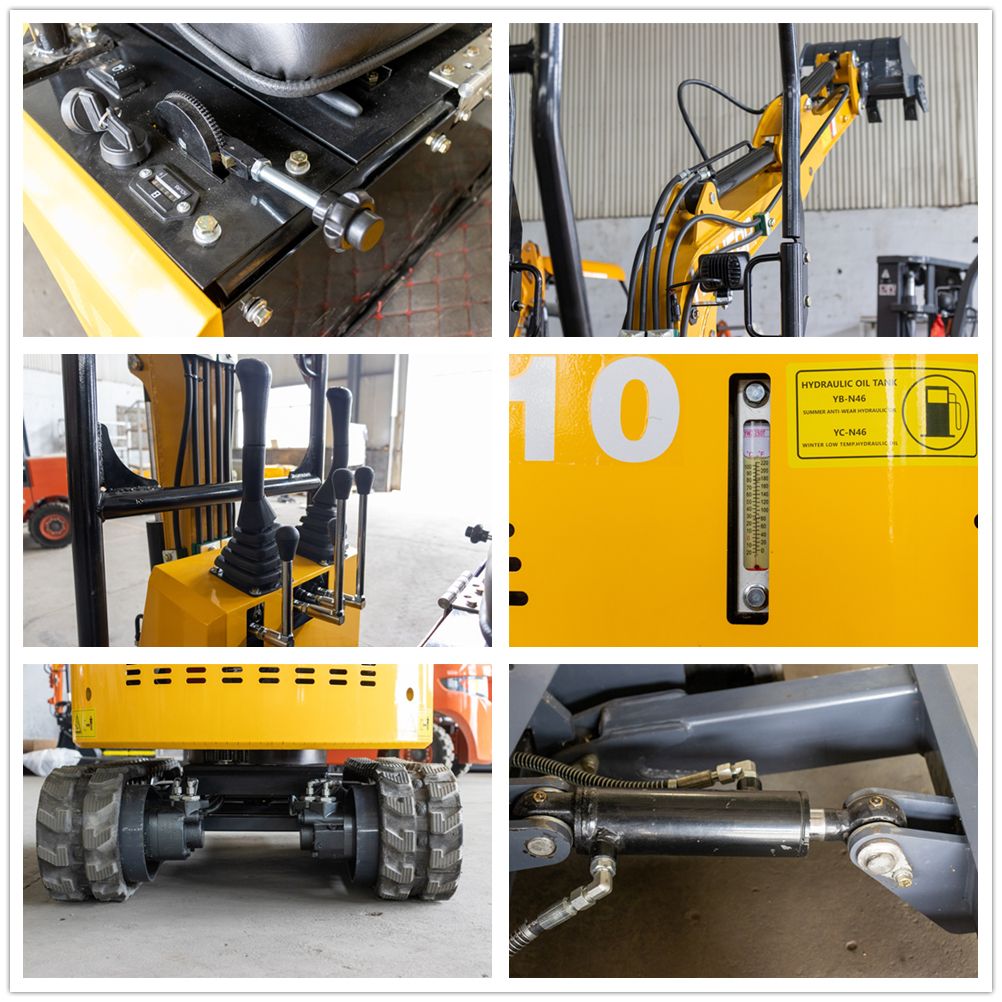

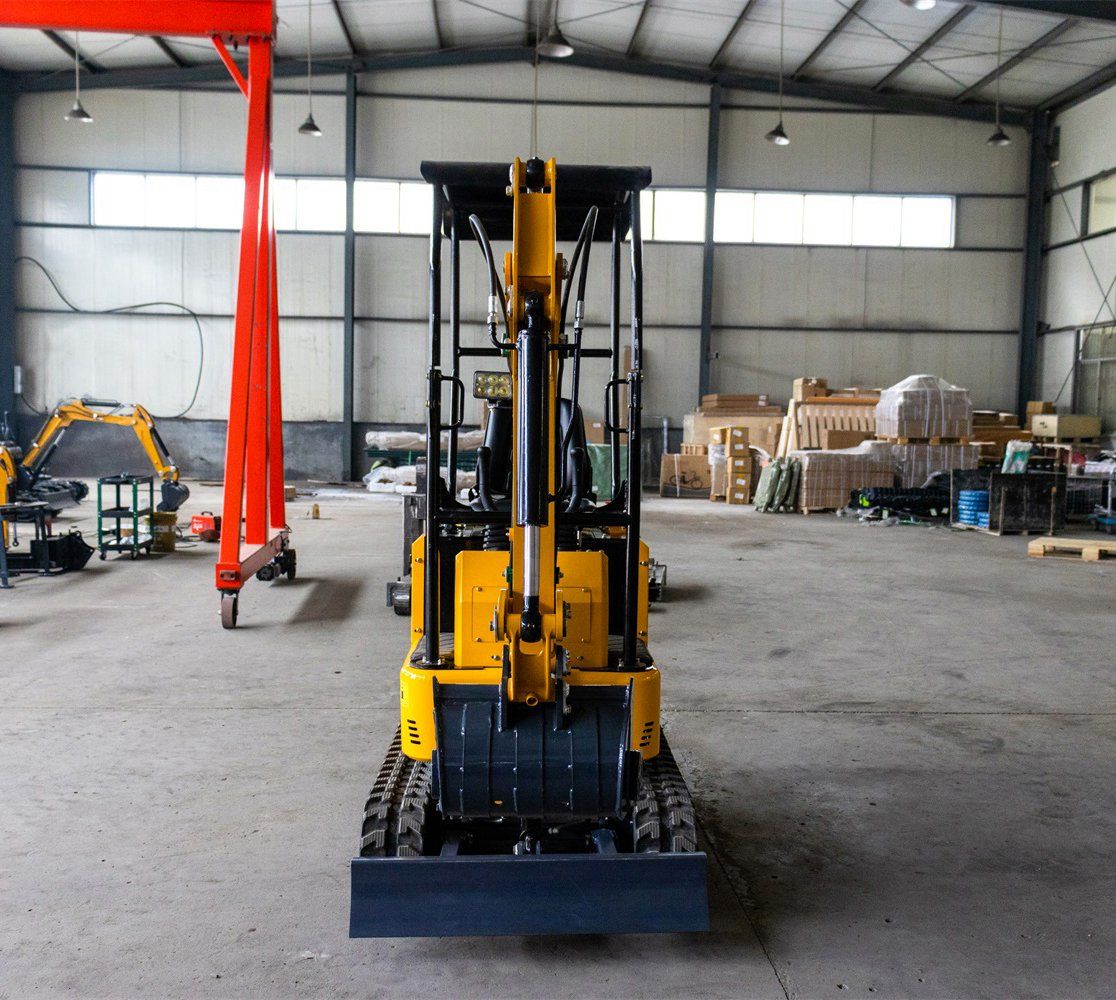

Detail Images of 1.2 T Mini Crawler Excavator with Kubota Euro 5 EPA Diesel engine
Parameter of 1.2 T Mini Crawler Excavator with Kubota Euro 5 EPA Diesel engine
| Model | HT12 | ||
| Operate Weight | 1200kg | ||
| Digging bucket capacity | 0.025cbm/120kg | ||
| Bucket width | 380mm | ||
| Engine | Kubota D722 | ||
| Rated power | 10.2kw/2500r/min | ||
| Displacement | 0.211 L | ||
| Bore stroke | 70x55 | ||
| Main pump | CBK-F6.8 | ||
| Displacement | 6.8ml/r | ||
| Swing motor | SJ-TECH (MP-1-160) | ||
| Traveling motor | KERSEN(OMS-2450) | ||
| Travel speed | 1.5km/h | ||
| Overall dimension( LxWxH) | 2770x896x1490 mm | ||
| Max. Digging depth | 1650 mm | ||
| Max. Vertical digging depth | 1375 mm | ||
| Max. Digging height | 2610 mm | ||
| Max. Dumping height | 1850 mm | ||
| Max. Digging radius on ground | 2850 mm | ||
| Min. Rotation radius | 1330 mm | ||
| Max. Upgrade height of bulldozer blade | 345 mm | ||
| Max. Digging depth of bulldozer blade | 255 mm |

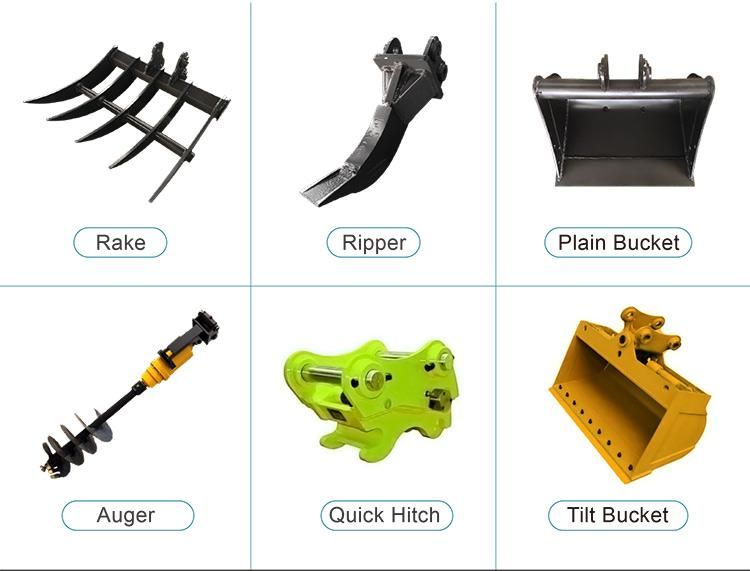

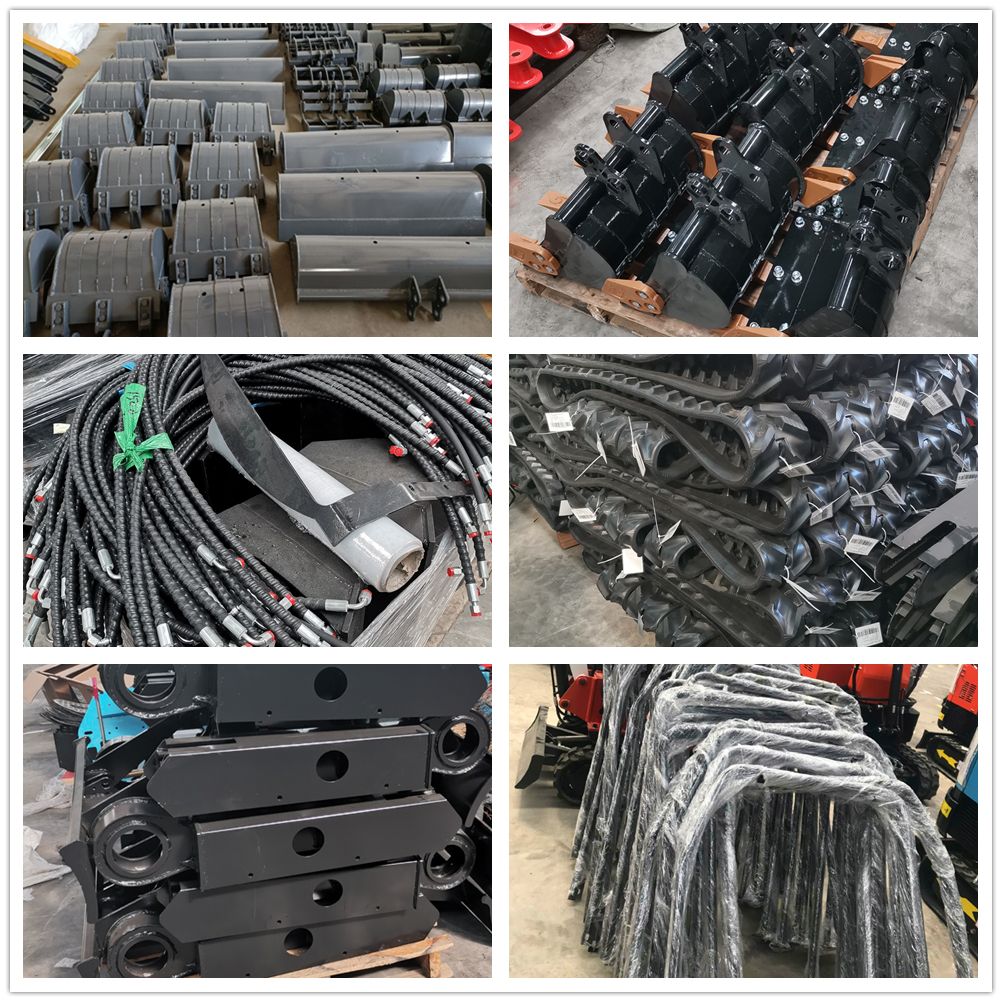

Optional accessories:
Narrow bucket(200mm width), Plain bucket (500mm width), Ripper, Grabber, Rake,Auger,quick hitch

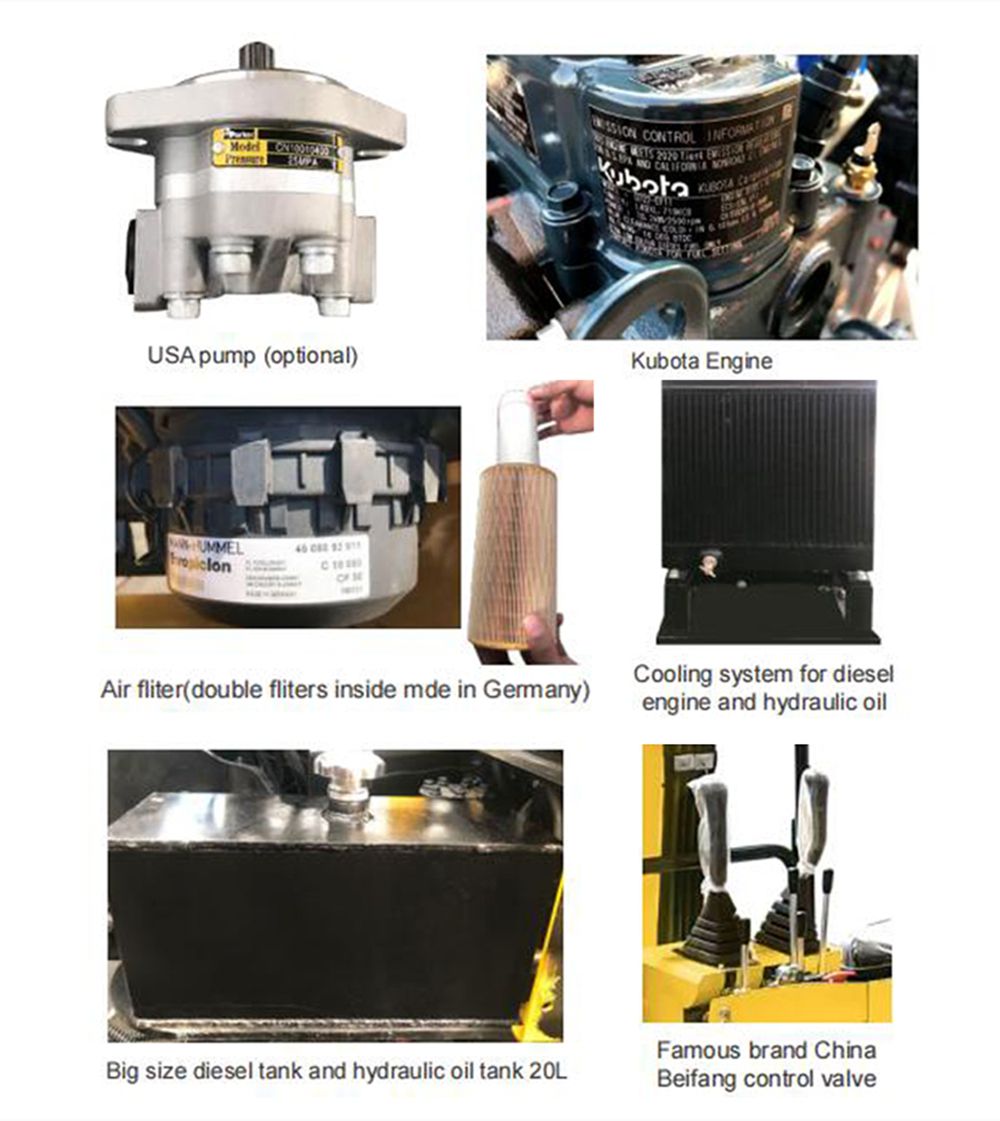

Advantage

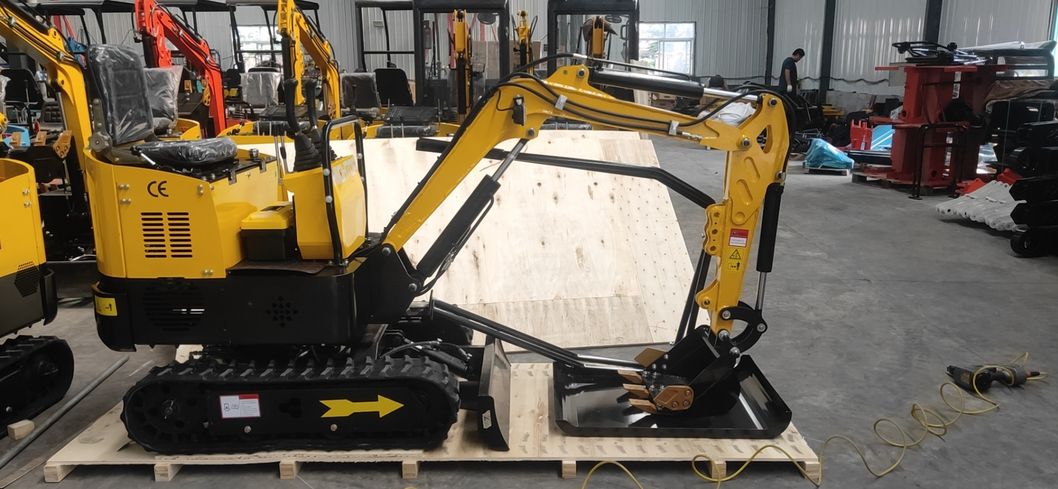

Packing & Shipping
20' Containter can hold 6 sets
40' Containter can hold 12 sets.
