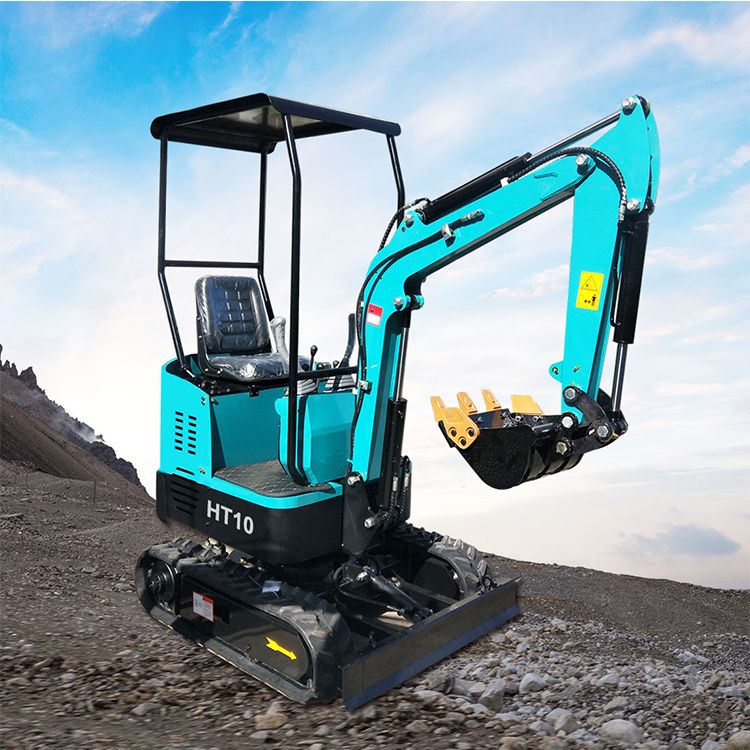

China Excellent-Performance 1 Ton Mini Small Excavator Mini Digger of Diesel Engine

Product Description

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.

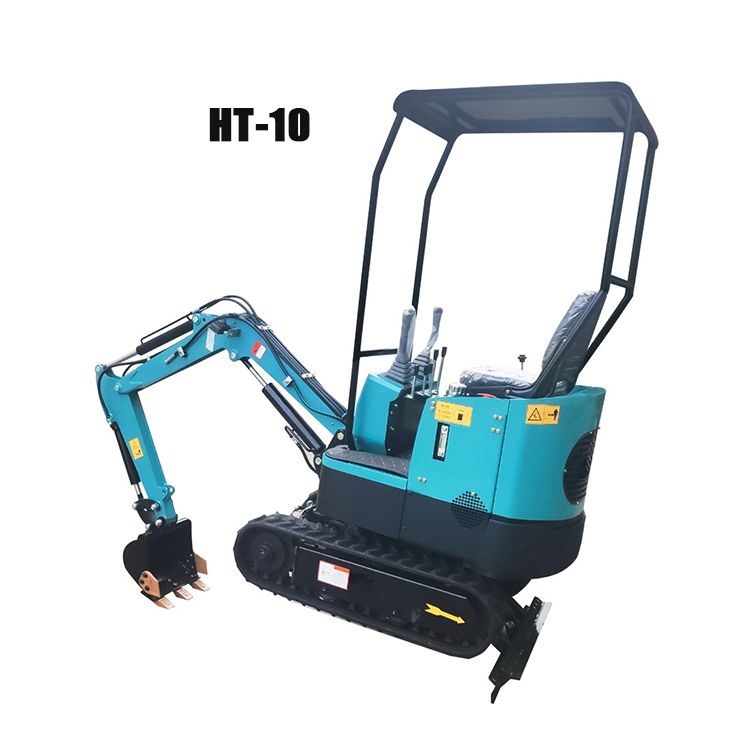

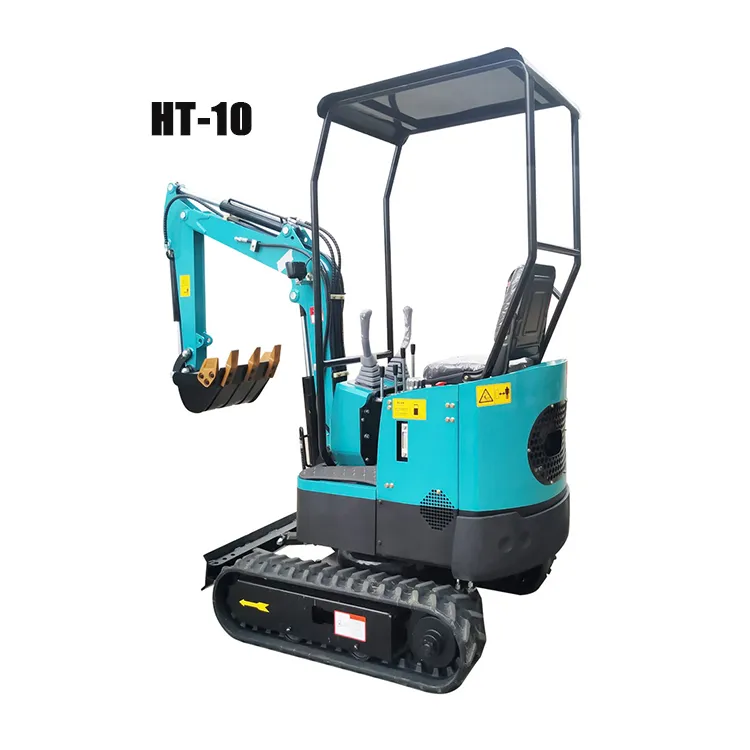

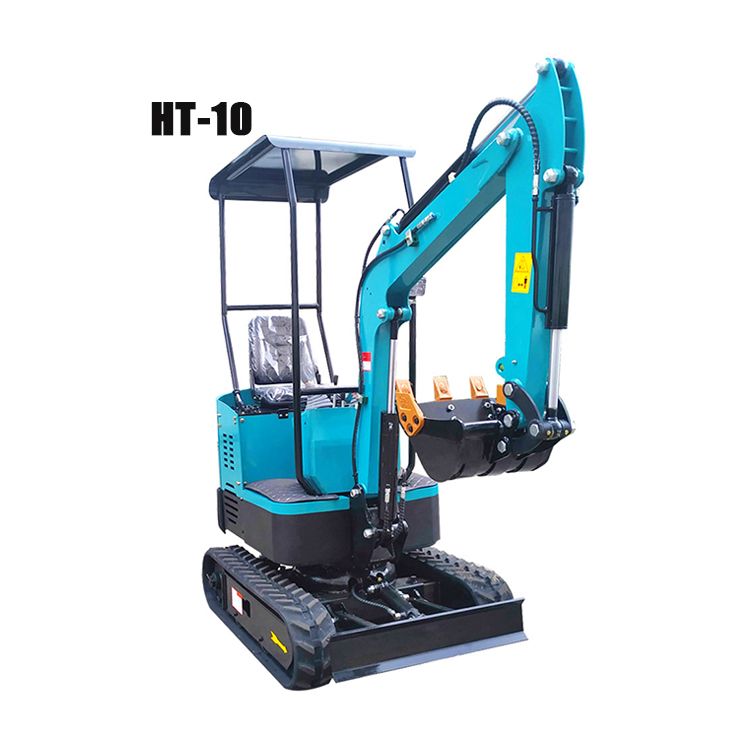

1 Ton Towable Digger Machine Track Excavator

Model	HT-10
Operating Weight	1000kg
Digging bucket capacity	0.025cbm/100kg
Bucket width	340mm
Engine	CHANG CHAI fan cool
Rated power	8.6 kw/3600r/min
Displacement	0.211 L
Bore stroke	70x55

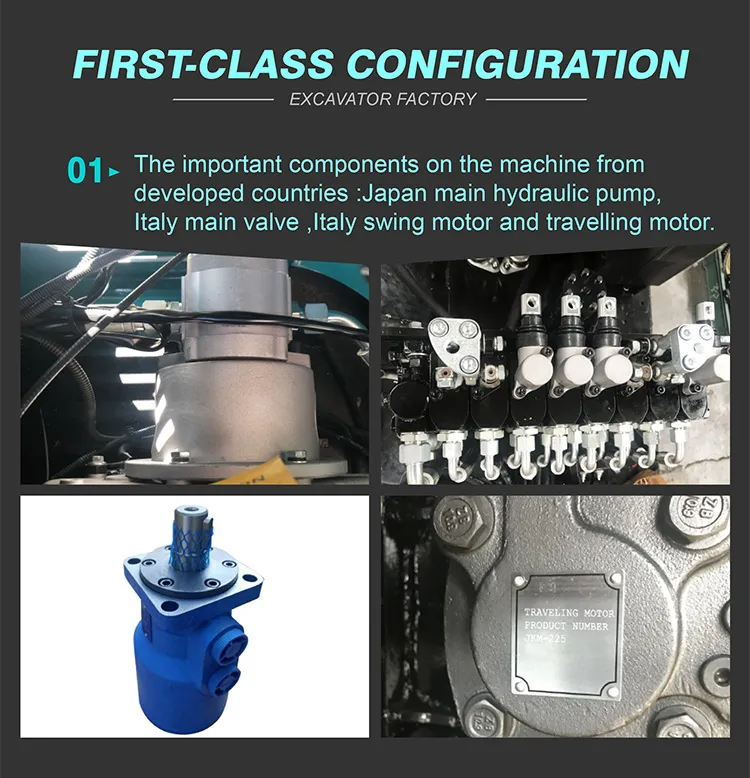

Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN(OMS-2450)
Travel speed	1.5km/h

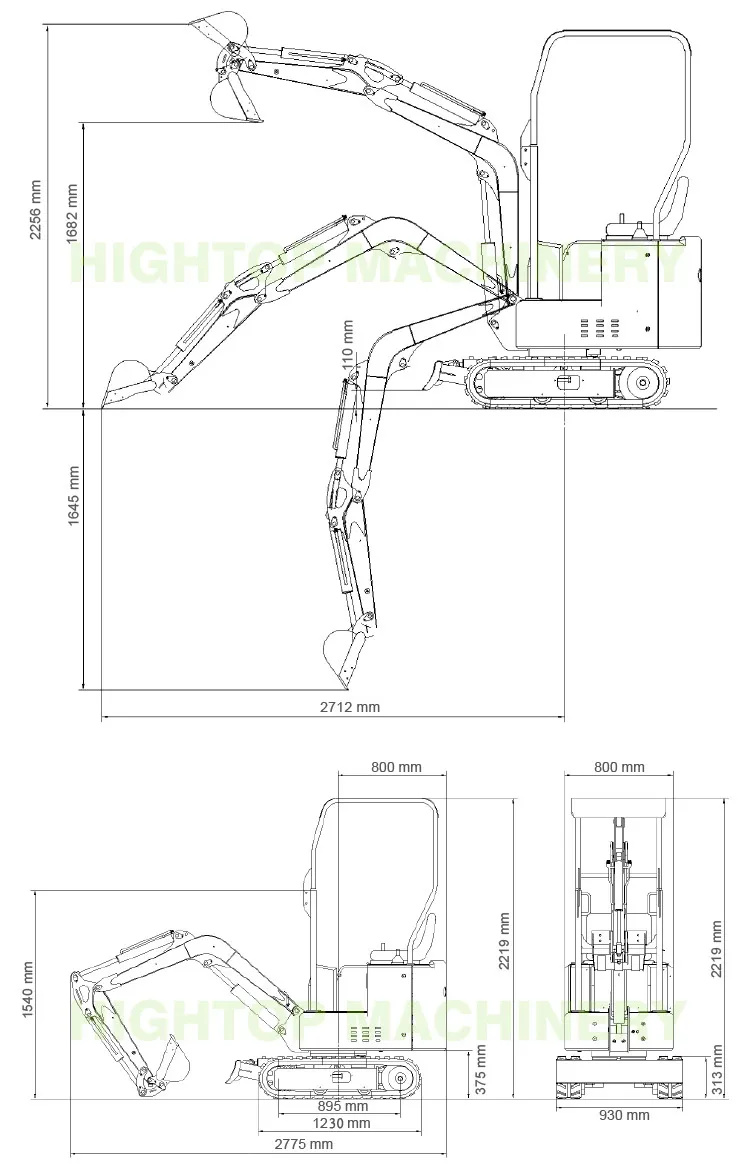

MAIN DEMENSIONS
Overall dimension( LxWxH)	2775x930x2219 mm
Wheelbase	930-1000 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	130 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm

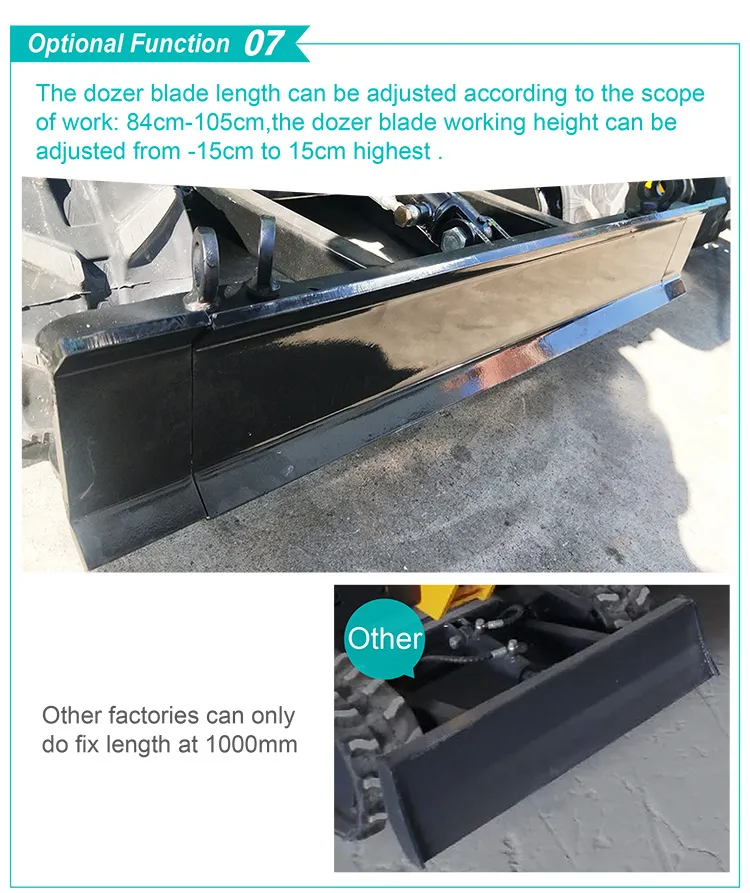

Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm

Product Display

This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable

greenhouse, digging trench It is with small engine, simple design, easy to maintain.

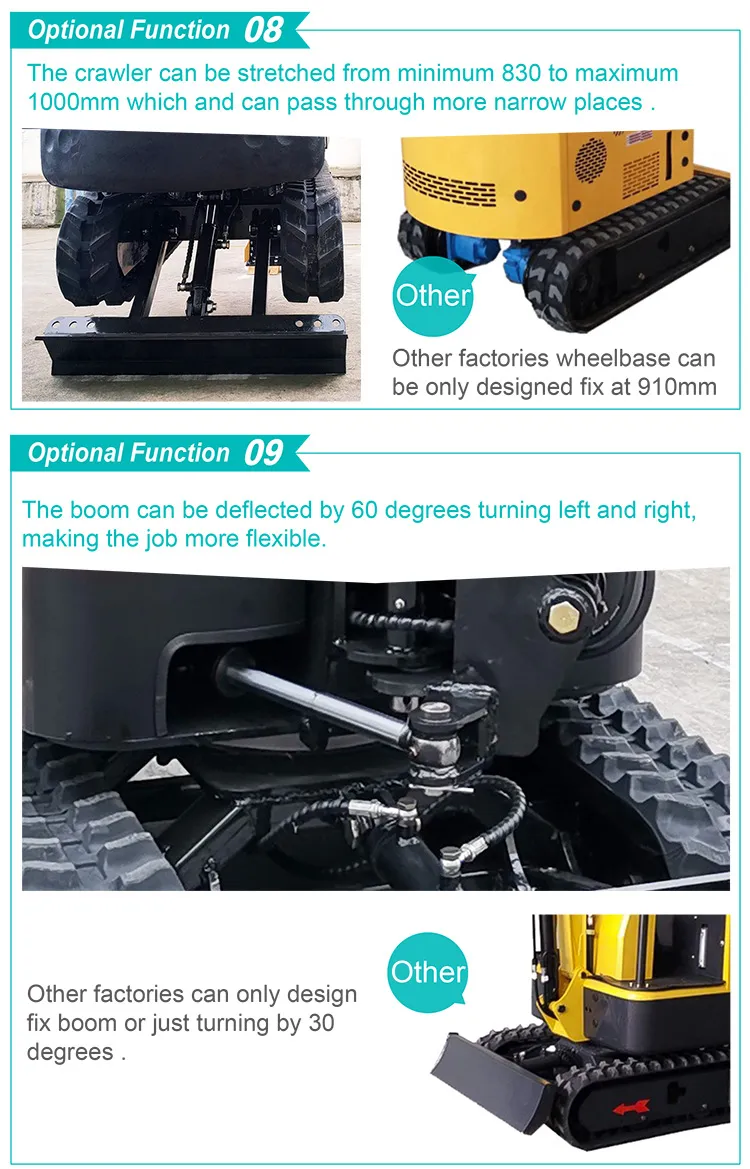

1-Compact Dimensions:

With an overall width of only 830-1000 mm, can easily drive through narrow space.

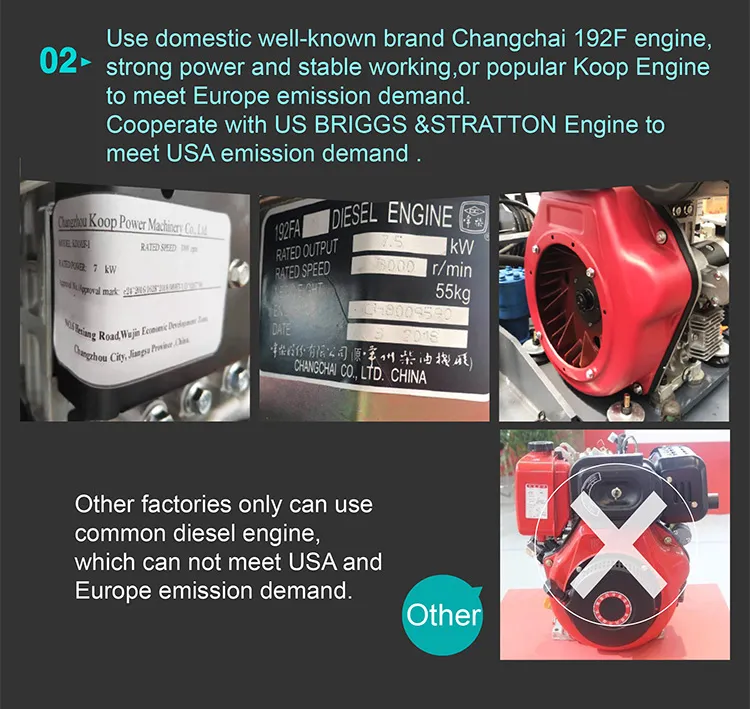

2-Powerful Engine and Hydraulics:

The 8.2 kW (12 hp) engine and perfectly matched hydraulics provide efficient, economical and reliable

performance for the toughest of jobs. The matched cooling system is designed to accommodate working

within confined areas and also the powerful hammer.

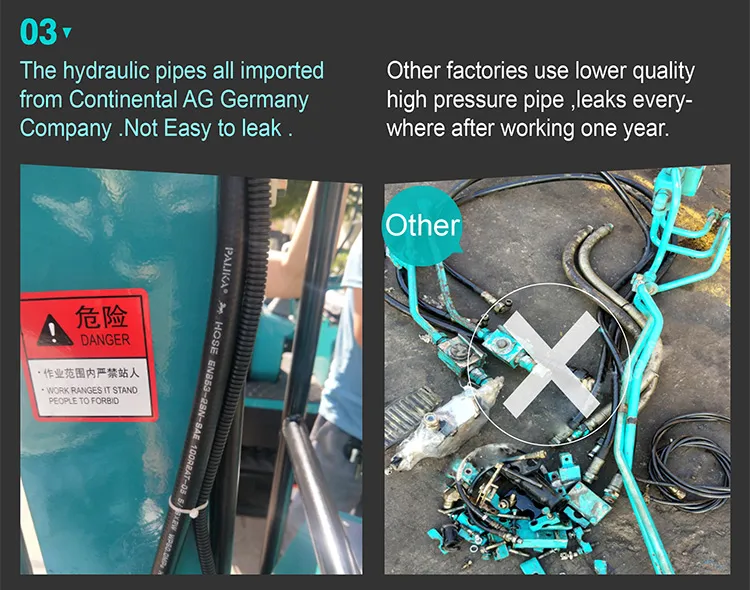

3-Hose and Cylinder Protection:

Bucket hoses are well protected within the boom and the cylinder is mounted above the structure to

increase the machines durability for working in tough environments.

4-Simple Controls:

The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision

operation of functions is possible from independent controls allowing all skill levels to be productive with

little practice.

Excellent-Performance 1 Ton Mini Small Excavator Mini Digger of Diesel Engine

Company Information

THE CHINA MACHINERY (JINING) GROUP CMJ OFFERS A WIDE RANGE OF IN-NOVATIVE COMPACT CONSTRUCTION EQUIPMENT FOR TODAY'S URBANCONSTRUCTION SITES.

China Machinery(Jining) Co Ltd 's aim is to offer compact class construction equipment with superior performance concerning flexibility, speed and process innovation. Our products are designed for highest fuel efficiency and environmental protection, whereby we intentionally optimize the application processes of our users.

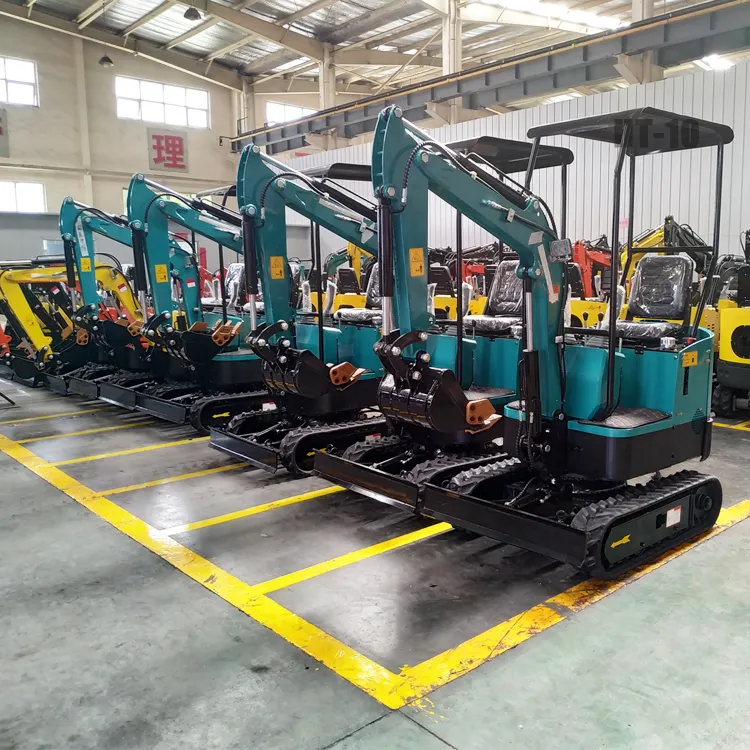

Our manufacturing facilities are located in Jining City, Shandong province, China. We apply with good reasons a high integration of manufacturing. Robot assisted steel fabrication as well as manufacturing of turning joints and cylinders are part of our inhouse manufacturing processes
