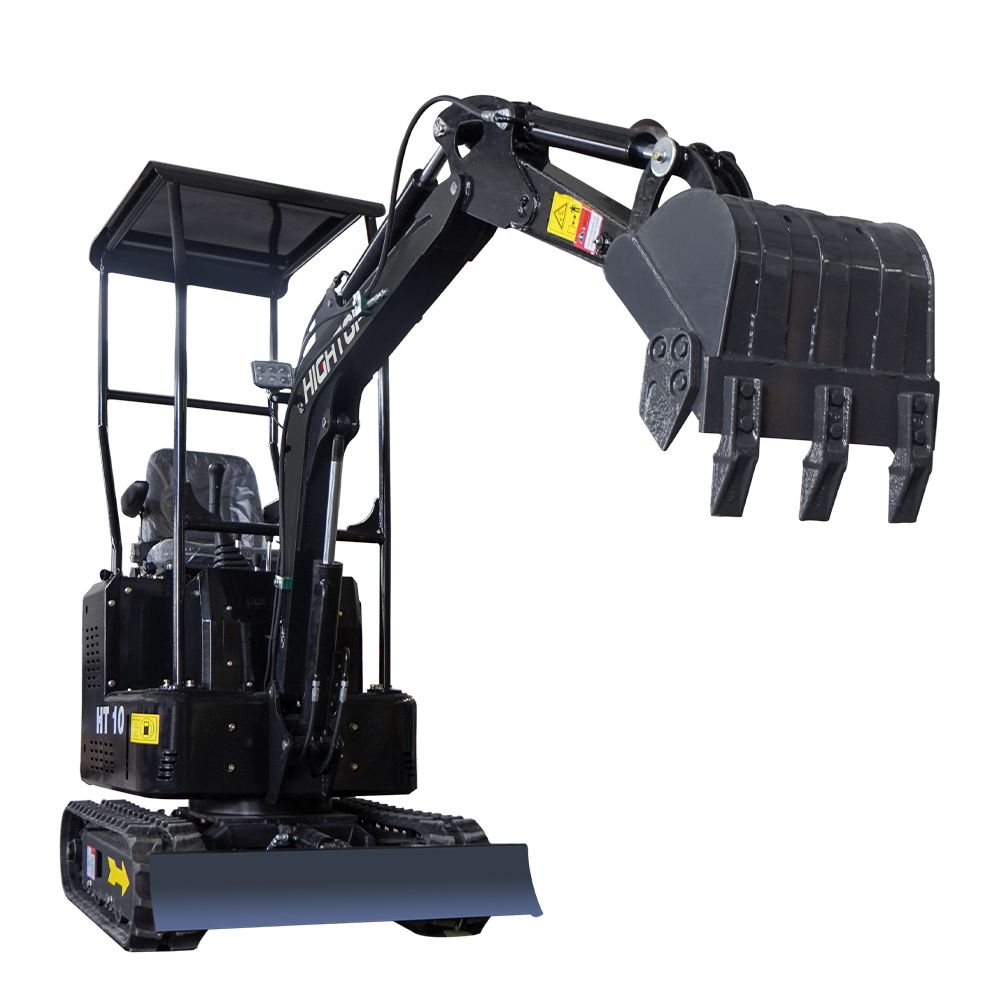

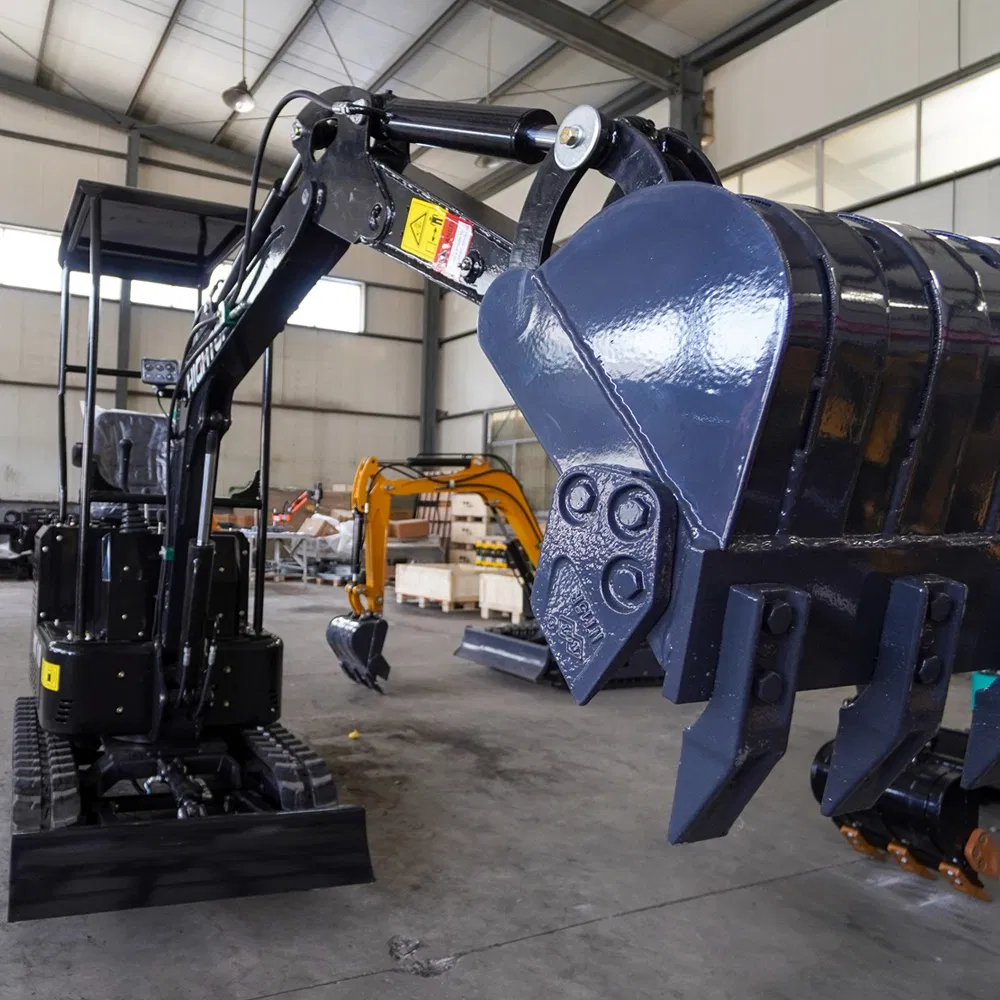

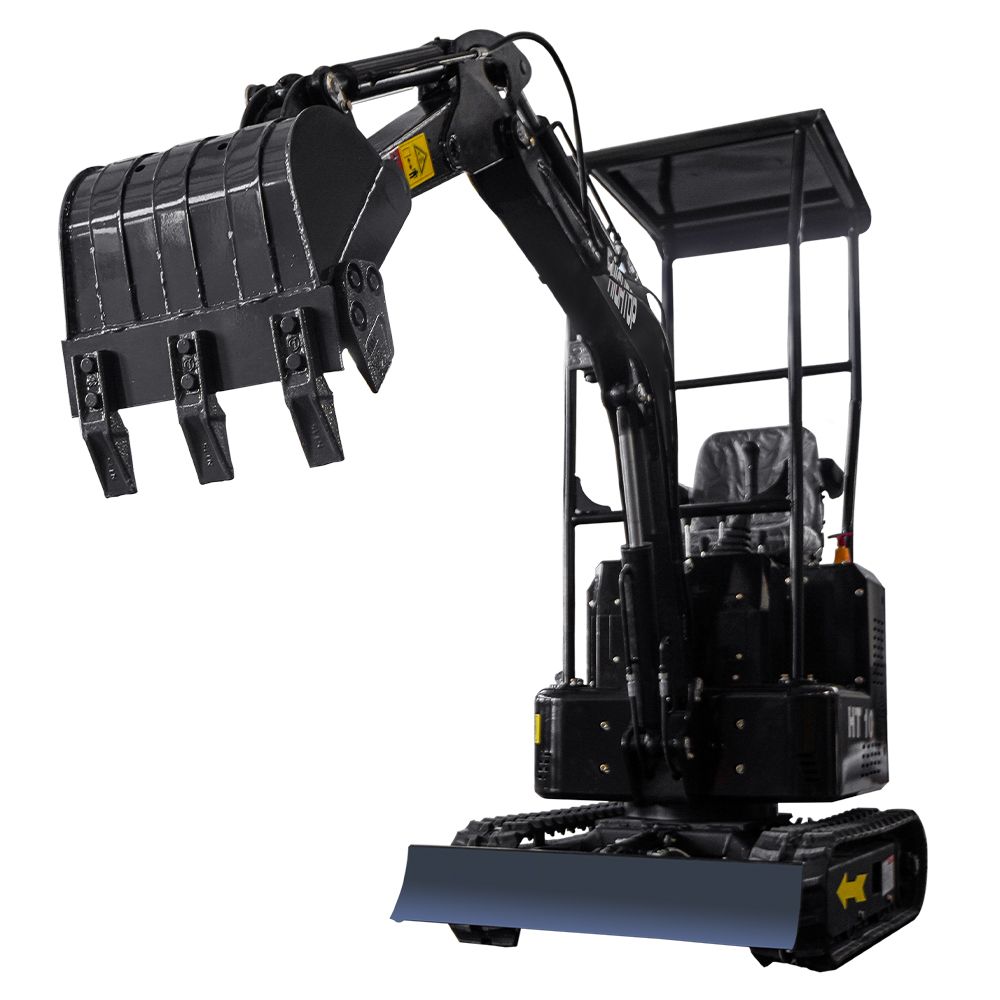

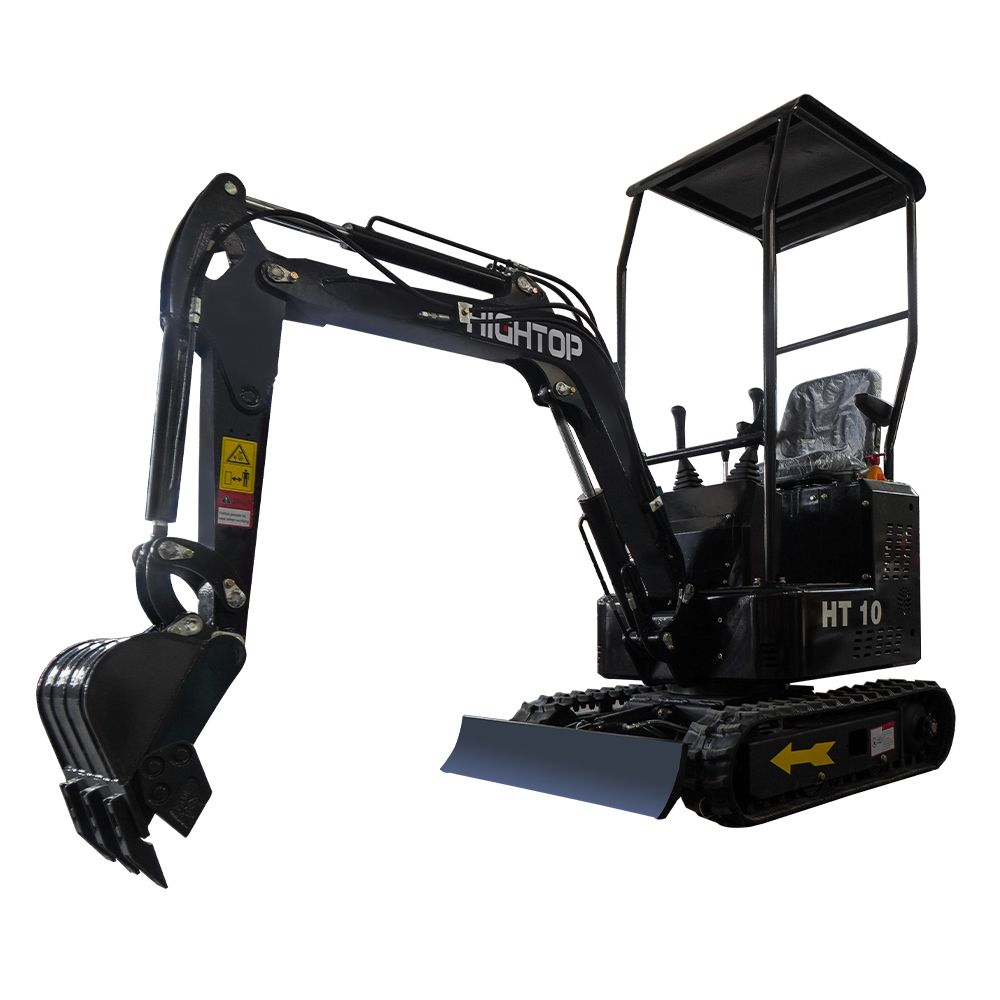

Fast Delivery Electric Micro Digger Mini Excavator 1 Ton
Fast Delivery Electric Micro digger Mini Excavator 1 ton1.Main Demensions of Fast Delivery Electric Micro digger Mini Excavator 1 tonModel: HT10Standard bucket width: 300mmTrack width: 180mmTrack height : 1090mmPlatform ground clearance: 380mmPlatform back turning radius : 784mmChassis width: 896mmM......
Send Inquiry
Product Description
1.Main Demensions of Fast Delivery Electric Micro digger Mini Excavator 1 ton
Model: HT10
Standard bucket width: 300mm
Track width: 180mm
Track height : 1090mm
Platform ground clearance: 380mm
Platform back turning radius : 784mm
Chassis width: 896mm
Maximum excavation depth: 1650mm
Maximum excavation height: 1375mm
Maximum upgarde height of bulldozer: 325mm
Maximum digging depth of bulldozer: 255mm
Operating weight: 900 kg
Rated power: 8.6kw/3600r/min
Fast Delivery Electric Micro digger Mini Excavator 1 ton designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking.
One set comes with one standard digging bucket 300mm and safe canopy.
Package: One set packing by Wooden case, 20' Containter can hold 7 sets, 40' Containter can hold 12 sets.

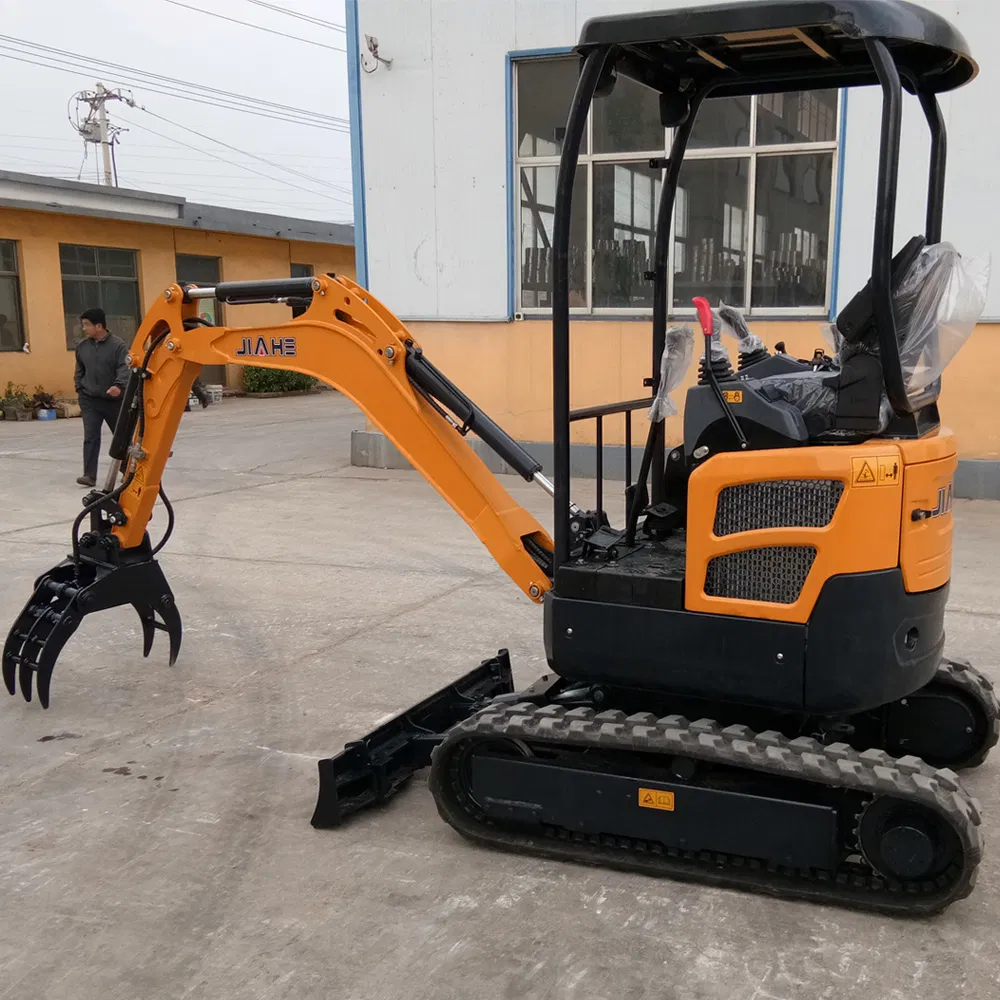

Optional Accessory : Narrow bucket(200mm width), Plain bucket (500mm width), Ripper, Grabber, Rake, Auger and etc.
Specifications:
Model | HT10 |
Operate Weight | 1000KG |
Digging bucket capacity | 0.025cbm/120kg |
Bucket width | 380mm |
Engine | CHANGCHAI (KD192),Single cylinder, fan cool |
Optional engine | BRIGGS & STRATTON/LCT EPA, Euro 5 |
Rated power | 8.2kw/3600r/min |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN(OMS-2450) |
Travel speed | 1.2km/h |
Overall dimension( LxWxH) | 2590x800x1250 mm |
Max. Digging depth | 1200mm |
Max. Vertical digging depth | 1375mm |
Max. Digging height | 2350mm |
Max. Dumping height | 1600mm |
Max. Digging radius on ground | 2450mm |
Min. Rotation radius | 1100mm |
Max. Upgrade height of bulldozer blade | 345mm |
Max. Digging depth of bulldozer blade | 255mm |
1. Easy to operate
Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
2. BIG PERFORMANCE IN A COMPACT DESIGN
Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
3. SAFETY ON THE JOB SITE
Your safety is our top priority. The mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.
4. LOWER OPERATING COSTS
Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the mini excavator was designed with reducing your operating costs in mind.
Details image:
You May like:

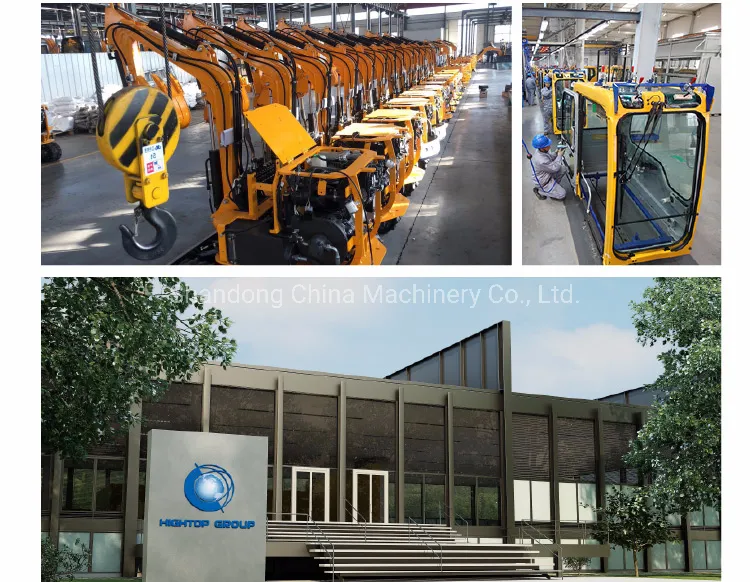

We also produce 1.0 ton, 0.8 ton, 1.5ton,1.6ton,1.8ton,2ton, 2.2ton,3ton,3.5ton mini excavator in our factory
