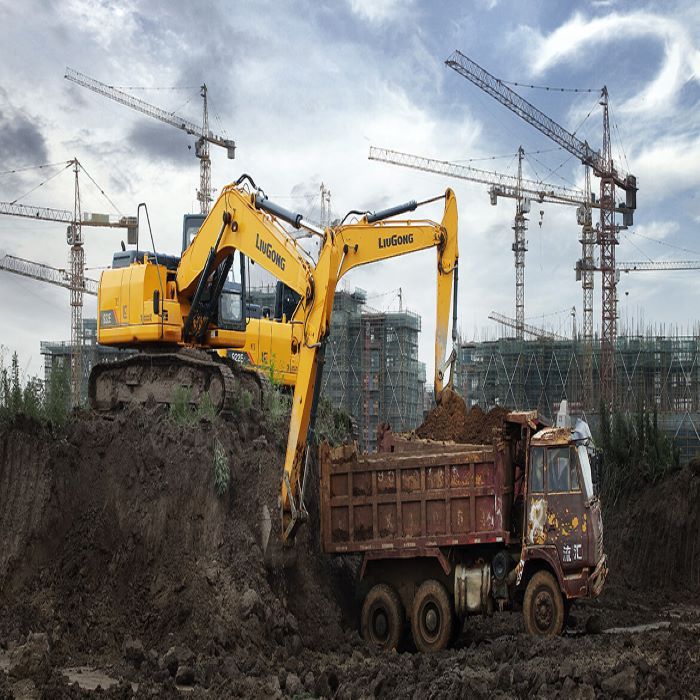

Good Price Liugong 8.7 Ton Crawler Excavator
Product Description LiuGong's line of excavators offers the performance you need and the flexibility your projects demand. Designed to work hard on any jobsite, LiuGong's expansive line of excavators not only include compact machines for tight quarters but powerful machines that can take on ......
Send Inquiry
Product Description
Product Description
LiuGong's line of excavators offers the performance you need and the flexibility your projects demand. Designed to work hard on any jobsite, LiuGong's expansive line of excavators not only include compact machines for tight quarters but powerful machines that can take on the toughest jobs. Providing you the machines you require where ever you are working. Fuel efficiency coupled with smooth operation lets you work to get your jobs done.
Technical parameters
Operating weight with cab | 8700 kg |
Engine power | 46.2 kW (62.0 hp) @ 2200 rpm |
Bucket capacity | 0.14-0.4 m³ |
Maximum travel speed (High) | 4.8 km/h |
Maximum travel speed (Low) | 2.4 km/h |
Maximum swing speed | 10.5 rpm |
Arm breakout force | 43 / 37 kN |
Bucket breakout force | 63 kN |
Shipping length | 6115 / 6200 mm |
Shipping width | 2400 mm |
Shipping height | 2710 mm |
Track shoe width (std) | 450 mm |
Boom | 3375 mm |
Arm | 1650 / 2100 mm |
Digging reach | 6847 / 7264 mm |
Digging reach on ground | 6651 / 7082 mm |
Digging depth | 4093 / 4540 mm |
Vertical wall digging depth | 3043 / 3963 mm |
Cutting height | 6724 / 7016 mm |
Dumping height | 4725 / 5000 mm |
Minimum front swing radius | 2421 mm |
Dozer-up | 470 mm |
Dozer-down | 510 mm |
Swing boom left rotation | 70 ° |
Swing boom right rotation | 55 ° |
Model | 4TNV98C-SLY |
Emission | EU Stage IIIB / EPA Tier 4F |
System maximum flow | 196 L/min ( 52 gal/min) |
System pressure | 28 MPa |
