High Quality Easy Maintain 1.6 Ton 1.8 Ton 2 Ton Mini Crawler Excavator

Product Description

Xiniu Hot Sale 0.8 Ton 1 Ton 1.2 Ton 1.6 Ton 1.8 Ton 2 Ton Mini Crawler Excavator

This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.

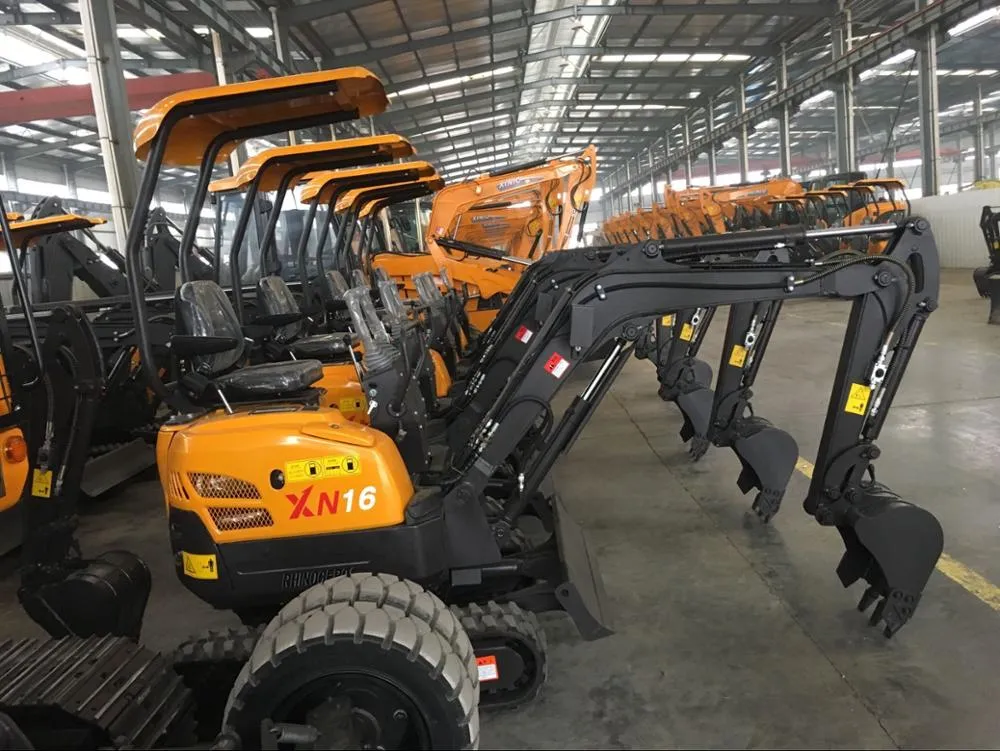

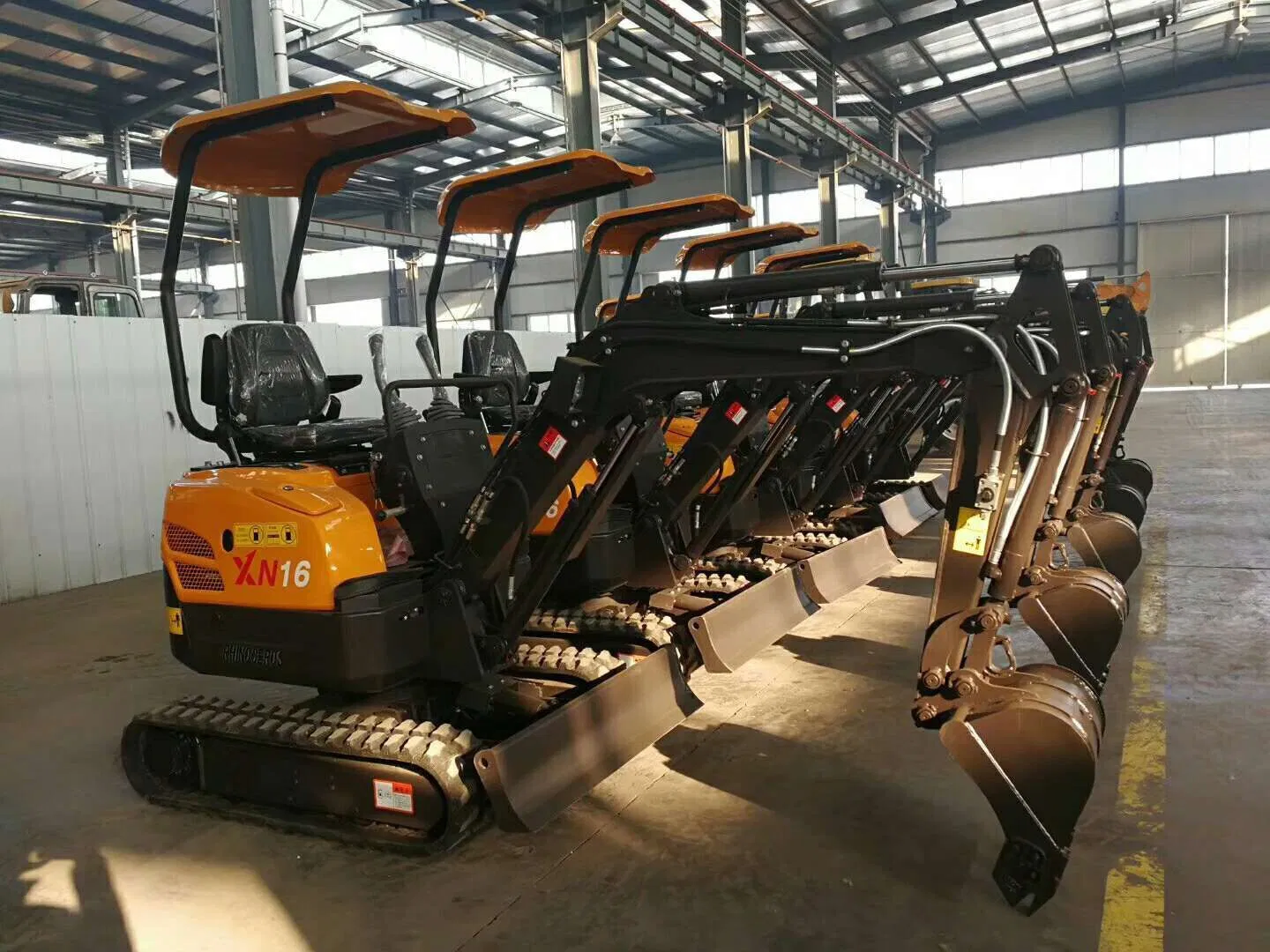

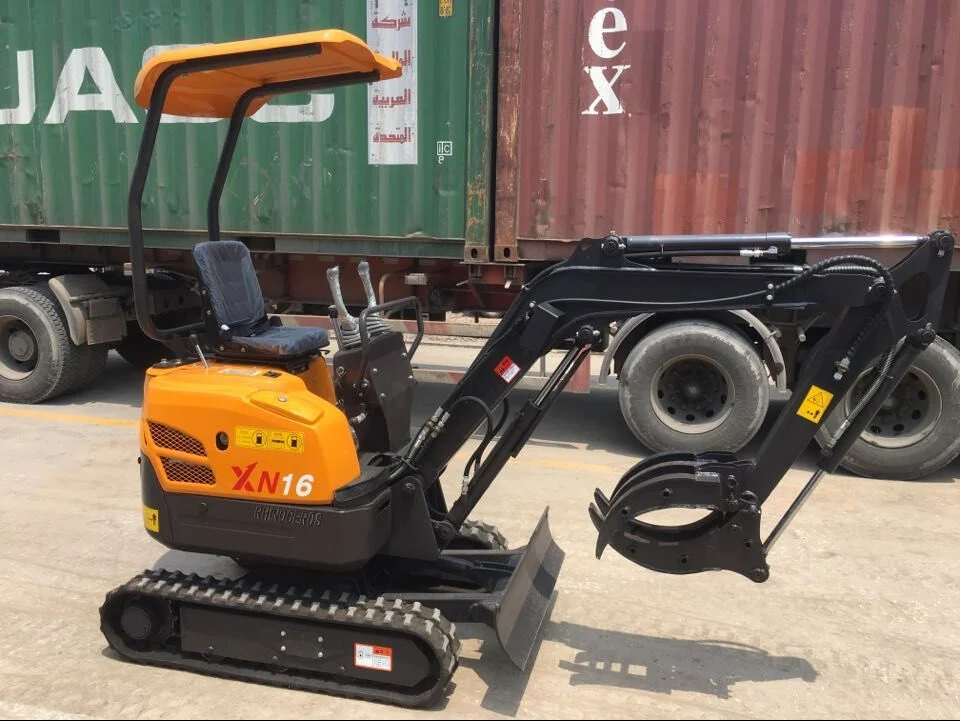

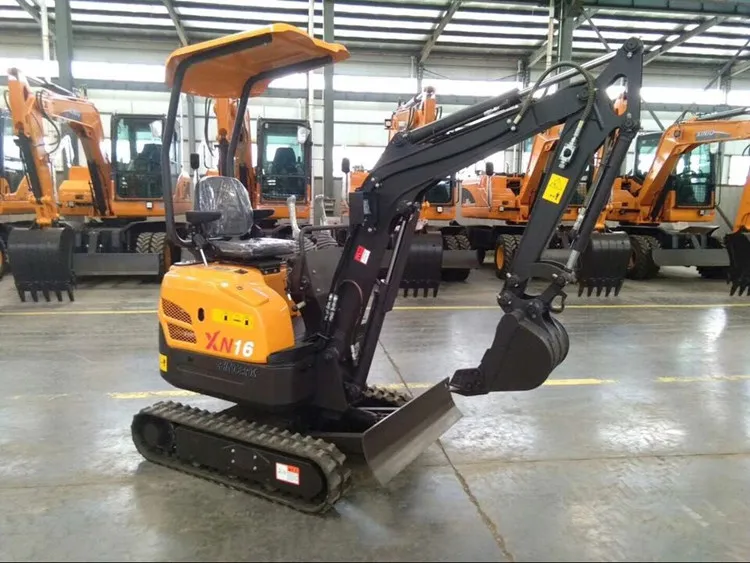

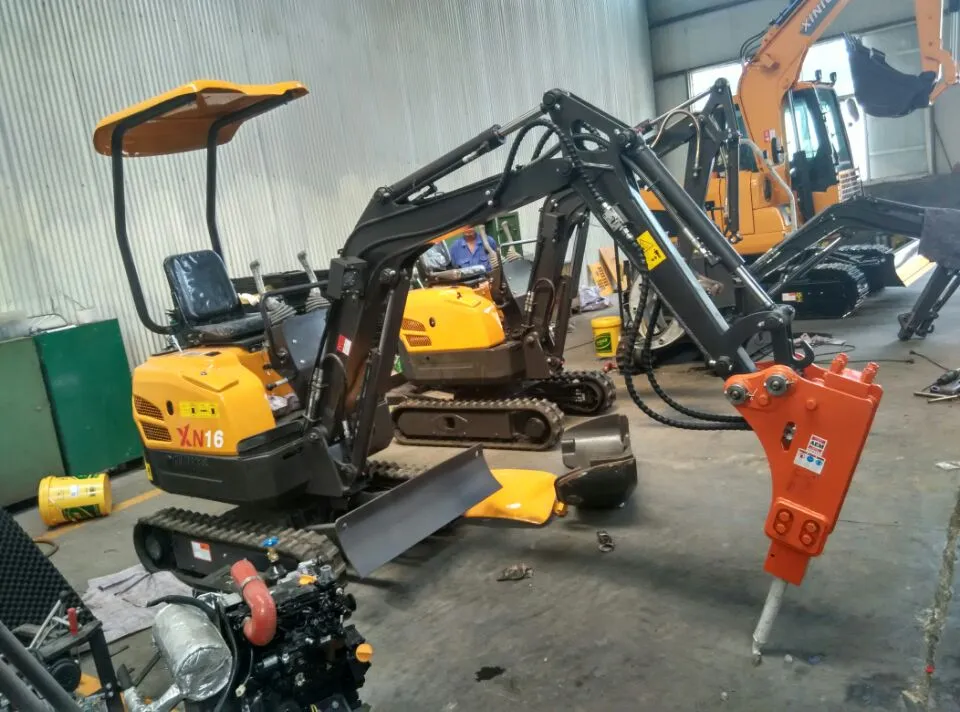

Model	XN16
Brand	RHINOCEROS
Operating Weight	1600kg
Digging bucket capacity	0.045cbm/400kg
Digging bucket width	400mm, can add narrow bucket is 200mm
Engine	Yanmar (3TNV70-S)
Rated power	10kw/2200/r/min
Displacement	0.854L
Bore stroke	three cylinder, water cool
Main pump	JINXING
Hydraulic oil tank capacity	15.3L
Engine oil tank capacity	2.8(1.3)L
Diesel tank capacity	19 L
Working pressure	16MPa
Valve	BEIFANG
Displacement	6.8ml/r
Swing motor	USA EATON
Traveling motor	SOUTH KOREA DONGHYUAN
MAIN DEMENSIONS
Overall dimension( LxWxH)	3160x1040x2377mm
Total length of track on land	1670mm
Platform ground clearance	460 mm
Platform back turning radius	740 mm
Chassis width	1040 mm
Track width	230 mm
Chassis ground clearance	460 mm
Bucket digging force	10.5kn
Arm digging force	6.5kn
Track height	320 mm
OPERATING RANGE
Max. Digging depth	2150 mm
Max. Vertical digging depth	1740 mm
Max. Digging height	3275 mm
Max. Dumping height	2310 mm
Max. Digging radius on ground	3470 mm
Min. Rotation radius	1440 mm
Max. Upgrade height of bulldozer blade	262 mm
