Hydraulic Crawler Mini Excavator for Garden and Farm 1 Ton
1 Ton Mini Excavator Small Digger Machine1) Simple structure in linear type ,easy in installation and maintation.2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.3) High pressure double crank to control the die opening and closing.4) Running i......
Send Inquiry
Product Description

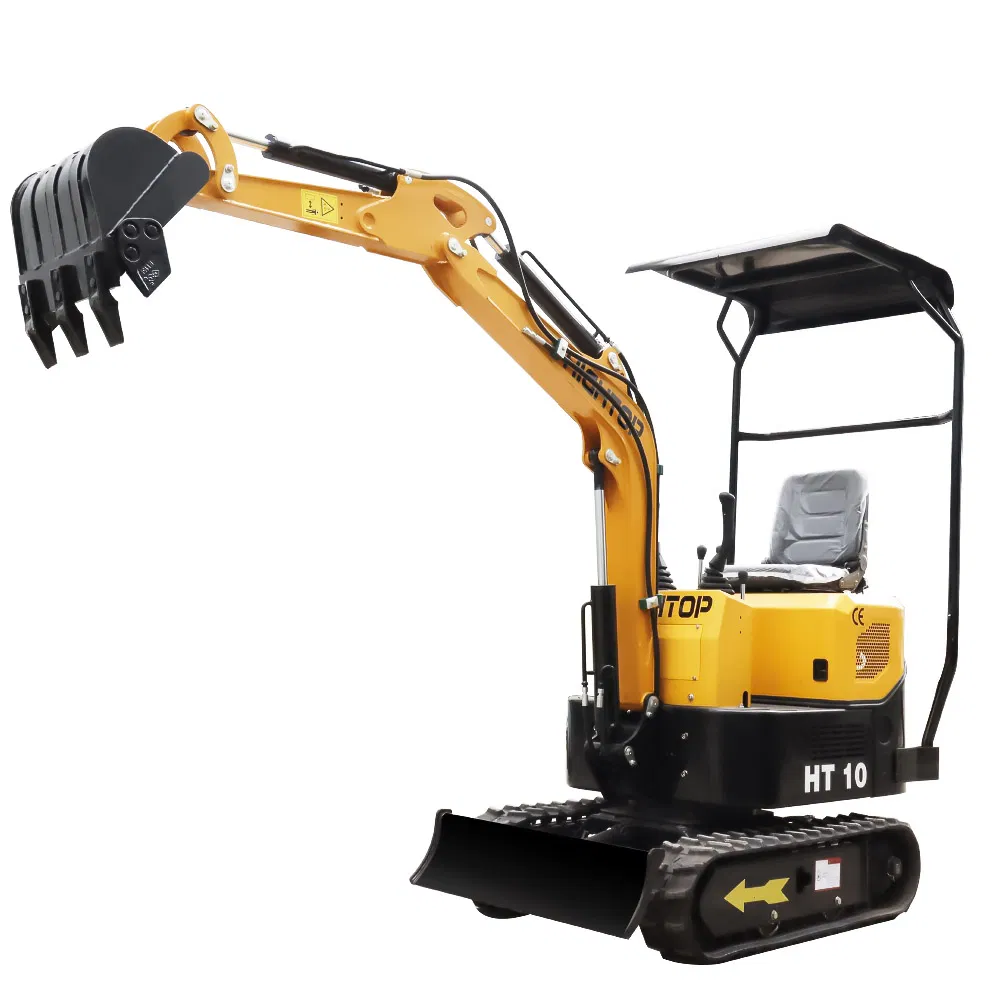

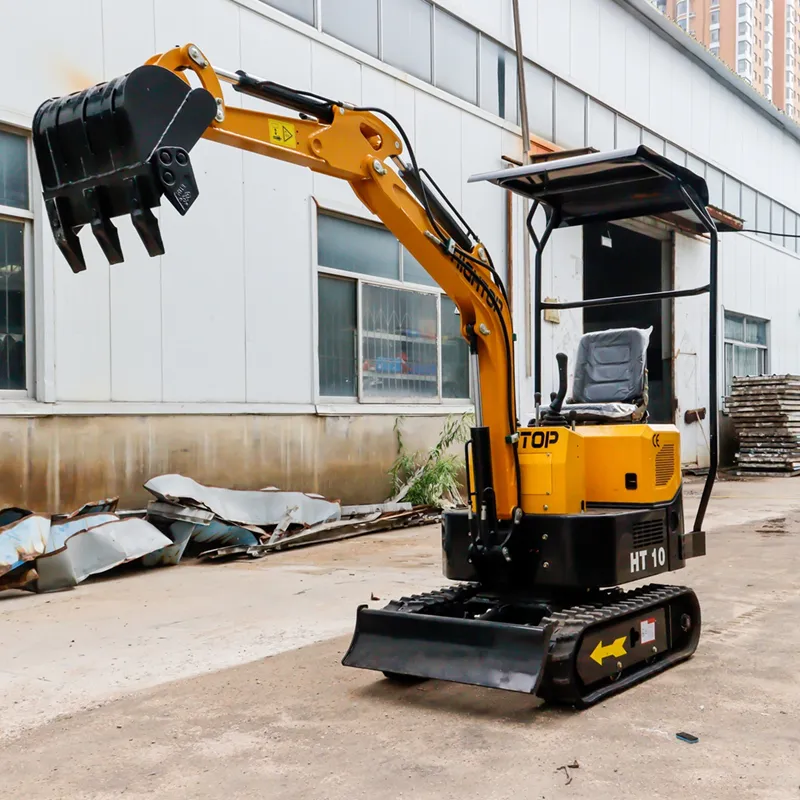

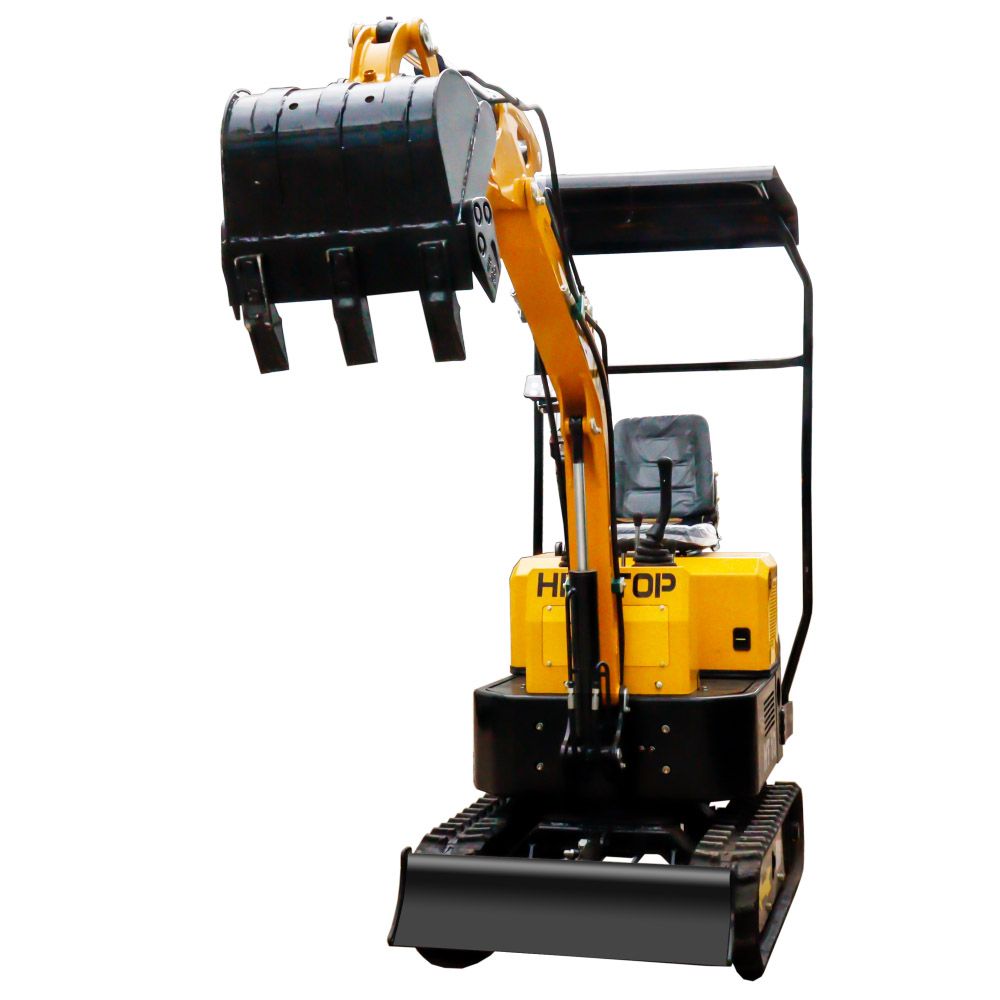

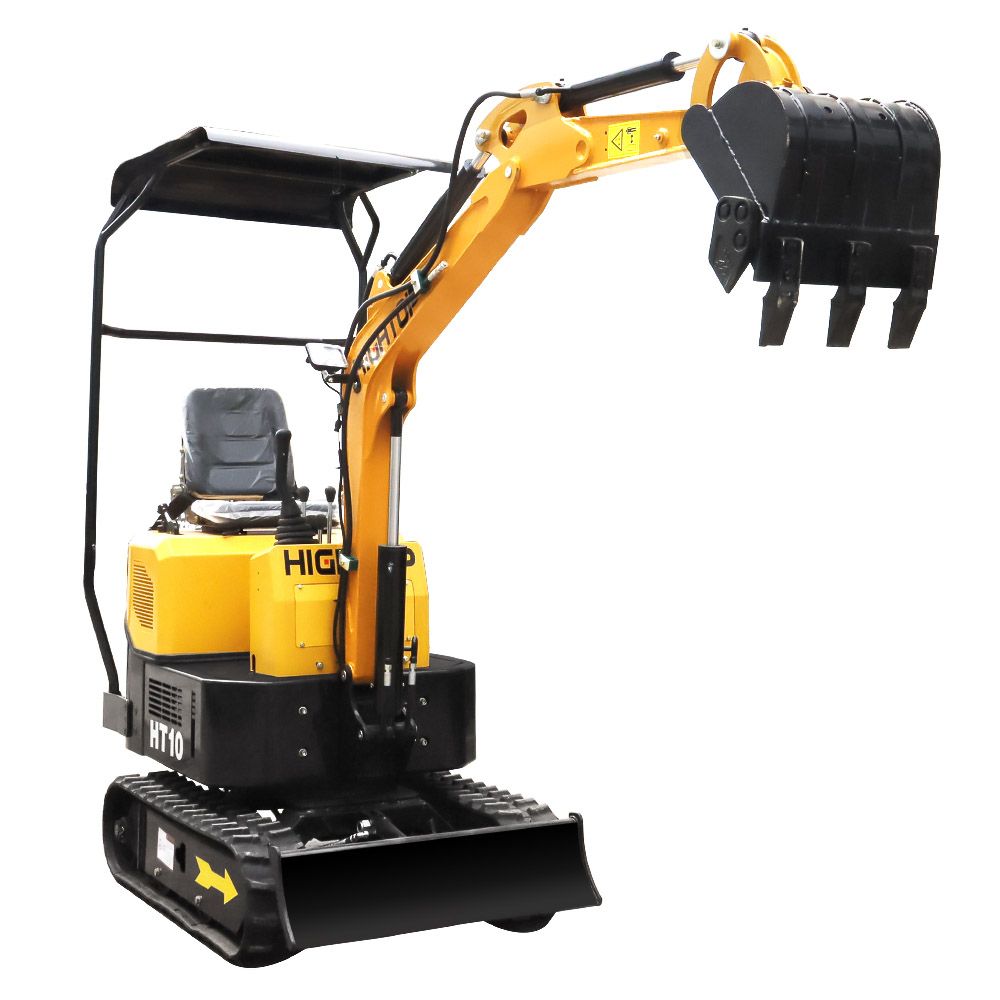

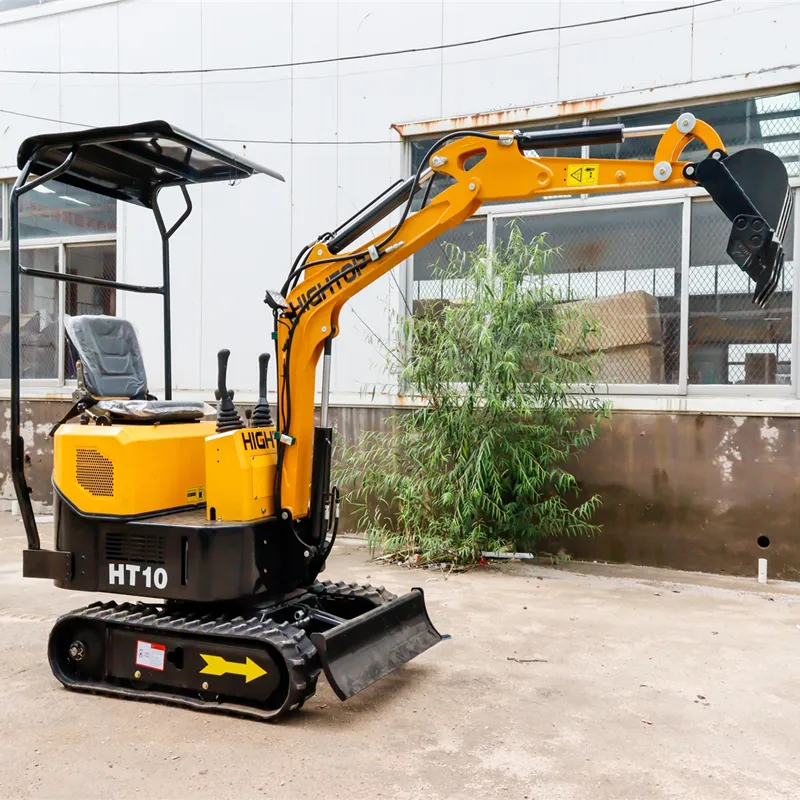

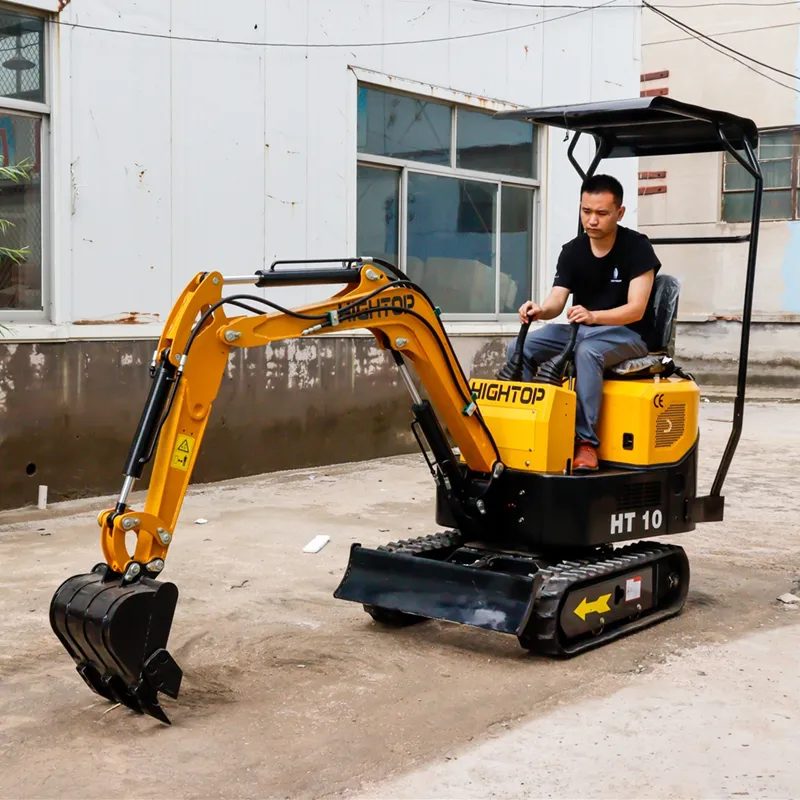

1 Ton Mini Excavator Small Digger Machine
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
| Model | HT-10 |
| Operating Weight | 1000kg |
| Digging bucket capacity | 0.025cbm/100kg |
| Bucket width | 340mm |
| Engine | CHANG CHAI fan cool |
| Rated power | 8.6 kw/3600r/min |
| Displacement | 0.211 L |
| Bore stroke | 70x55 |
| Main pump | CBK-F6.8 |
| Displacement | 6.8ml/r |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN(OMS-2450) |
| Travel speed | 1.5km/h |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2775x930x2219 mm |
| Wheelbase | 930-1000 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 130 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Company Information
THE CHINA MACHINERY (JINING) GROUP CMJ OFFERS A WIDE RANGE OF IN-NOVATIVE COMPACT CONSTRUCTION EQUIPMENT FOR TODAY'S URBANCONSTRUCTION SITES.
China Machinery(Jining) Co Ltd 's aim is to offer compact class construction equipment with superior performance concerning flexibility, speed and process innovation. Our products are designed for highest fuel efficiency and environmental protection, whereby we intentionally optimize the application processes of our users.

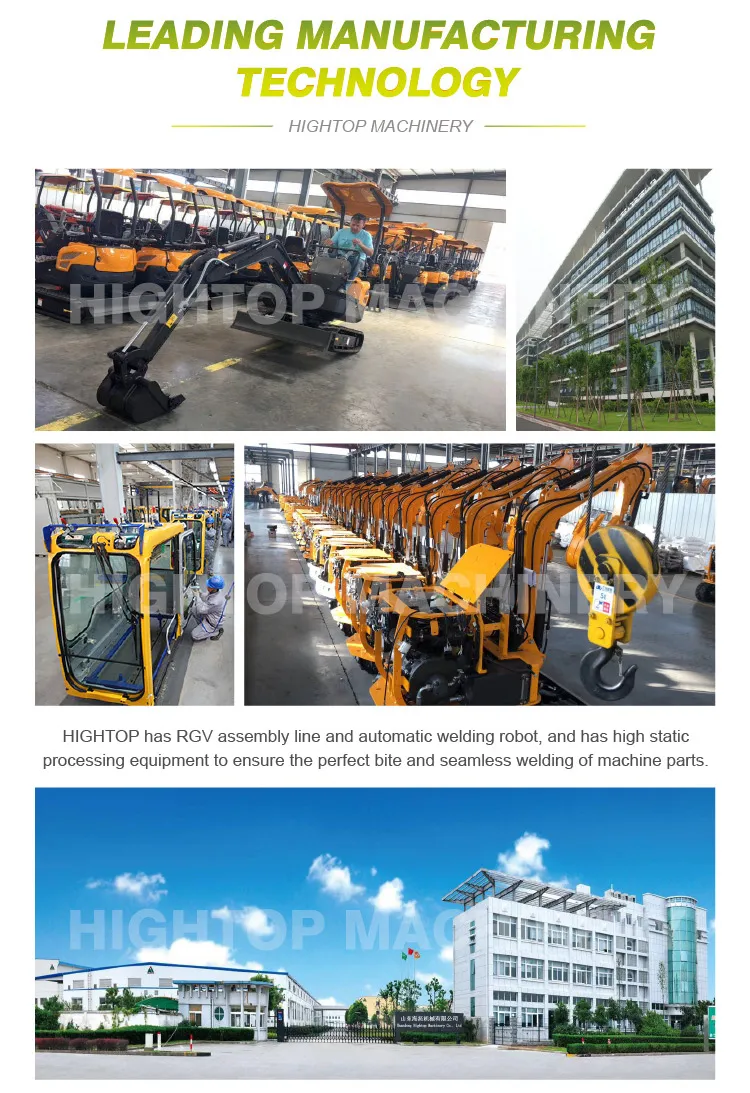

Our manufacturing facilities are located in Jining City, Shandong province, China. We apply with good reasons a high integration of manufacturing. Robot assisted steel fabrication as well as manufacturing of turning joints and cylinders are part of our inhouse manufacturing processes
