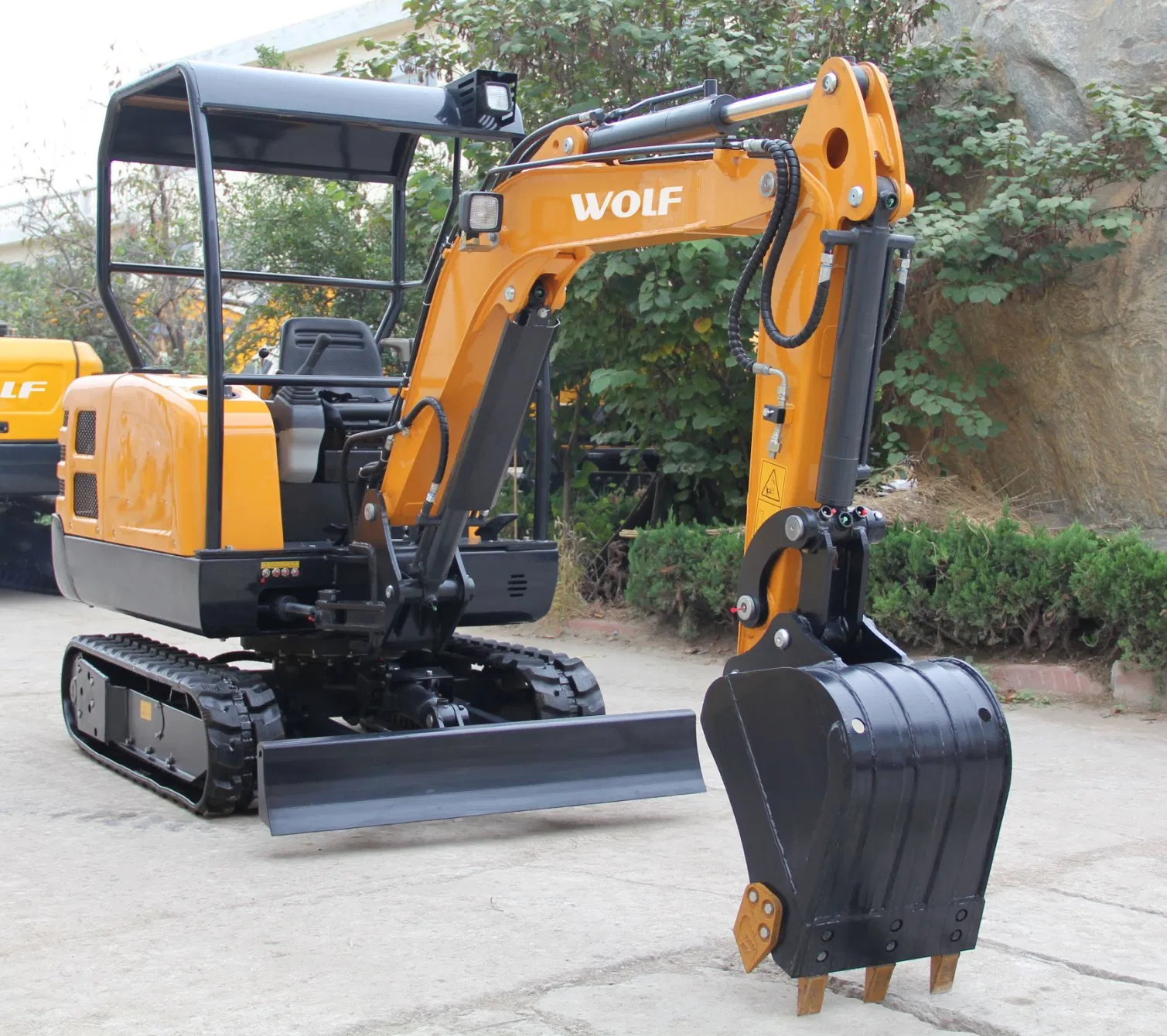

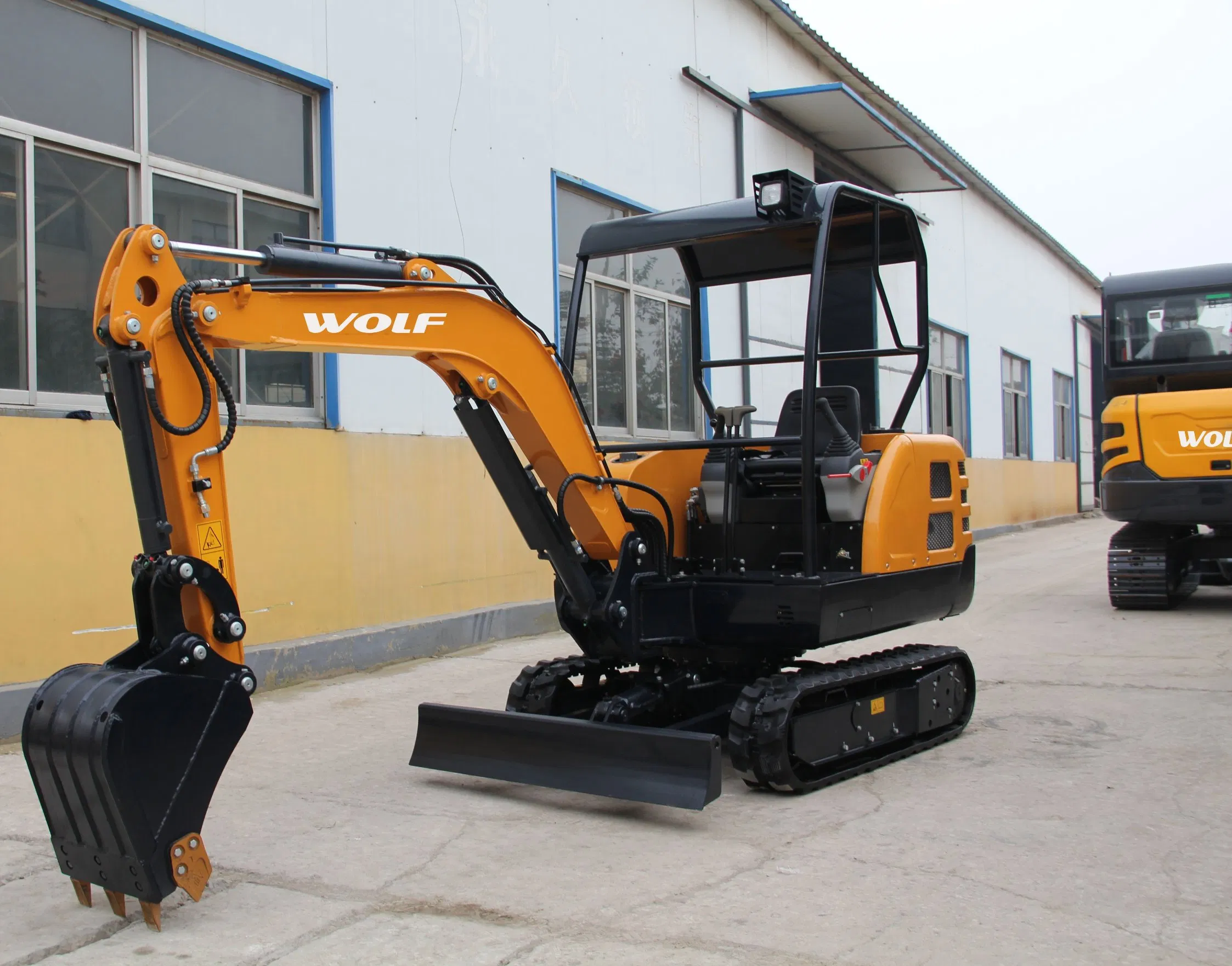

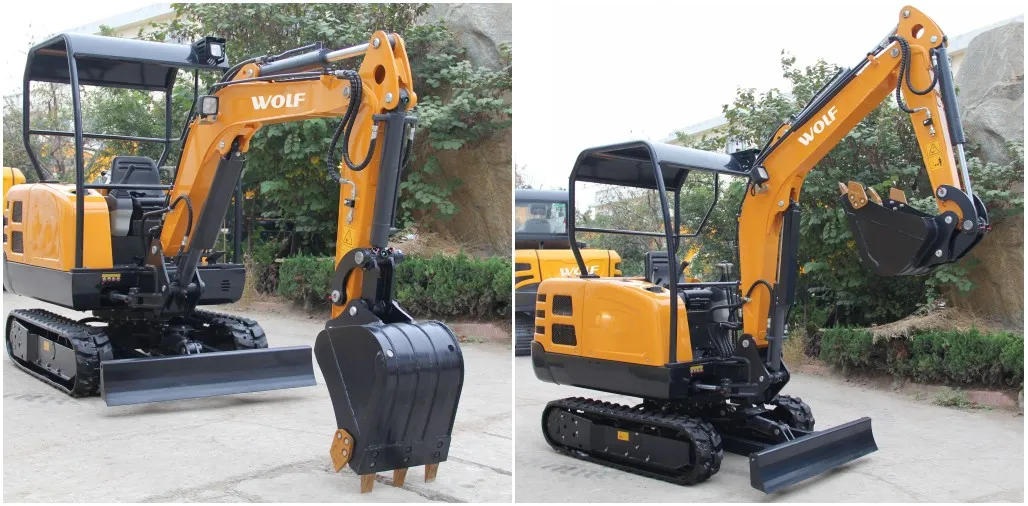

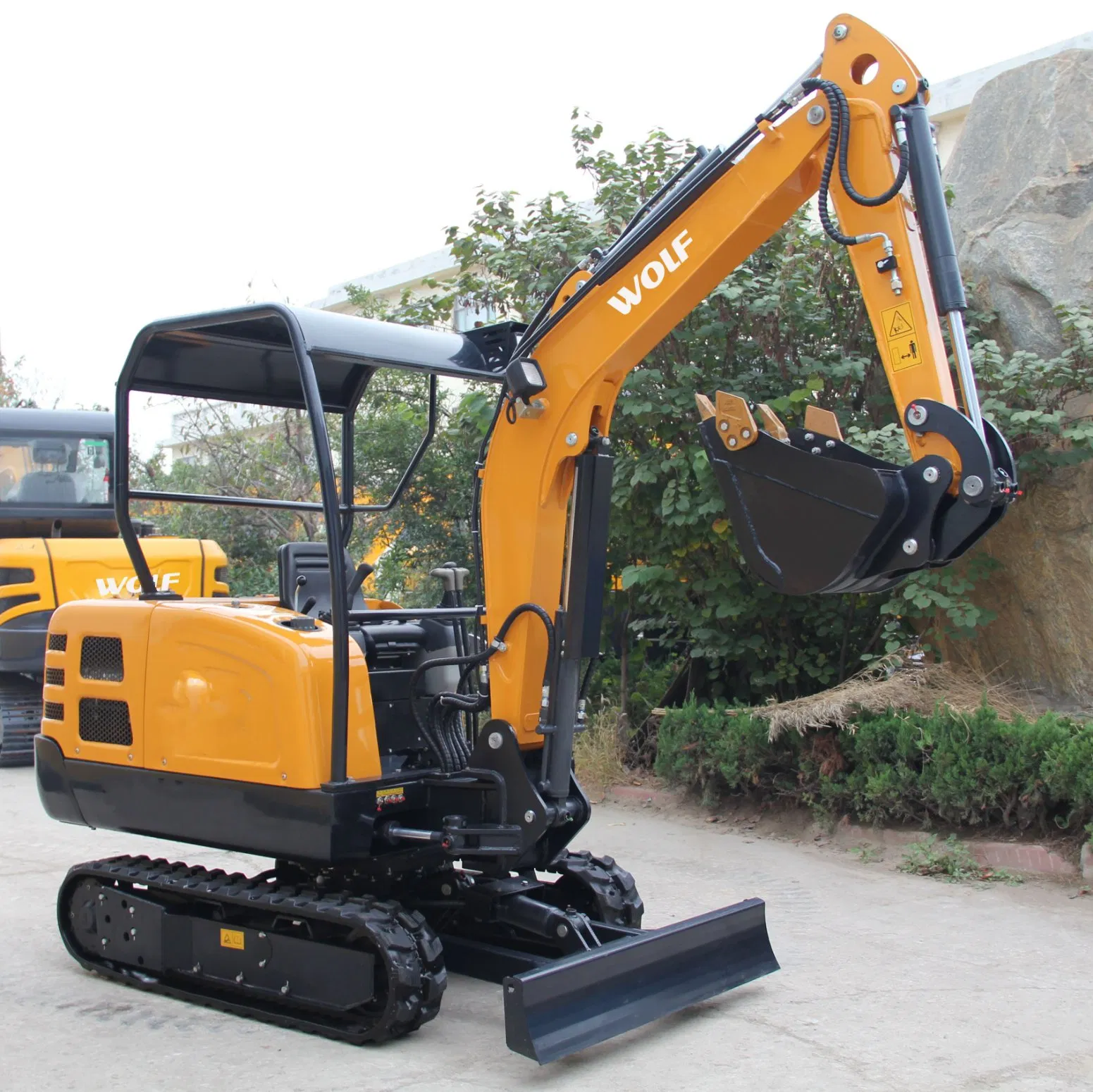

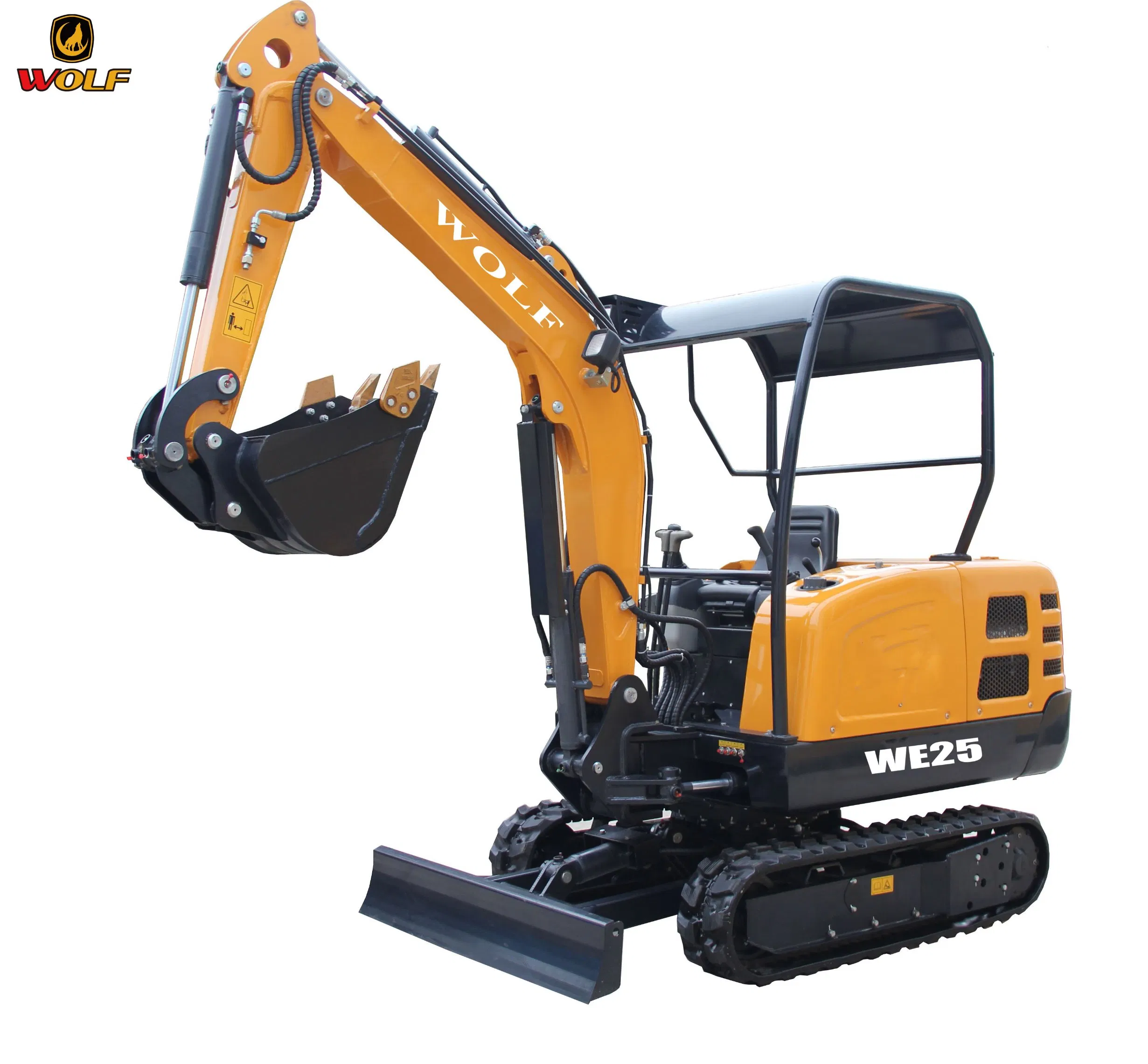

Hydraulic Crawler Mini Excavator Tracked Mini Digger of 2.5 Ton
Engine: Laidong 3T30E engineOptional: Kubota D1105 Euro5/EPA engineHydraulic pump: AHWYTravelling/swing motor:EATONOperating weight: 2500kgBucket capacity:0.1m3More details:It can be used in different environment, helping you solve different works with different attachments:There is also enclosed c......
Send Inquiry
Product Description
Engine: Laidong 3T30E engineOptional: Kubota D1105 Euro5/EPA engine
Hydraulic pump: AHWY
Travelling/swing motor:EATON
Operating weight: 2500kg
Bucket capacity:0.1m3
More details:

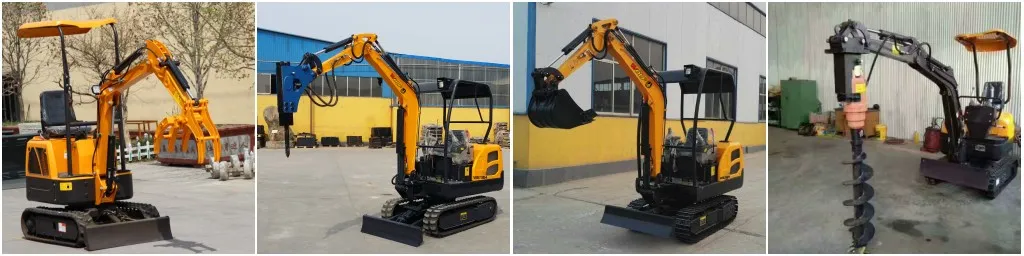

It can be used in different environment, helping you solve different works with different attachments:

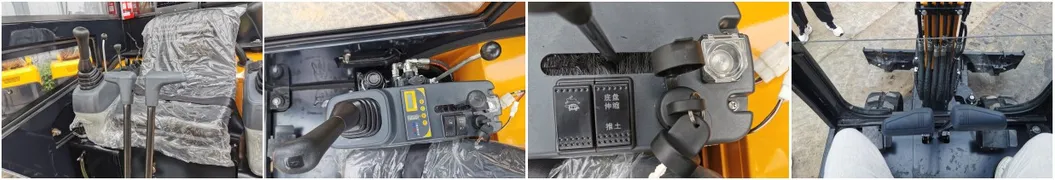

There is also enclosed cabin and different colour for choose:
For different market with different engines, Kobuta Euro5 engine for Europe market and Kubota Tier4 engine for North America market.
Surely, there is also other different models to meet your different demands:
| Wolf mini excavator from 800kg to 2500kg | |||||||
| Model | WE08 | WE10 | WE12 | WE16 | WE18 | WE20 | WE25 |
| Weight | 800kg | 1000kg | 1040kg | 1600kg | 1800kg | 2000kg | 2500kg |
| Engine | Koop KF192 Euro5 | Koop KF192 Euro5 | Yanmar3TNV70S | Yanmar3TNV70S | Laidong3TE25(EFI engine) | Kubota D1105 Euro5 | Laidong3TE30(EFI engine) |
| Power | 7kw | 7kw | 10kw | 10kw | 18.1kw | 14.1kw | 22.1kw |
| Hydraulic system working pressure | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 21.5Mpa | 20Mpa |
| Swing speed | 0-13r/min | 0-13r/min | 0-13r/min | 0-15r/min | 10-12r/min | 0-9r/min | 12-14r/min |
| Travelling speed | 1.5km/h | 2km/h | 2km/h | 2.3km/h | 2.8km/h | 2.8km/h | 2.8km/h |
| Grade ability | 30° | 30° | 30° | 30° | 35° | 35° | 35° |
| Traveling Tracking Force | 8.5KN | 8.3KN | 8.5KN | 13.5KN | 15KN | 15KN | 15KN |
| Bucket Digging Force | 9.5KN | 7.2KN | 9.5KN | 11KN | 11.5KN | 18KN | 11.5KN |
| Arm Digging Force | 5KN | 4.6KN | 5KN | 7.9KN | 9.3KN | 11KN | 9.3KN |
| Overall length | 1877mm | 2840mm | 2770mm | 3290mm | 3800mm | 3555mm | 4080mm |
| Overall width | 896mm | 880mm | 896mm | 1050mm | 1050mm | 990/1300mm | 1300mm |
| Overall height | 1990mm | 2200mm | 1990mm | 2400mm | 2280mm | 2290mm | 2280mm |
| Axle base | 896mm | 900mm | 896mm | 1140mm | 1050mm | 1270mm | 1270mm |
| Track width | 130mm | 180mm | 130mm | 180mm | 230mm | 250mm | 250mm |
| Max. Digging Radius | 2850mm | 3065mm | 2850mm | 3470mm | 3860mm | 4040mm | 4370mm |
| Max. Digging Depth | 1650mm | 1715mm | 1650mm | 2150mm | 2050mm | 2400mm | 2450mm |
| Max. Digging Height | 2550mm | 2600mm | 2550mm | 3275mm | 3370mm | 3700mm | 3700mm |
| Max. Dumping Height | 1800mm | 1830mm | 1800mm | 2310mm | 400mm | 2440mm | 2450mm |

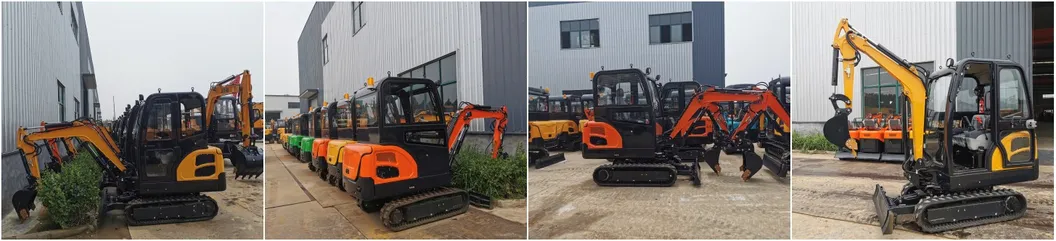

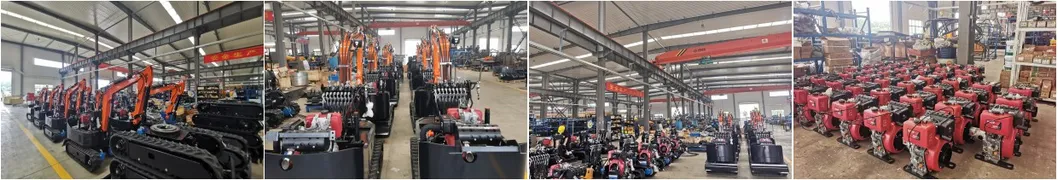

Warehouse:

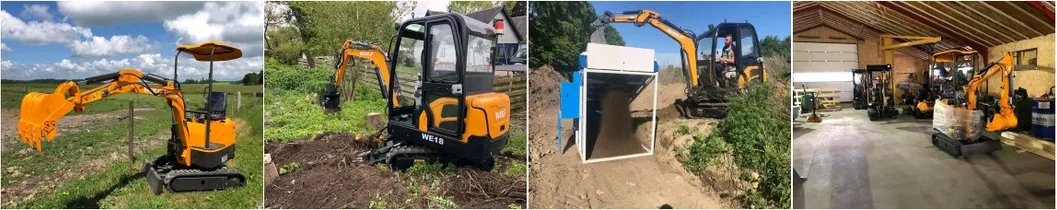

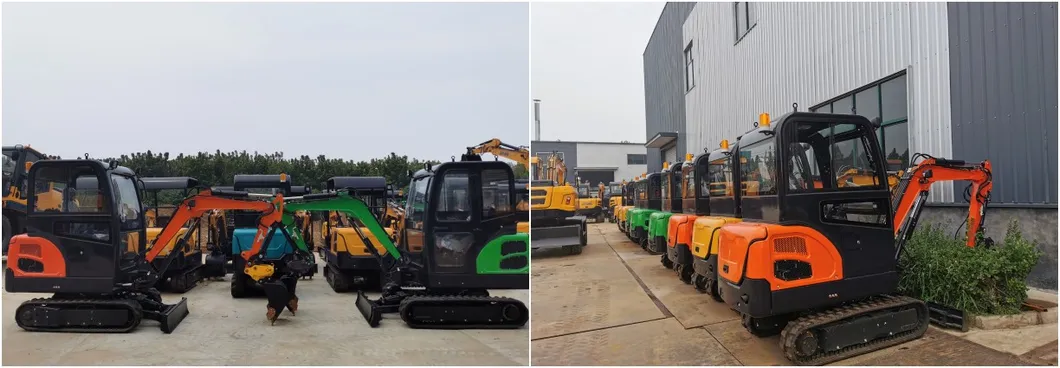

Wolf excavator in abroad:
