Koop Engine Euro 5 Standard Digger 1.2 Ton Mini Excavator with CE
Product OverviewFeatures1-KOOP engine , 7.6kw, Euro 3/Euro 52-China brand pump3-China brand valves4-Rubber track :180mm5- Bucket capacity: 0.025m³ 6-Swing boomProduct ParametersOperating Weight1200kgDigging bucket capacity0.025cbmDigging bucket width350mm, can add narrow bucket is 200mmEngi......
Send Inquiry
Product Description
1-KOOP engine , 7.6kw, Euro 3/Euro 5
2-China brand pump
3-China brand valves
4-Rubber track :180mm
5- Bucket capacity: 0.025m³
6-Swing boom
Operating Weight | 1200kg |
Digging bucket capacity | 0.025cbm |
Digging bucket width | 350mm, can add narrow bucket is 200mm |
Engine | Changchai |
Rated power | 8.6kw/1800r/min |
Displacement | 0.211 L |
Bore stroke | single cylinder, fan cool |
Main pump | SAISIDA |
Valve | BEIFANG |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2550x946x1330 mm |
Wheelbase | 770 mm |
Total length of track on land | 1090mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 733 mm |
Chassis width | 946 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1400 mm |
Max. Digging height | 2490 mm |
Max. Dumping height | 1750 mm |
Max. Digging radius on ground | 2400 mm |
Min. Rotation radius | 1190 mm |
Max. Upgrade height of bulldozer blade | 325 mm |
Max. Digging depth of bulldozer blade | 175 mm |

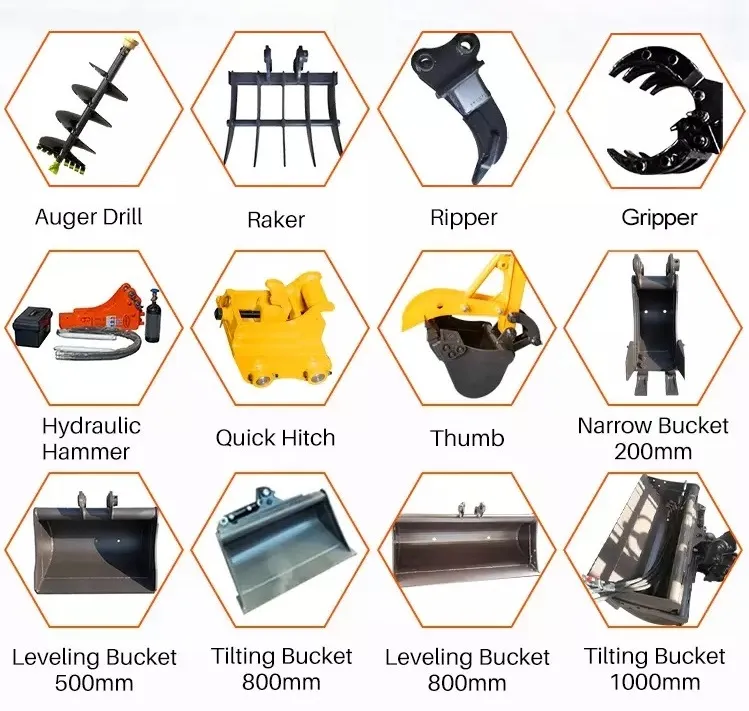

You can install more and more accessories to discover more functions of the mini excavator
If you need 1-3 units would be Wooden box, More than 4 units will loading by container
Within 7 days we will ship your goods when we received the advance payment

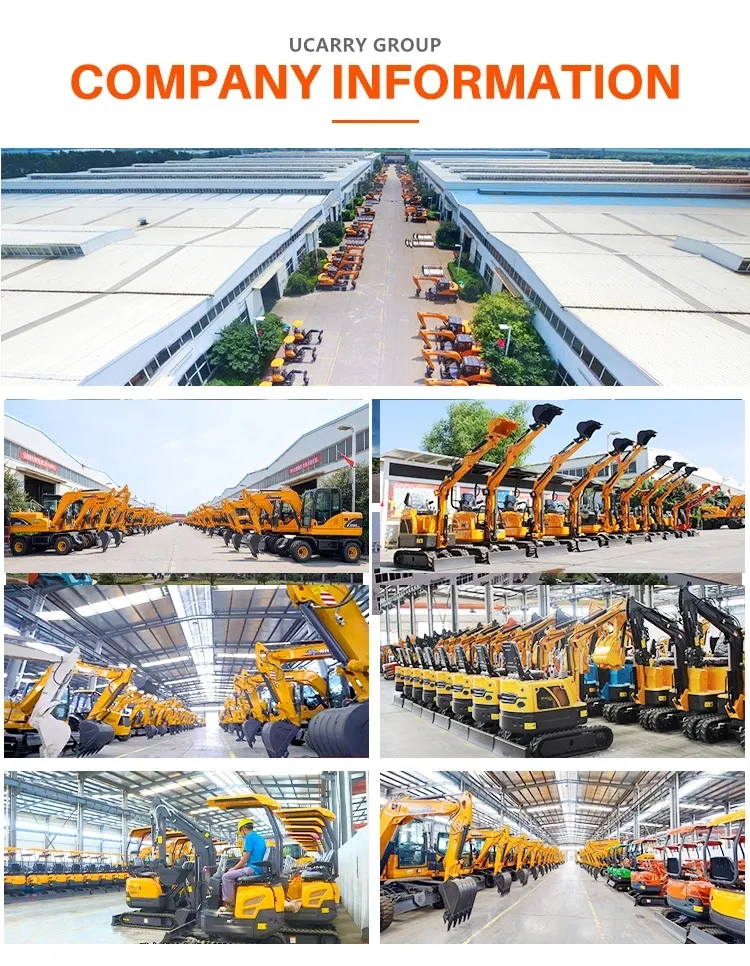

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.
Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our patents design.
All of our products have CE/ ISO Certificate
