Mini Excavator 4ton Oriemac Pelle Xe40

Product Description

Welcome to ORIEMAC
Bienvenue à ORIEMAC

================================================

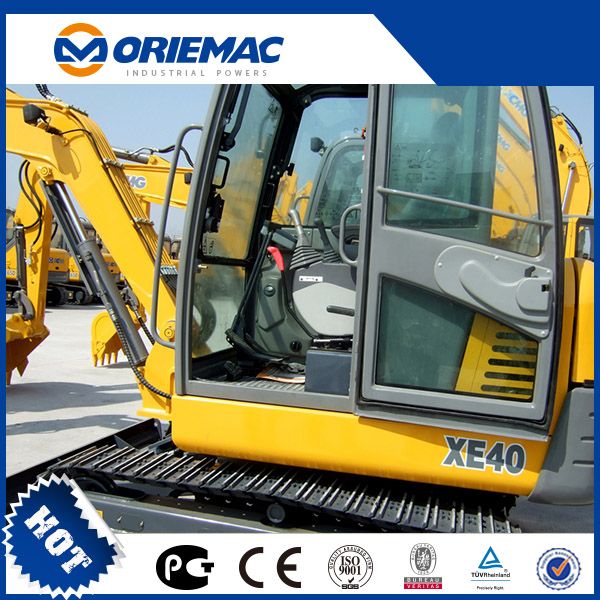

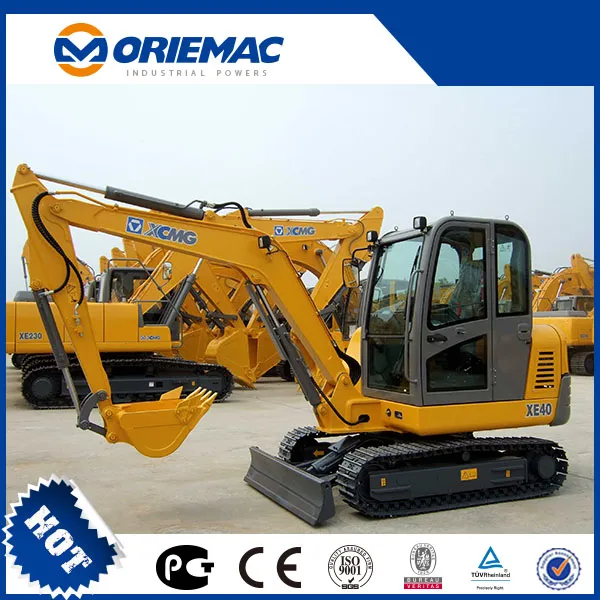

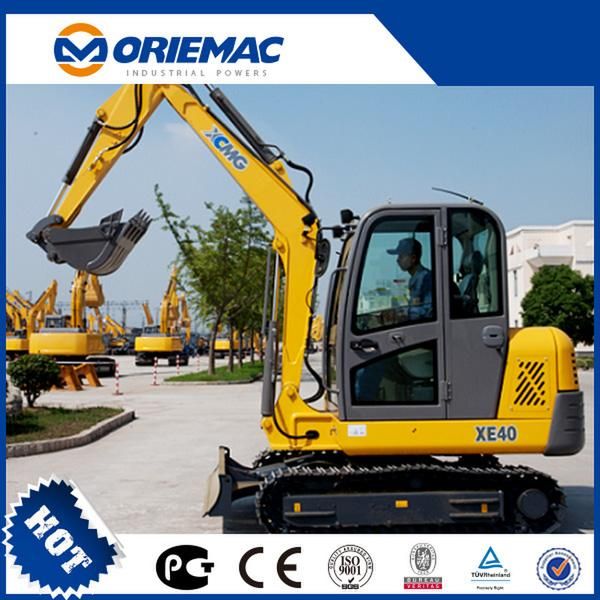

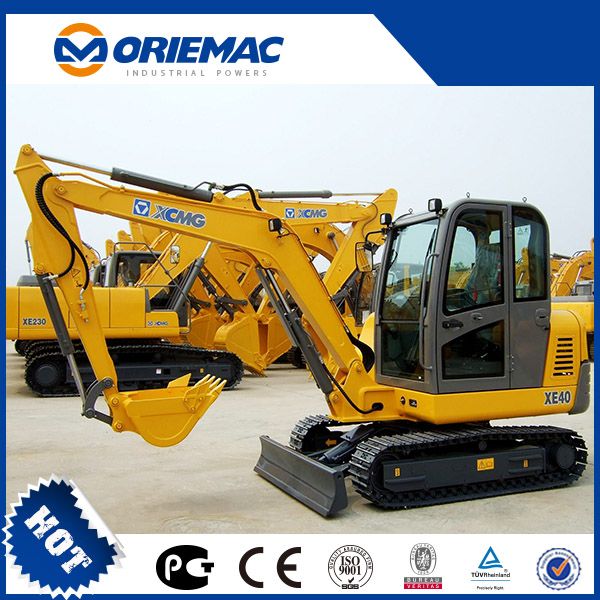

Mini excavator 4ton Oriemac Pelle (XE40 )

PARAMETER:

Operating weight		kg	4050
Standard bucket capacity		m³	0.14
Engine	Engine Model	/	4TNV88
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	27.1/2200
	Max. torque/speed	N.m	142/1320
	Displacement	L	2.19
The main performance	Travel speed	km/h	4.2/2.6
	Swing speed	r/min	13.5
	Max. gradeability	/	30
	Ground pressure	kPa	36.3
	Max.Bucket digging force	kN	23.2
	Max.arm crowd force	kN	19.3
	Max.traction force		33.9
Hydraulic system	Main pump	/	Japan nachi
	Rate flow of main pump	L/min	1×110+11
	Max pressure of prime relief valve	MPa	21
	Max pressure of travel system	MPa	21
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.9
	Fuel tank capacity	L	65
Oil capacity	Hydraulic tank capacity	L	70
	Engine lubrication	L	7.4
	A Overall length	mm	5455
Overall dimensions	B Overall width	mm	1650
	C Overall height	mm	2440
	D Overall width of upperstructure	mm	1500
	E Track length	mm	2198
	F Overall width of undercarriage	mm	1635
	G crawer width	mm	300
	H Dozer black(width/height)	mm	1650×300
	I Tumbler distance	mm	1721
	J Crawer gauge	mm	1335
	K Clearance under counter weight	mm	578
	L Ground clearance	mm	350
	M Min.tail swing radius	mm	1480
	A Max. digging height	mm	5320
Working range	B Max. dumping height	mm	3700
	C Max. digging depth	mm	3600
	E Max. vertical wall digging depth	mm	2250
	F Max. digging reach	mm	5810
	G Min. swing radius	mm	2385
	H Max.dozer lifting height	mm	255
	I Max.dozer cutting depth	mm	375
	Angle of arm deflection	Degree	/

ABOUT US:
As a leading Chinese exporter of construction machinery and trucks, we have a professional experience of 18 years in this field. Besides our products of high quality, our international sales team will also provide you excellent logistics service and after-sales service. We will always do our best to solve all the problems and put our customer's interests in the first place.

We can supplier all kinds of trucks and construction machinery.

ANY QUESTIONS JUST CONTACT ME PLEASE!
