Rhinoceros Europe Five Standard Mini Bagger, Mini Excavadora 2ton for Sale
MINI EXCAVATOR XN20XN20 mini excavator use Japanese original Yanmar engine, the swing motor and hydraulic pump all use Japanese made Nachi brand. And the valve also use Japan made KYB brand. The hydraulic pump is piston pump, perfect match for valve output.It can be add much accessoies like Auger, ......
Send Inquiry
Product Description

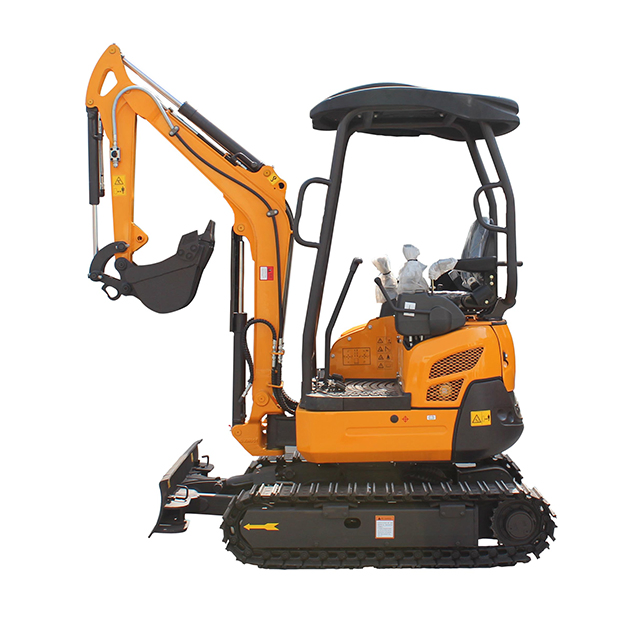

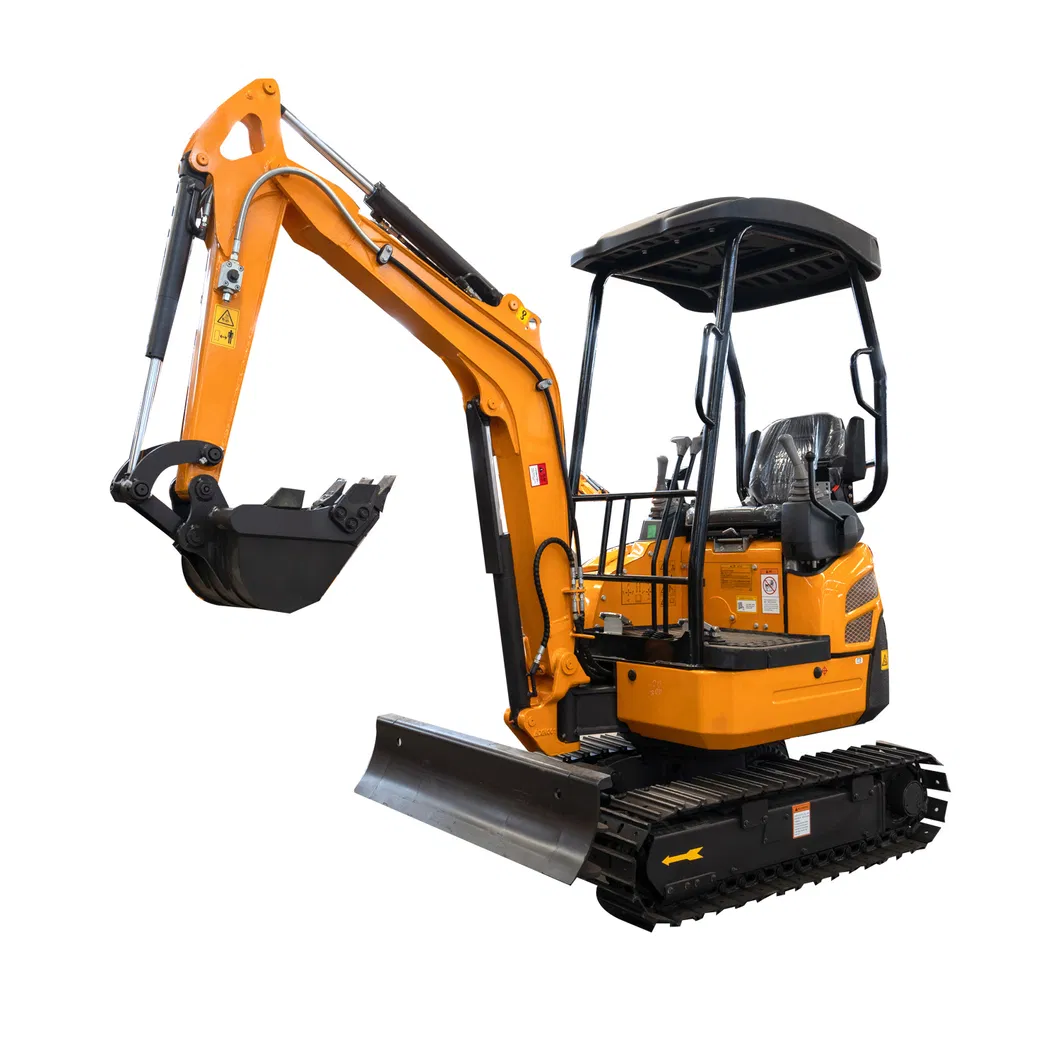

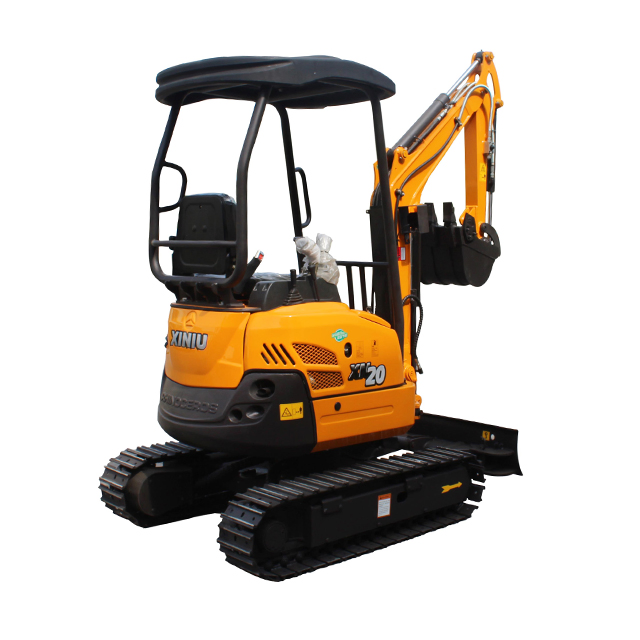

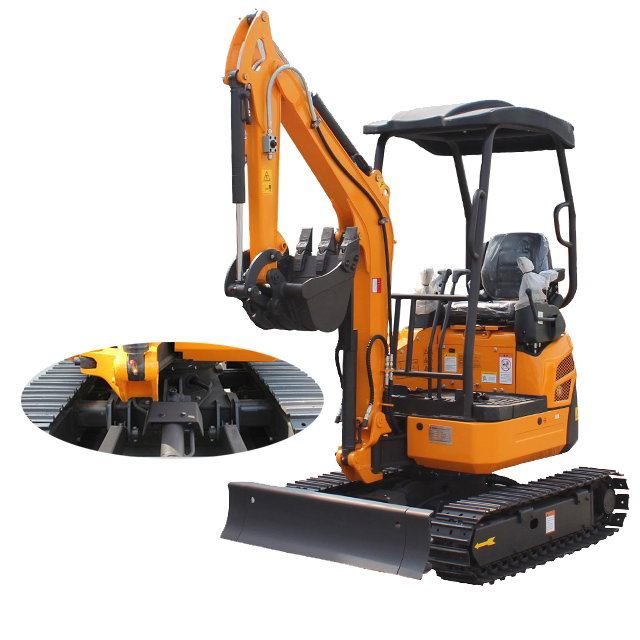

MINI EXCAVATOR XN20
XN20 mini excavator use Japanese original Yanmar engine, the swing motor and hydraulic pump all use Japanese made Nachi brand. And the valve also use Japan made KYB brand. The hydraulic pump is piston pump, perfect match for valve output.
It can be add much accessoies like Auger, Wood Grab, Rake, Ripper etc.. And we have exported a lot of countries like Australia, France, Italy, Turkey, Germany, Holland, US, Canada etc. Good quality with best factory price!

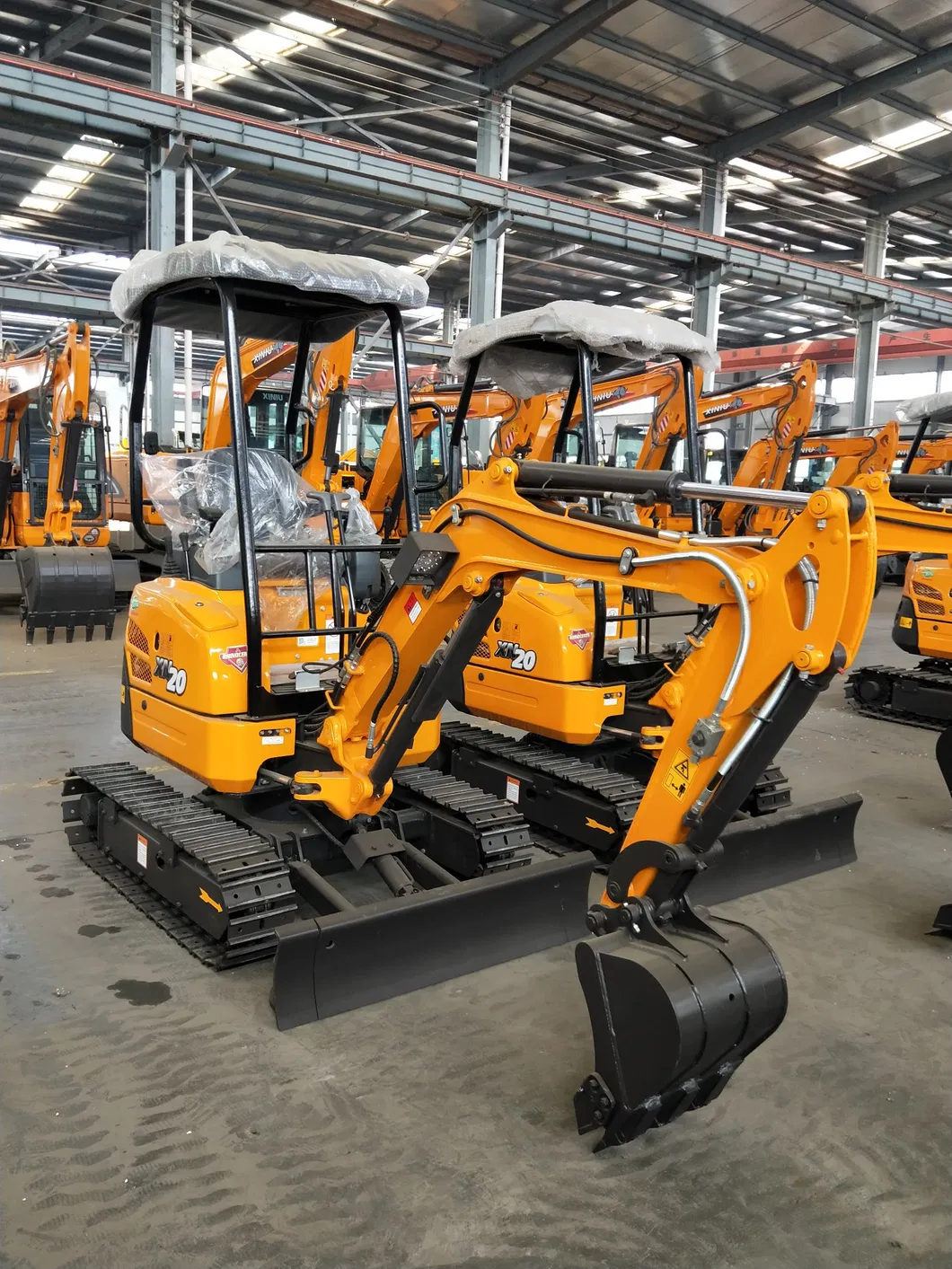

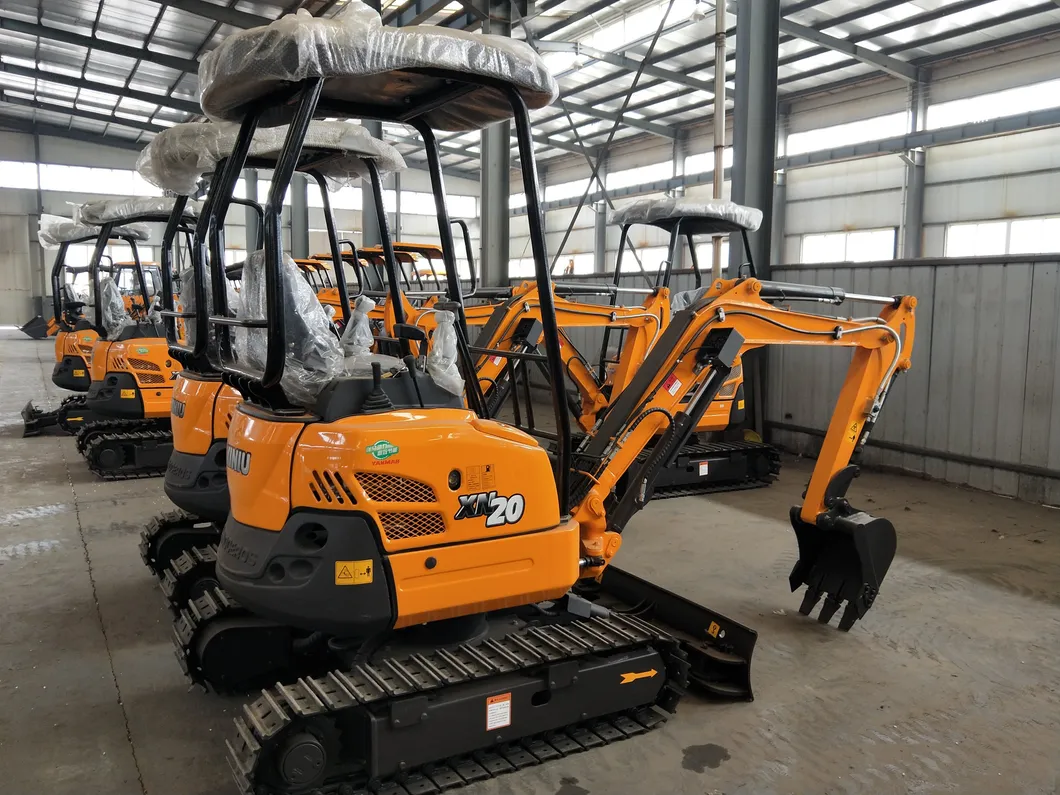

Production picture

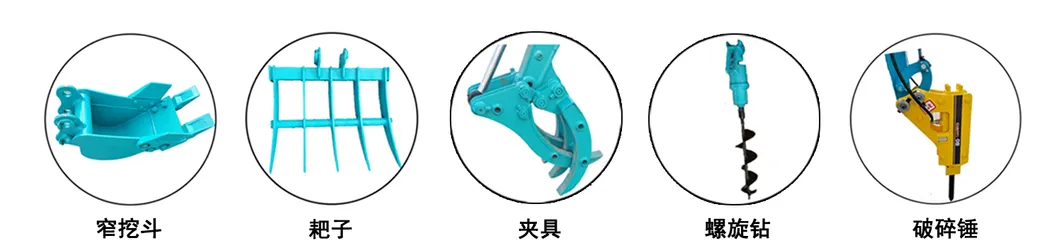

Accessories:
Specification:
| Model | XN20 |
| Manufacturer | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
| Brand | RHINOCEROS |
| Operating Weight | 1880kg |
| Digging bucket capacity | 0.045cbm/500kg |
| Digging bucket width | 420mm, can add narrow bucket is 200mm |
| Engine | Yanmar (3TNV70) |
| Rated power | 10kw/2200/r/min |
| Displacement | 0.854L |
| Bore stroke | three cylinder, water cool |
| Main pump | Japanese Nachi |
| Pump flow | 2x17+14 L/Min |
| Hydraulic oil tank capacity | 15.3L |
| Engine oil tank capacity | 2.8(1.3)L |
| Diesel tank capacity | 19 L |
| Valve | Japanese KYB |
| Displacement | 6.8ml/r |
| Swing motor | Japanese Nachi |
| Traveling motor | DONGHYUAN |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 3400 x (990-1240) x 2350mm |
| Total length of track on land | 1590mm |
| Platform ground clearance | 473 mm |
| Platform back turning radius | 740 mm |
| Chassis width | 990 mm(retract)/ 1240mm(extended) |
| Track width | 230 mm |
| Chassis ground clearance | 460 mm |
| Bucket digging force | 13.5Kn |
| Arm digging force | 10.1Kn |
| Theoretical Maximum traction | 17.5Kn |
| OPERATING RANGE | |
| Max. Digging depth | 2150 mm |
| Max. Vertical digging depth | 1740 mm |
| Max. Digging height | 3275 mm |
| Max. Dumping height | 2310 mm |
| Max. Digging radius on ground | 3610 mm |
| Min. Rotation radius | 1580 mm |
| Max. Upgrade height of bulldozer blade | 275 mm |
| Max. Digging depth of bulldozer blade | 180 mm |

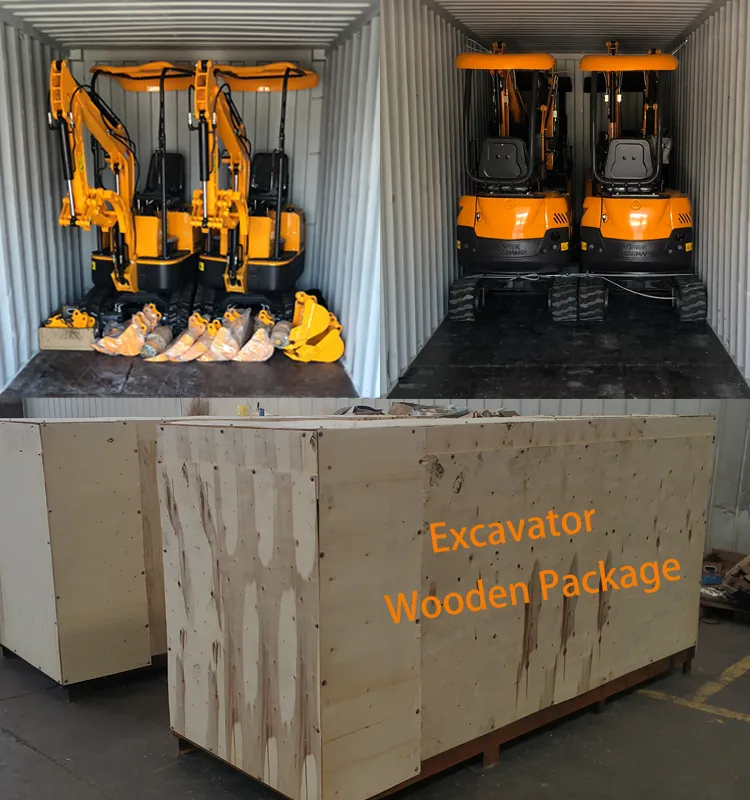

PACKING WAY:
One 20GP container can put in 4unit.

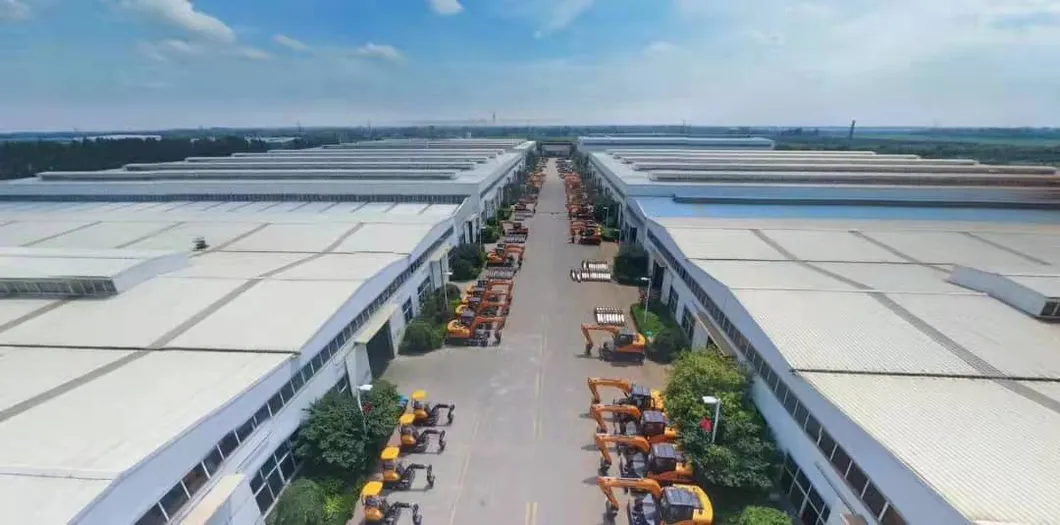

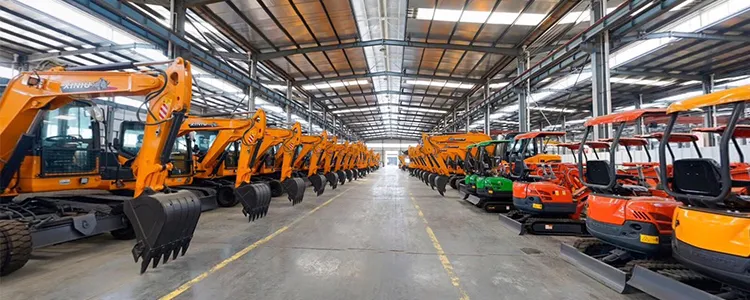

About our company:
Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE,ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in Brazil, Argentina, Iran, Malaysia, Philippine etc.
Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our Rhinoceros patents design.
All of our products have CE/ ISO Certificate
Our team:
FAQ
1: Are you factory or trading company?
A: Here we are factory since the year 1995, brand is XINIU/Rhinoceros, focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
