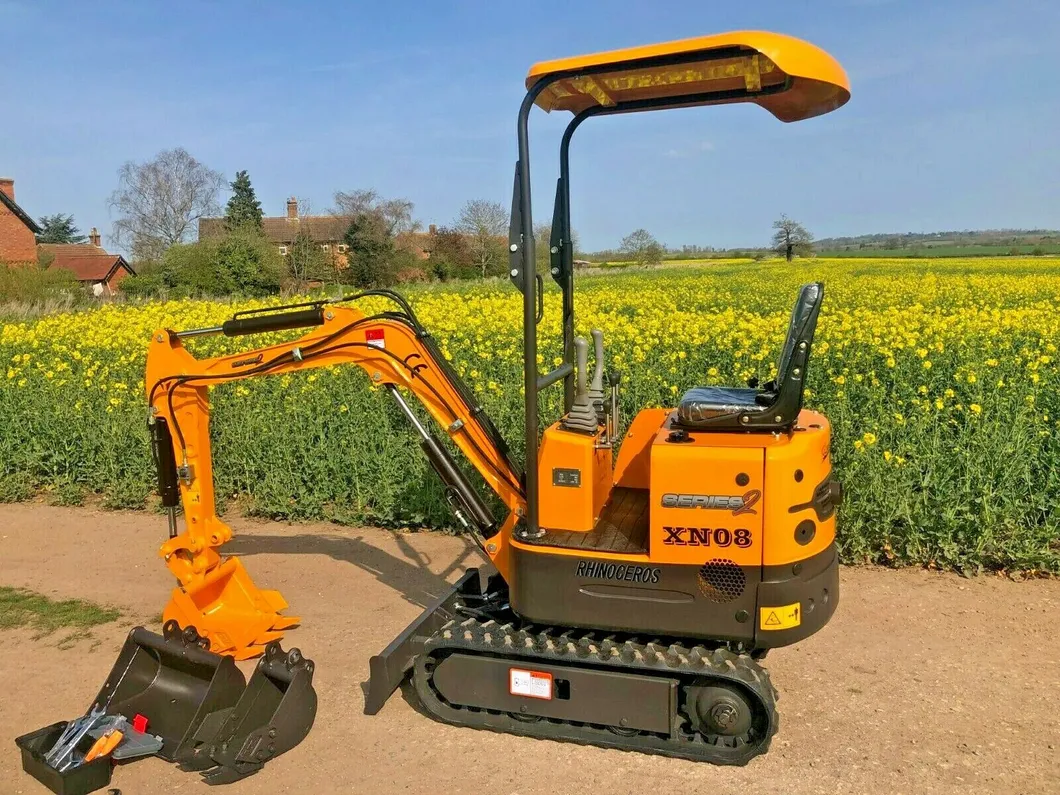

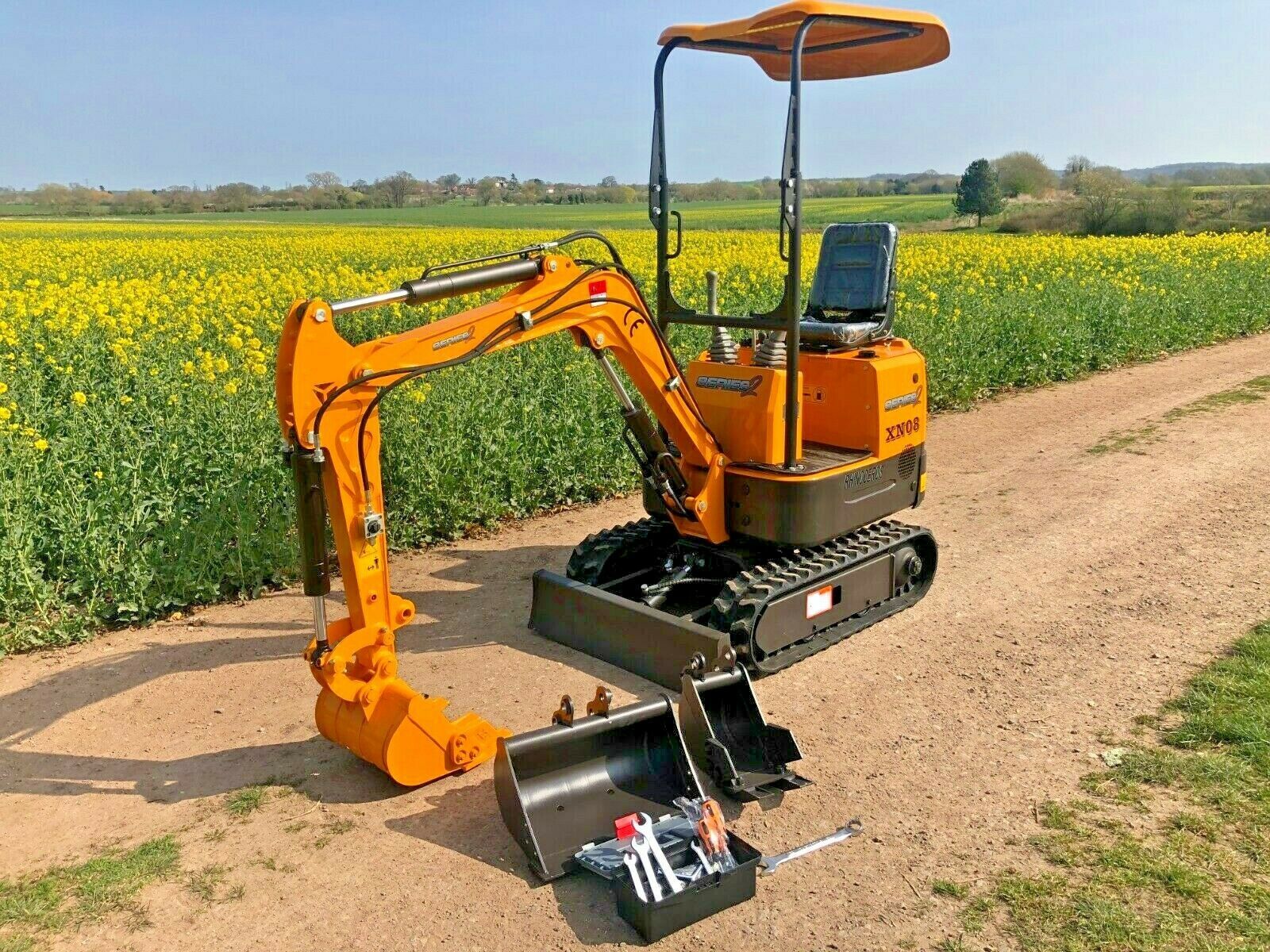

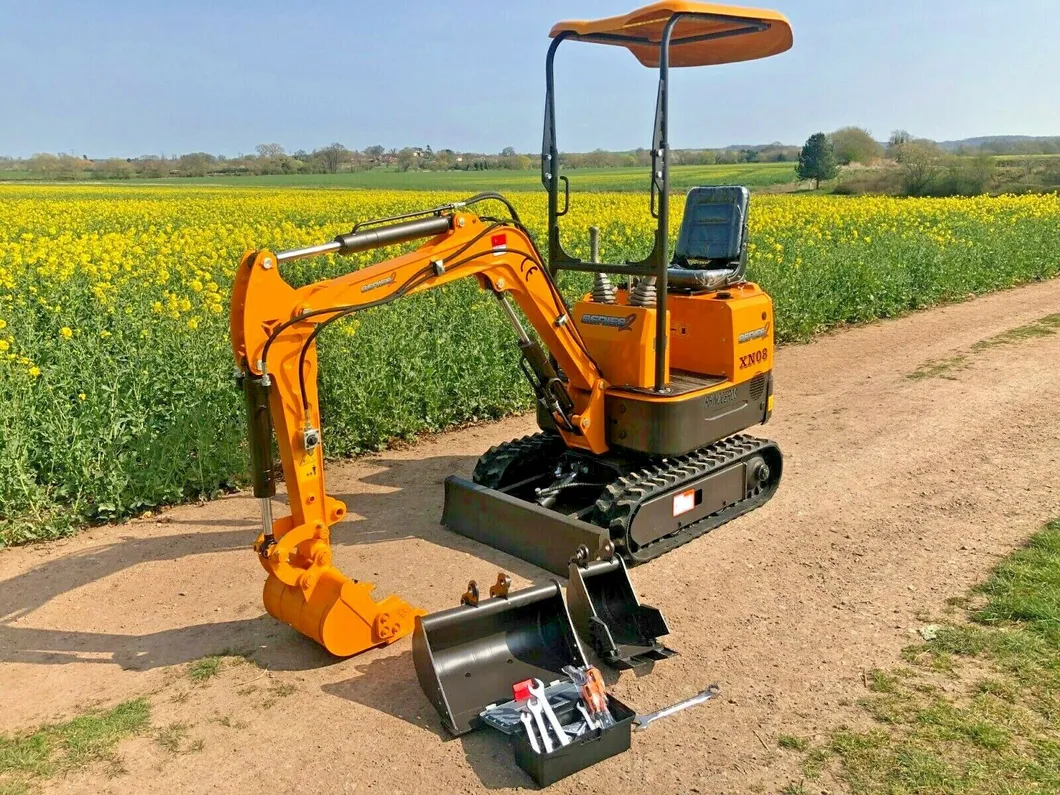

Rhinoceros Xiniu Xn08 0.8 Ton Mini Excavator with Accessory
Rhinoceros XINIU XN08 0.8 ton mini Excavator with AccessoryFeatures:General information:Model: XN08: 7KW Koop engine,Single Cylinder,Air cooling; Net weight: 880kg, operation weight:1000kg ; 0.025 cbm Bucket, Max. digging deapth:1650mm,Optional attachments: Auger, Wood ......
Send Inquiry
Product Description
Features:
General information:
Model: XN08: 7KW Koop engine,Single Cylinder,Air cooling;
Net weight: 880kg, operation weight:1000kg ;
0.025 cbm Bucket, Max. digging deapth:1650mm
,
Optional attachments:
Auger, Wood Grab, Hydraulic hammer,Roof, Ripper, Rake, 200mm Narrow Bucket, 380mm Standard Bucket, 500mm Leveling Bucket ,600mm Leveling bucket,800mm leveling bucket,600mm tilting bucket......
· Multi-purpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place etc...
· It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, Iow investment,high return.
Rhinoceros mini excavators series :
xn08 xn12 xn16 xn18 xn20 (0.8T 1.2T 1.5T 1.8T 2.0T)
Model | XN08 |
Manufacturer | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
Brand | RHINOCEROS |
Operating Weight | 880kg |
Digging bucket capacity | 0.025cbm |
Bucket width | 380mm |
Engine | KOOP/CHANGCHAI |
Rated power | 7kw/8.6 kw/3600r/min |
Displacement | 0.211 L |
Bore stroke | 70x55 |
Main pump | ZANEDA |
Displacement | 6.8ml/r |
Hydraulic system pressure | 16 Mpa |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450) |
Travel speed | 1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
Diesel tank capacity | 10 L |
Hydraulic oil tank capacity | 16L |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
Engine specification
TYPE | Direct, single cylinder, 4 strokes, air cool |
COMBUSTION MODE | Director injector |
BORE x STROKE [mm(in)] | 92x75(3.62x2.95) |
DISPLACEMENT [L(cc)] | 0.499(499) |
COMPRESSION RATIO | 19:1 |
RATED POWER KW/rpm | 8.6/3600 |
RATER POWER HP/rpm | 11.7/3600 |
RATED SPEED (rpm) | 3600 |
STARTING TYPE | Electric |
FUEL CAPACITY [L(US.gal)] | 5.5(1.45) |
LUB. CAPACITY [L(US.gal)] | 1.65(0.44) |
FUEL CONSUMPTION [g(ml)/kwh] | 3600rpm:280(333) |
FUEL OIL MODEL | 0#(summer),-10#(winter ) Diesel |
LUB. MODEL | SAE10W30 |
DIMENSION cm (in)] | 417x441x494 (16.42x17.36x19.45) |
WEIGHT [kg(lbs)] | Hand start:50(110.2) |
Electric start:55(121.3) | |
DIRECTION OF ROTATION | Clock wised. |

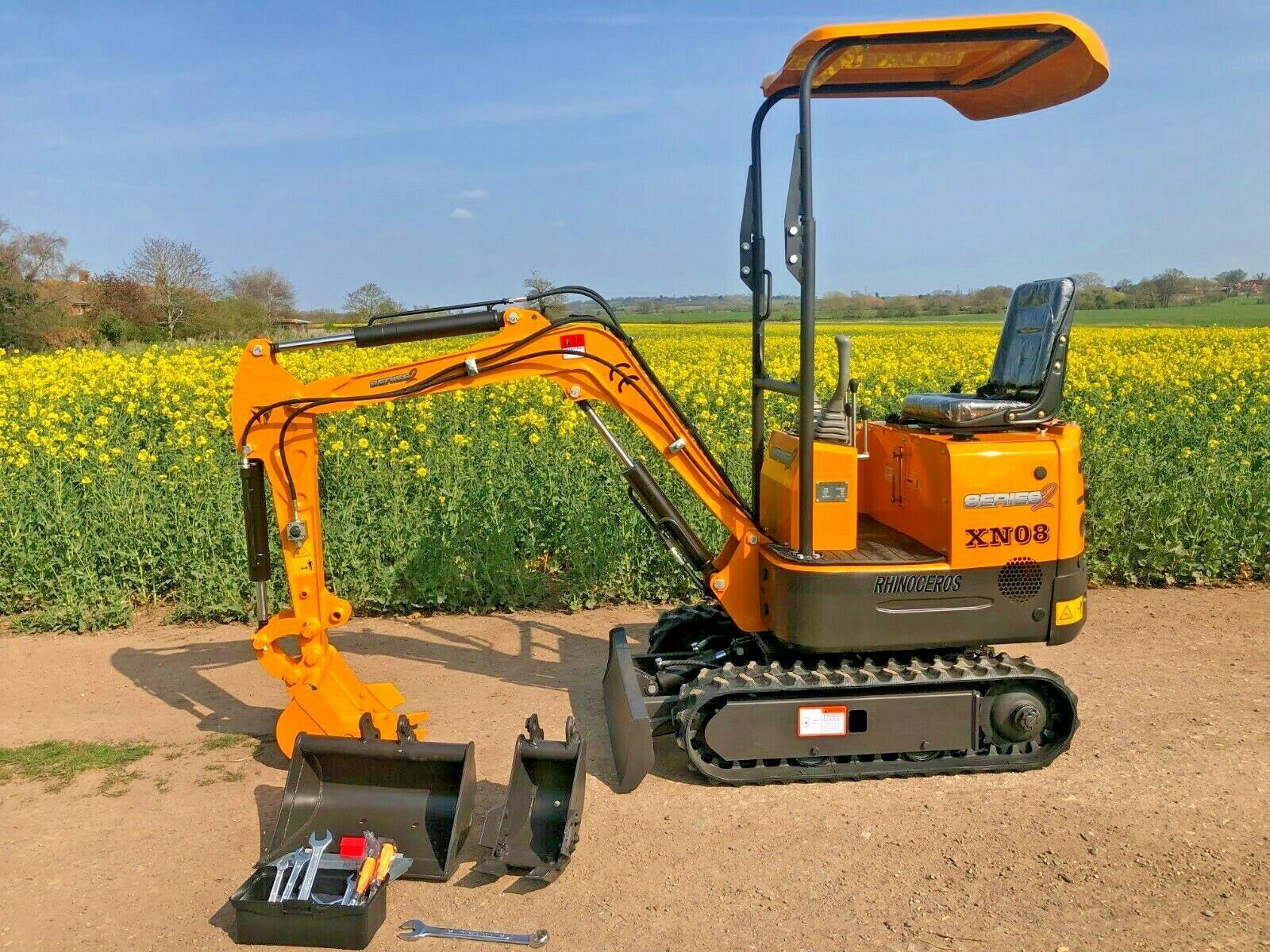

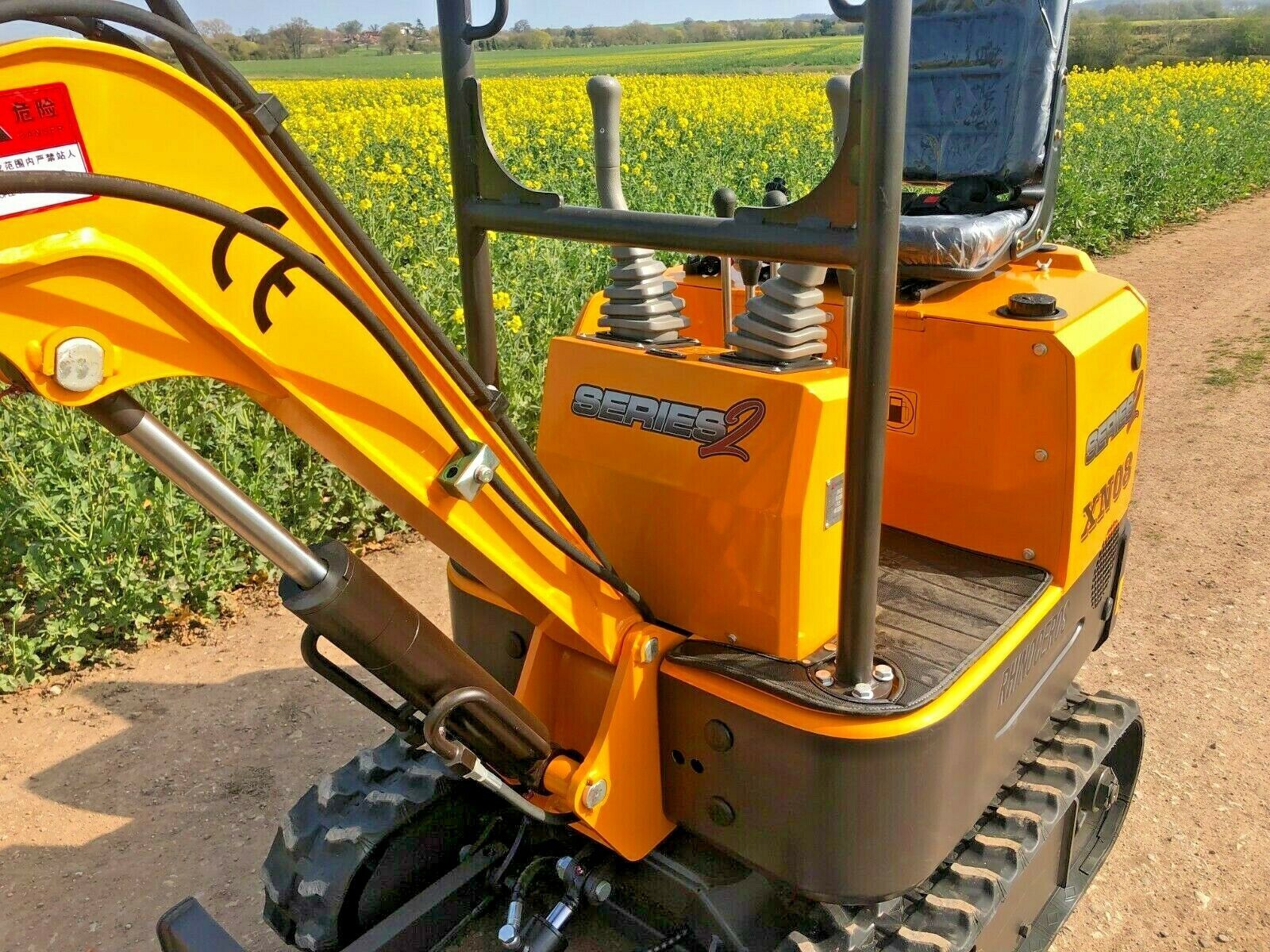

Pictures:
