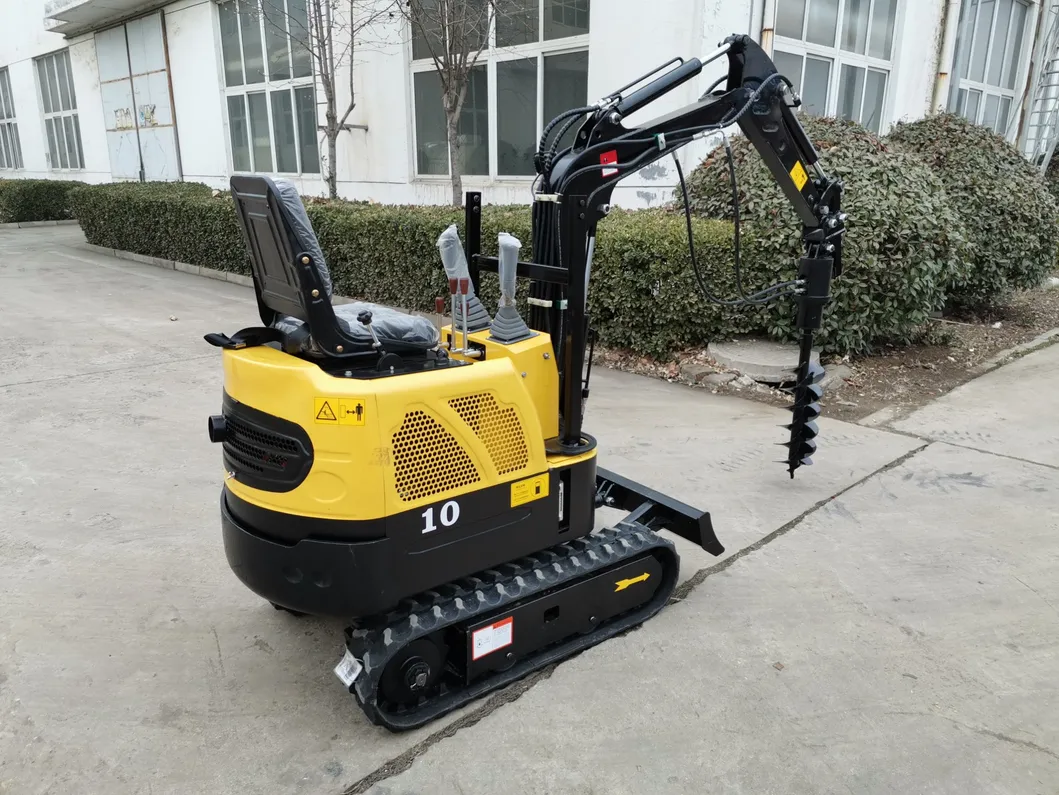

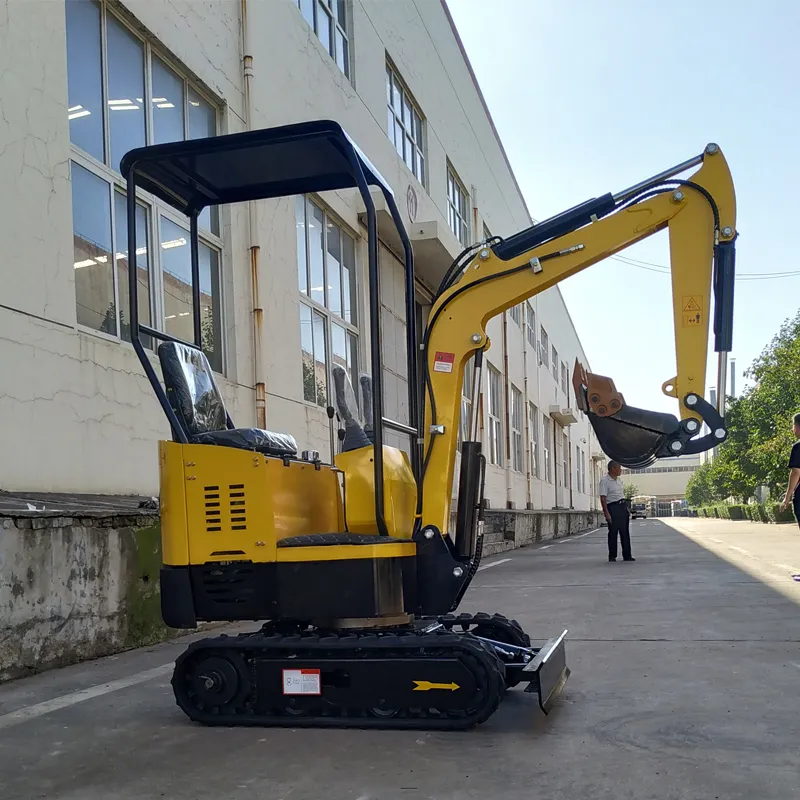

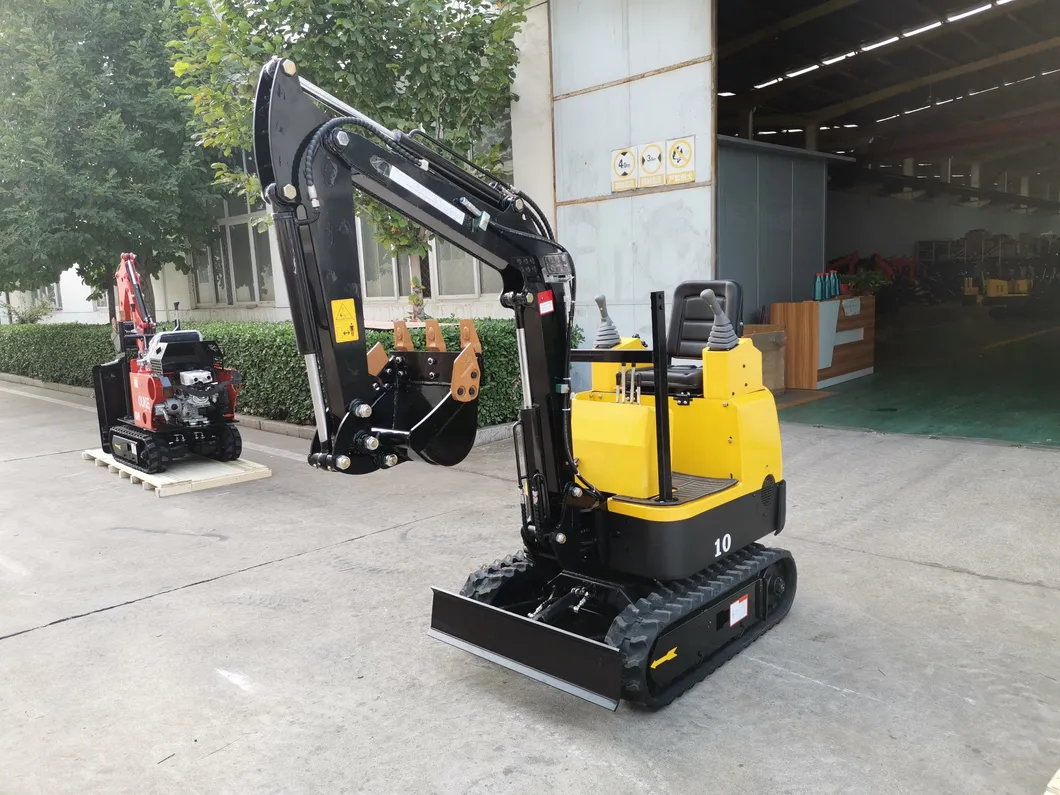

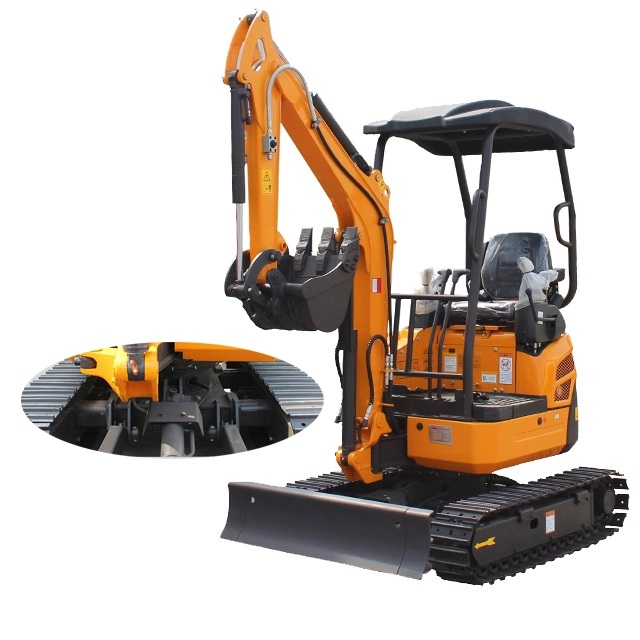

Small Mini Garden Farm Orchard Durable Excavator Price From Factory Supplier
Product OverviewSmall mini garden farm orchard durable excavator price from factory supplierFeatures1. Optional Yanmar (EPA certified) / Changchai / Koop engines, to meet environmental protection, cost control and other needs.2. It adopts the first-line brand high-precision 8-way multi-way valve. Th......
Send Inquiry
Product Description

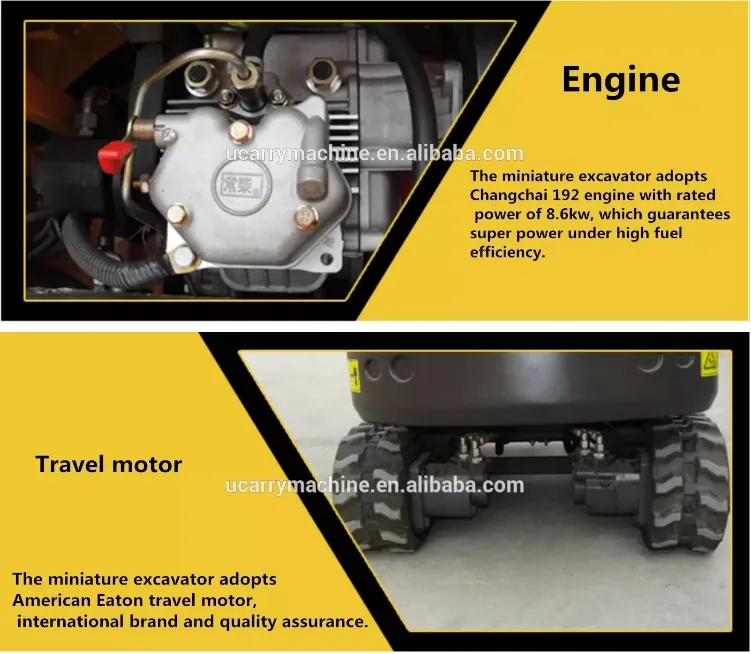

1. Optional Yanmar (EPA certified) / Changchai / Koop engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.
4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations(optional).
7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
Performance parameter | Unit | Standard |
Machine weight | kg | 950 |
Bucket capacity | m³ | 0.025 |
Engine type | Changchai/KOOP | |
Rated power | kw | 7.6 |
Speed of rotation | r/min | 7.5 |
Overall dimension | ||
Total length(During transportation) | mm | 2550 |
Total width | mm | 946 |
Total Height(During transportation) | mm | 1330 |
Width of track | mm | 180 |
Scope of operation | ||
Max.digging height | mm | 2490 |
Max.unloading height | mm | 1750 |
Max.digging depth | mm | 1650 |
Max.vertical digging depth | mm | 1400 |
Minimum radius of rotation | mm | 1190 |
Maximum digging ground distance | mm | 2400 |

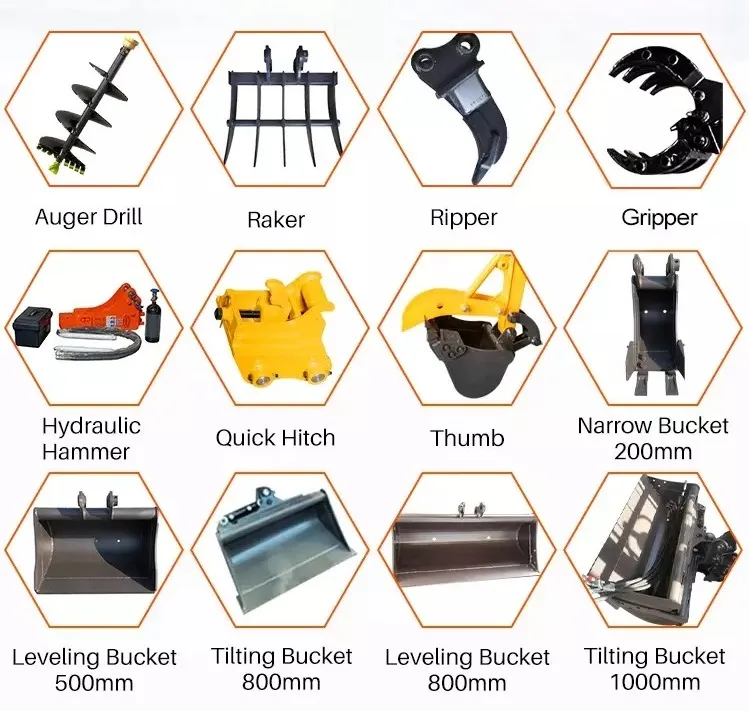

You can install more and more accessories to discover more functions of the mini excavator

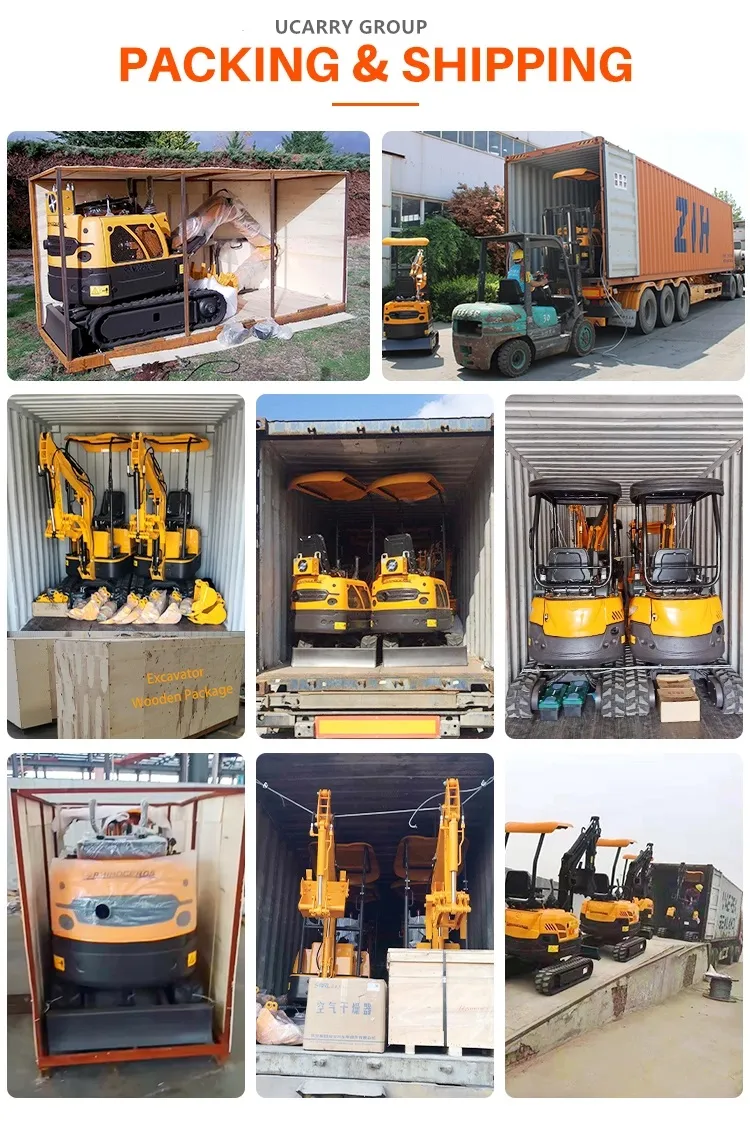

If you need 1-3 units would be Wooden box, More than 4 units will loading by container
Within 7 days we will ship your goods when we received the advance payment

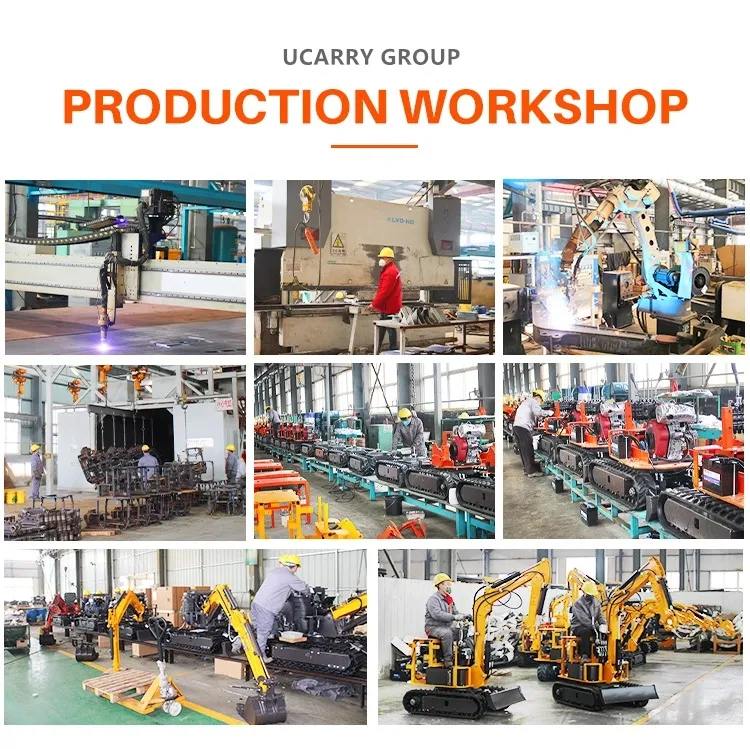

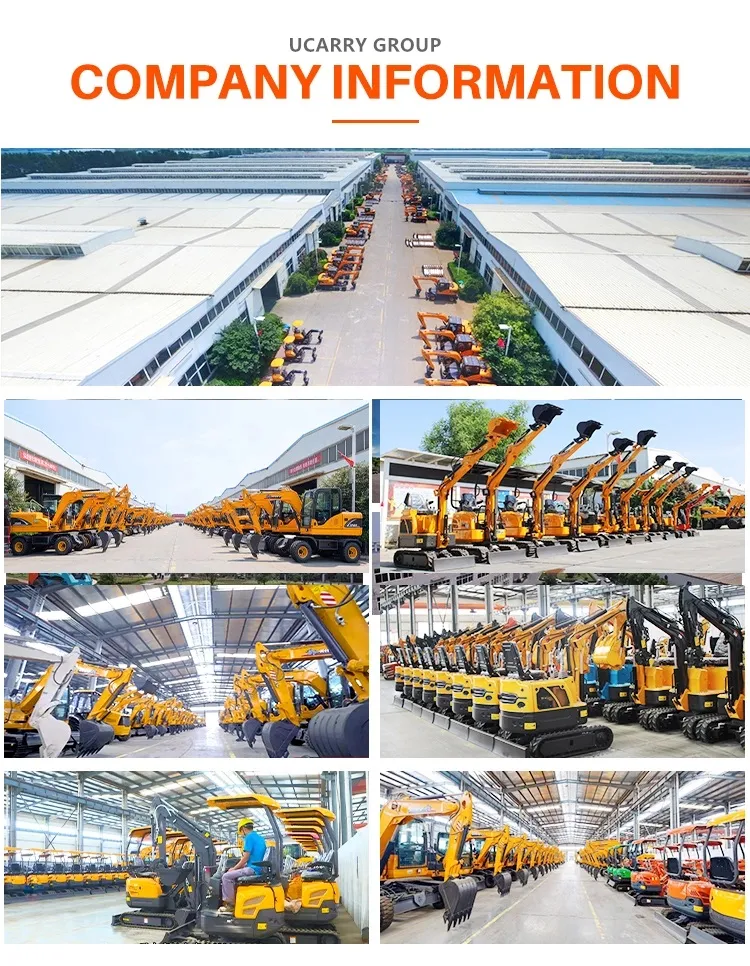

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.
Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our patents design.
All of our products have CE/ ISO Certificate
