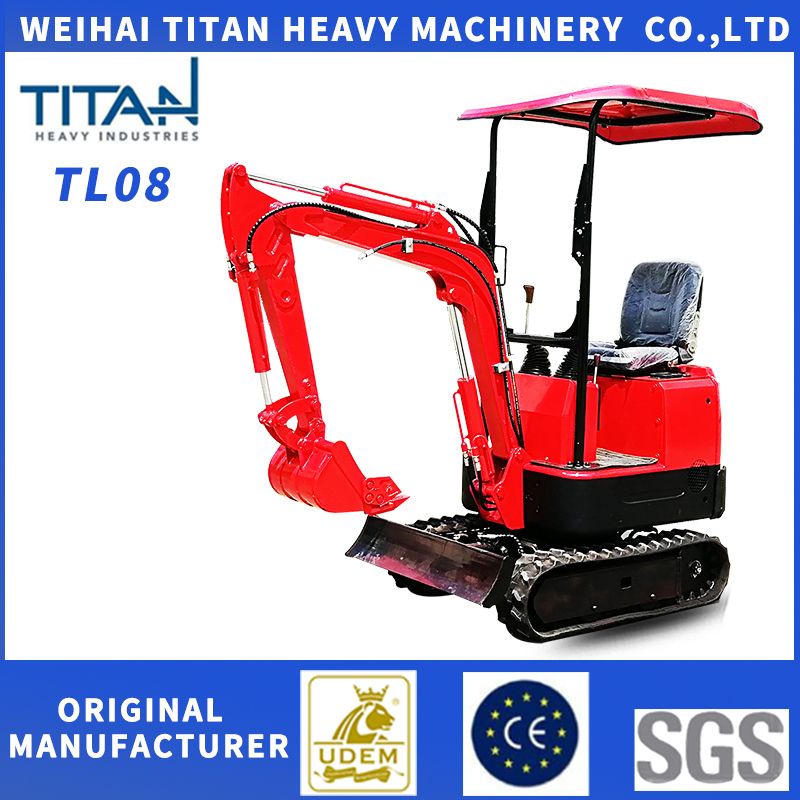

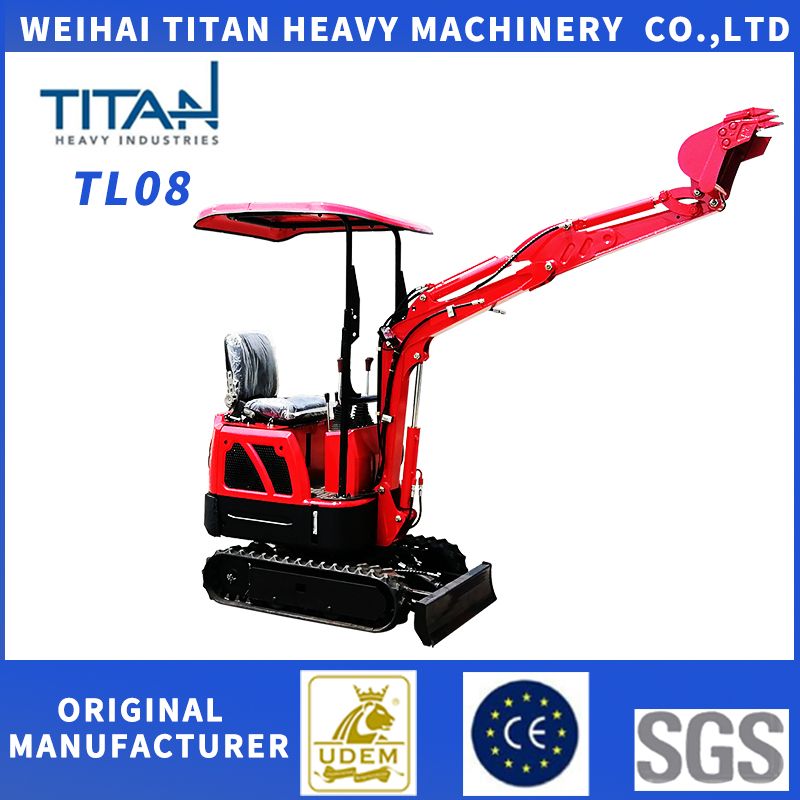

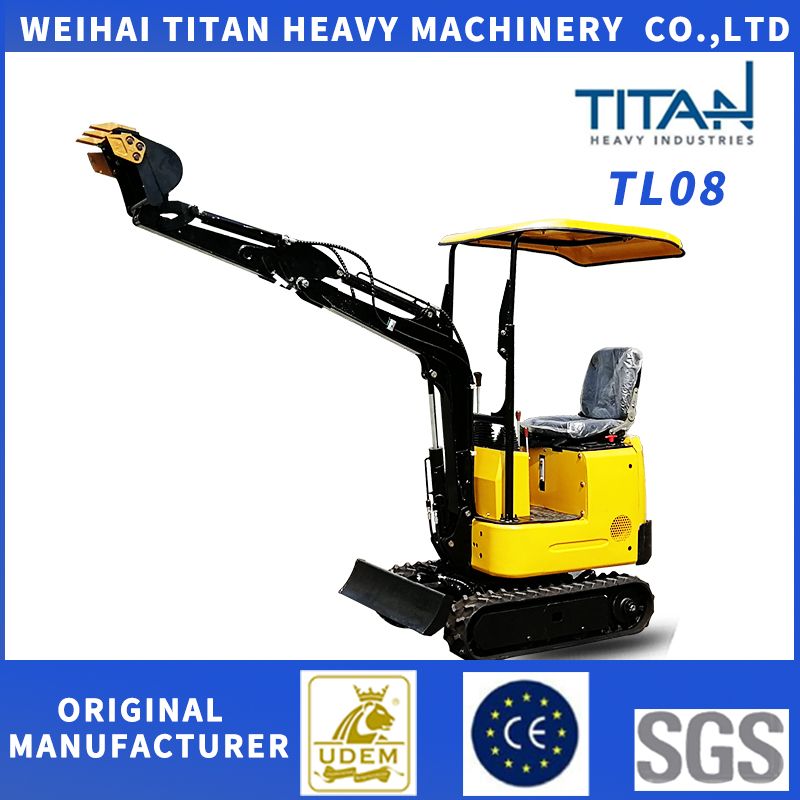

Titan Joystick Small Hold Digger Mini Excavator with 200mm Bucket
TL08 Mini Excavator Crawler Loader be used in Farm For Sale Product ApplicationITEMSPECIFICATIONITEMSPECIFICATIONOperating Weight800kgOverall dimension( LxWxH)2770x896x1490 mmDigging bucket capacity0.025cbm/120kgWheelbase910 mmDigging bucket width380mm, can add narrow bucket is 200mmTotal length of ......
Send Inquiry
Product Description

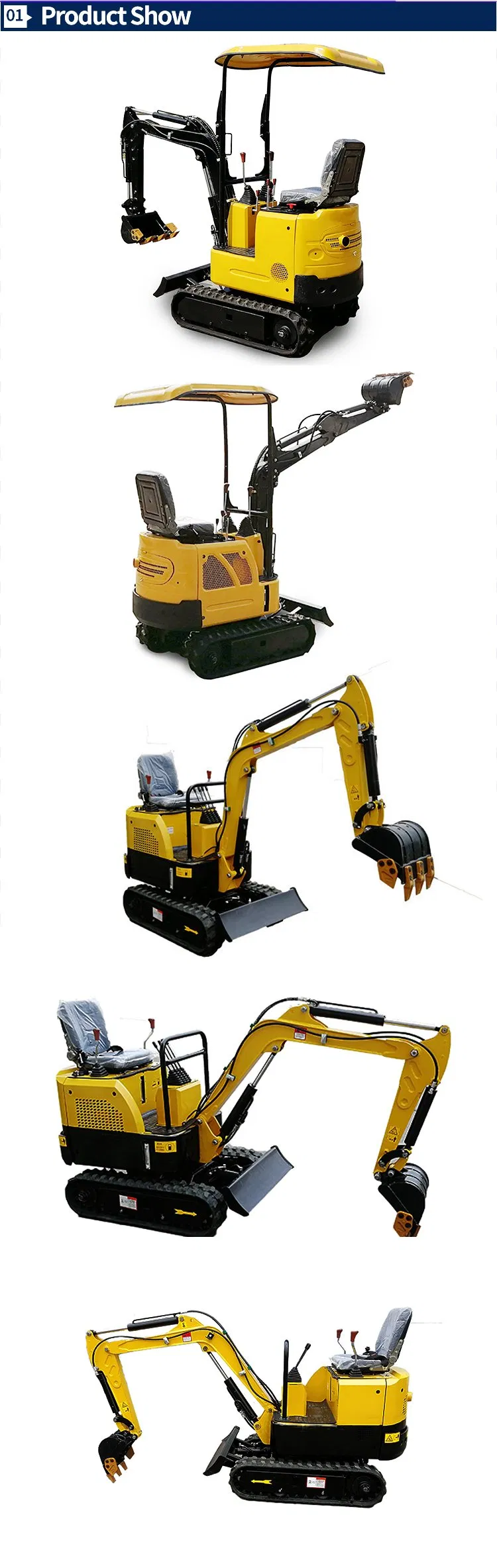

TL08 Mini Excavator Crawler Loader be used in Farm For Sale
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 8 years.
2) Titan Team: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
Product Application
| ITEM | SPECIFICATION | ITEM | SPECIFICATION |
| Operating Weight | 800kg | Overall dimension( LxWxH) | 2770x896x1490 mm |
| Digging bucket capacity | 0.025cbm/120kg | Wheelbase | 910 mm |
| Digging bucket width | 380mm, can add narrow bucket is 200mm | Total length of track on land | 1230mm |
| Engine | CHANGCHAI (KD192) / KOOP(KD192) | Platform ground clearance | 380 mm |
| Rated power | 8.6kw 1800r/min | Platform back turning radius | 784 mm |
| Displacement | 6.8ml/r | Chassis width | 896 mm |
| Bore stroke | single cylinder, fan cool | Track width | 180 mm |
| Main pump | SAISIDA | Chassis ground clearance | 132 mm |
| Pump flow | 16L/min | Track height | 320 mm |
| Hydraulic pump pressure | 16Mpa | Max. Digging depth | 1650 mm |
| Valve | BEIFANG | Max. Vertical digging depth | 1375 mm |
| Swing motor | SJ-TECH (MP-1-160) | Max. Digging height | 2610 mm |
| Traveling motor | KERSEN (OMS-2450) | Max. Dumping height | 1850 mm |
| Hydraulic oil tank | 16.5L | Max. Digging radius on ground | 2850 mm |
| Diesel oil tank | 7L | Min. Rotation radius | 1330 mm |
| Arm digging force | 5.0Kn | Max. Upgrade height of bulldozer blade | 345 mm |
| Bucket digging force | 9.5Kn | Max. Digging depth of bulldozer blade | 255 mm |
| Electric pressure | 12V | Electrick power | 5W |

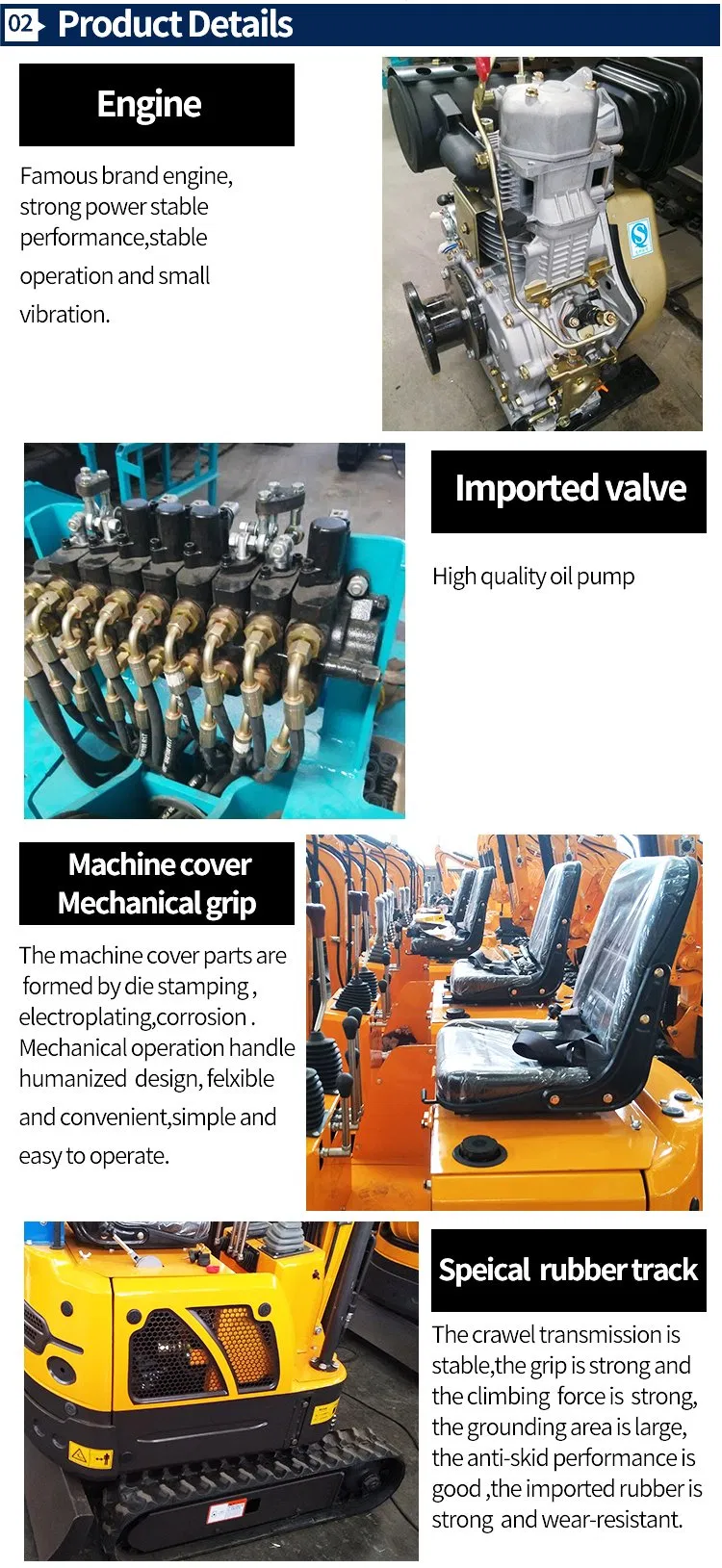

1. Imported changhcai engine, powerful and reliable performance. Meet to the china emission standards, saving fuel 30% than last generation.
2. Import Germany Rexroth system, stable performance. Equipped with reinforced walking device and famous tires.
3. The small excavator is convenient moving, fast travelling speed, Can be quickly disassembled when required.
Our Service2. Import Germany Rexroth system, stable performance. Equipped with reinforced walking device and famous tires.
3. The small excavator is convenient moving, fast travelling speed, Can be quickly disassembled when required.
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 8 years.
2) Titan Team: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
