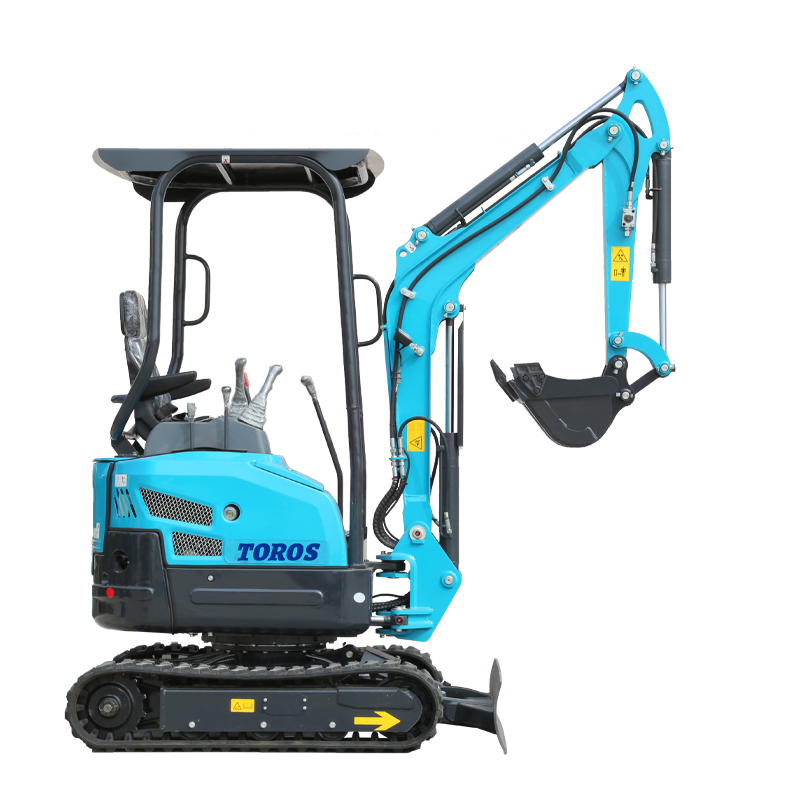

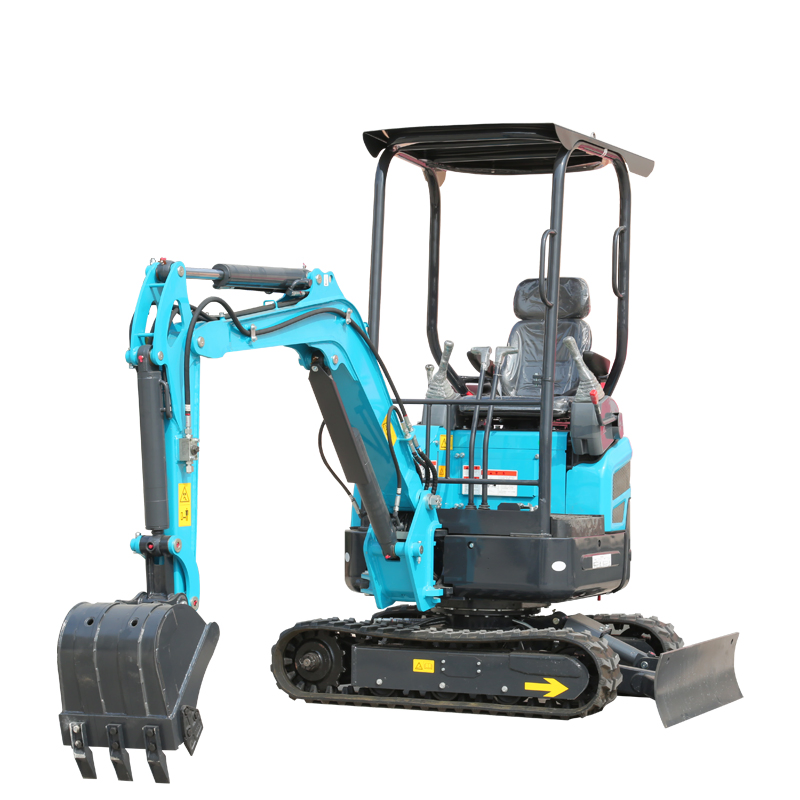

TOROS TE18S Mini Excavator for Farm

TE 18S Mini Excavator Low noise, low fuel consumption, high efficiency.

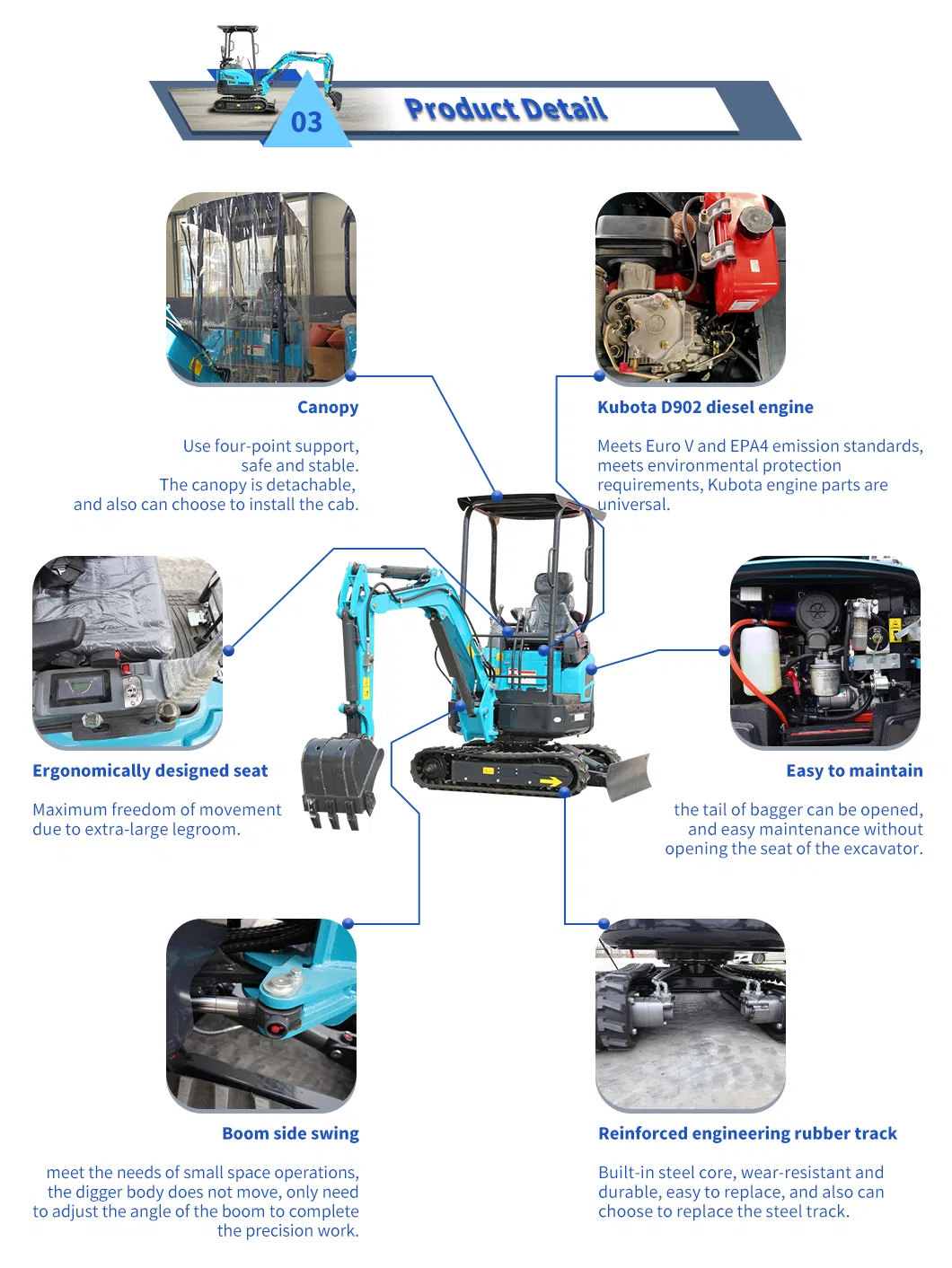

The TE18S model digger is a Tailless model mini excavator, Zero tail excavator low fuel consumption, flexible and convenient operation, The TE18S model bagger adopts Kubota D902 diesel engine, meets Euro V and EPA4 emission standards, meets environmental protection requirements, Low noise, Kubota engine parts are universal.The standard configuration is a canopy, which uses four-point support, which is safe and stable. The canopy is detachable, and also can choose to install the cab.
Toros Te18s Mini Excavator for Farm

TE18s Mini crawler excavator

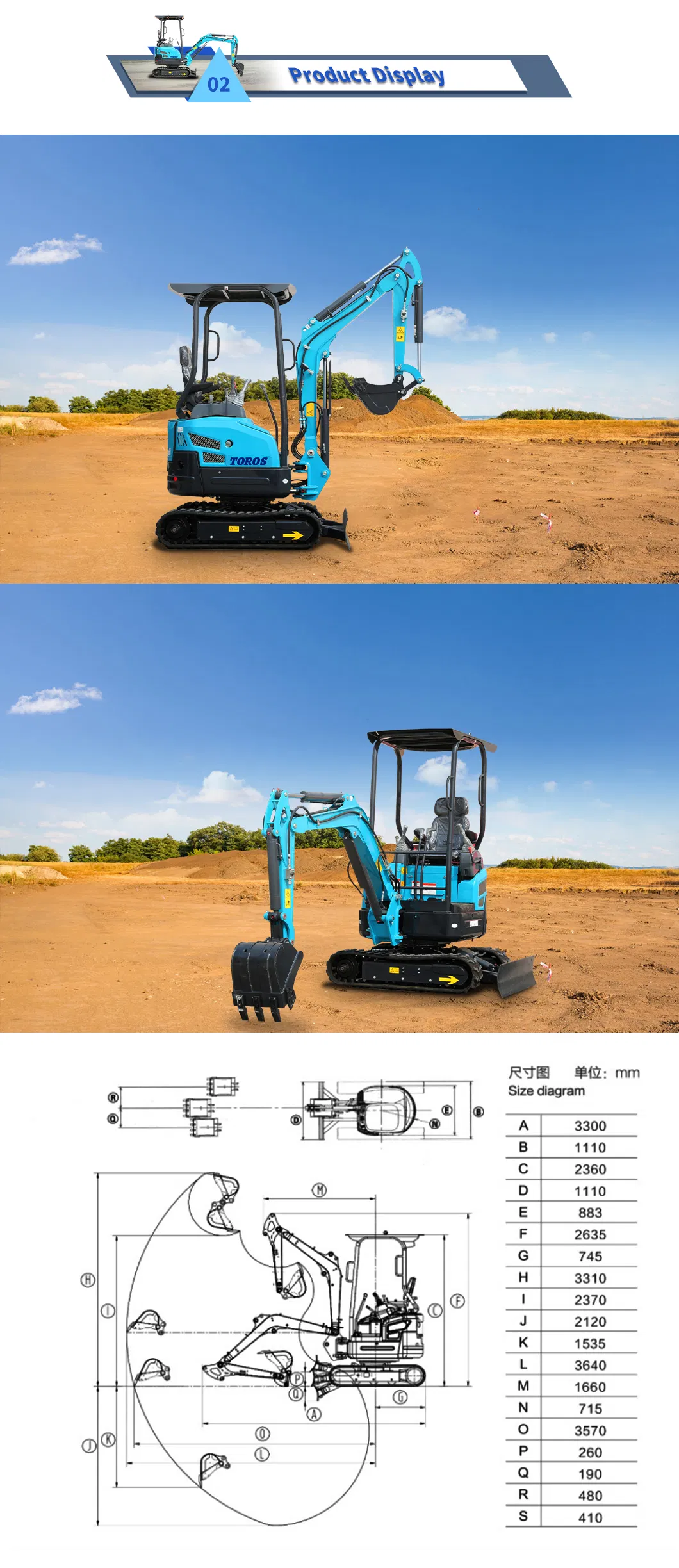

METRIC		IMPERIAL
Bucket Capacity	0.04m³	Bucket Capacity	1.41ft³
Excavator Width	1110mm	Excavator Width	43.70in
Track Length	1450mm	Track Length	57.09in
Track Width	230mm	Chassis Ground Clearance	9.06in
Crawler Material	Rubber/steel tracks	Track Width	Rubber/steel tracks
Transport Length	3300mm	Transport Length	129.92in
MAX.Digging Force	13.8kN	MAX.Digging Force	13.8kN
Gradeability	58(30)°	Gradeability	136.4(86)ºF
Excavator Height	2360mm	Excavator Height	92.91in
Overall Dimension( LxWxH)	330011102360mm	Overall Dimension( LxWxH)	129.9243.7092.91in
Multi-way Valve	Traveling Motor	Multi-way Valve	Traveling Motor
Engine	Kubota D902	Engine	Kubota D902
Engine Power	11.8kw/2200rpm	Engine Power	15.82hp/2200rpm
Turning Radius	1660mm	Turning Radius	65.35in
Max.Digging Height	3310mm	Max.Digging Height	130.31in
Max.Dumping Height	2370mm	Max.Dumping Height	93.31in
Max.Digging Depth	2120mm	Max.Digging Depth	83.46in
Max.Digging Radius	3570mm	Max.Digging Radius	140.55in
Max.Vertical Digging Depth	1535mm	Max.Vertical Digging Depth	60.43in
Fuel Tank Capacity	18 L	Fuel Tank Capacity	3.96UK gal
Weight	1550kg	Weight	3417lb 2.65oz
Swing Motor	Hydraulic Pump	Swing Motor	Hydraulic Pump
