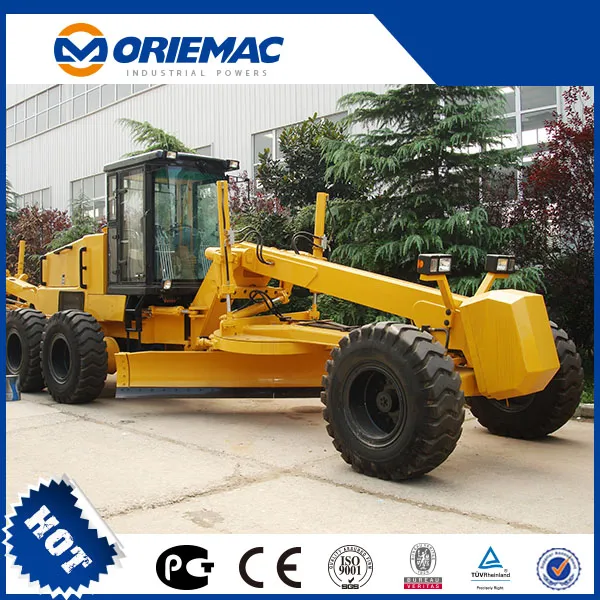

180HP Oriemac Motor Grader for Sale Road Grader Gr180
Oriemac Small Motor Grader (GR135)Engine model: CUMINS 6BT5.9Rated power/speed: 100kw/2200rpmOperating weight: 11200kgThe travelling brake system adopts the hydraulic components of Rexroth(Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking br......
Send Inquiry
Product Description

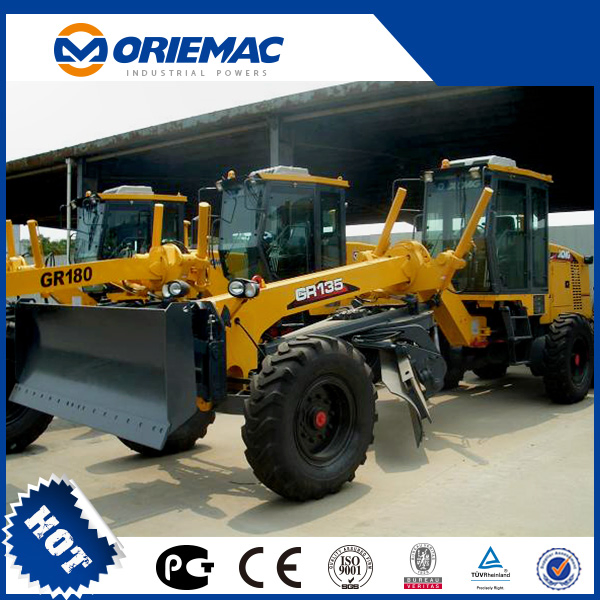

Oriemac Small Motor Grader (GR135)
Engine model: CUMINS 6BT5.9
Rated power/speed: 100kw/2200rpm
Operating weight: 11200kg
The travelling brake system adopts the hydraulic components of Rexroth(Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.
Steering system:Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe,with the articulated frame, to achive easy and flexible steering.
ChassisBeing of welded structure, just like a box, so it is strong enough to ensure no deformation.
Cabin with wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.
Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
Operation System: Forward/backward adjustable opertion pannel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.
PARAMETER:
Engine model: CUMINS 6BT5.9
Rated power/speed: 100kw/2200rpm
Operating weight: 11200kg
The travelling brake system adopts the hydraulic components of Rexroth(Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.
Steering system:Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe,with the articulated frame, to achive easy and flexible steering.
ChassisBeing of welded structure, just like a box, so it is strong enough to ensure no deformation.
Cabin with wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.
Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
Operation System: Forward/backward adjustable opertion pannel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.
PARAMETER:
Basic specification | |
|---|---|
Engine model | 6BT5.9 |
| Rated power/speed | 100/2200kw/rpm |
| Dimension(LxWxH) | 8015×2380×3050mm |
| Operating weight(Standard) | 11000kg |
Performance specification | |
Travelling speed ,forward | 5,8,13,20,30,42km/h |
| Travelling speed ,reverse | 5,13,30km/h |
| Tractive force(f=0.75) | 61.3KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±49° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 16 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 6.6m |
Biade | |
Maximum lift above ground | 410mm |
| Maximum depth of cutting | 535mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°-70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3710×610mm |
