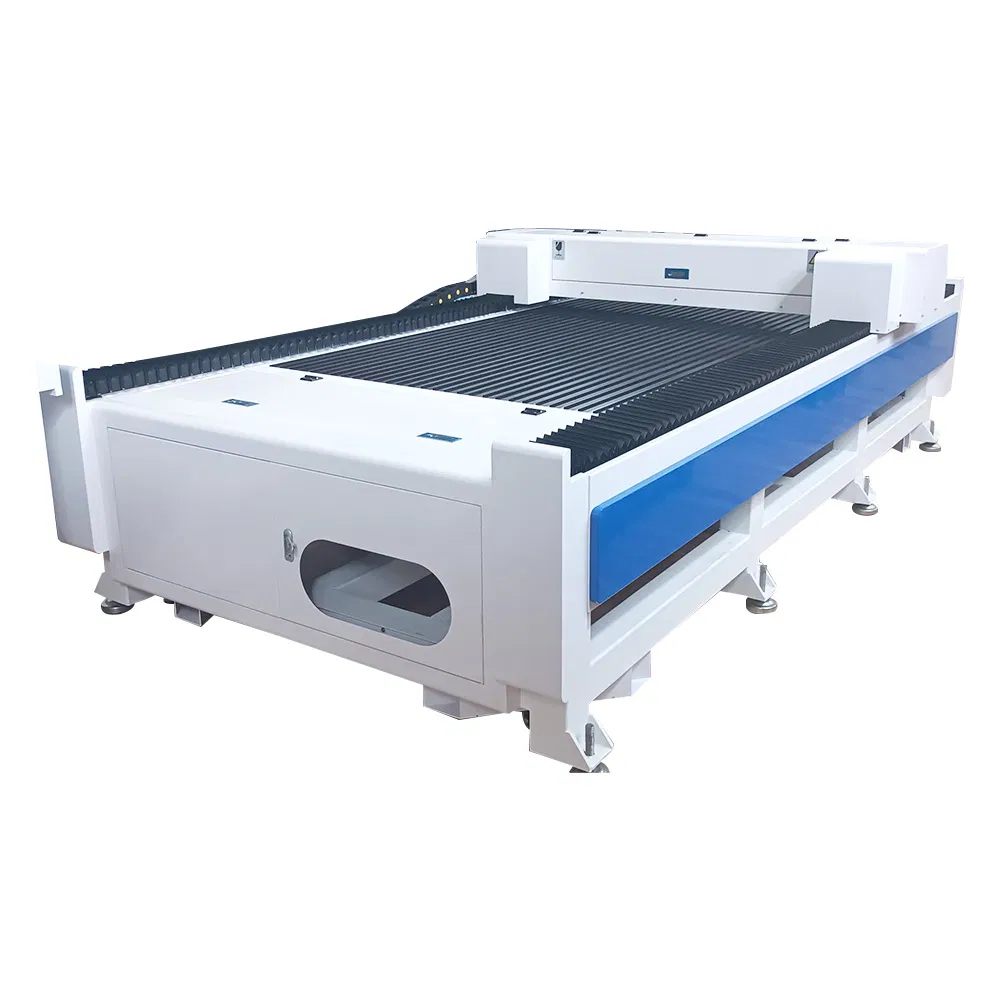

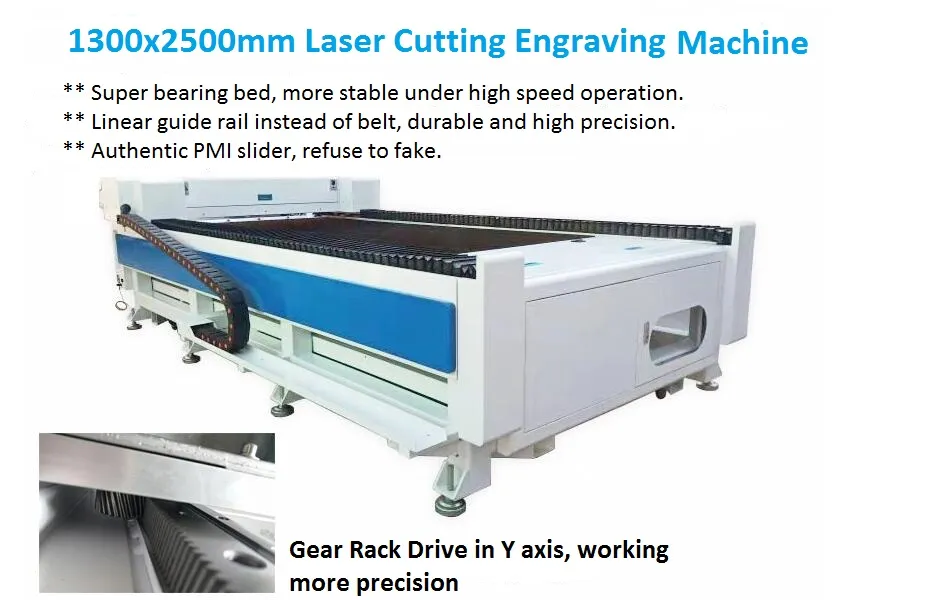

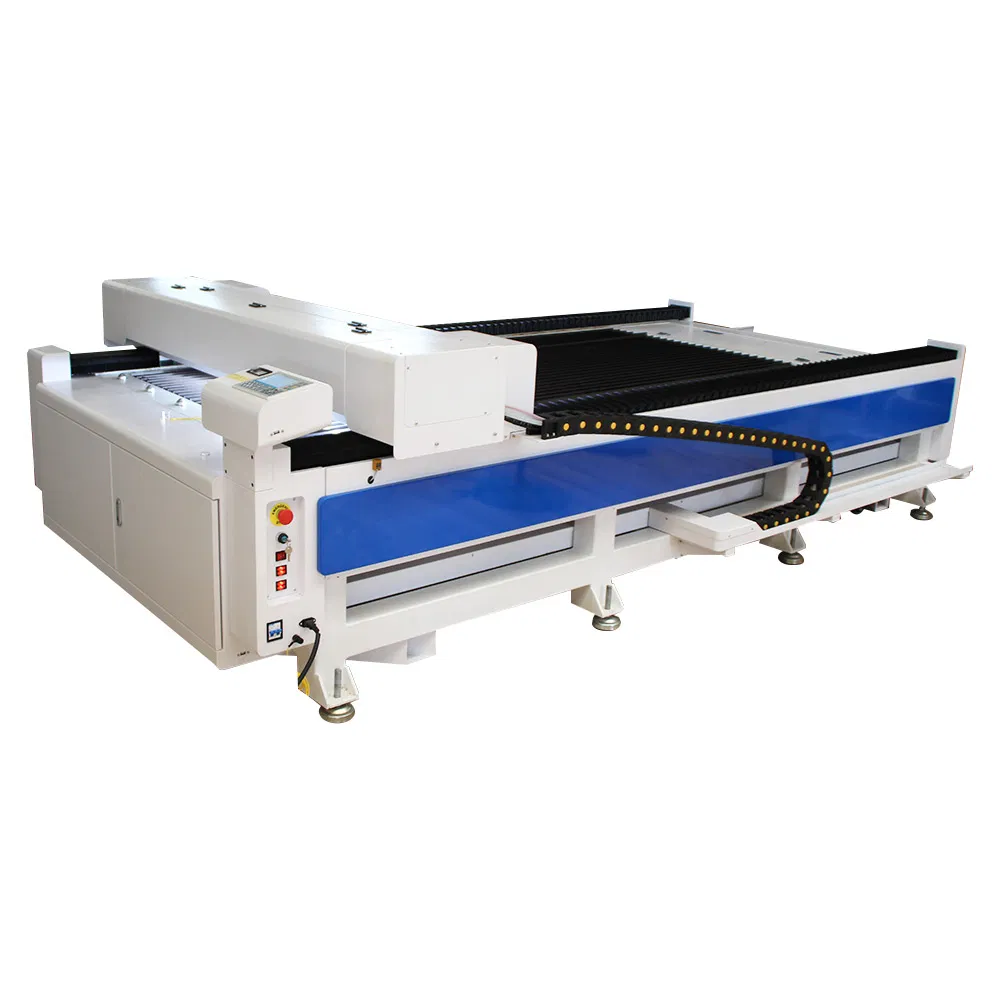

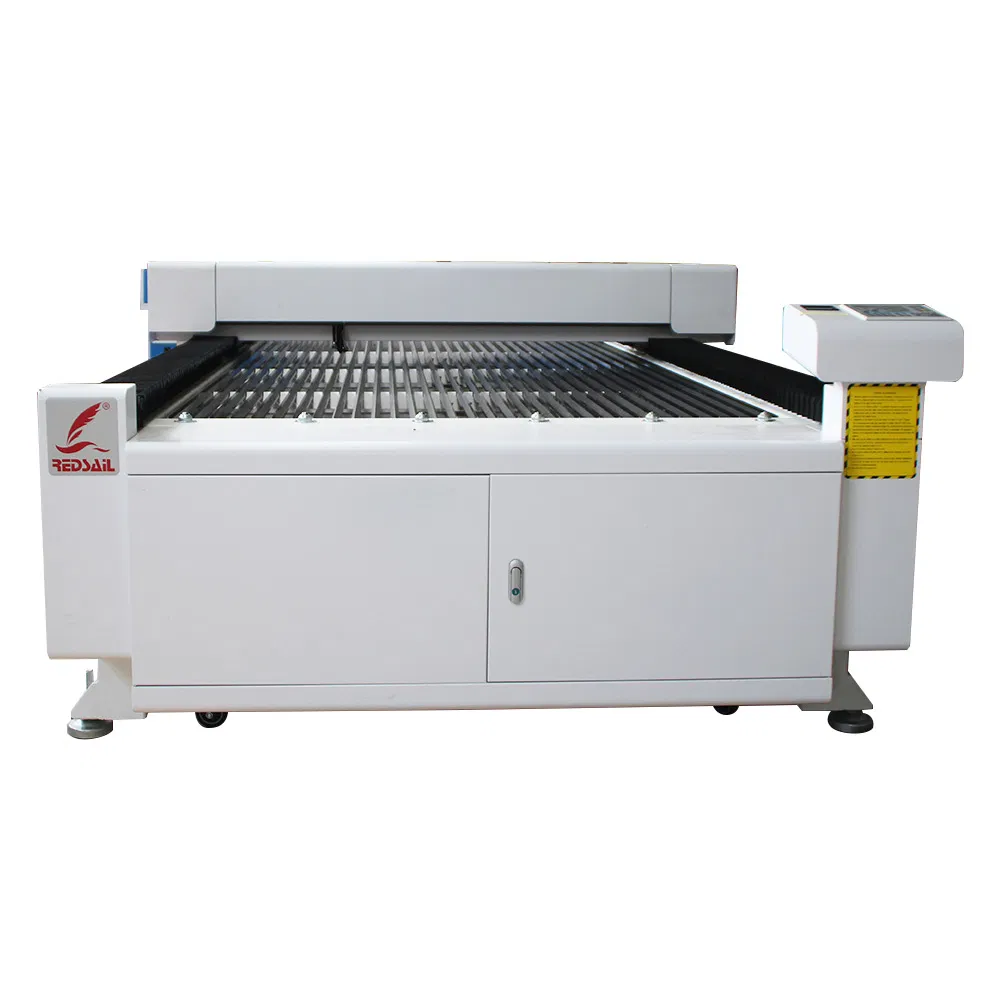

1325 CO2 Laser Cutting and Engraving Machine with Gear Rack Drive
Product Description Product ParametersControl SystemDSP, RDworksWorking size1300mm x 2500mm[4' x 8']Working TableBlade Bed TableLaser tube typeCO2 glass sealed laser tubeLaser powerReci W2 100w [Option: W4 120w /W6 150w]Drive typeMicro stepping motorMax speed1000mm/sResolution1000DPILocatio......
Send Inquiry
Product Description
| Control System | DSP, RDworks |
| Working size | 1300mm x 2500mm[4' x 8'] |
| Working Table | Blade Bed Table |
| Laser tube type | CO2 glass sealed laser tube |
| Laser power | Reci W2 100w [Option: W4 120w /W6 150w] |
| Drive type | Micro stepping motor |
| Max speed | 1000mm/s |
| Resolution | 1000DPI |
| Location precision | Location precision |
| PC interface | USB 2.0 and USB Disk |
| Software | auto laser (Rdworks optional) |
| Image form | HPGL, BMP, GIF, JPG, JPEG, DXF, DST, PLT etc. |
| Warranty | 12months ( 6 months for laser tube, 3 months for mirrors and lens) |
| Package | standard wooden case for export |
| Application Industry: Craft gifts, garment manufacturing industry, processing tools, toy making, rubber board printing, advertising and other manufacturing industries. |
Ability to engrave and cut on various materials
| Material | Engrave | Cut |
| Wood | √ | √ |
| Acrylic | √ | √ |
| Delrin | √ | √ |
| Cloth | √ | √ |
| Leather | √ | √ |
| Mat Board | √ | √ |
| Melamine | √ | √ |
| Paper | √ | √ |
| Mylar | √ | √ |
| Rubber | √ | √ |
| Plastic | √ | √ |
| Coated metals | √ | × |
| Glass | √ | × |
| Stainless Steel | × | × |
Please consult with us for other special materials!
Please consult with us for other special materials!

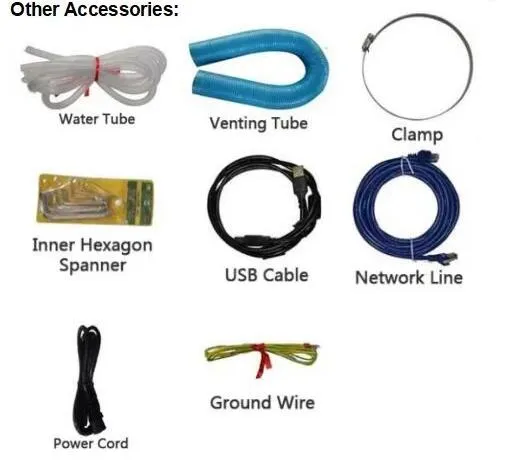

Packing List:
| Standard Packing | Options | ||
|
|

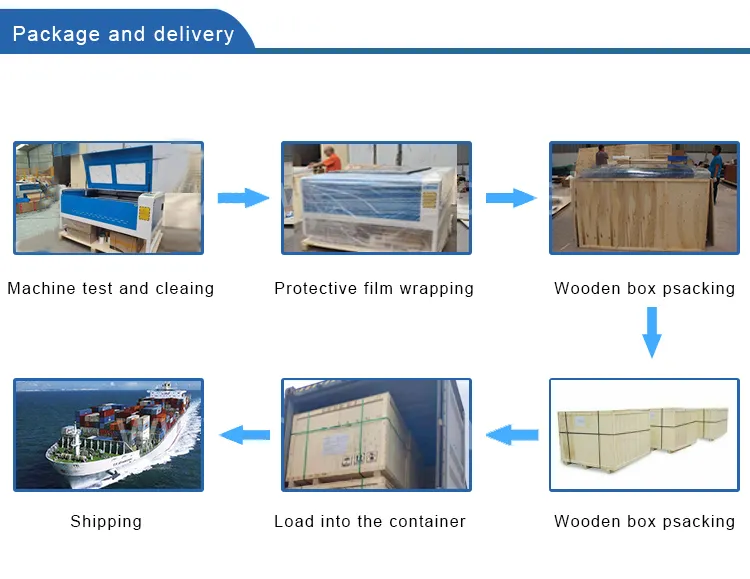

Shipping Rules:
1. Under CIF shipping terms, Redsail will be responsible for the export declaration of the machines and deliver the machines to the customer's designated port. Customers need to handle import customs clearance procedures and pay local taxes.
2. If it is not convenient for customers to import, we are able to deliver the machine to the customer's address and assist with import customs clearance procedures, customers only need to pay local taxes. That is DDU shipping terms.
3. We can also do business on FOB terms, ship the machine to Qingdao Port or any other port in China. The customer needs to contact local forwarder for import clearance and pay the fees and taxes.
Any further questions about shipping, feel free to contact us please.

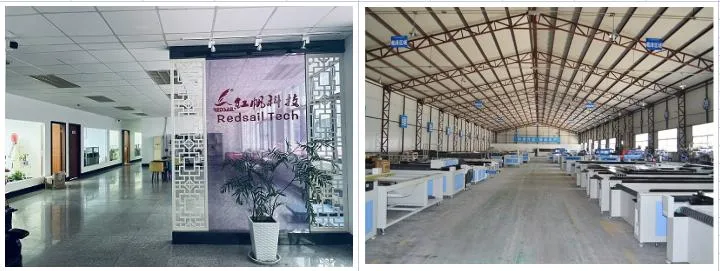

China Headquater
Redsail Laser is a specific manufacturer of lasser machines, CNC router, anc xutting plotter(Vinyl Cutter) since 2003, we focus on the design, R&D, production and service of CO2 laser engraving and cutting machine, it has been 18 years!
"Quality, Good Faith, Innovation, Service" are the spirits of Redsail Laser, we always adhere to customer demand-oriented, provide design, installation and debugging and after-sale technical supportand other full services. "Only do one things and do it best, bring the best product experience and more benefits to our partners", the General Manager Mr. Li said.
Canada Branch
Now we have set up design and service branch in Ontario, Canada to get more market information and provide the fastest service support to north and south Americas.
Warranty Policy
Machine Warranty: 12 month Laser tube: 6-18 month Mirrors and Lens: 3 months
All parts are replace free during the warranty period.
After Sales Service
1. All machines will undergo 3 days aging test after assembly and debugging, ensure machine life.
2. The instruction operation CD is delivered with the machine together. As Co2 laser machine is the entry level machines, so most customer can operate well through CD.
3. 24/7/365 online support and lifetime service.
4. Overseas service available if necessary.
