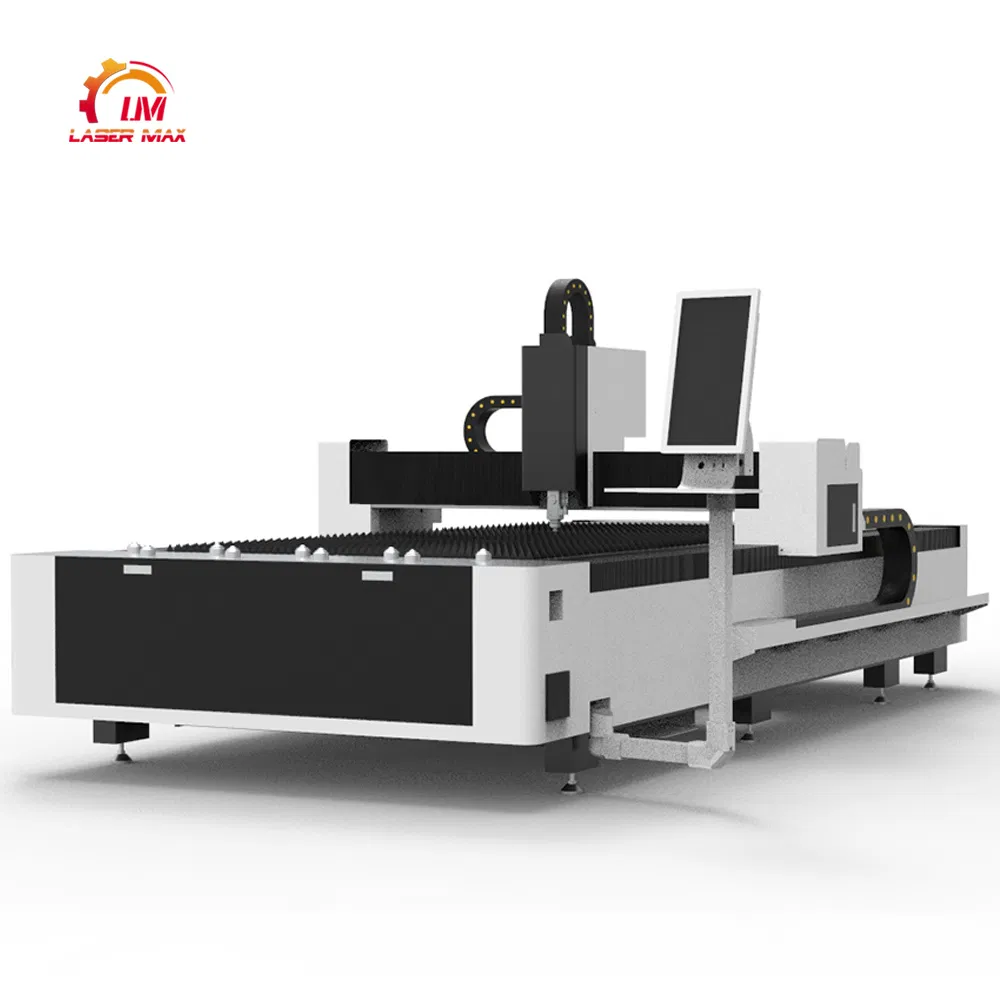

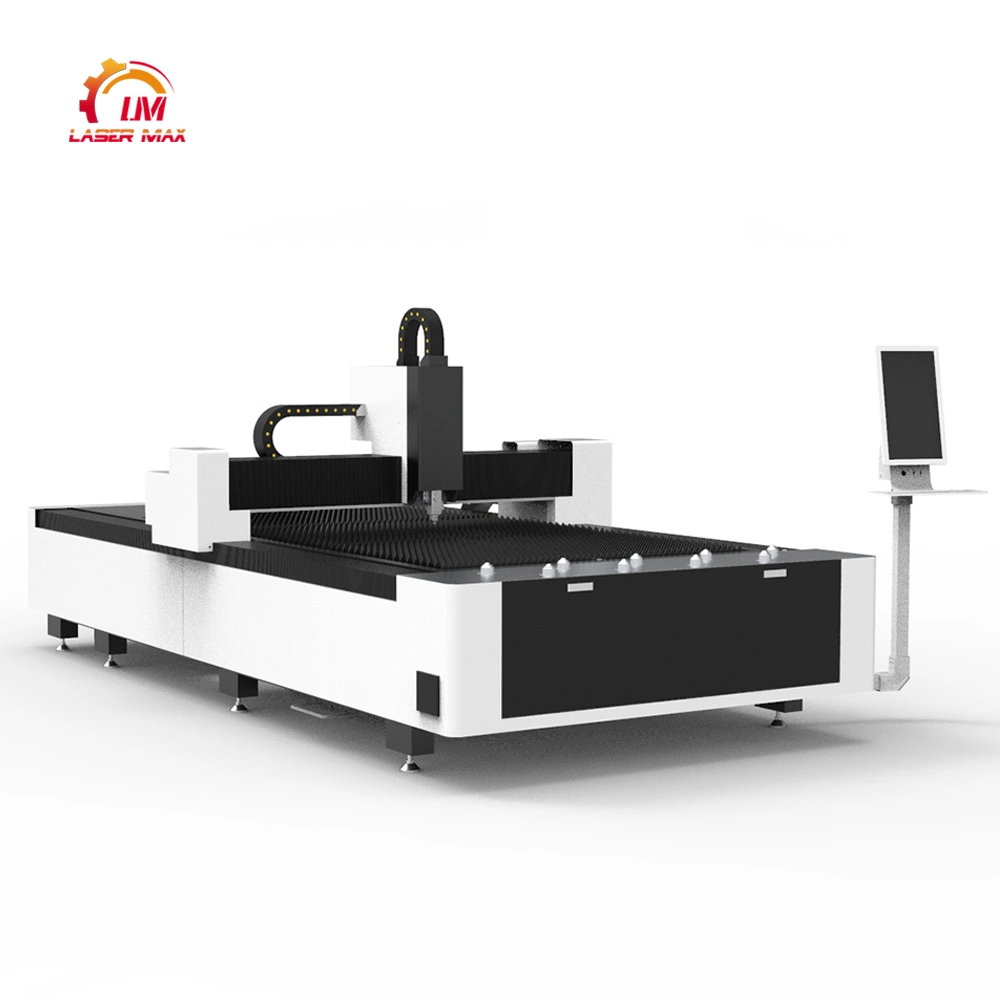

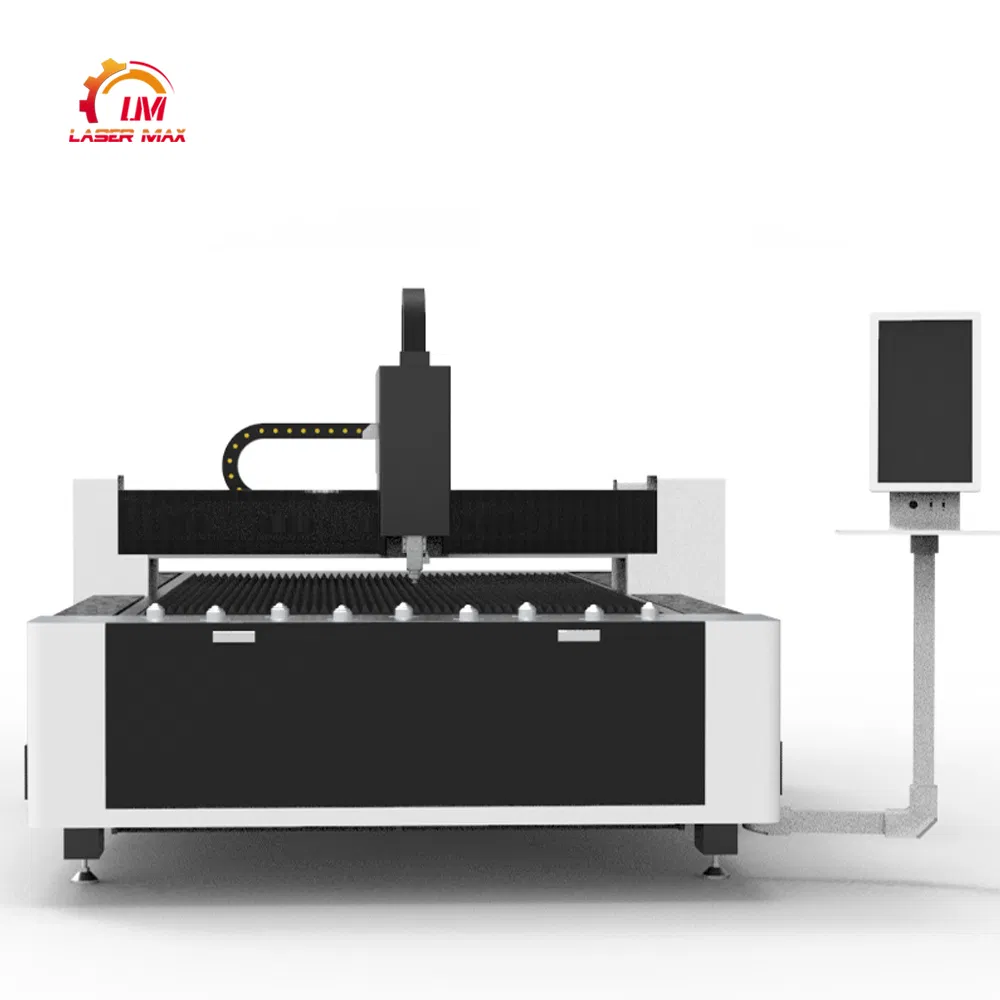

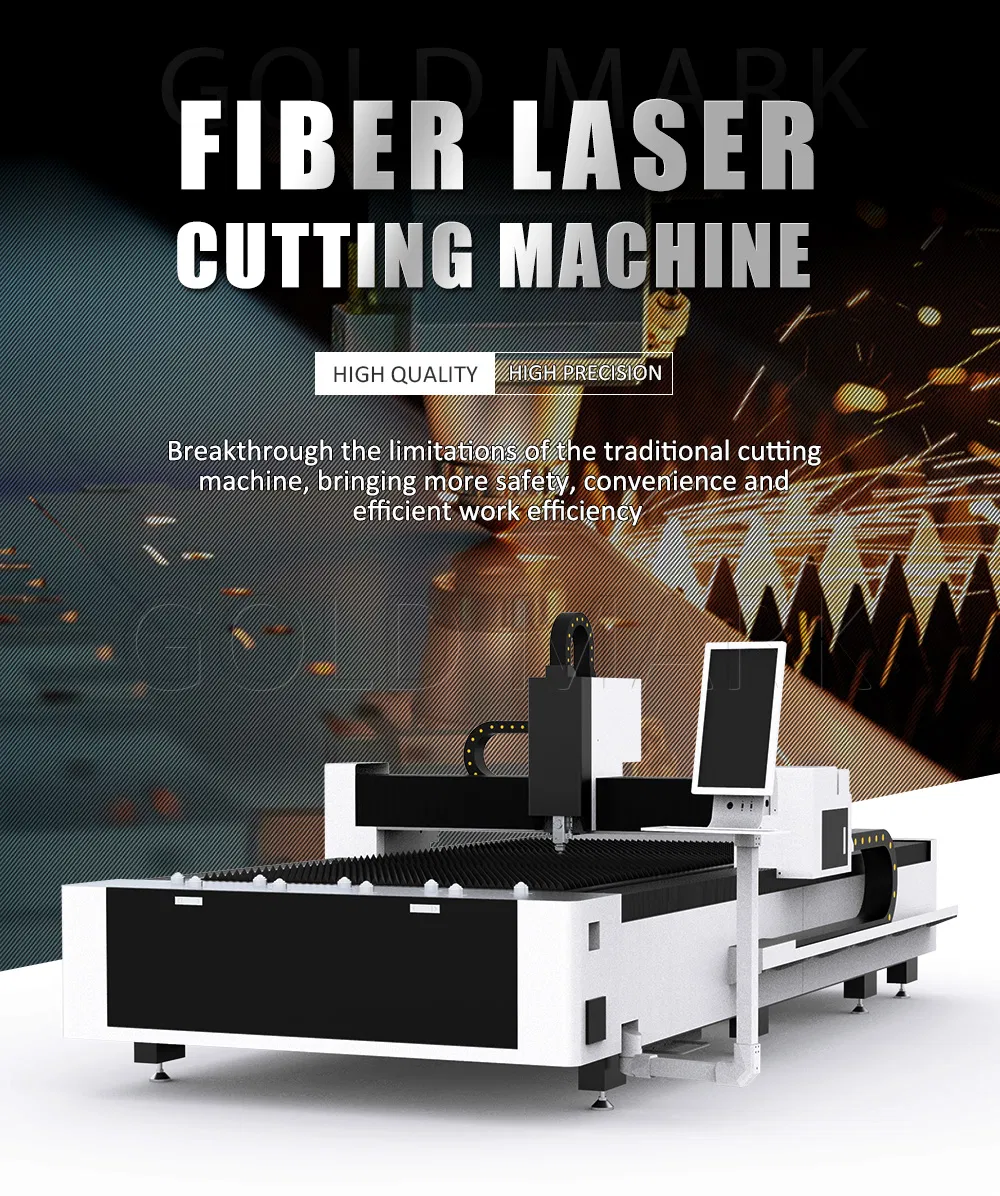

1kw 2kw 3kw Fiber Laser Cutting Machine 3015 for Gold Silver Metal
Technical ParametersModelLM3015Dimension4600*2450*1700mmLaser power1KWWorking area for metal sheet3000*1500mmY-axis stroke3000mmX-axis stroke1500mmZ-axis stroke120mmX/Y axis position accuracy±0.03mmX/Y axis reposition accuracy±0.02mmMax. Moving speed100m/minMaximum acceleration......
Send Inquiry
Product Description
Technical Parameters
| Model | LM3015 |

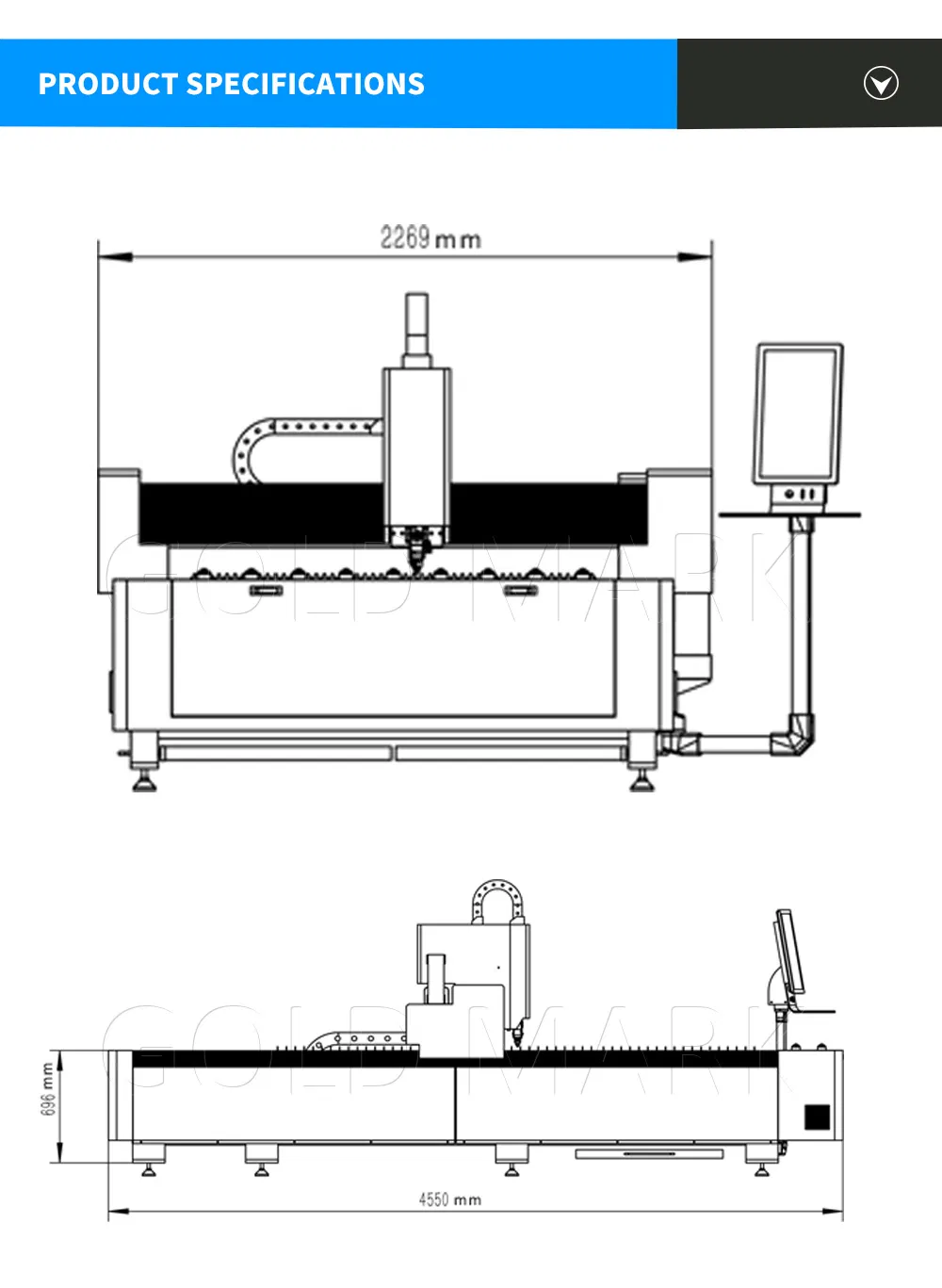

| Dimension | 4600*2450*1700mm |
| Laser power | 1KW |
| Working area for metal sheet | 3000*1500mm |
| Y-axis stroke | 3000mm |
| X-axis stroke | 1500mm |
| Z-axis stroke | 120mm |
| X/Y axis position accuracy | ±0.03mm |
| X/Y axis reposition accuracy | ±0.02mm |
| Max. Moving speed | 100m/min |
| Maximum acceleration | 1.0G |
| Max. Working capacity of sheet table | 900kg |
| Specified voltage and frequency | 380V/50Hz/60Hz/60A |
| Continuous working time | 24h |
Gas Requirement to User
| Gas Type | Pressure | Purity |
| O2 | 1MPA | 99.9% |
| N2 | 2.5MPA | 99.9% |
| Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be. | ||
Working Temperature
| The Best Working Temperature | 10-35ºC |

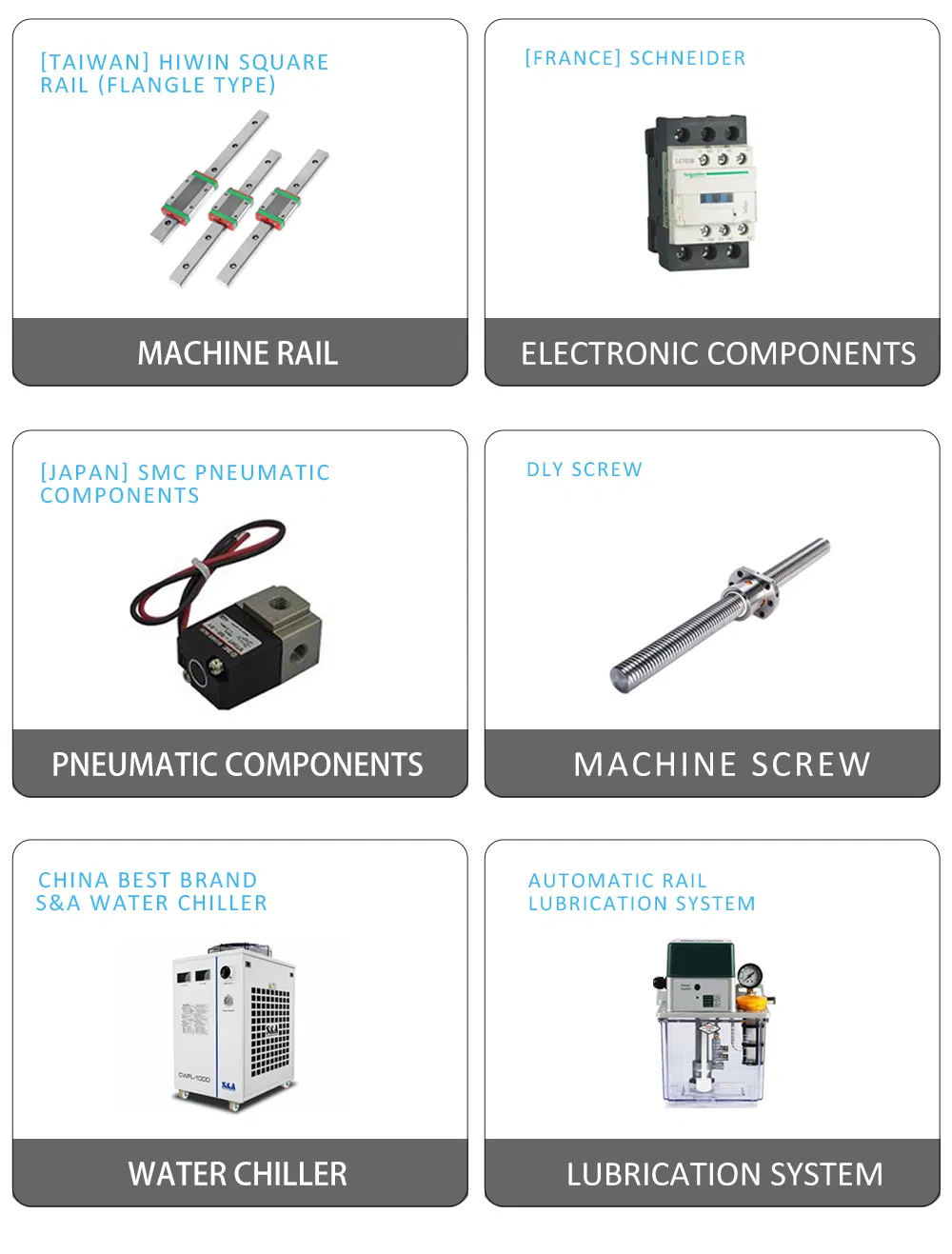

| ≤0ºC:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller's volume | |

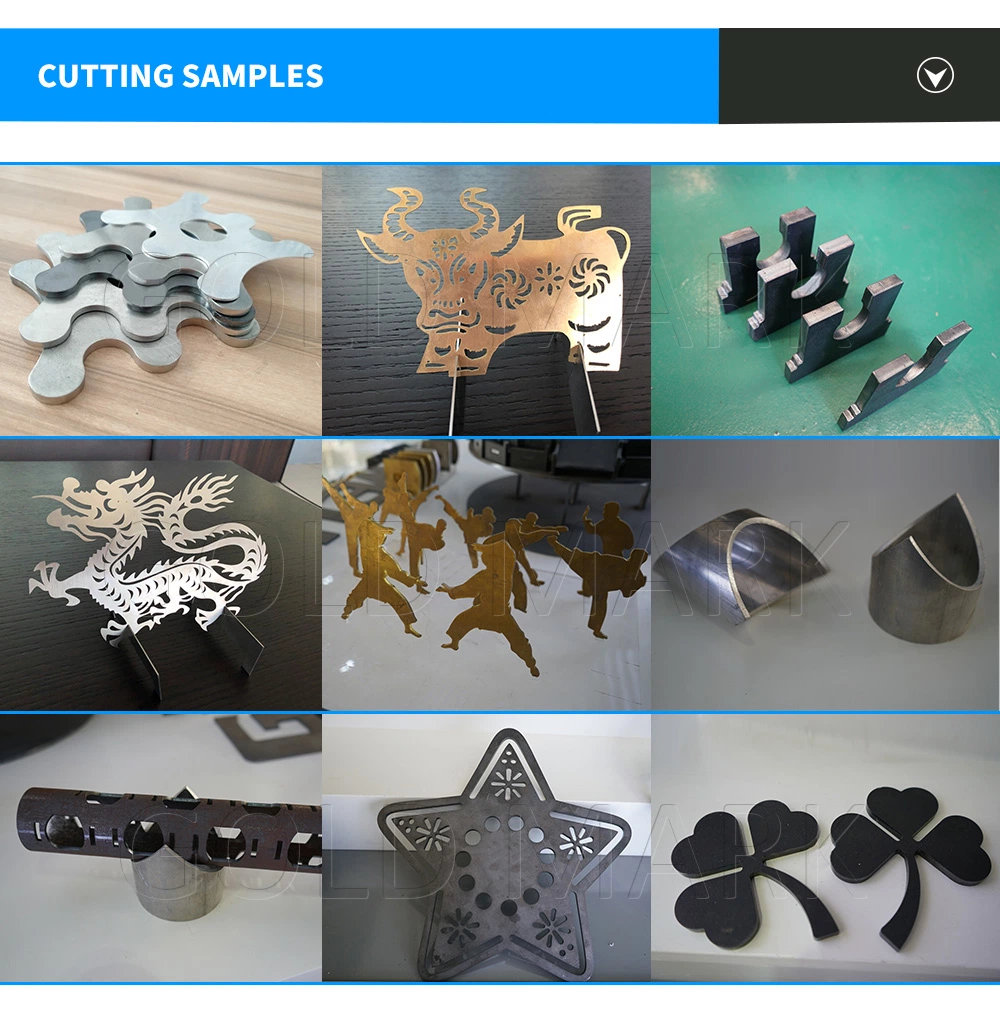

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
