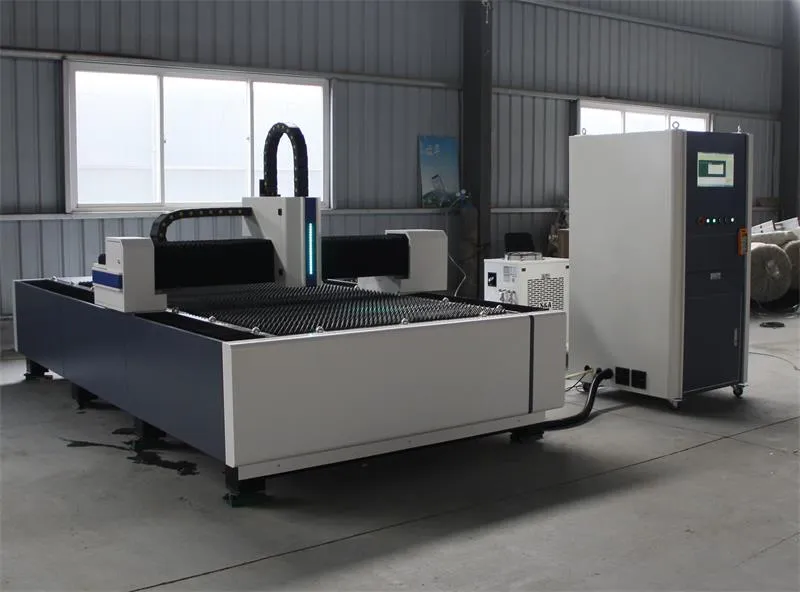

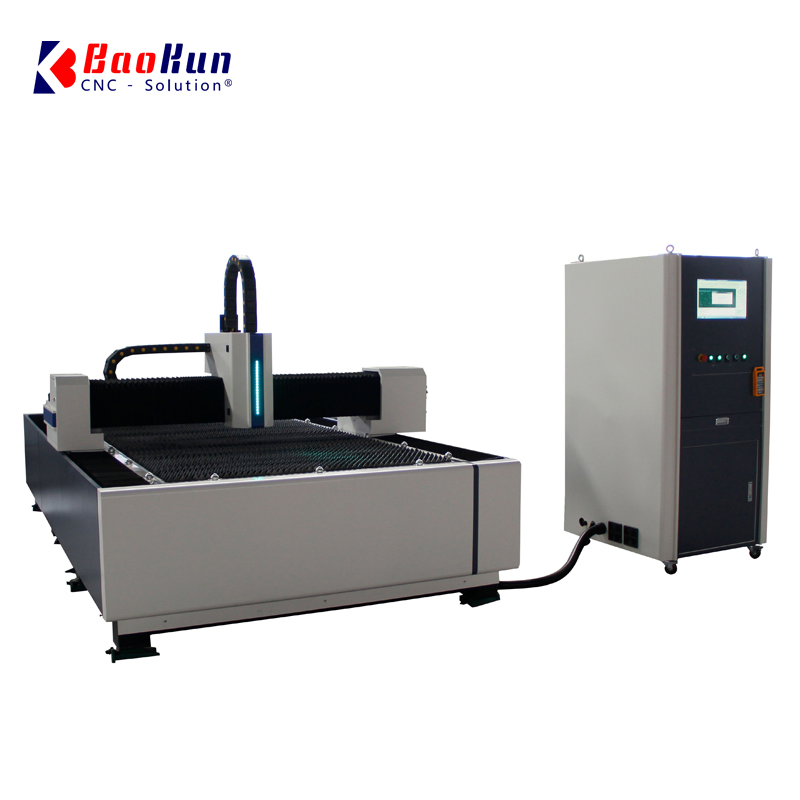

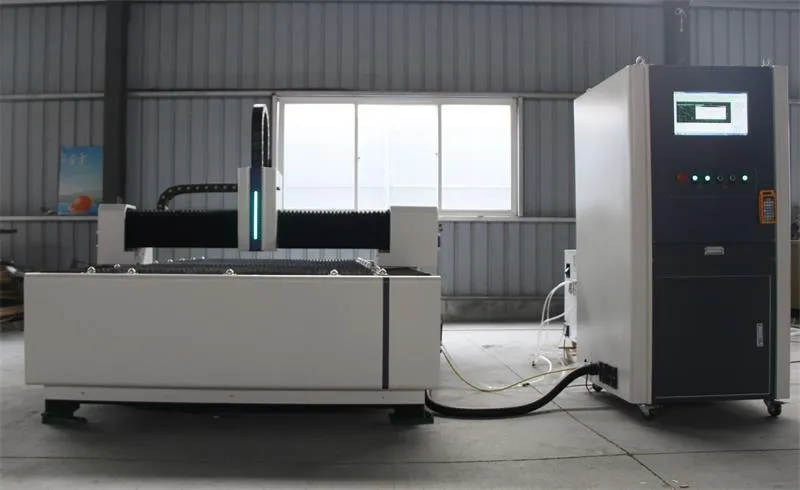

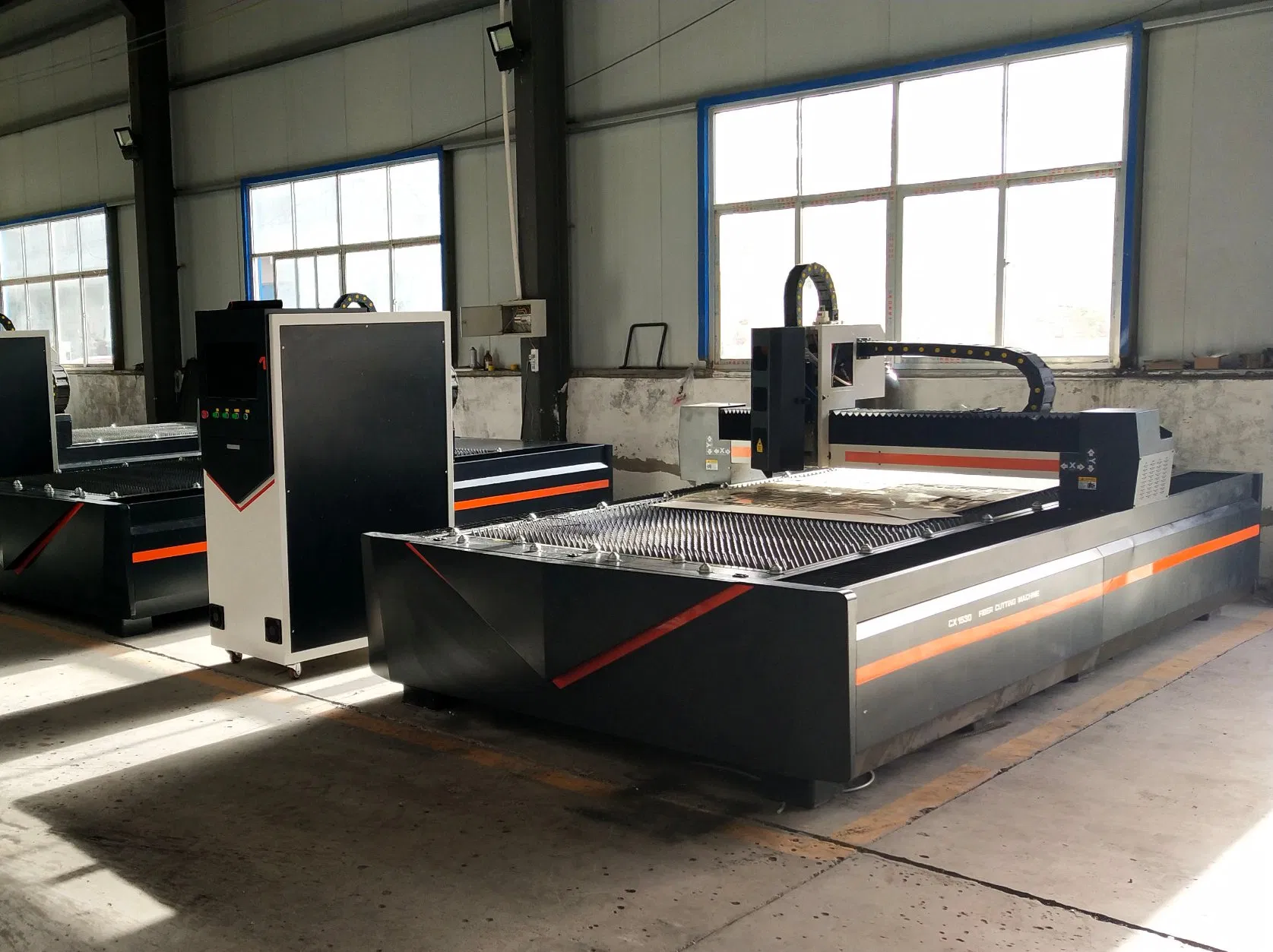

CNC Metal Sheet Laser Cutter / Cutting Machine with CE Certificate

Product Description

Model:	BKJ-F3015
Working Area:	3000*1500mm
Positioning Accuracy:	0.03mm
Repositioning Accuracy:	0.02mm
Max Movement Speed:	140m/min
Laser Power:	1000W
Working Table:	Blade Working Table
Max Acceleration:	1.4G

1000w Fiber laser Cutting machine of Cutting Thickness for Different materials

Material	Cutting Thickness
Stainless Steel	1-5mm
Mild Steel	1-12mm
Aluminium	1-2mm
Brass	1-2mm
The above parameters are for reference only, the actual process parameters will vary according to the configuration and actual use of each manufacturer.

Expert database allows for quick changes over between jobs, minimizing operator interactions, by automatically setting cutting parameters through the CNC
1. Jumping mode to enhance cutting effectiveness
2. Capacitive height control in quick response
3. Re-trace mode allowing for the cutting process control when cutting errors occur
4. Dynamic corning control allowing for automatic adjustment of power and gases for better cutting performance in corners and tight contours
5. Adjustable slope function to improve laser piercing quality
6. Cutting compensation function for line & circle cutting
7. Fly-piercing function with non-stop cutting which greatly improves the cutting efficiency for thin plates
8. Automatic plate edge detecting function for faster setup

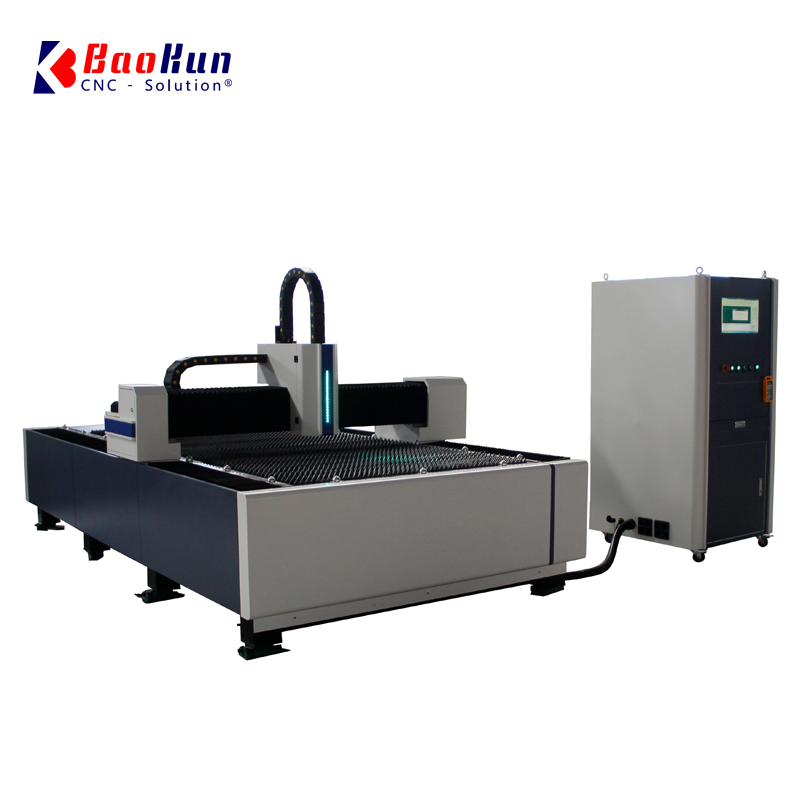

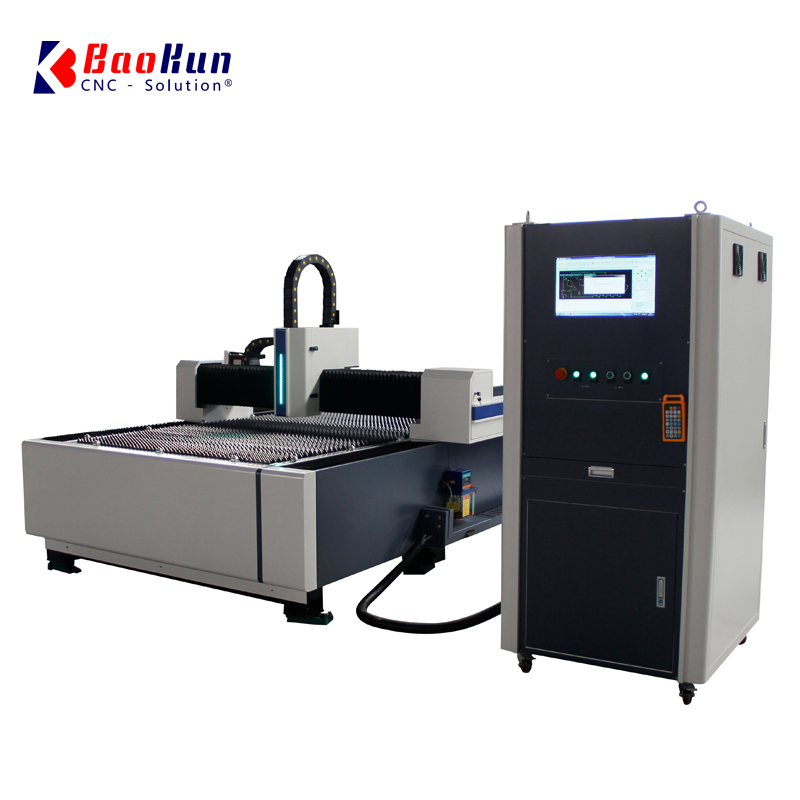

CNC Metal Sheet Laser Cutter / Cutting Machine with CE Certificate

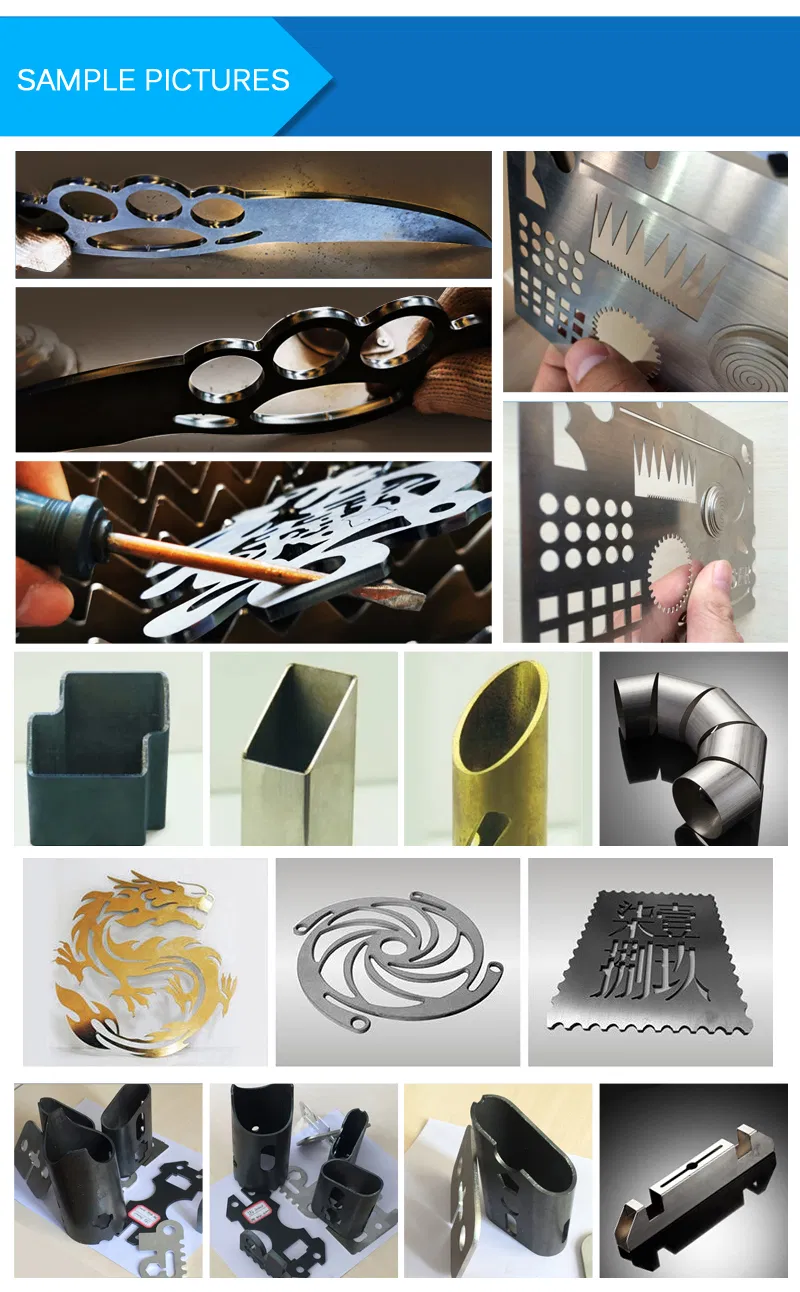

Applicable materials:
Fiber Laser cutter machine is mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate and other metal materials.

Applicable Industries:
Fiber laser cutter machine is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, advertising industries and so on.

CNC Metal Sheet Laser Cutter / Cutting Machine with CE Certificate

1. Professional and free after-sales training
Our company has the professional after-sales technical team , providing customers prompt door-to-door or online technical guidance, which can ensure customers are skilled in the equipment application in a short time . At the same time , after-sales technical team would visit customers regularly ,asking customers the using of equipment and upgrade the software of equipment for customers.

2. After-sales outlets are all over the world
Our company has global customer service center , it has 16hours/day online customer service, which can solve all kinds of problems for domestic and foreign customers, our customer service will feedback problems to technical department and productive department,which would give you a satisfactory process of solving problem , ensuring constantly creation of money for you.

3. The feedback of customer satisfaction survey
Company 's after-sales service and technical department will visit customers regularly , inquiring your degree of satisfaction about the equipment and service , we would form proposal according to customer's feedback, the aim of it is finding continuous improvement.

4. The warranty commitment of equipment
The machine's warranty is on two years( not including optical devices and quick-wear parts), except that ,control software is free to upgrade . At the same time ,we guarantee that we will give you the most satisfactory answer for your question whether it is inside or outside of the machine..

CNC Metal Sheet Laser Cutter / Cutting Machine with CE Certificate

Q: What's the function of fiber laser?
Fiber Laser is only used to cut metals like Stainless Steel, Carbon/Mild Steel, Galvanized Steel, etc. Non-metal is not ok.

Q: What's the max. cutting thickness?
Cutting thickness is related to laser power.
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
3000W: 10mm stainless steel, 20mm carbon steel, 10mm aluminum, 7mm brass, 4mm copper
4000W: 12mm stainless steel, 22mm carbon steel, 10mm aluminum, 10mm brass, 6mm copper
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.

Q:Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
