Heavy Industry 4020h 12kw Metal Plate Fiber Laser Cutting Machine
4020H 12000W metal Fiber laser cutting machineUltra high power laser cutting machine adopts exchange platform, automatic loading and unloading structure,saving labor and more efficientSafety and No Pollution*With a fully enclosed design;*The observation window adopts an European CE Standard laser pr......
Send Inquiry
Product Description

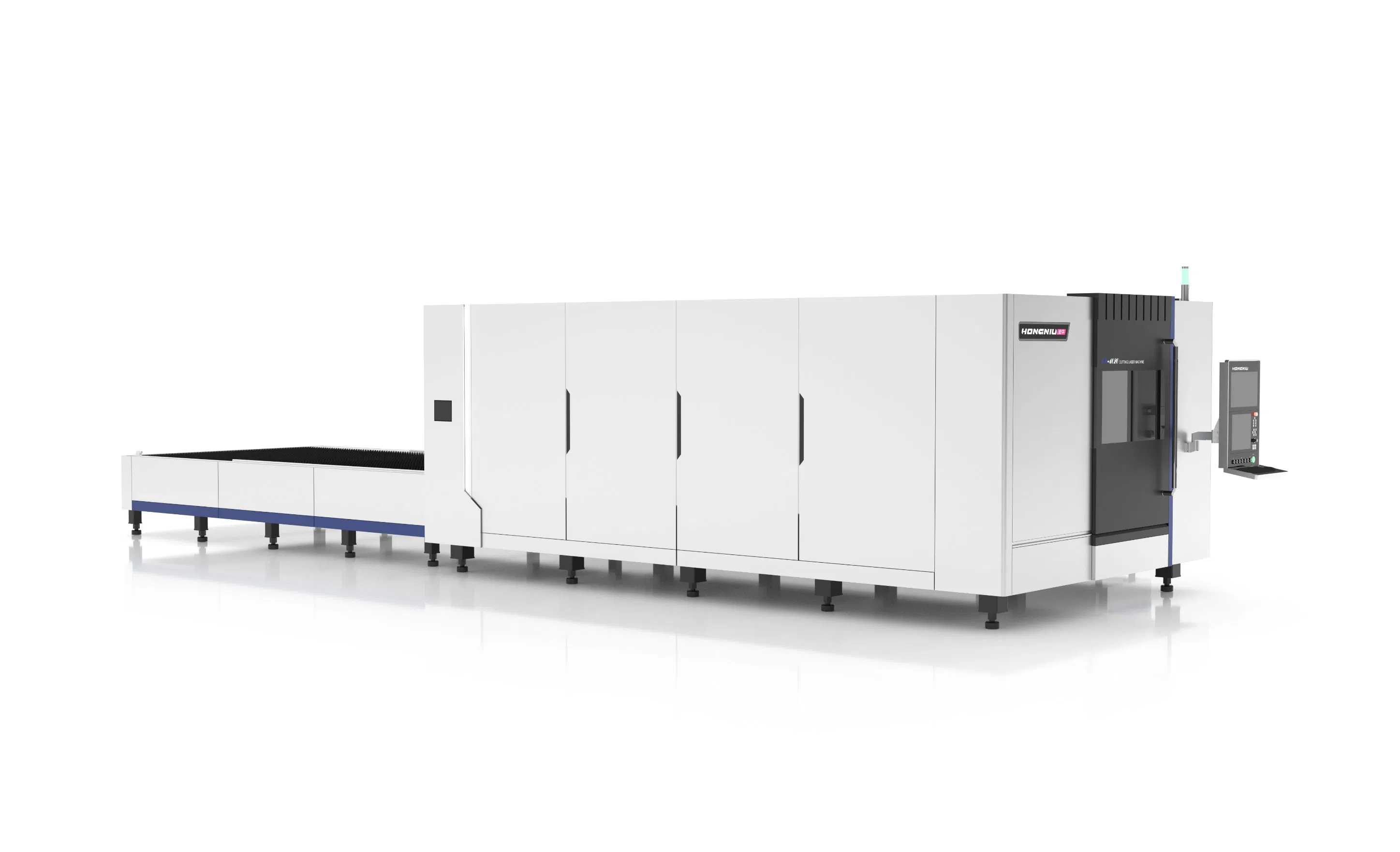

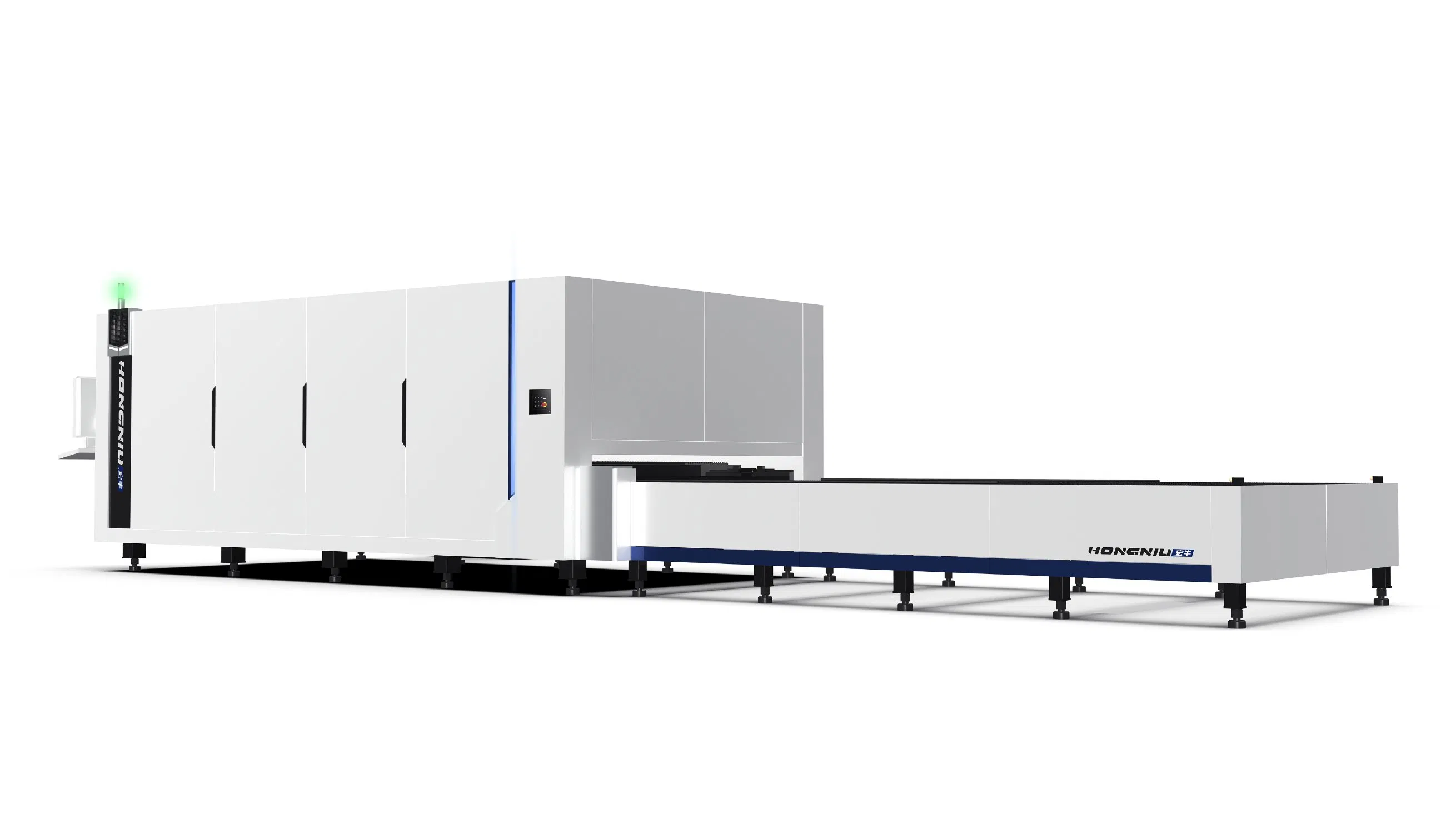

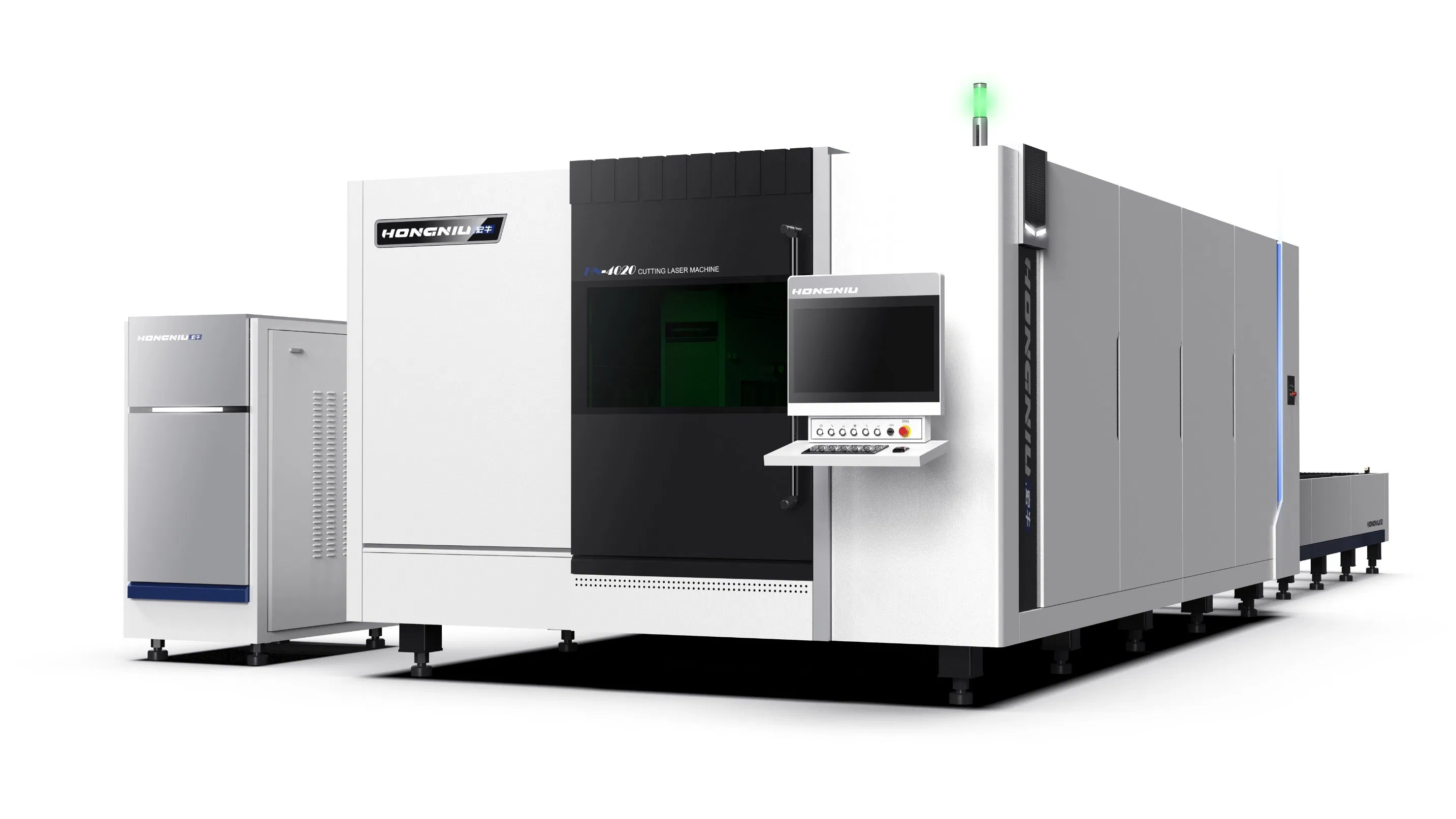

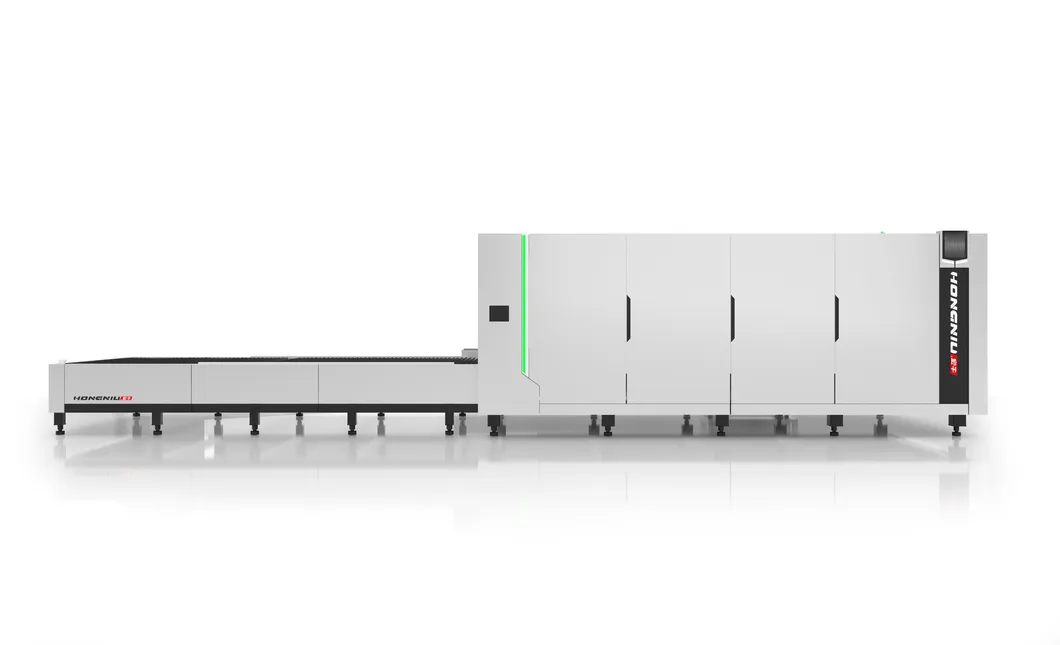

4020H 12000W metal Fiber laser cutting machine
Ultra high power laser cutting machine adopts exchange platform, automatic loading and unloading structure,saving labor and more efficient
Safety and No Pollution
*With a fully enclosed design;
*The observation window adopts an European CE Standard laser protective glass;
*The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly

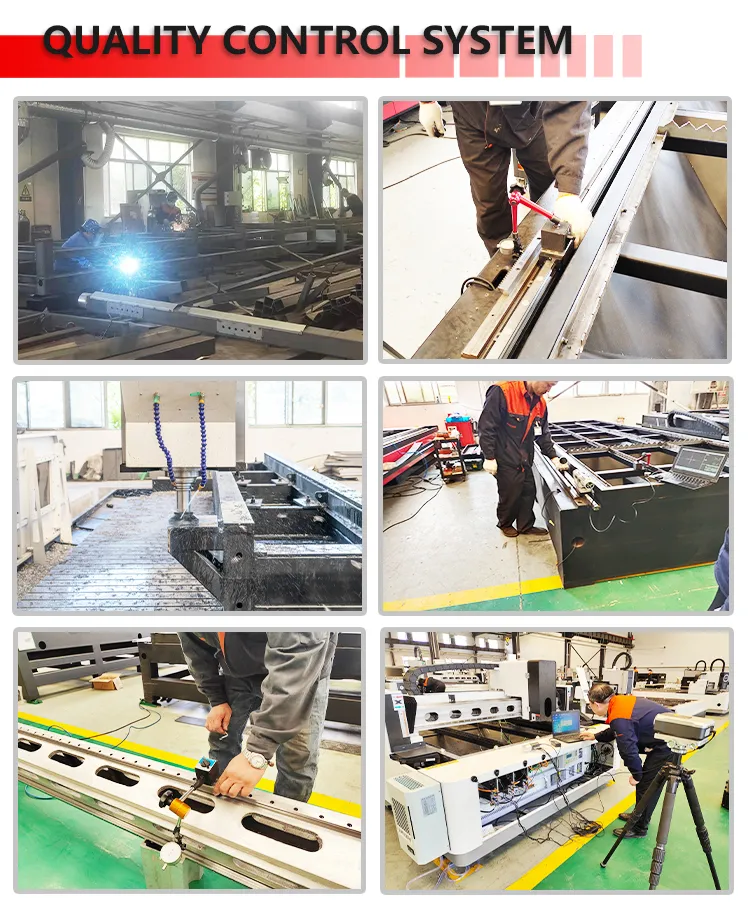

High Quality Carbon Structural Steel Welding Bed
*The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
* Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.High strength, stability, tensile strength, ensuring 20 years of use without distortion.
*Thickness of rectangular pipe wall is 8mm.
*Heat treatment for 3-4 days to ensure that the machine does not deform after long-term use.

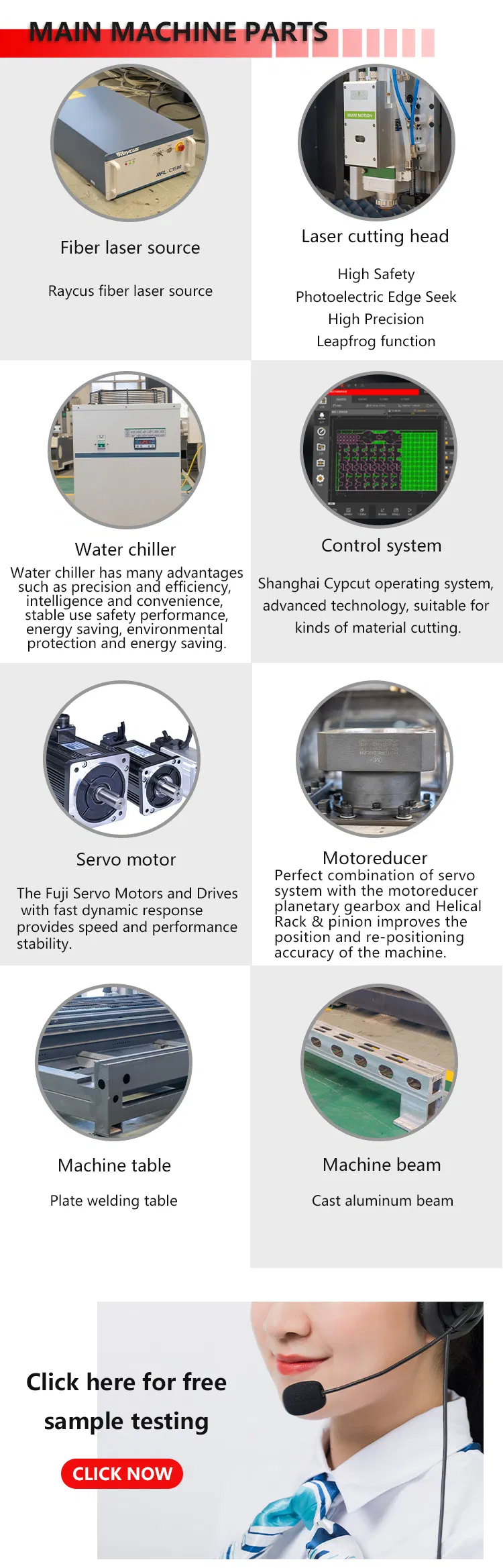

Machine Features:1. The aluminum beam of aviation industry is corrosion-resistant, lightweight and high rigid, which ensures high-speed movement during laser processing, and has perfect dynamic performance. Under the condition of meeting the accuracy, it can realize high-speed cutting of various graphics.
2. High-performance laser device associated with stable operation system enables optimal cutting effects.
3. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
4. Single worktable make plates loading and unloading available during cutting, which improves the processing eficiency.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.

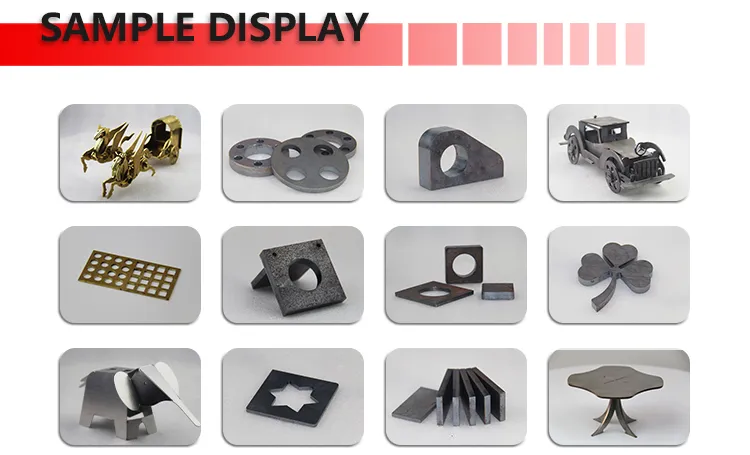

6. It could cut metal in various materials and realize excellent and stable cutting effects.
| Model | HN-3015H | HN-4020H |
| Working Area | 3000*1500mm | 4000*2000mm |
| Applicable Material | stainless steel, carbon steel, ally steel, spring steel, cooper plate, aluminum plate, gold,silver,titaniu metc metal plate | |
| Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W | |
| Materials Thickness | Max 25mm | |
| Laser Source | IPG/RAYCUS/MAX | |
| Laser Head | RAYTOOLS/PRECITEC | |
| Dimensions(L*W*H) | 5400*2850*2300mm | 6400*3350*2300mm |
| Weight | 3800KG | 5000KG |
| Repeat Positioning Accuracy | ±0.02mm | |
| Accuracy of Positioning | ±0.03mm | |
| Max. Movement Speed | 120m/min | |
| Max Acceleration | 1.5G | |
| Power Consumption | <10KW | |
| Specified voltage and frequency | 380V/50Hz/60Hz/60A(Customizable) | |
1.Q:Why should we choose you ?
A:If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
2.Q:I'm not familiar with the machine,how to choose?
A: Don't worry, you just need to tell us below simple info, then we will give you professional suggestion and quote you price very soon.
a. What do you want to cut? Sheet, pipe or both?
b. Material of the metal
c. Max thickness and the cutting range( width& length)
3.Q: When I get this machine, but I don't know how to use it. What should I do?
A:We will deliver English manual and video with the machine to you. If you have further questions, we have engineers who can speak English can serve you on-line directly.
4.Q: If the machine have problems or borken in the future, what can you do for me?
A: We guarantee machine quality for 24months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer by DHL, TNT freely. Besides guarantee period, we still provide you free online services for life. If parts broken, you can order replacement parts from us.
5.Q:Can you arrange the shipment for us?
A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
