Hgtech China G Series Fiber Laser Cutting Machine High Power Laser Cutter Best Price
Product Show:Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to mainte......
Send Inquiry
Product Description
Product Show:

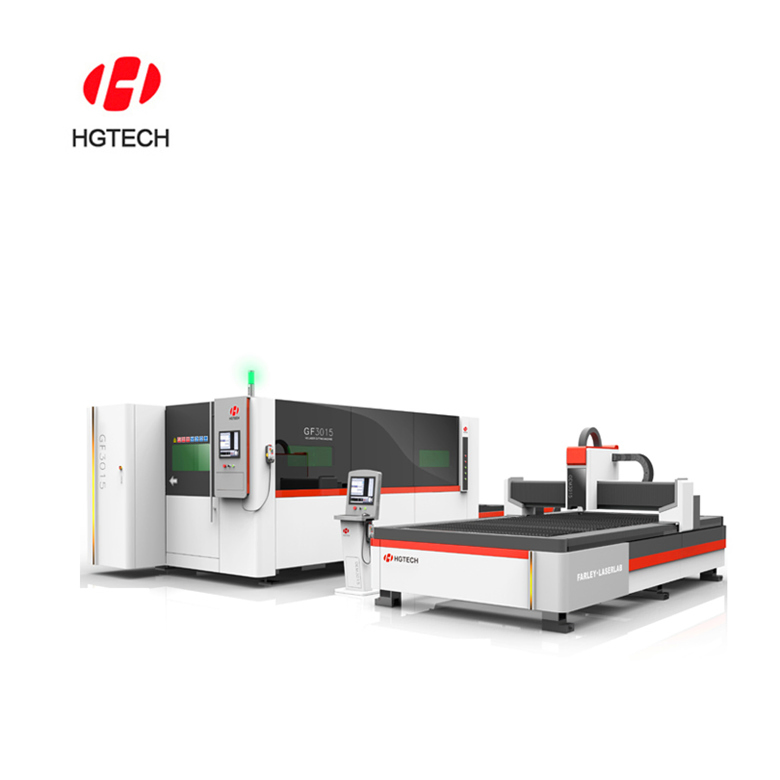

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .

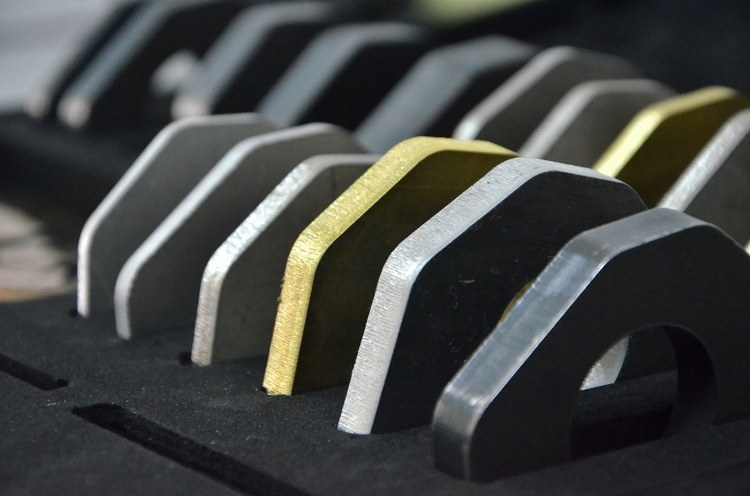

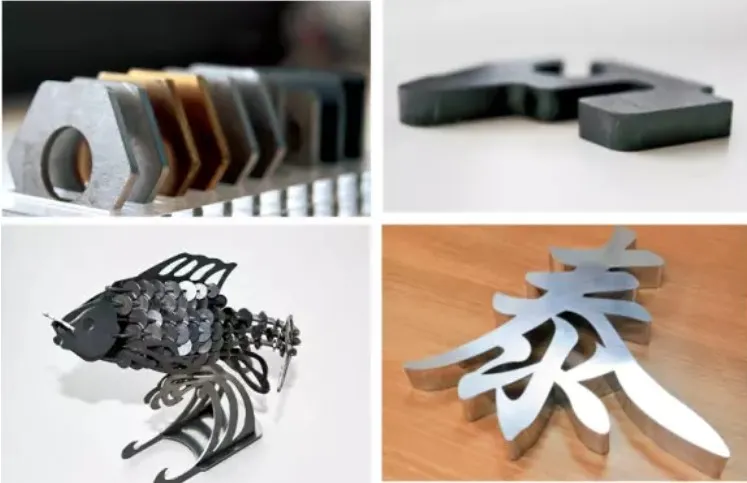

GF3015 Laser cutter is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Company Introduction:

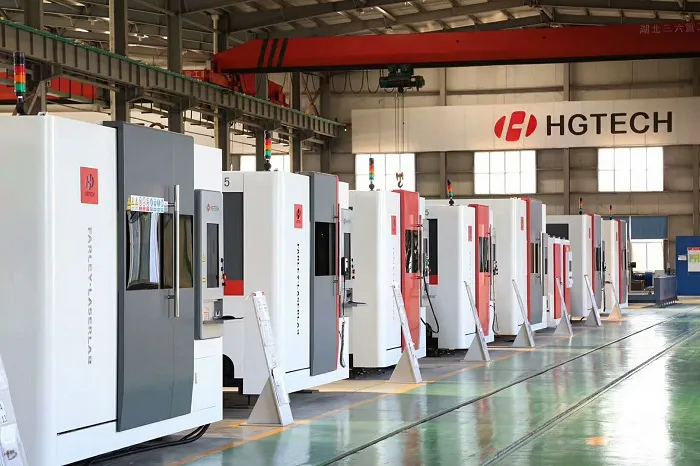

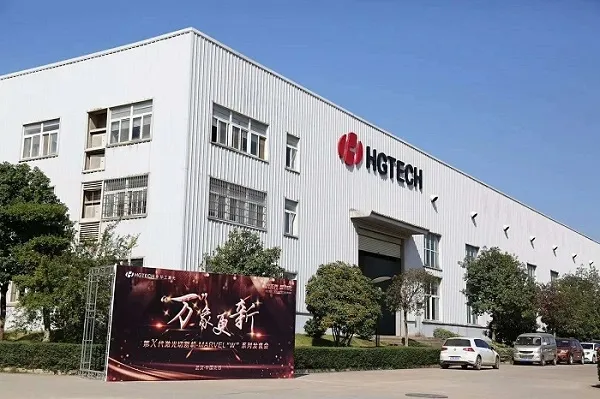

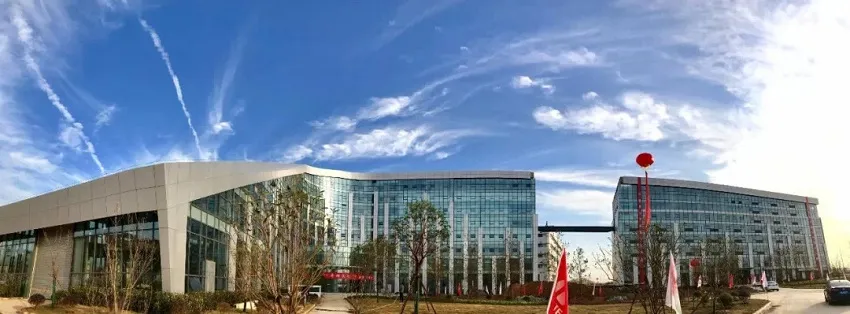

Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988)
HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY?LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
Contact Us
Wuhan HGLaser Engineering Co.,Ltd.
Address: HGTECH Laser Industry Park, HUST Science & Technology Park, East Lake High Technology Development Zone, Wuhan
Zip Code: 430223

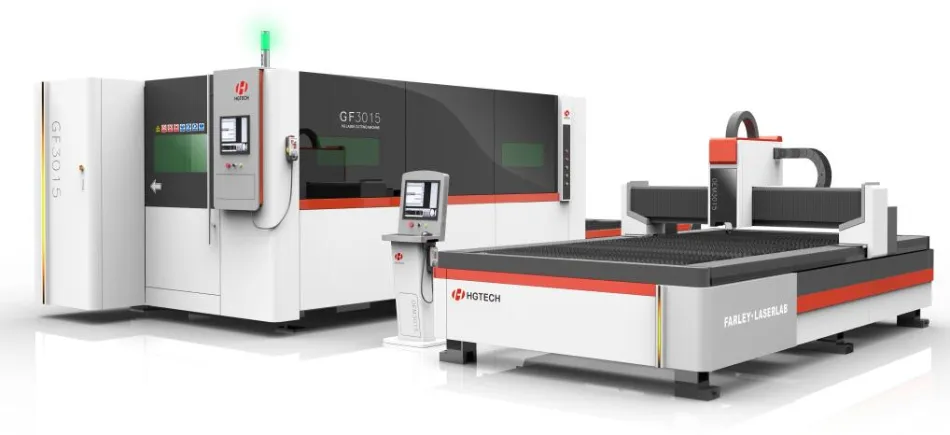

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .

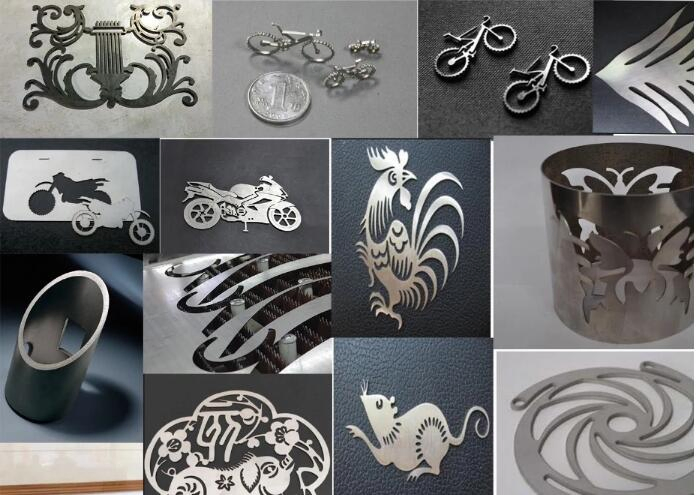

GF3015 Laser cutter is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.

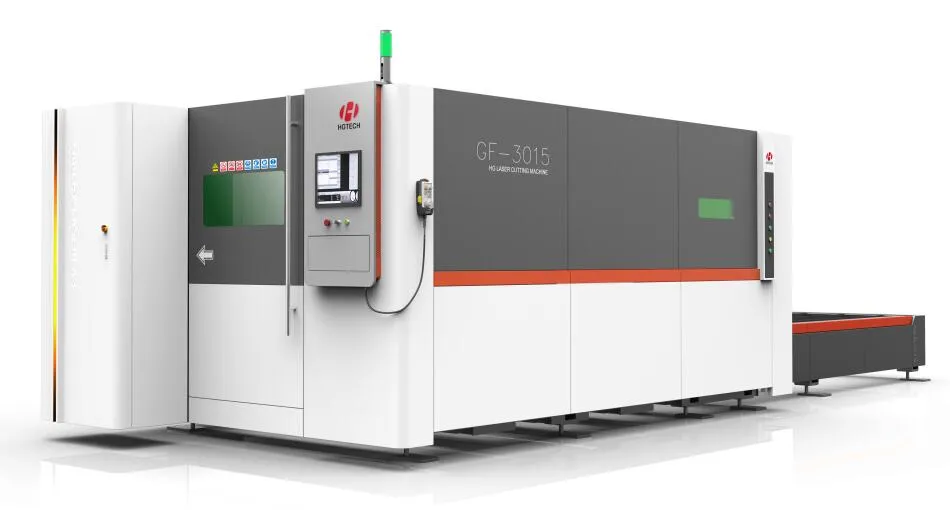

| Machine Model | GF3015 | GF4020 | GF6020 | |
| Cutting Area (LXW) | 3000mmX1500mm | 4000mmX2000mm | 6000mmX2000mm | |
| Laser Source | HGTECH-Raycus | HGTECH-Raycus | HGTECH-Raycus | |
| Laser Type & Powert | Fiber & 1000/1500/2000/3000 | Fiber & 1000/1500/2000/3000 | Fiber & 1000/1500/2000/3000 | |
| Laser Wavelength | 1070nm±10nm | 1070nm±10nm | 1070nm±10nm | |
| CNC System | CYPCUT | CYPCUT | CYPCUT | |
| Servo Motor | YASKAWA (Japan) | YASKAWA (Japan) | YASKAWA (Japan) | |
| Laser Cutting Head | Raytools | Raytools | Raytools | |
| Display | 19'Industry LCD | 19'Industry LCD | 19'Industry LCD | |
| Max Moving Speed | 80m/min,Acceleration is 0.8G | 80m/min,Acceleration is 0.8G | 80m/min,Acceleration is 0.8G | |
| Position Accuracy ( X and Y axis) | ±0.05mm | ±0.05mm | ±0.05mm | |
| Reposition Accuracy ( X and Y axis) | ±0.03mm | ±0.03mm | ±0.03mm | |
| Stroke | X-axis | 1530mm | 2030mm | 2030mm |
| Y-axis | 3050mm | 4050mm | 6050mm | |
| Z-axis | 100mm | 100mm | 100mm | |
| Motion | X and Y axis | Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Structure | Z-axis | Ball Screw | Ball Screw | Ball Screw |
| Power Supplier Requirement | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | |
| Max Loading (KG) | 600KG | 1300KG | 1900KG | |
| Machine Weight | ≤4000kg | ≤5000kg | ≤6000kg | |
| Appearance Size | 4250mmX2430mmX1800mm | 5555mmX3050mmX1800mm | 7850mmX3050mmX1800mm | |
Company Introduction:
Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988)
HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY?LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
Contact Us
Wuhan HGLaser Engineering Co.,Ltd.
Address: HGTECH Laser Industry Park, HUST Science & Technology Park, East Lake High Technology Development Zone, Wuhan
Zip Code: 430223
