Reasonable Price and Practical CNC Fiber Laser Metal Cutting Machine for Steel Plate
CNC Laser Metal Cutting Machine Production Description Main Features1. Superior beam quality (BPP)2. Constant power range of the BPP 3. With longer focal lengths still can obtain very small spot4. Electr......
Send Inquiry
Product Description

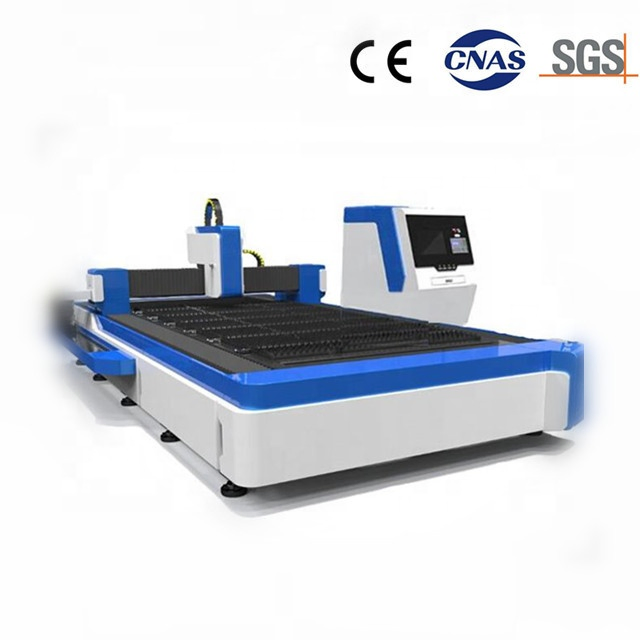

CNC Laser Metal Cutting Machine
Production Description
Main Features
1. Superior beam quality (BPP)
2. Constant power range of the BPP
3. With longer focal lengths still can obtain very small spot
4. Electro-optical conversion efficiency
5. Maintenance-free operation
6. Modular design, "plug and play"
7. Compact, easy to install
8. Service life of pump source > 10 million hours
9. Integrated optical - optical Coupler, or shutter
10. Stable, reliable, integrated use of low cost
11. Consistent and repeatable process
12. Laser network: sharing, reduce system downtime
13. Security and stability
Technical Parameter
| Project | Technical parameters | |||
| Laser cutting machine model | YQJG-CNC3015 | YQJG-CNC4020 | YQJG-CNC6020 | |
| Max size (mm) | 3000 X1500 | 4000 X 2000 | 6000 X 2000 | |
| Maximum workpiece height (mm) | 100 | |||
| Effective stroke | X Axis (mm) | 3050 | 4050 | 6050 |
| Y Axis (mm) | 2000 | 2500 | 2500 | |
| Z Axis (mm) | 100 | |||
| Positioning accuracy | X Axis (mm/m) | ±0.03 | ||
| Y Axis (mm/m) | ±0.03 | |||
| ZAxis (mm/m) | ±0.01 | |||
| Repeat positioning accuracy | X Axis (mm) | ±0.02 | ||
| Y Axis (mm) | ±0.02 | |||
| Z Axis (mm) | ±0.005 | |||
Laser processing parameters:
| Project | Technical parameters | |||
| Work mode | Continuous / modulation | |||
| Laser wavelength (nm) | 1070 ±5 | |||
| Maximum modulation frequency (KHz) | 5 | |||
| Laser mode | Multi-mode | |||
| Fiber core diameter (UM) | 50 | |||
| Beam quality | 2.2 mm*mrad | |||
| Power adjustable range(%) | 5-105% | |||
| Fiber length (m) | 15 m | |||
| Cooling way | Water cooled | |||
| Interface mode | QBH | |||
| Operating temperature (t^) | 10-40 | |||
| Long-term stability (24h) | <2% | |||
| Laser life (h) | 80000 | |||
| Laser-cut rate (w) | 1000 | 2000 | 3000 | |
| Maximum cutting thickness | Carbon steel (mm) | 0.2-10 | 0.2-14 | 0.2-18 |
| Stainless steel (mm) | 0.2-5 | 0.2-7 | 0.2-9 | |
| Cutting speed (1mm stainless steel) | 13m/min | |||
| The focal length f (mm) | 125 | |||
| Focus adjustable range (mm) | -10_+10 | |||
| Power consumption (kwh) | 6.8 | |||

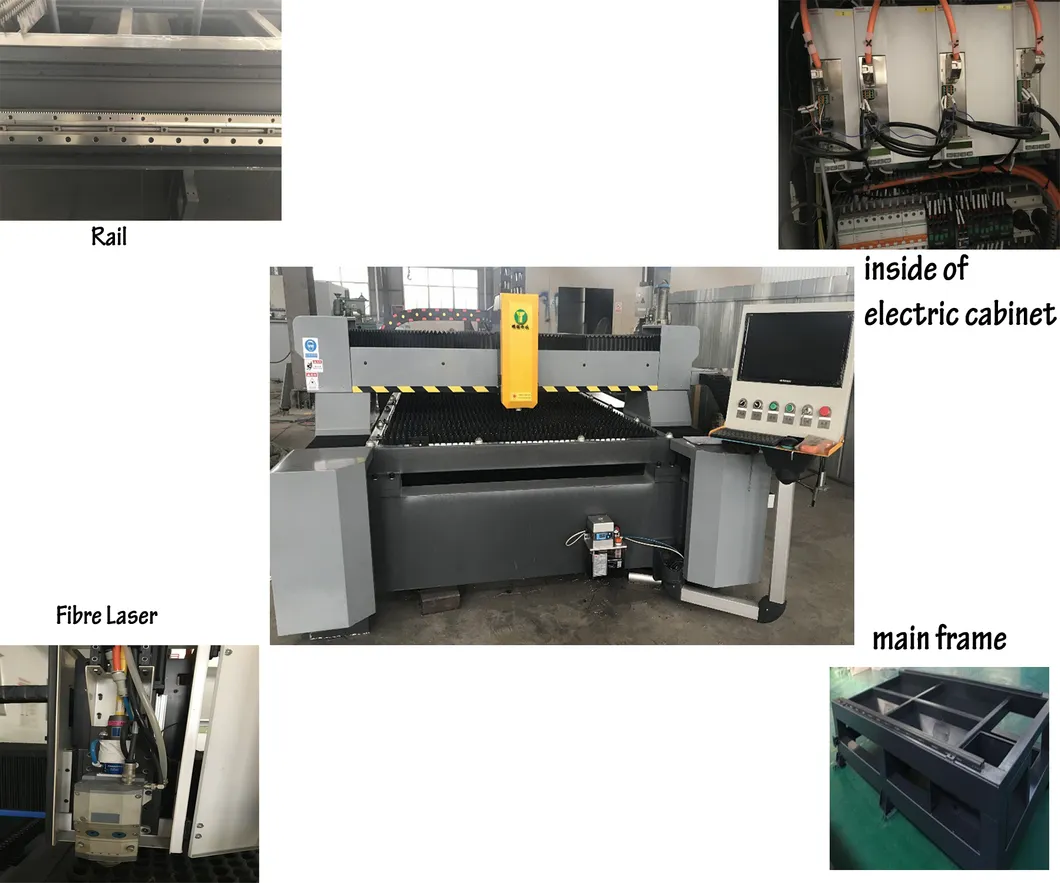

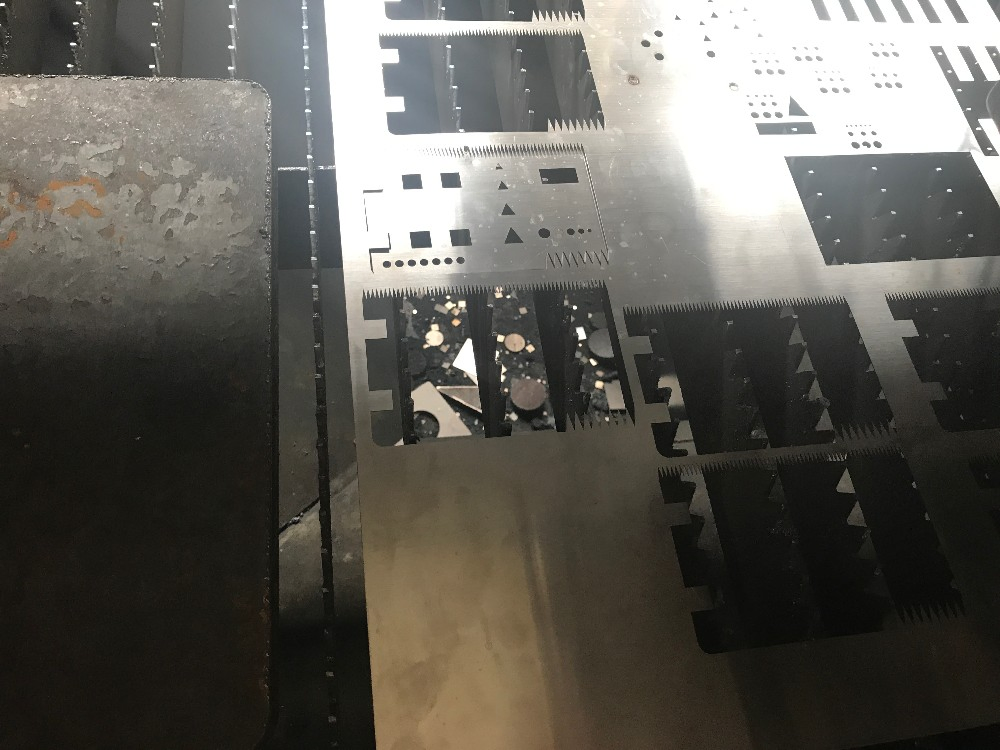

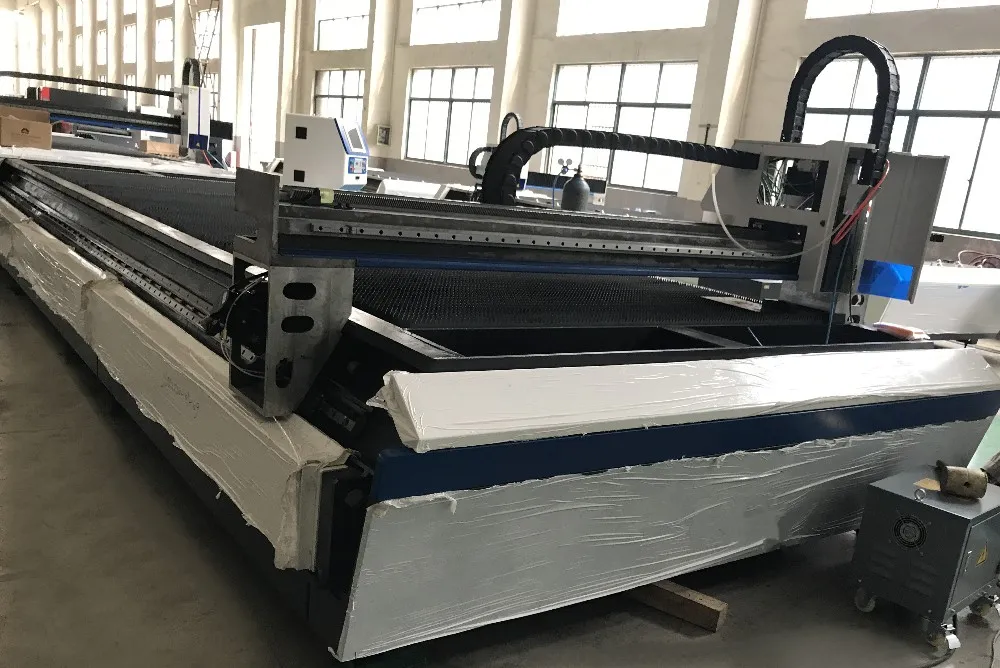

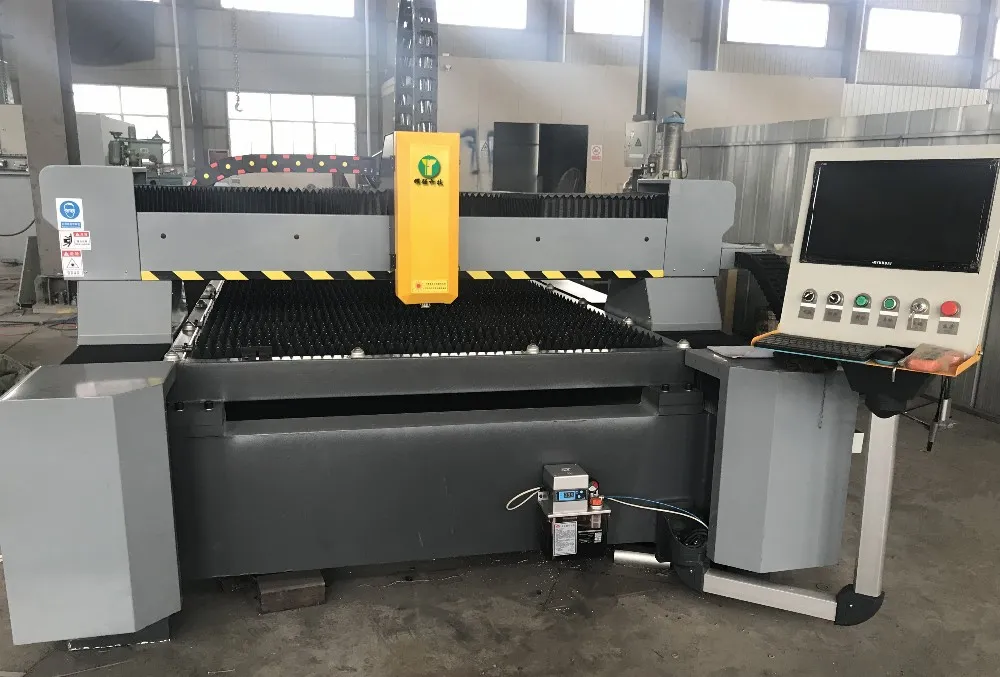

Production Show
Packing & Shipping
Certificate
Our factory
