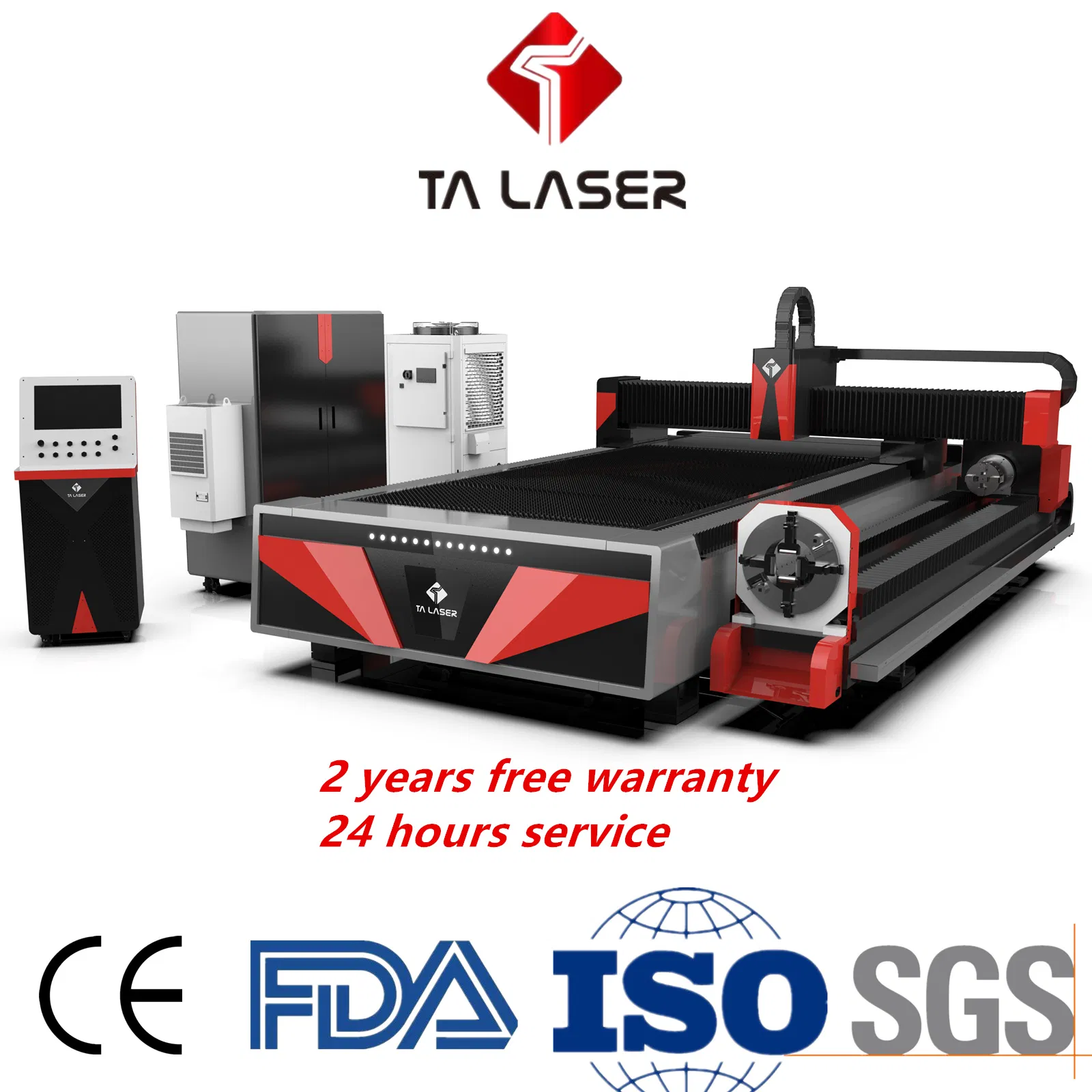

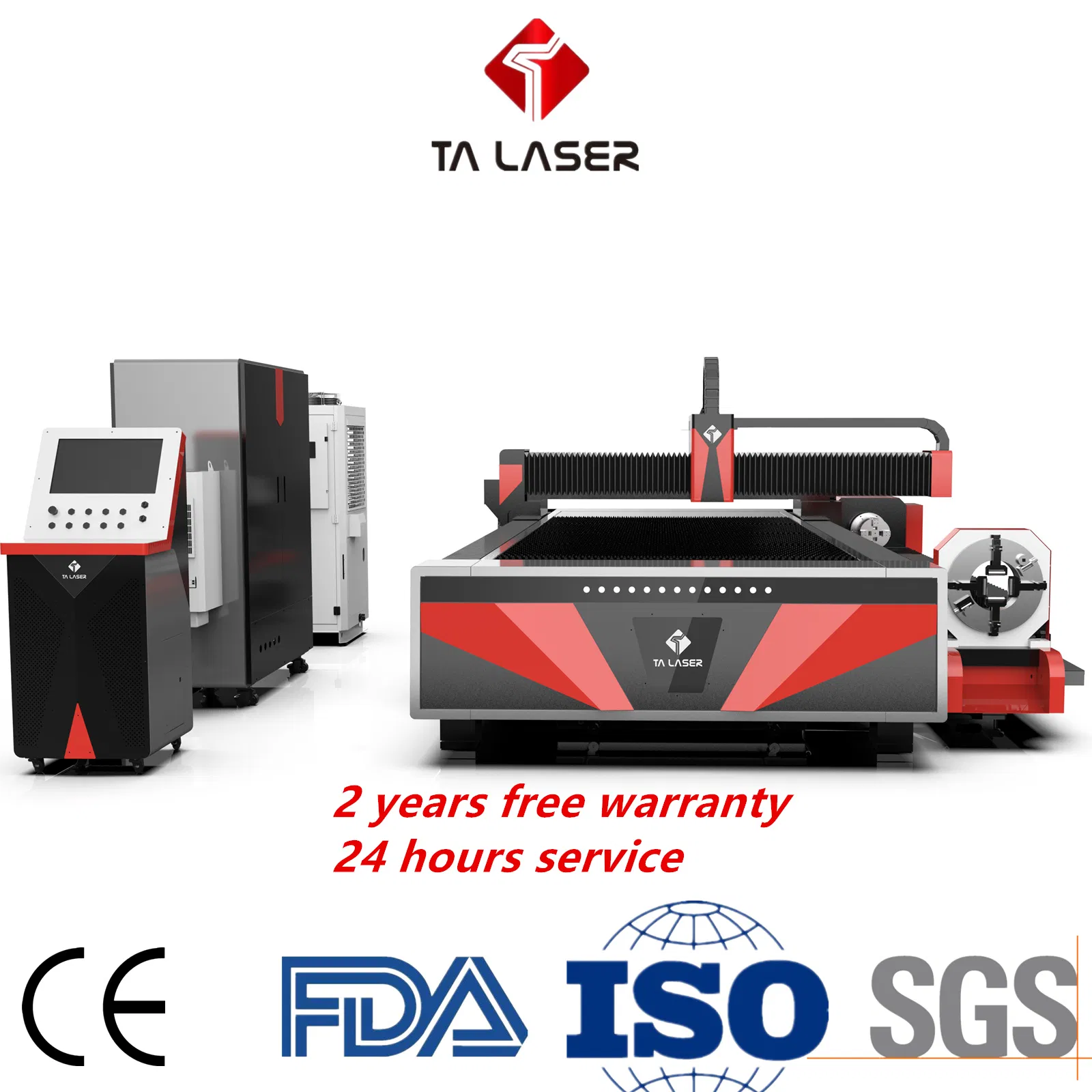

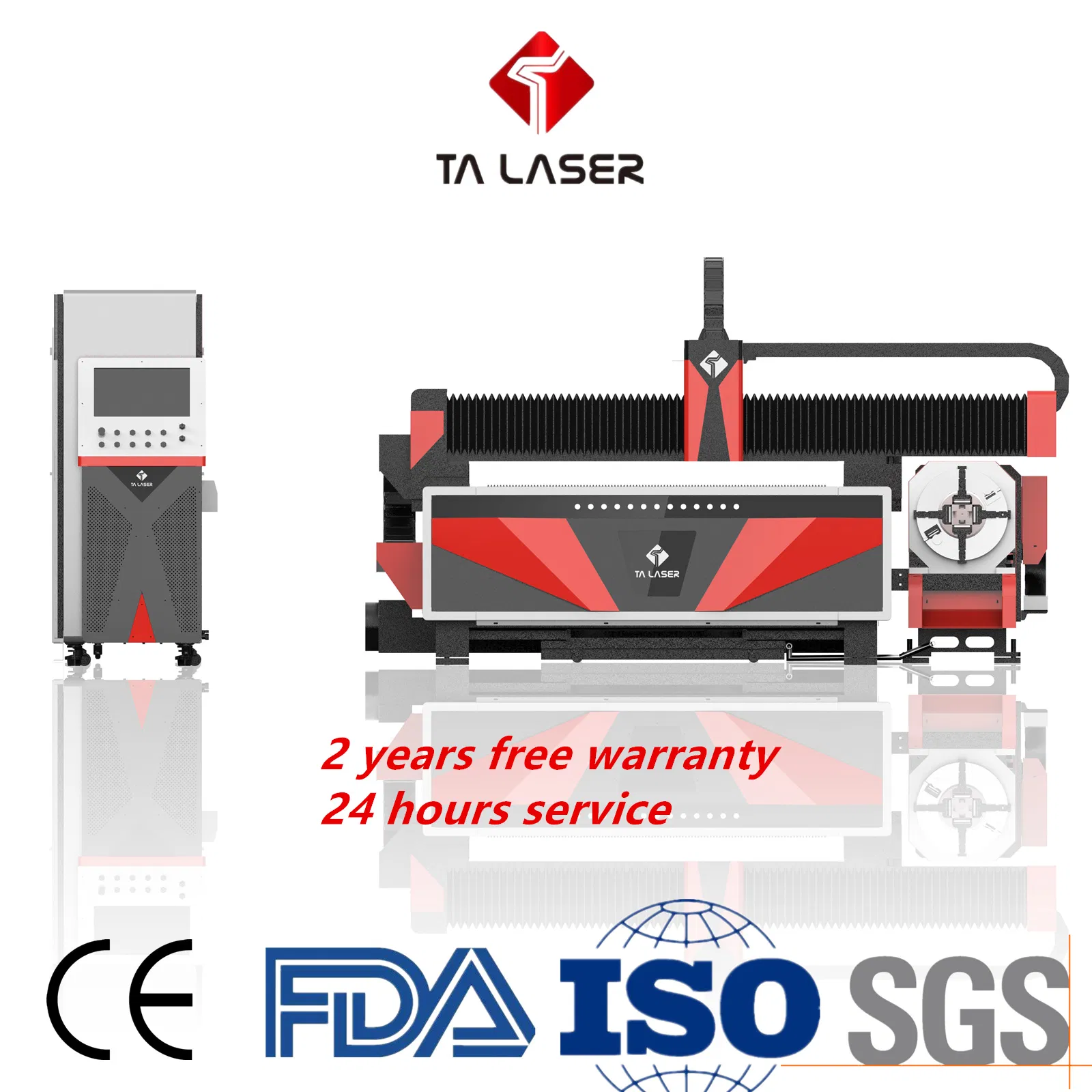

Square Tube & Round Tube Cut 1500 *3000mm Fiber Laser Cutting Machine with Rotary Axis

Product Description

Machine Introduction.

Fiber laser cutting machine For Sheet and Pipe cutting
Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

Major Configurations	Content	Brand
Laser Generator	IPG /Raycus	IPG/Raycus
Laser Cutting Head	Auto Focus	Raytool, Switzerland
Height Controller	Causative transducer	BOCHU, China
CNC Controller	Cypcut
Professional Laser Cutting Software	Fscut
Speed Reducer	SHIMPO	SHIMPO, Japan
Rack and Pinion	YYC	YYC, Taiwan
Linear Guide	TBI	TBI, Taiwan
Double Servo driver system	Yaskawa/Pansonic	Yaskawa/Pansonic, Japan

Machine Detail Specification
Machine Parameter

Technical spec	Standard Data
Laser power	500W-12000W
Laser Type	Fiber laser
Maximum Cutting Thickness	0.1-30mm
Effective Cutting size	1300MMx2500MM/3000x1500MM/4000 x2000MM/6000 x2000MM/Or customized size
Maximum rapid X,Y Axis Speed	120m/min
Maximum Acceleration X,Y Axis Speed	1.2G
Position Accuracy	0.02mm/M
Repeat Accuracy	0.03mm/M
Cooling Style	Recycling water
Max loading weight of cutting table	1800KG
Assistant Gas	Oxygen/Nitrogen/Compressor Air
Continuous Working Time	24 Hrs

Machine Applied And Cutting Sample

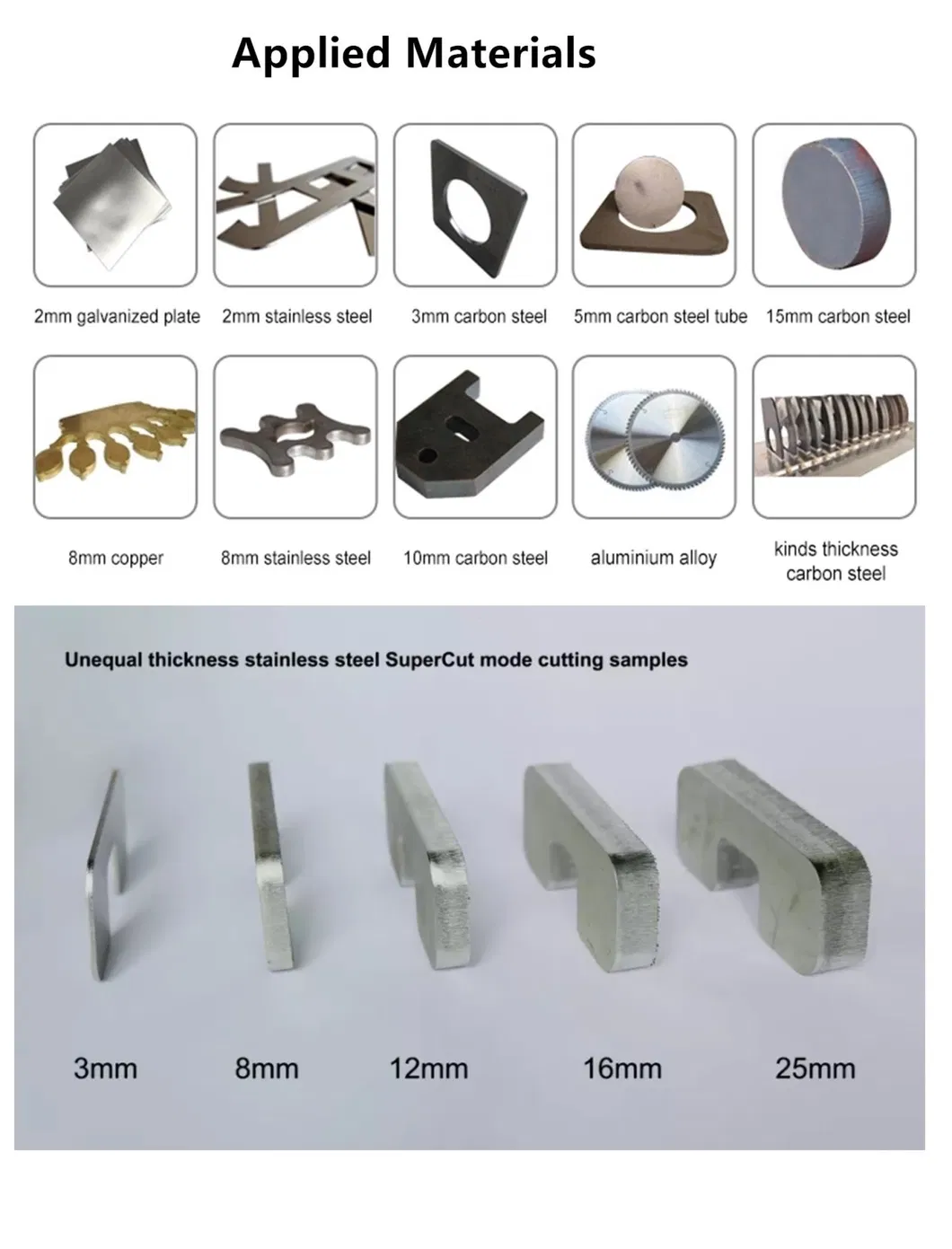

Applied Materials
Applicable for high-speed cutting on various metal plates or tubes such as for cutting carbon steel, silicon steel, stainless steel, aluminum alloy steel, spring steel , Iron plate , manganese steel, rare metals galvanized steel, electrolytic galvanized steel, pickling board, chromium nicket iron alloy, nicket titanium alloy ,aluminum zinc alloy, titanium alloy ,brass ,copper, Bronze, Gold Plate, Silver Plate, Ultra-high type, special metal material cutting and many kinds of metal materials cutting and so on.

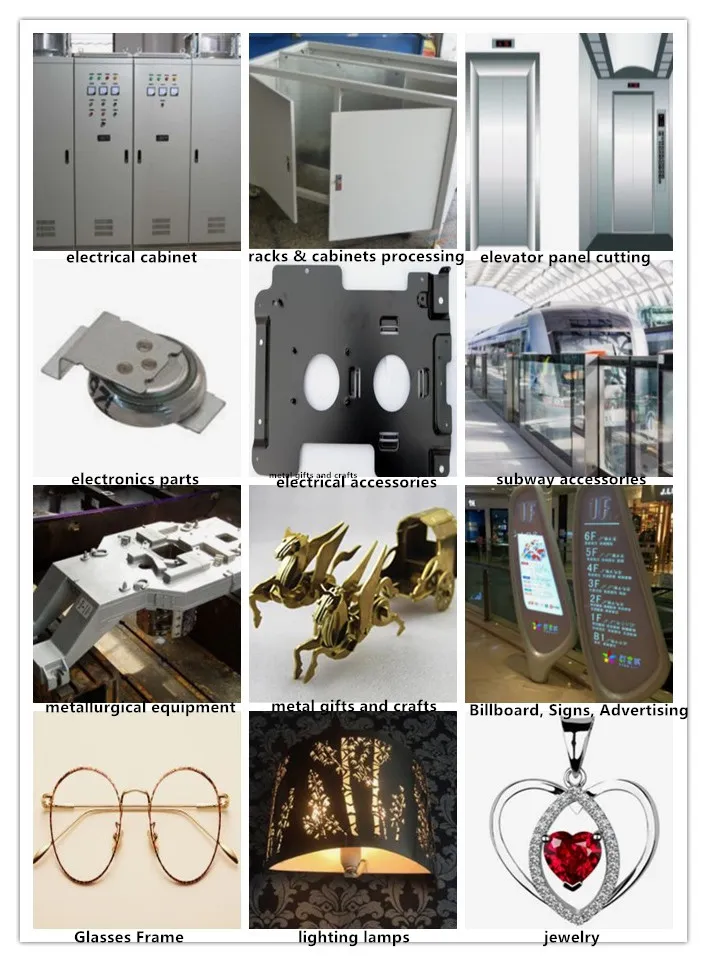

Applied Industries
Fiber laser cutting machine applied in sheet metal processing, sheet metal fabrication, electrical cabinet, racks & cabinets processing ,kitchenware, elevator panel cutting ,aviation and spaceflight, electronics parts, electrical accessories, electrical equipment, automobile parts , subway accessories , ships, metallurgical equipment, household appliances, metal gifts and crafts, tool processing, adornment, manufacture Billboard, Signs, Advertising, Metal Letters, LED Letters , Metals Components and Parts, Ironware, Chassis, metal art ware, hardware , Glasses Frame, Nameplates .textile machinery,machinery accessories , spring coil pieces, confidential accessories, mechanical equipment , display equipment ,high-resolute device, posters, auto parts, display equipment, machinery parts, hardware tools, metal enclosure, lighting lamps , jewelry, medical instruments, and other metal cutting field.

Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

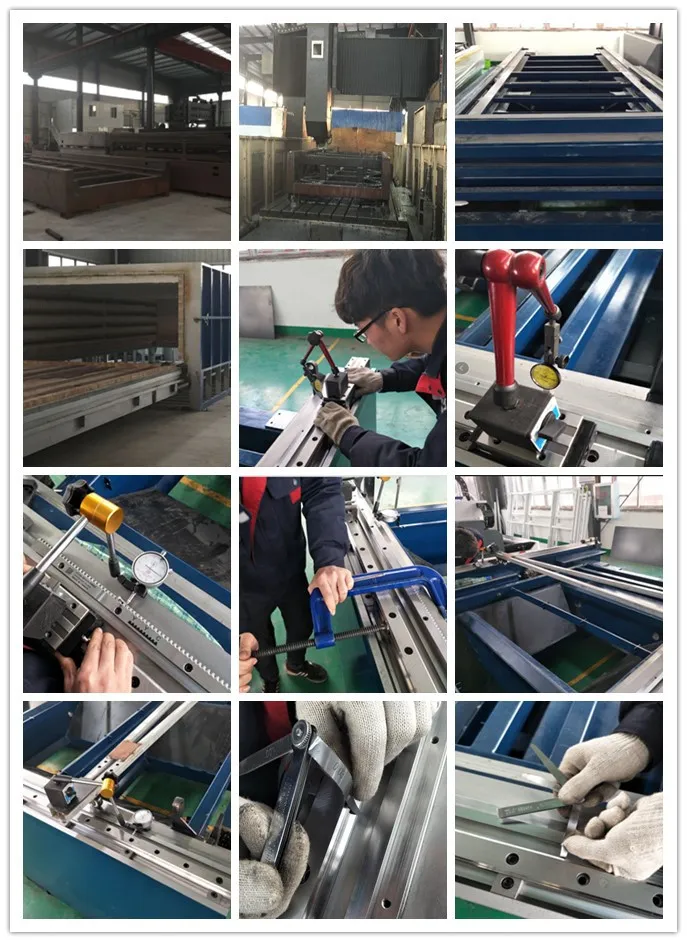

Machine Production and Quality Control

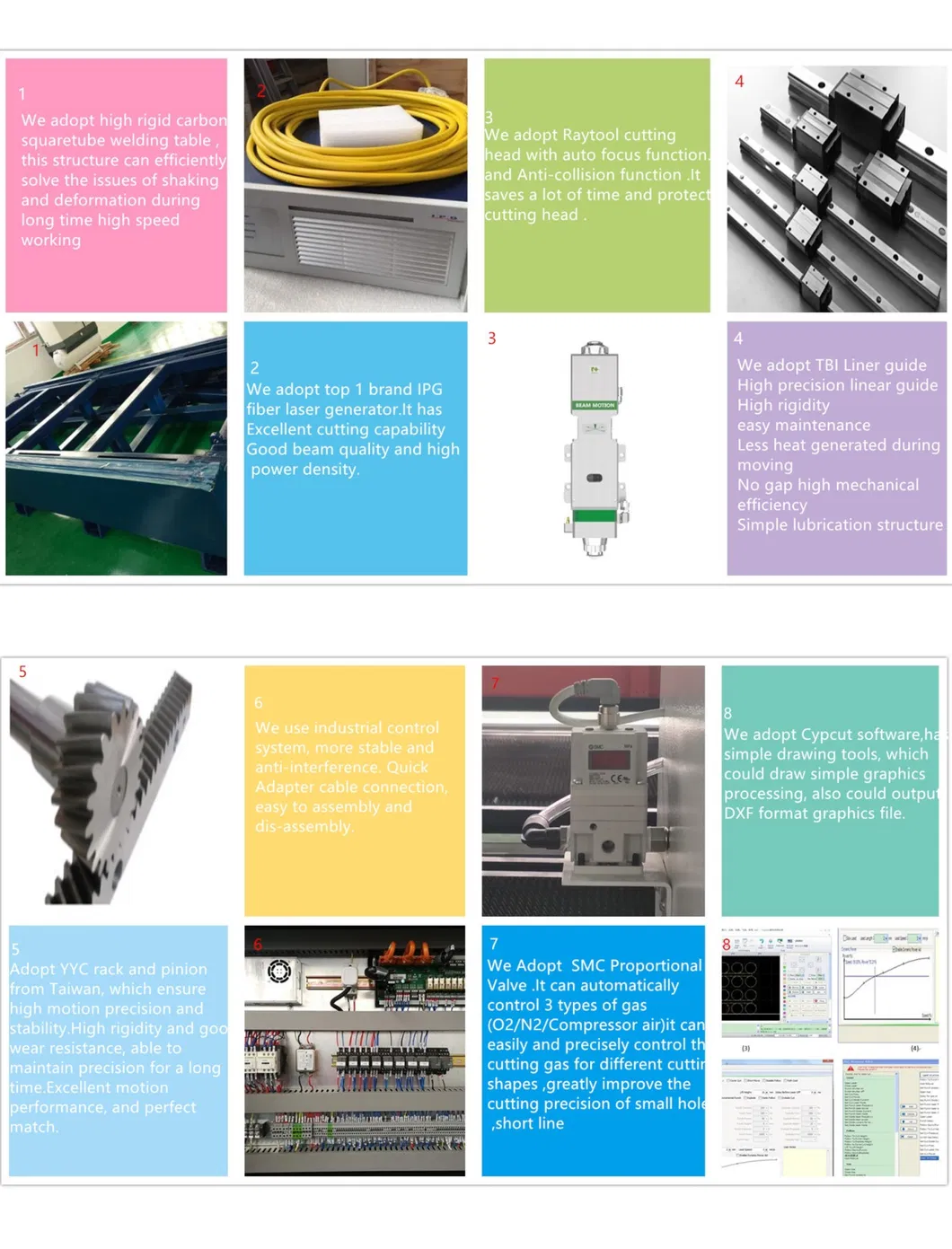

Production
We adopt high rigid carbon square tube welding table, this structure can efficiently solve the issues of shaking and deformation during long-time high-speed working, X axis is whole body AL Casting, Rigid, and stable.
The total weight of whole machine up to 8 tons, it can support mass loading working materials up to 1800Kg. Through twice age process and annealing treatment, protect body will not deformation.

Qality control
Machine Body testing is important for checking quality of a laser machine, especially motion parts installation, which ensure running and cutting accuracy, here we introduce you how we Test our laser machine
1 Linear guide parallelism examination, our requirement ≤±0.02mm
2 Rack installation, accuracy lower than ≤±0.02mm
3 Guide gap detection, our requirements, our requirement≤±0.03mm

Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

Machine Shipping

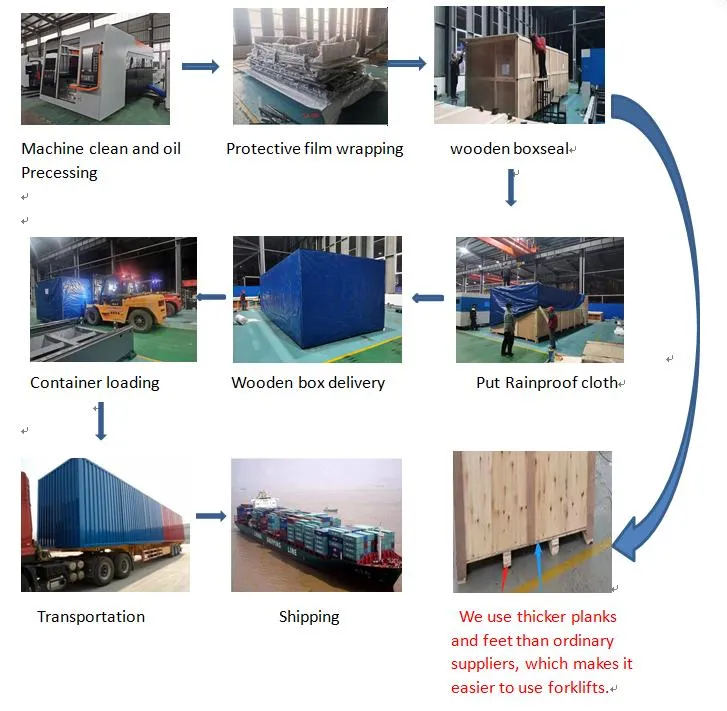

Package
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.

Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

Service

Pre-Sales service

Free Pre-Sales Consulting / Free Sample Marking
Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.

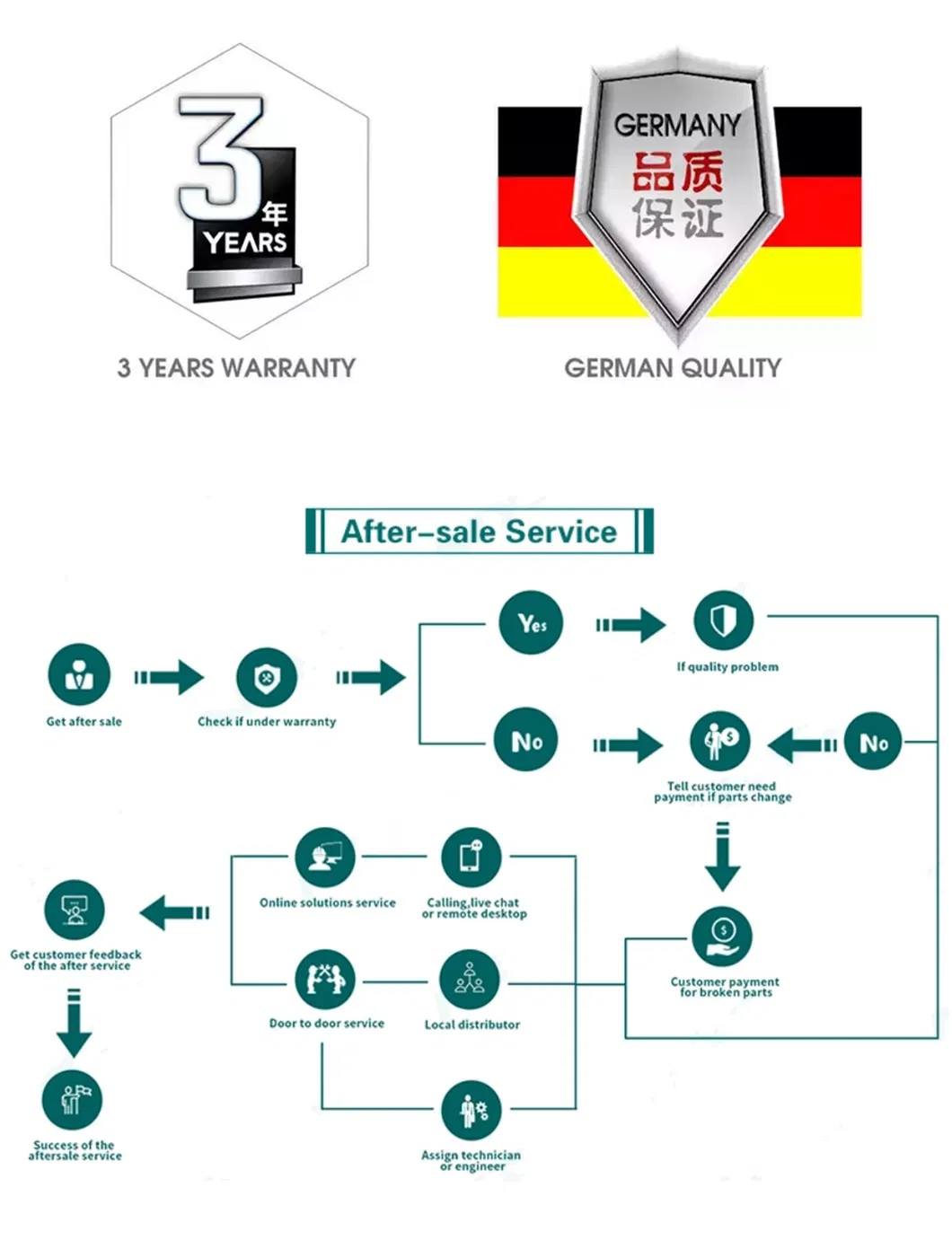

After-Sales service
1. 3 year guarantee for main machine mechanical (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
6. Engineers available to clients' factory for training.

Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

Part of our machines running in the world

We sold more than 2000sets/Year in more than 150 countries.All the customer have good feeback for our machine and continue to purchase our machine many times

Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

Our Factory ,Office And Certificaiton
We have 3 factories with more than 32000 square meters .And we have 325 employees working in the head office .All of our machine are pass Euro and USA Standard.

Square Tube & Round Tube Cut 1500*3000mm Fiber Laser Cutting Machine with Rotary Axis

Please Free contact us and give you our best product and price

Frequently Asked Question

Q1: I know nothing about this machine, what type of machine should I choose? How do you get the best price?
A: We will help you choose the suitable machine and share you the solution; you can share us your material,thickness,cutting area,we will recommend suitable machine and best price for you.
So,Please tell us what you need!!
1.What is your working size?
2.What material do you need to cut?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ? requirement .

Q2: When I got this machine, but I don't know how to use it. What should I do?
A: We will send operation video and manual for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.

Q3:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.

Q4: If some problems happen to this machine, what should I do?
A: We provide one years machine warranty. During the Three-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q5: What's package, will it protect the products?
A: 1.Anti-collision package edge, all parts of the machine are covered with some soft materials, mainly the use of pearl wool. 2. Free-Fumigation wooden box for key components, such as laser source, water chiller 3. Whole film packaging machine to avoid all damage that may occur during delivery.

Q6: What's delivery time?
A: Commonly, the lead time is within 20 working days after receiving the payment.For customized machine ,It will take longer time.

Q7: What payment terms can you accept?
A: like TT, LC, etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .

Q9: Are you Trading Company or Manufacture?
A:We are the laser machines manufacturer with 3 factories in Wuhan, Suqian and Shandong with 15 years export experience.

Q10:Do you have an inspection procedure for the product?
A:Yes,We have a strict inspection of product quality and packing.

Q11:Can you accept small quantity?
A:Yes,small quantity accepts and quick delivery.

Q12:What is your after-sale service?
A:Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.

Q13: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q14: How about warranty?
A: 3 years quality guaranty for mechanical,2 years for laser generator (excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any quality problem during the warranty period.

Q15 :What materials can fiber laser cut?
A: All kinds of metals, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Copper, etc.

Q16:What is your Fiber Laser Cutting Machine Advantages?
A:Top-rated laser source: stable beam quality, long service life;
User-friendly control system: Easy to use, even a green hand can get started quickly;
Exceptional service: quick response, lifelong after-sales service, we are still serving customers' who have built relationship with us for more than 10 years;

Q17: Do You Have Agents or Distributors in Our Country?
A:We have ender-users all over the world.At present, we have sole agency in Chile , Turkey, Italy ,India,Argentina,Thailand ,Vietnam,Kuwait,Russian.If you are interested in agency cooperation, please contact us for detailed agency policy.

Q18: How can I get the information and quotation of this product quickly?
A: Please leave your email ,WhatsApp or wechat , and we will arrange the sales manager to contact you asap.

Q19 : This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.

Q20: In case of failure,how to do?
A: Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us.
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.

Q21:Where is your headquarters?
A:Our headquarters is in Wuhan,Hubei Province, China.

Q22:Can I visit your factory?
A:Of course,Please contact our sales manager ,We will help you arrange schedule.

Q23:How can I be your agent?
A:We have sales target for agents.Leave your message ,Later our professional sales manager will contact you.

Q24:I leave my email/phone number but nobody contacts me?
A:I am sorry about that ,Please contact us again ,I will check it with our sales manager and then we will reply you as soon as possible.

Q25:Can I have a direction?
A:Yes, we provide free training for customers.

Q26:I want to watch some cutting videos.
A:Please contact our sale maneger.

Q27:Do you have engineer to teach me/my workers?
A:Yes, we offer free training for each customer. We promise to help until everything gets right.

Q28:Why should we choose you ?
A:If you choose us, we are top 5 companies in China ,you will get top quality,best service,reasonable price and reliable warranty.

Q29:Can I get the sample to check quality of machine ?
A:Of course.Please provide your logo or design to us, free samples can be provided for you.

Q30:Can the machine be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

Q31:Can you arrange the shipment for us?
A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
