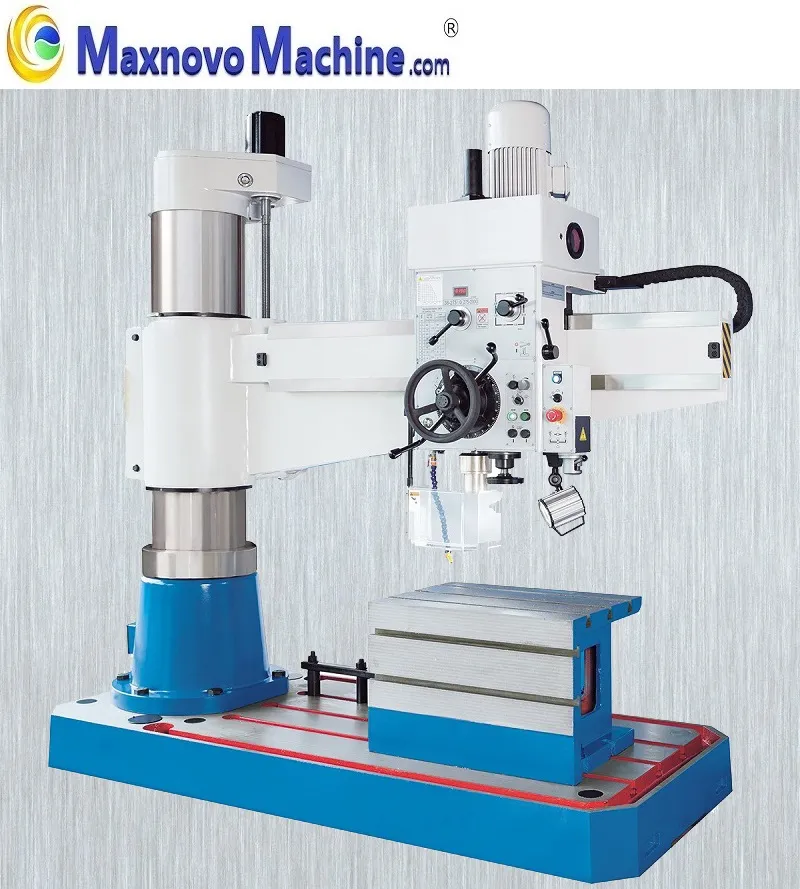

Heavy Duty Hydraulic Radial Drilling Machine (mm-R60V)
MM-R60V / Radial Drilling Machine / Radial Drill Press / Hydraulic Radial Drilling Machine / Rapid Radial Drill Press / Quick-action Radial Drilling Machine / Rotary Drilling / Radial Arm Drilling MachineThis kind of MM-R60V is Hydraulic heavy duty Radial Drilling Machine with max. drilling capacity......
Send Inquiry
Product Description
MM-R60V / Radial Drilling Machine / Radial Drill Press / Hydraulic Radial Drilling Machine / Rapid Radial Drill Press / Quick-action Radial Drilling Machine / Rotary Drilling / Radial Arm Drilling Machine
This kind of MM-R60V is Hydraulic heavy duty Radial Drilling Machine with max. drilling capacity in steel up-to 62 mm which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such high precision radial drill press feature step-less speed adjustment, solid construction and high user friendliness. The column us mounted to improve the position of the radial arm and therefore maximize work comfort-significant for longer operating times. This drilling machine is proven performance, quality, and cost-effectiveness which is ideal for drilling, countersinking, reaming and tapping.
Hydraulic Heavy Duty 62mm Frequency Conversion Radial Drilling Machine - Perfect in every detail, powerful, rigid and easy to handle
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
Technical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ :
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : Right people, Right product, Right price ;
Company-wide customer awareness ;
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure ;
Total supply chain management ;
3. Question : Where is your factory ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
This kind of MM-R60V is Hydraulic heavy duty Radial Drilling Machine with max. drilling capacity in steel up-to 62 mm which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such high precision radial drill press feature step-less speed adjustment, solid construction and high user friendliness. The column us mounted to improve the position of the radial arm and therefore maximize work comfort-significant for longer operating times. This drilling machine is proven performance, quality, and cost-effectiveness which is ideal for drilling, countersinking, reaming and tapping.
Hydraulic Heavy Duty 62mm Frequency Conversion Radial Drilling Machine - Perfect in every detail, powerful, rigid and easy to handle
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
--Max. drilling capacity in steel up-to 62 mm
--Radial arm, drill head and column each with hydraulic clamp
--Complete with variable speed, set speed is visible on digital display
--Base, column, boom and gear head are made of premium high-quality cast
--Torsion-free, polished column increases sliding capacity of radial arm
--Major design features include a large column and a highly torsion-resistant boom
--Boom height adjustment via a powerful motorized drive and vertical spindle
--Spindle features high concentricity and automatic spindle brake
--Counter weight on spindle to ensure optimal balance
--The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
--Swivel axis and travel axis feature extremely smooth operation to make the
Operator everyday production work easier --Large base plate good for processing of oversize work-pieces
--The gears feature hardened and precision-ground chrome-nickel steel gears for
smooth and low-noise operation --Infinitely variable spindle speed and easy to read digital display
--All gear parts are lubricated reliably via oil pump
--Guiderail on radial arm are hardened and polished
--Ideal for drilling, countersinking, reaming and tapping
--Advanced column swivel design with optimized clamping features maximum rigidity
and minimum clamping offset --Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position -better for repetitive operations
--The main spindle runs on precision bearings and features an Automatic Spindle Brake
--Certificate of Original ( CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | Heavy Duty Hydraulic Radial Drilling Machine |
| Product Item : | MM-R60V |
| Max. Drilling Capacity (in steel) : | Ø 62 mm |
| Max. Tapping Capacity (in cast iron) : | M 52 |
| Max. Tapping Capacity (in steel) : | M 46 |
| Max. Drilling Depth : | 315 mm |
| Clamping Type : | Hydraulic |
| Working Area | |
| Machine Table Dimensions : | 2400 X 1000 X 200 mm |
| Cube Table Dimensions : | 750 X 500 X 500 mm |
| Throat (distance spindle-to-column) : | 350-1600 mm |
| Spindle nose-to-table surface distance : | 350-1250 mm |
| Drill Head Travel (horizontal) : | 1250 mm |
| Arm Stroke (vertical) : | 585 mm |
| Column Diameter : | Ø 350 mm |
| Headstock | |
| Spindle Speed Range : | 38-2000 RPM |
| Spindle Speed Steps : | Variable Speed |
| Spindle Mount : | MT5 |
| Feed | |
| Spindle Feed Range : | 0.06-1 mm / Rev |
| Spindle Feed Steps : | 8 steps |
| Drive Capacity | |
| Main Motor : | 4000 W (Variable Frequency Motor) |
| Stroke Motor : | 1500 W |
| Hydraulic Clamp Motor : | 750 W |
| Rocker Arm Move Speed up and down : | 1200 mm /min |
| Drill Depth of Each Round of Dial : | 122 mm |
| Rotation Angle of Radial Arm : | ±180 degree |
| Connecting Voltage : | Three Phase 400V Voltage |
| Measures and Weights | |
| Machine Dimensions : | 2490 X 1050 X 2780 mm ( Length X Width X Height ) |
| Packing Size : | 2600 X 1100 X 2500 mm ( Length X Width X Height ) |
| Gross Weight : | 7000 KGS |
| Standard Accessory : | Frequency Inverter Main Motor, Hydraulic Motor, Stroke Motor, Coolant system, Cube Table , Digital Readout of Speeds, Work Lamp, Tools and Toolbox |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ :
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : Right people, Right product, Right price ;
Company-wide customer awareness ;
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure ;
Total supply chain management ;
3. Question : Where is your factory ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
