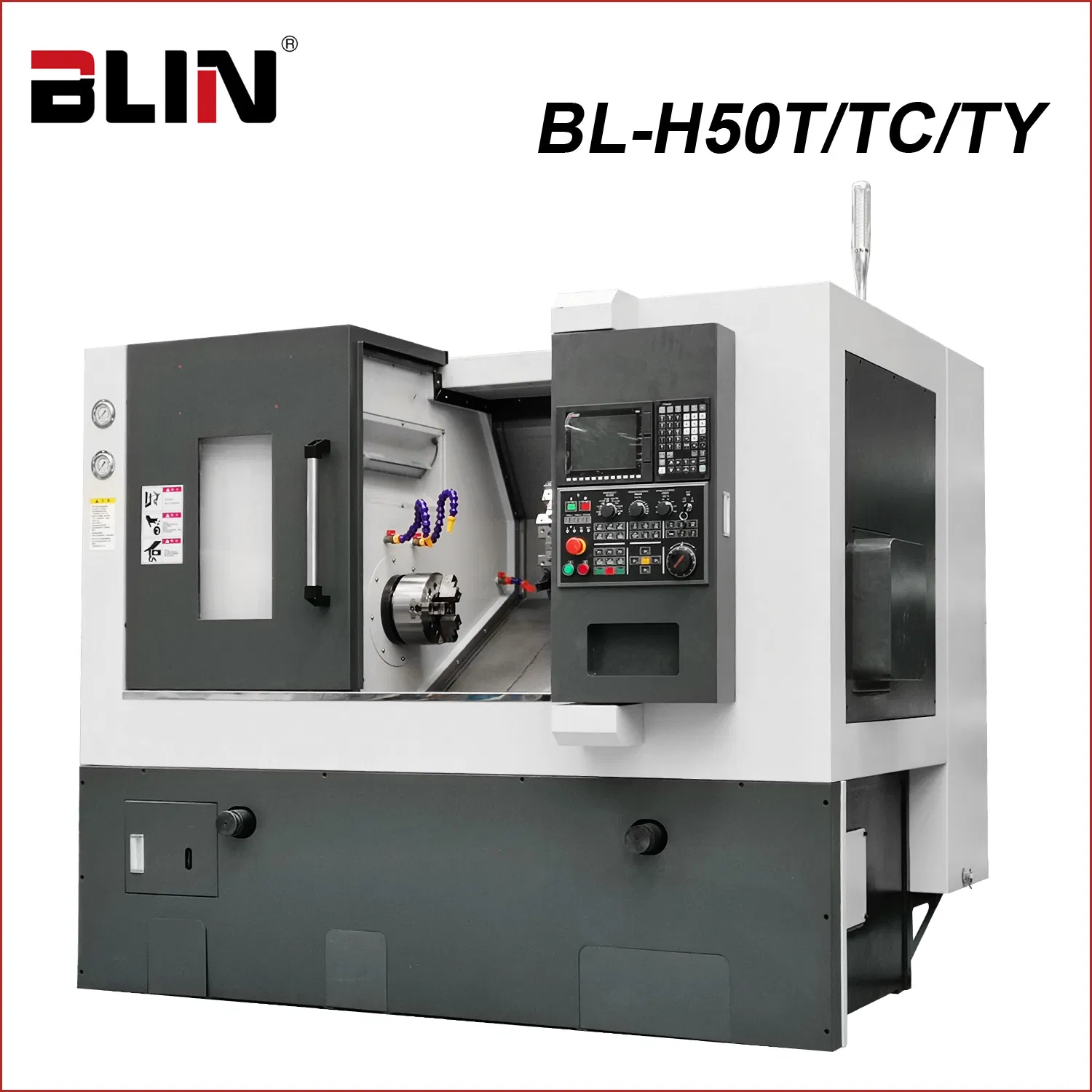

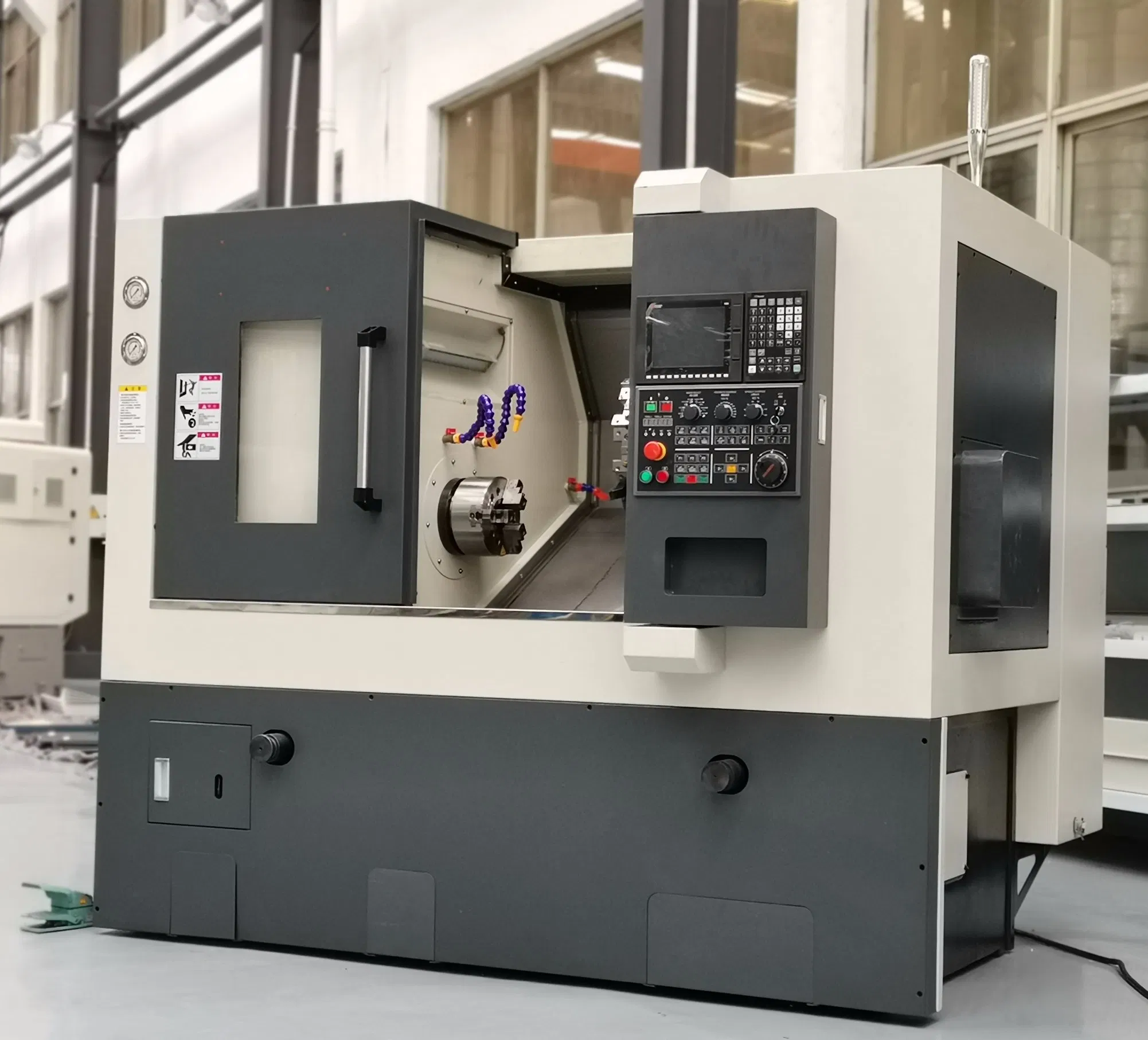

China 360mm Swing of Slant Bed CNC Lathe with Hiwin Linear-Guideway

Product Description

-Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand

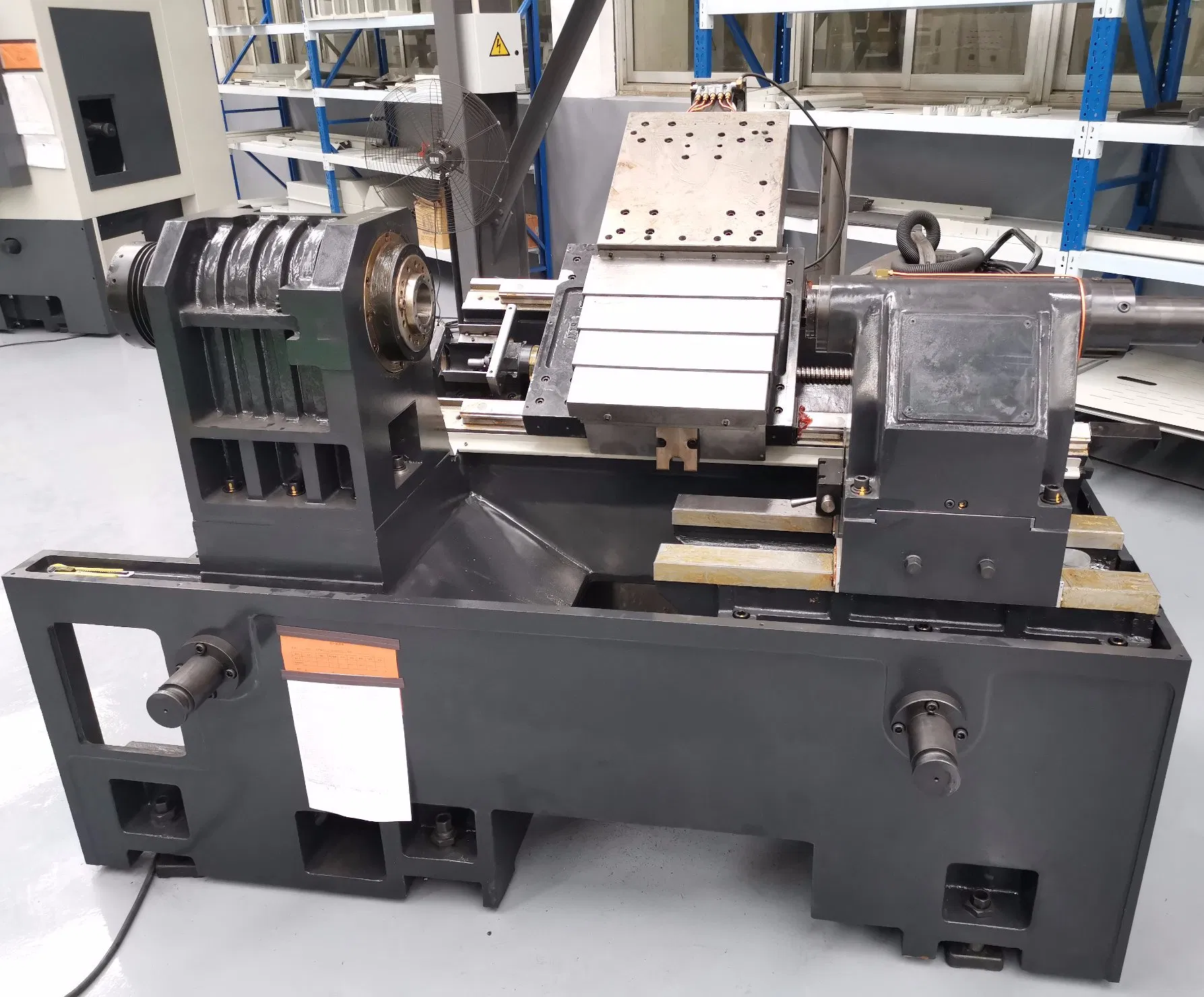

-Adopt 30°integral slant bed design
-X,Z axes adopt 45mm big width ROLLER type linear guideway,super high rigidity
-Adopt modularization design, easy for various especial configuration choice, such as tool setter, parts catcher etc
-Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
-Base adopt multilayer strengthening rib, ensure bed's strength and stability
--Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
-Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
-H50T mount 8T hydraulic tool turret
-H50TC mount C axes and 12T BMT type Powered tool turret
-H50TY mount C axes and 12T BMT type Powered tool turret with 90°Y axes

Details:

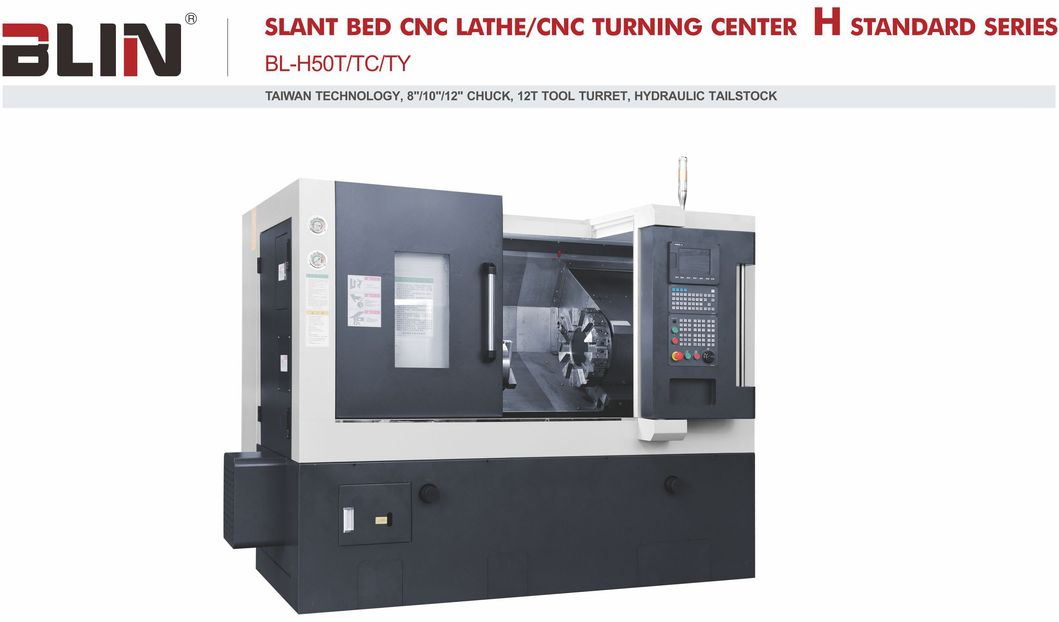

360mm Swing of Slant Bed CNC Lathe with Hiwin Linear-Guideway

Item	Specification	Unit	BL-H50T/BL-H50TC/BL-H50TY
Capacity	Chuck size	/	8''	10''		12''
	Max. swing dia. over bed	mm	Φ560
	Max. turning length	mm	500
	Max. turning dia.		Φ450
	Standard turning dia.	mm	Φ200	Φ250		Φ300
Spindle	Spindle bore	mm	Φ66			Φ86
	Spindle end type	/	A2-6			A2-8
	Spindle speed	rpm	4000			3500
	Max. bar through dia.	mm	51			74
	Spindle motor power	kw	7.5	11		15
X/Z axes	X,Z axes linear guideway type	/	BALL type
	X,Z axes linear guideway width	mm	45
	X,Z axes ball screw O.D.	mm	Φ32,Φ40
	X,Z axes ball screw pitch	mm	10
	X axes travel	mm	250
	Y axes travel		None/None/100
	Z axes travel	mm	610
	X/Z axes rapid moving speed	m/min	28
	Y axes rapid moving speed	m/min	None/None/16
Tool turret	Tool turret type	/	12T Hydraulic type/12T Powered BMT45 type/12T Powered BMT45 type with Y axes
	Toolshank size	mm	25×25, Φ40
Tailstock	Tailstock quill taper	/	MT4#
	Tailstock quill dia./travel	mm	Φ80/80
Accuracy	Positioning accuracy(X/Z)	mm	0.01/1000
	Repeat positioning accuracy(X/Z)	mm	0.008/1000
Others	Overall size	mm	2600×1800×1800
	N.W.	kg	3600		3700		3800

*T means standard slant bed cnc lathe
TC means C axes and Powered tool turret
TY means C axes and Powered tool turret with 90°Y axes

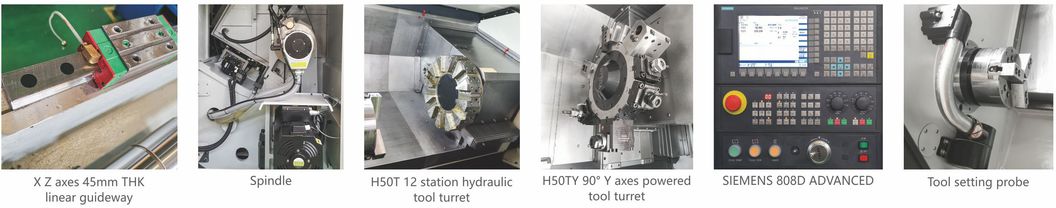

Main parts list:

Item	Brand
CNC controller	GERMANY-SIEMENS
X,Z axes driver&motor	GERMANY-SIEMENS
Spindle unit	TAIWAN-VYU CHENG
C axes encoder	TAIWAN-GUBOA
Tool turret	TAIWAN-KING SUN/GERMANY-SAUTER/ TAIWAN-SWIFT
Ball screw	JAPAN-THK
Ball screw bearing	GERMANY-FAG/JAPAN-NSK
Linear guideway	JAPAN-THK
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-CHANDOX/AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	TAIWAN
Main electricity parts	FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock

Optional configuration:
-SIEMENS 828D/FANUC 0i TF CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe
-Parts catcher

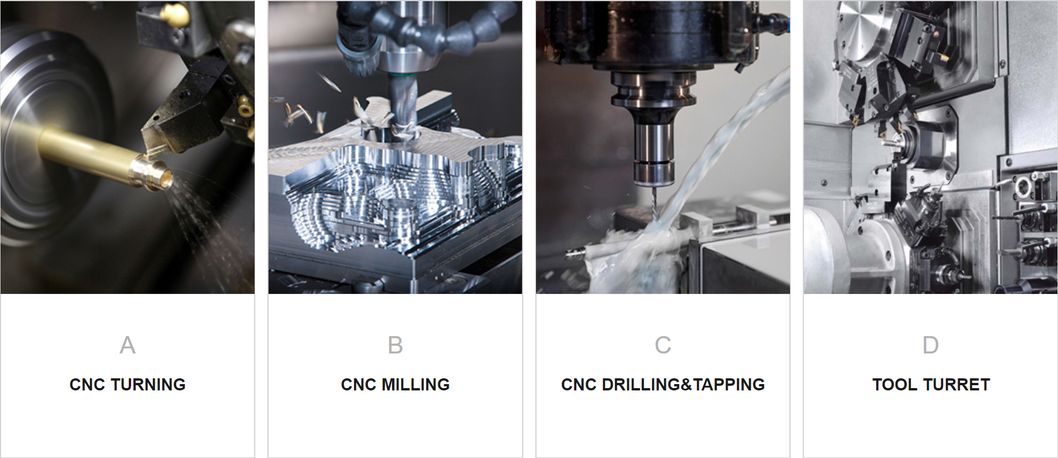

Other models choice:

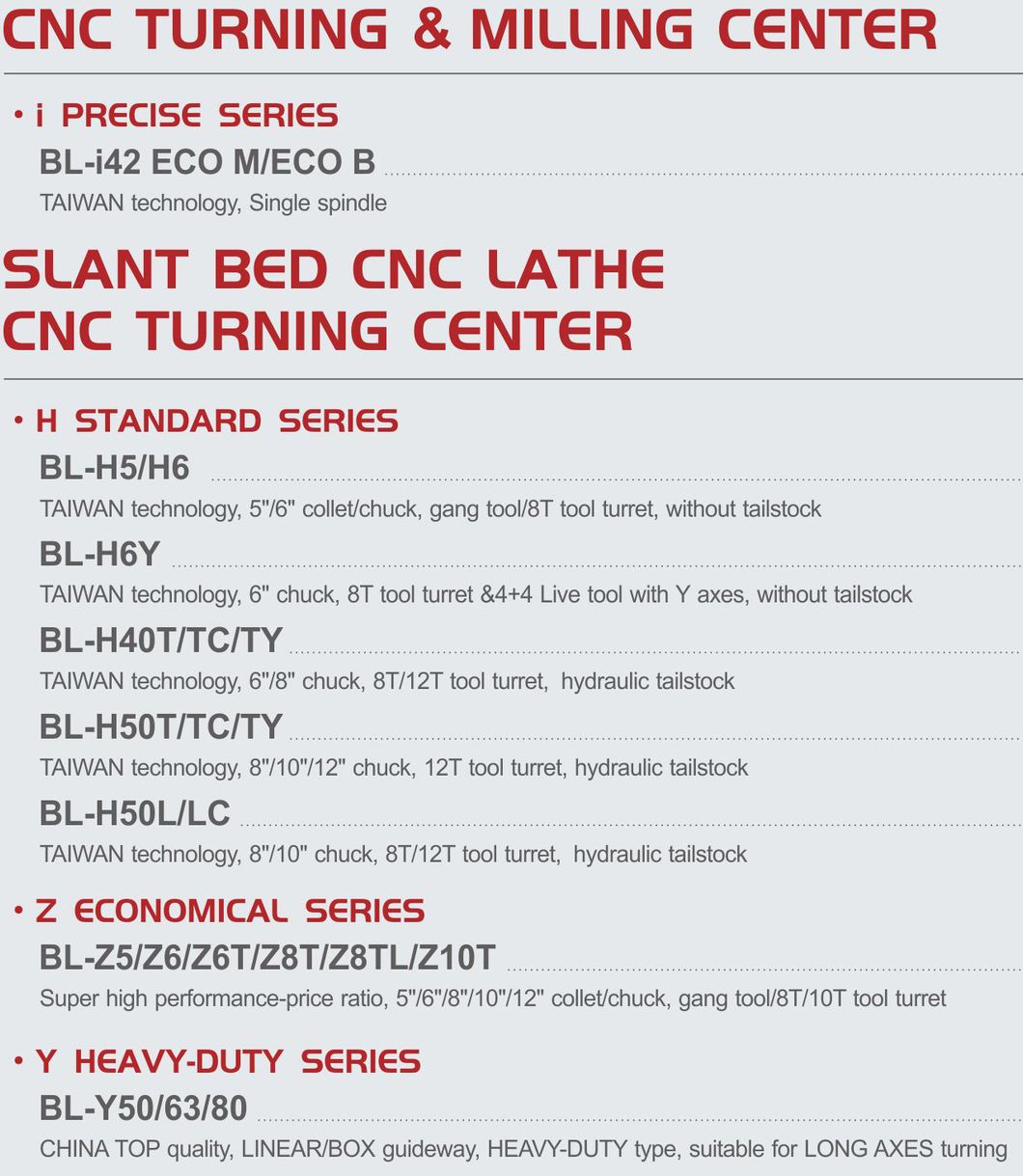

All our machines range:
