Product Description

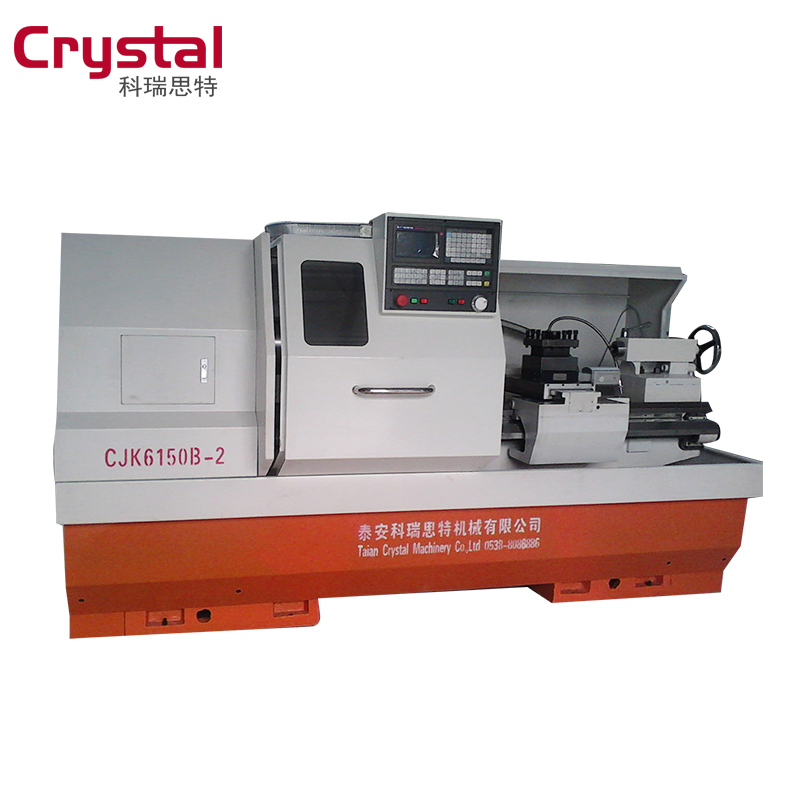

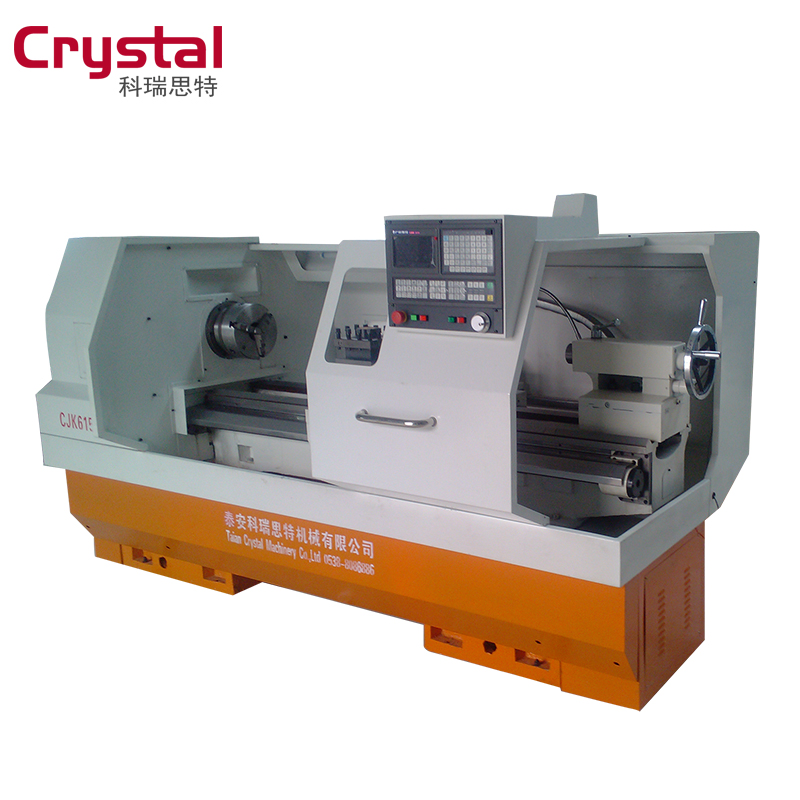

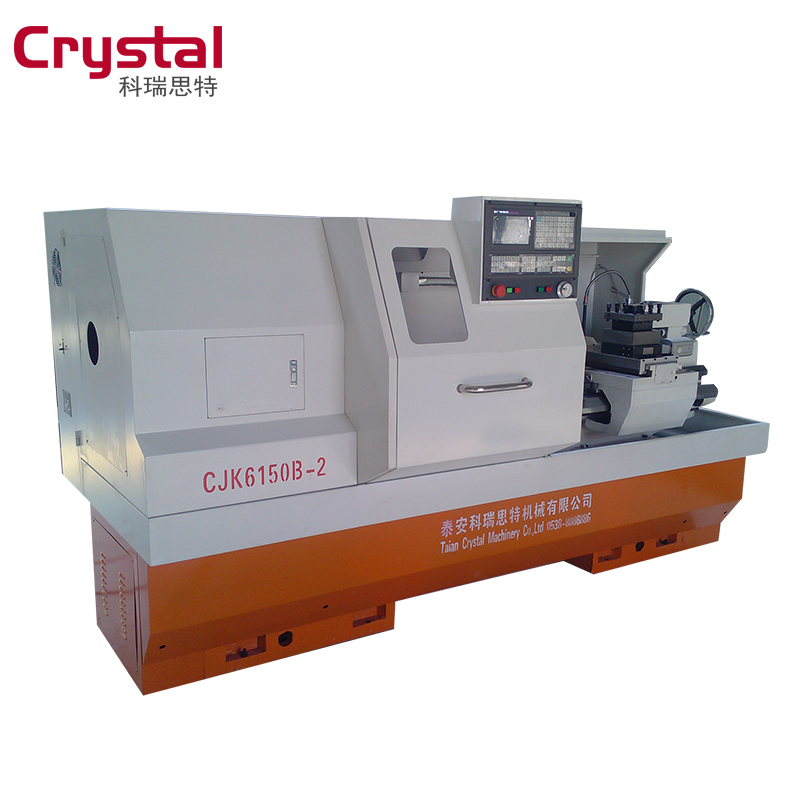

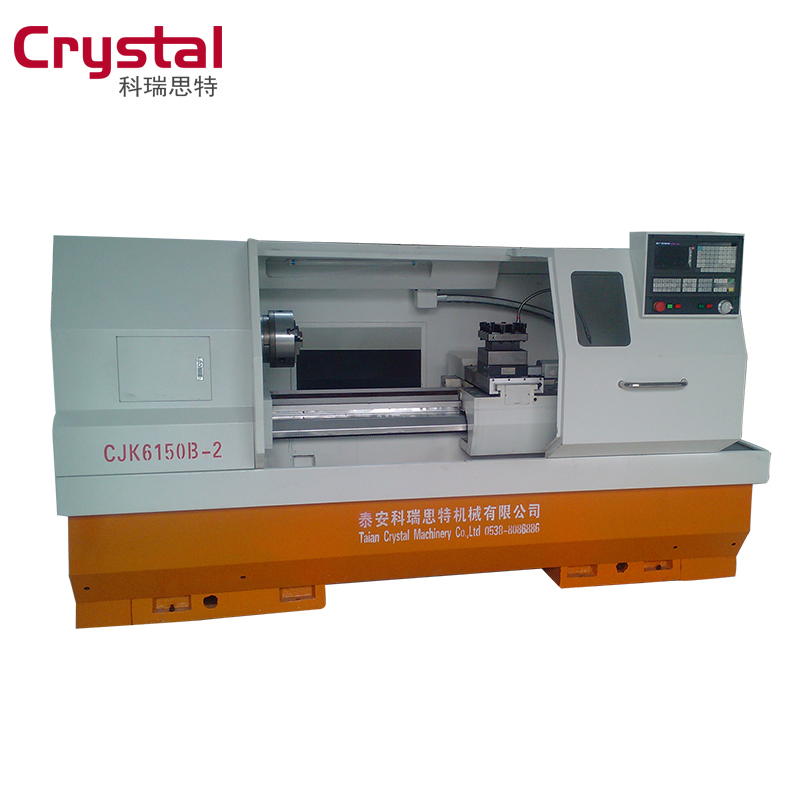

Automatic horizontal CJK6150B-2 cnc lathe turning machine
CJK6150B-2 CNC Lathe Features:
1. High frequency quenching rail, hardness and high wear resistance
2. 3-gear spindle speed, step-less in gear
3. Spindle with high speed and high precision bearings
4. Increase the spindle diameter to φ82mm, chuck diameter φ250mm
K6150B-2 CNC Lathe Specifications:
Item | CJK6150B-2 |
Max. Swing over bed | Φ500mm |
Max. Swing over cross slide | Φ280mm |
Processing length | 750mm/1000mm/1500mm |
Width of the bed | 400mm |
Diameter of spindle bore | Φ82mm |
Spindle taper | 1:20/Φ90 |
Spindle nose | Type of spindle head D-8 |
Spindle speed | 30-150,100-500,320-1600rpm |
Chuck size | 250mm |
Tool holder | 4 station |
Tool bar section | 25X25mm |
Main motor power | 7.5KW |
X/Z axis position accuracy | 0.02/0.025mm |
X/Z axis repeatability | 0.01/0.012mm |
X/Z axis torque | 6/10N.M |
X/Z axis travel | X 360 Z 750mm/1000mm/1500mm |
X/Z axis fast feeding speed | 8/10 M/MIN |
Tailstock sleeve travel | 150mm |
Tailstock taper | MT5 |
Dimension | 2410/2660/3160*1560*1730mm |
Weight | 2900/3300/3600kg |
Lathe bed structure type | Split casting type/Overall casting type |

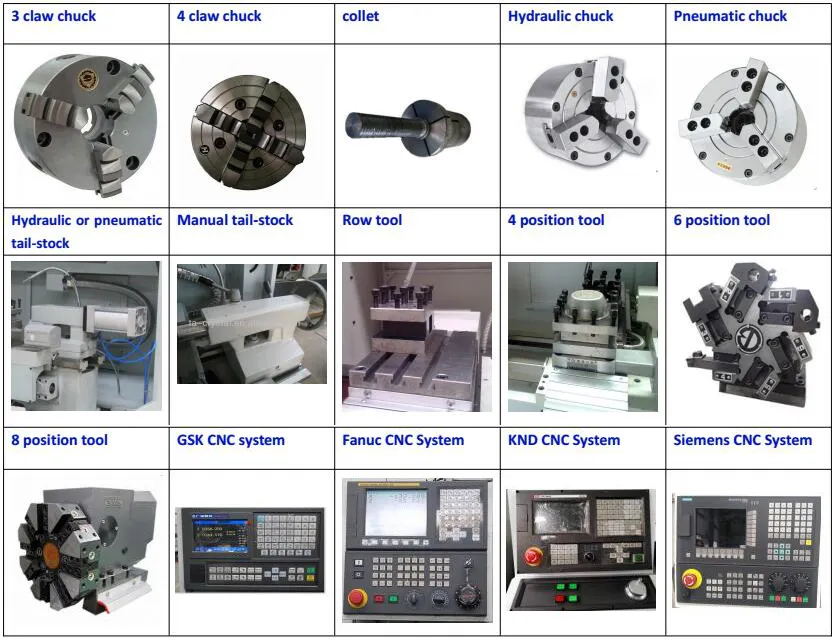

D. Optional configurations
FAQ
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on tacrystal.en.made-in-china.com, or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
SERVICE
you satisfied is our business!
1. The first batch of supplier joined Alibaba Trade Assurance.
Amount up to the top of Machinery Industry. Zero-risk Purchase service.
2. Over 400 clients from more than 80 countries could tell you we are your reliable
partner.
3. Professional in cnc machine.
Our price could beat any competitors in China market.
4. We supply professional solution based on your own process one by one.
5. Customer-made configurations available. Provide you more choices.
6. 7*24 hours before and after sale service.
7. 2 years guarantee for whole machine, 3 years warranty fro CNC system, servo
motor, guide-rail.
