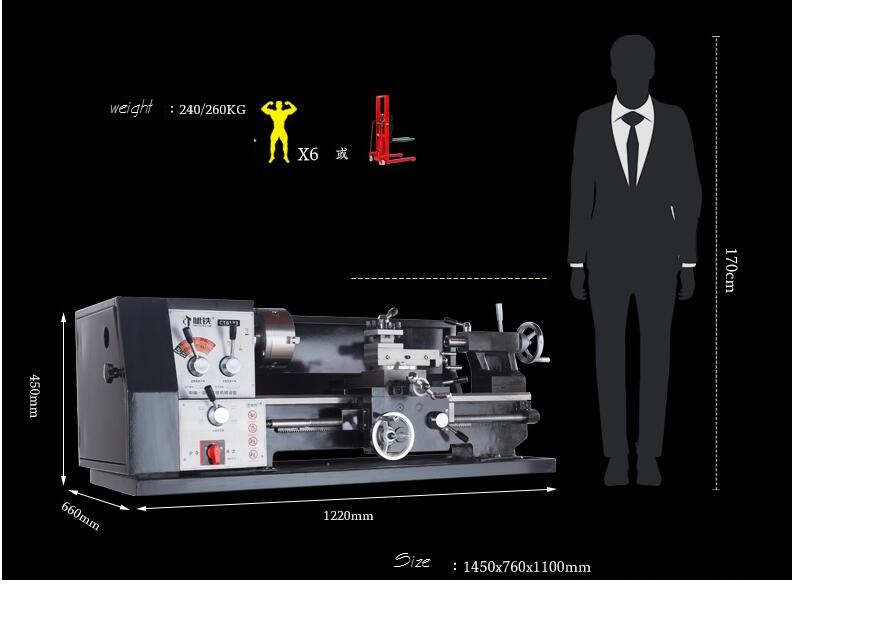

Big Bore Precision Bench Turning Lathe Machine (CQ9332 / CQ9332A)
CE High precision hobby metal lathe machine1.Features:Most economicl,widely useful hobby latheThe spindle is supported with precision roller bearing.Headstock gears are made of high quality steel,ground and hardened.Gear drive power 2.Big spindle bore 38mm.3.Most popular in the world.4.CQ9332A Speci......
Send Inquiry
Product Description
CE High precision hobby metal lathe machine
1.Features:
Most economicl,widely useful hobby lathe
The spindle is supported with precision roller bearing.
Headstock gears are made of high quality steel,ground and hardened.
Gear drive power
2.Big spindle bore 38mm.
3.Most popular in the world.
4.CQ9332A Specification as following:
5.FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
4. Question : How about machine Warranty ?
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
Welcome you contact :Ms Alice
Mobile:0086-15357788287 /0086-17398394840
1.Features:
Most economicl,widely useful hobby lathe
The spindle is supported with precision roller bearing.
Headstock gears are made of high quality steel,ground and hardened.
Gear drive power
2.Big spindle bore 38mm.
3.Most popular in the world.
4.CQ9332A Specification as following:
| MAIN SPECIFICATIONS AND DATA | ||
| Model | CQ9332 | CQ9332A |
| Swing over bed | 320mm | 320mm |
| Swing over carriage | 170mm | 170mm |
| Center distance | 600mm | 750mm |
| Spindle bore | 38mm | 38mm |
| Spindle speed | 60-1600r/min | 60-1600r/min |
| Spindle taper | NO.5 | NO.5 |
| Top slide travel | 100mm | 100mm |
| Cross slide travel | 150mm | 150mm |
| Metric threads | 0.5-4 | 0.5-4 |
| Inch threads | 9-48 1/n" | 9-48 1/n" |
| Tailstock taper | NO.3 | NO.3 |
| Quill of tailstcok travel | 80mm | 80mm |
| Motor power | 1.1kw | 1.1kw |
| Net weight | 320kg | 320kg |
| Overall dimension | 1370x625x450 | 1540x625x1150 |
5.FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
4. Question : How about machine Warranty ?
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
Welcome you contact :Ms Alice
Mobile:0086-15357788287 /0086-17398394840
