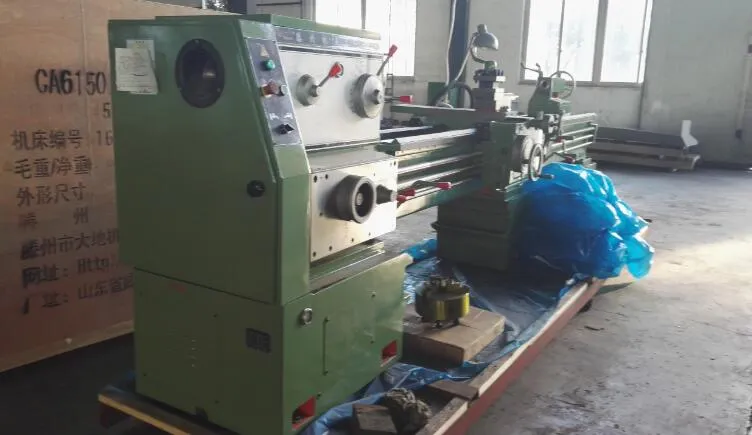

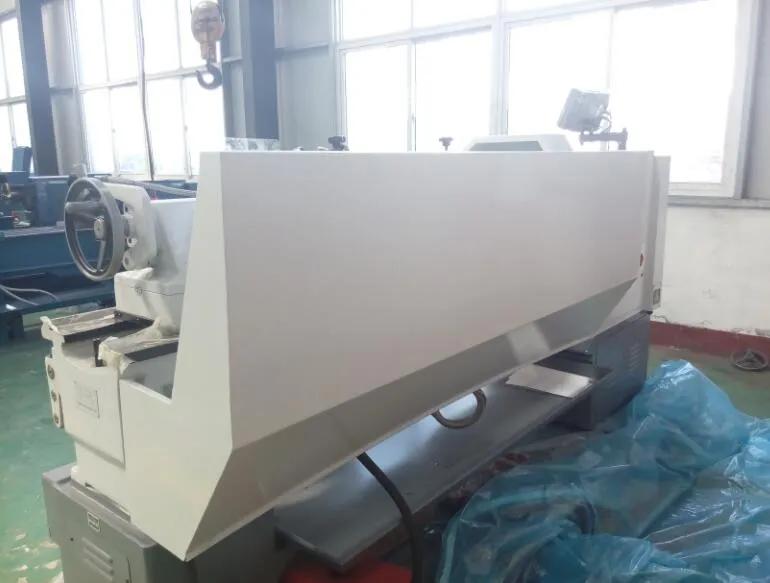

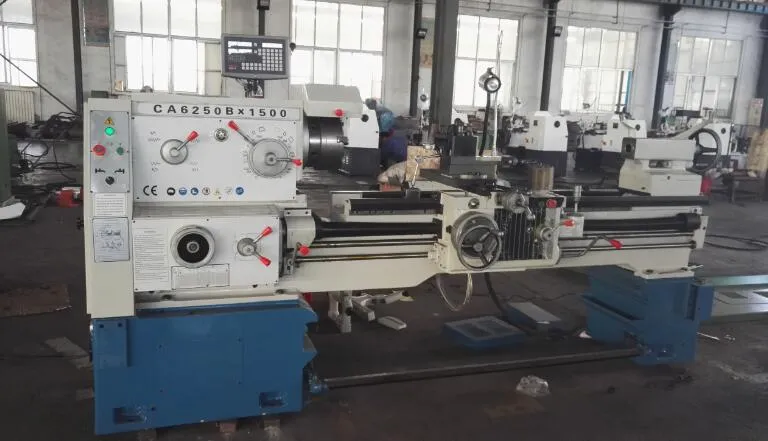

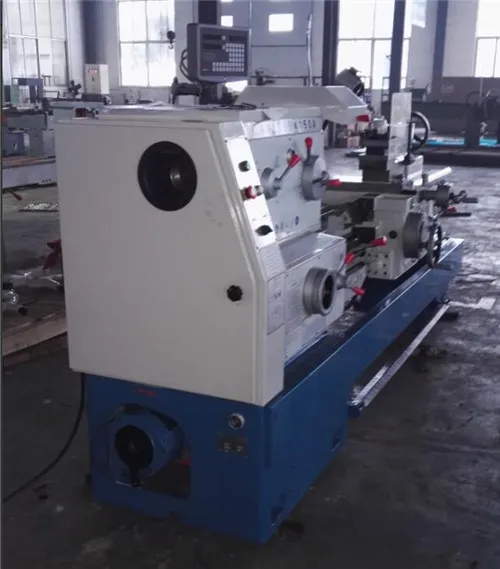

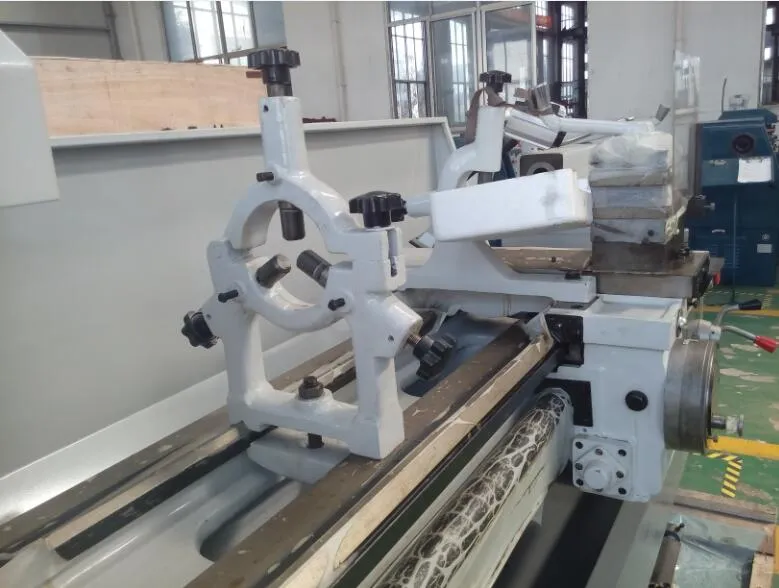

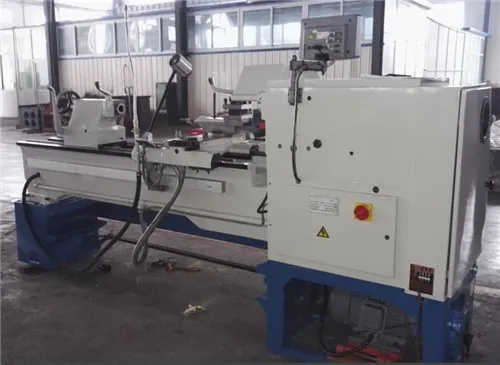

Ca Series Big Bore Precision Horizontal Lathe Machine (CA6250B)
· Dealing directly with the manufacture- no middle man!· The most competitive pricing in the market.· High quality control standards, such as ISO, CE· Guaranteed delivery time.· Prompt attention to the customer inquiries.· Diverse ser......
Send Inquiry
Product Description
· Dealing directly with the manufacture- no middle man!
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good.
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good.
| Specifications | CA6140 CA6240 CA6140B CA6240B | CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C | CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C | CA6166 CA6266 CA6166B CA6266B CA6166C CA6266C | CA6180 CA6280 CA6180B CA6280B CA6180C CA6280C | ||||||
| Max .Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | ||||||
| Max .Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | ||||||
| Max .Swing in gap | -- | 630mm | -- | 720mm | -- | 830mm | -- | 880mm | -- | 1020mm | |
| Effective gap length | -- | 210mm | -- | 210mm | -- | 210mm | -- | 210mm | -- | 210mm | |
| Max . work piece length | 750/1000/1500/2000/2200/3000/4000mm | ||||||||||
| Width of bed | 400mm | ||||||||||
| Section of turning tool | 25×25mm | ||||||||||
| Spindle | Spindle speed | 10-1400rpm/16-1400rpm(24steps) | |||||||||
| Hole through spindle | 52mm ,(80mm),[105mm] | ||||||||||
| Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||||||||
| Feed | No. of feed | (64 kinds)(for each) | |||||||||
| Range of metric threads | (1-192mm) (44 kinds) | ||||||||||
| Range of inch threads | (2-24tpi) (21kinds) | ||||||||||
| Range of module threads | 0.25-48 (module 39 kinds) | ||||||||||
| Range of pitch threads | 1-96DP (37 kinds) | ||||||||||
| Tailstock | Max. tailstock spindle travel | 150mm | |||||||||
| Tailstock spindle diameter | 75mm | ||||||||||
| Taper of tailstock spindle center hole | NO.5 (MT5) | ||||||||||
| Main motor | 7.5KW(10HP) | ||||||||||
| Packing dimensions (L×W×H mm) | Work piece length 750mm | 2440×1140 ×1750 | 2440×1140 ×1750 | 2440×1140 ×1750 | 2440×1140 ×1750 | 2440×1140 ×1750 | |||||
| Work piece length 1000mm | 2650×1140 ×1750 | 2650×1140 ×1750 | 2650×1140 ×1750 | 2650×1140 ×1750 | 2650×1140 ×1750 | ||||||
| Overall dimensions for 1500mm | 3150×1140 ×1750 | 3150×1140 ×1750 | 3150×1140 ×1750 | 3150×1140 ×1750 | 3150×1140 ×1750 | ||||||
| Overall dimensions for 2000mm | 3650×1140 ×1750 | 3650×1140 ×1750 | 3650×1140 ×1750 | 3650×1140 ×1750 | 3650×1140 ×1750 | ||||||
| Overall dimensions for 2200mm | 4030×1140 ×1750 | 4030×1140 ×1750 | 4030×1140 ×1750 | 4030×1140 ×1750 | 4030×1140 ×1750 | ||||||
| Overall dimensions for 3000mm | 4800×1140 ×1750 | 4800×1140 ×1750 | 4800×1140 ×1750 | 4800×1140 ×1750 | 4800×1140 ×1750 | ||||||
| Overall dimensions for 4000mm | 5680×1140 ×1700 | 4800×1140 ×1750 | 4800×1140 ×1750 | 4800×1140 ×1750 | 4800×1140 ×1750 | ||||||
| Weight (kg) | Length | G.W. N.W. | G.W. N.W. | G.W. N.W. | G.W. N.W. | G.W. N.W. | |||||
| Overall dimensions for 750mm | 2100 1990 | 2170 2060 | 2300 2180 | 2380 2260 | 2520 2400 | ||||||
| Overall dimensions for 1000mm | 2190 2070 | 2260 2140 | 2380 2250 | 2570 2450 | 2720 2560 | ||||||
| Overall dimensions for 1500mm | 2350 2220 | 2420 2290 | 2577 2437 | 2810 2640 | 2980 2800 | ||||||
| Overall dimensions for 2000mm | 2720 2570 | 2790 2640 | 2940 2787 | 3050 2880 | 3260 3087 | ||||||
| Overall dimensions for 2200mm | 2800 2600 | 2940 2790 | 3120 2970 | 3390 3180 | 3490 3287 | ||||||
| Overall dimensions for 3000mm | 3300 3200 | 3450 3300 | 3600 3450 | 3930 3687 | 4220 3887 | ||||||
| Overall dimensions for 4000mm | 3500 3400 | 3750 3600 | 3950 3800 | 4580 4200 | 4850 4500 | ||||||
