Cq6236ax1000 Metal Turning Lathe C0636b
Manual Lathe CQ6236Ax1000MM* The bed ways are hardened & ground, HRC 52.* Extremely low noise level.* High-precision bearings and grinded gears in headstock. MODEL CQ6236ACQ6236DCQ6236BDistance between centers1000mm Max. swing over bed360mm Max. swing over cross slide212mm Max. swing in gap491m......
Send Inquiry
Product Description

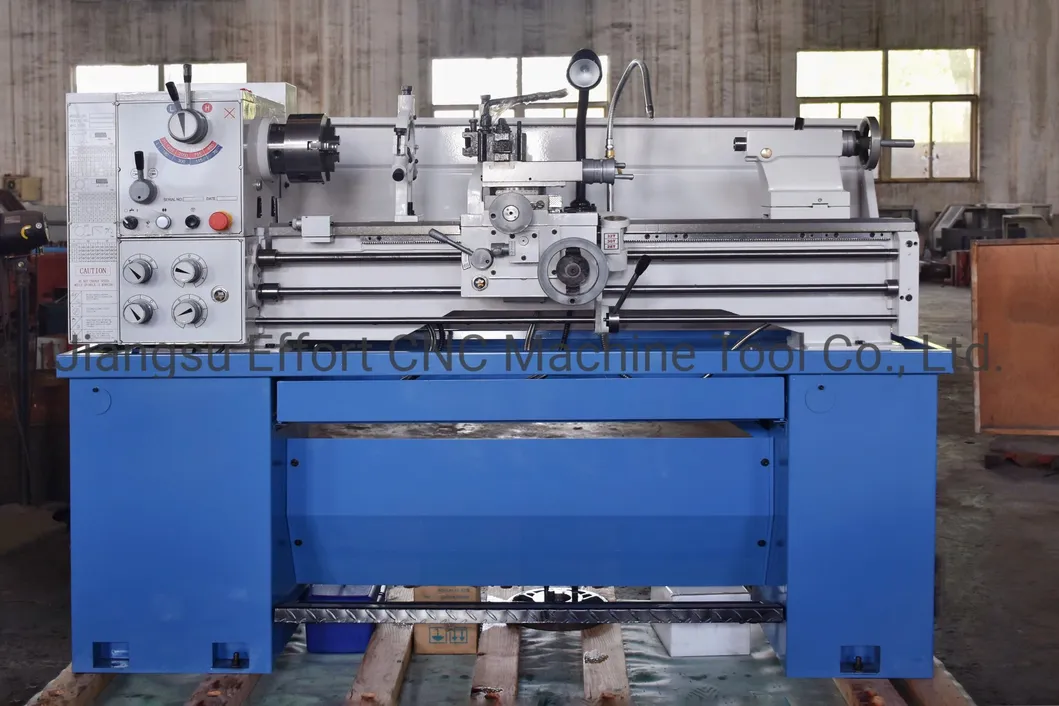

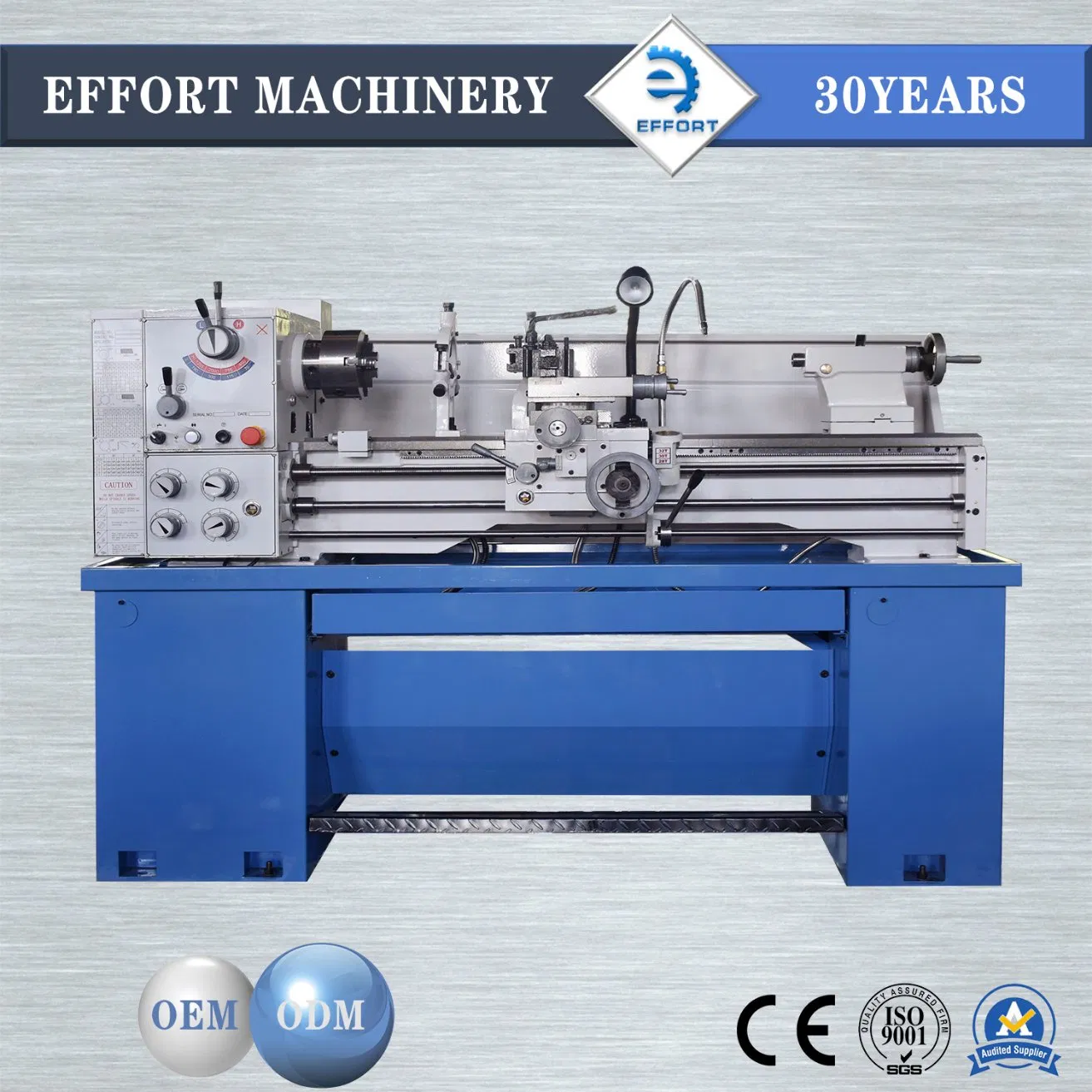

Manual Lathe CQ6236Ax1000MM
* The bed ways are hardened & ground, HRC 52.
* Extremely low noise level.
* High-precision bearings and grinded gears in headstock.
| MODEL | CQ6236A | CQ6236D | CQ6236B |
| Distance between centers | 1000mm | ||
| Max. swing over bed | 360mm | ||
| Max. swing over cross slide | 212mm | ||
| Max. swing in gap | 491mm | ||
| Width of bed | 187mm | ||
| Spindle | |||
| Spindle speed range | 8 steps 70-2000rpm (Φ51mm as 8 steps 90-2000rpm ) | ||
| Spindle bore | Φ 38mm (Φ51mm as optional) | ||
| Spindle nose | D4 (Φ51mm as D5) | ||
| Taper of spindle bore | MT5 (Φ51mm as MT6) | ||
| Centre height | Φ178mm | ||
| Thread cutting | |||
| Threads metric pitches | 0.4-7mm / 26kinds | 0.1-7mm / 44kinds | 0.4-7mm / 32kinds |
| Threads imperial pitches | 4-56TPI / 34kinds | 4-112TPI / 56kinds | 4-56TPI / 32kinds |
| Threads diametral pitches | - | 16-112DP / 32kinds | 8-120DP / 32kinds |
| Threads module pitches | - | 0.1-1.75MP / 34kinds | 0.2-3.5MP / 27kinds |
| Range of feeds | |||
| Compound rest travel | 90mm | ||
| Cross slide travel | 170mm | ||
| Longitudinal feeds range | 0.052-1.392mm/rev / 32kinds | 0.0464-3.249mm/rev (Metric lathe) | 0.082-2.713mm/rev (Metric lathe) |
| 0.00168-0.1175in/rev (Inch lathe) | 0.0032-0.1068in/rev (Inch lathe) | ||
| Cross feeds range | 0.009-0.253mm/rev (Metric lathe) | 0.01-0.7033mm/rev (Metric lathe) | 0.018-0.746mm/rev (Metric lathe) |
| 0.015-0.402mm/rev (Inch lathe) | 0.00046-0.03231in/rrev (Inch lathe) | 0.0011-0.0367in/rev (Inch lathe) | |
| Tailstock Sleeve | |||
| External diameter | Φ32mm | ||
| Max. travel | 100mm | ||
| Taper of bore | MT3 | ||
| Motor | |||
| Spindle motor power | 1.5 KW | ||
| Coolant pump power | 40W | ||
| Others | |||
| Tool section | 16 x 16 mm | ||
| Overall dimension(L×W×H) | 1935x750x1500mm | ||
| Net/Gross weight | 600 /700kg | ||

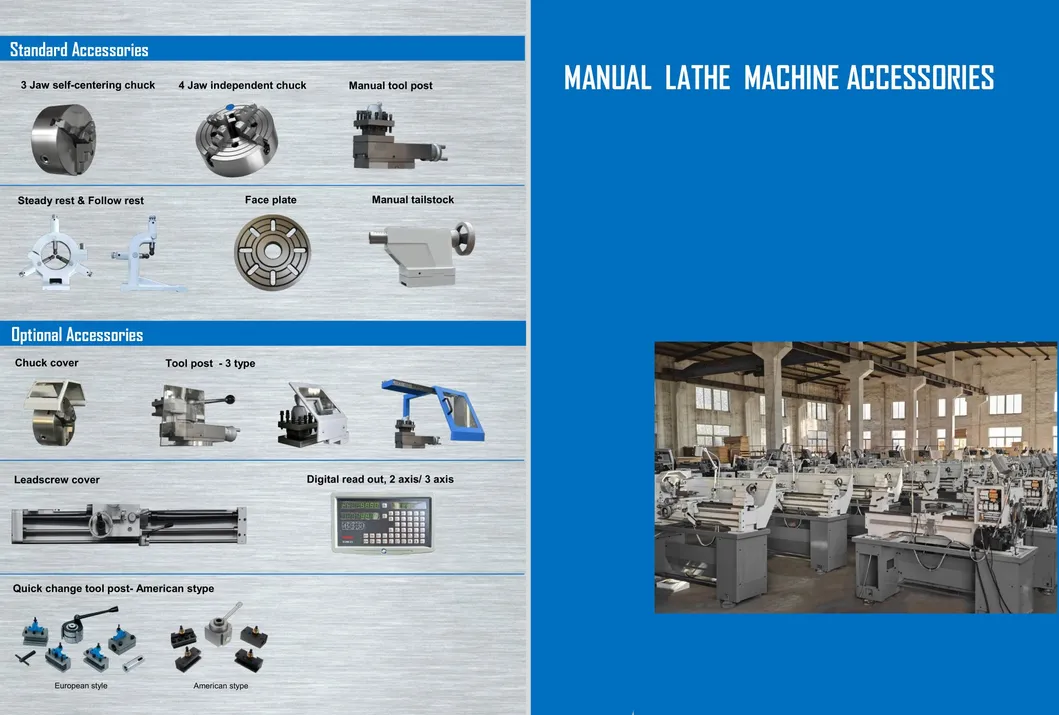

| Standard configuration | Optional configuration |
| * Φ38mm spindle bore | * Chuck cover |

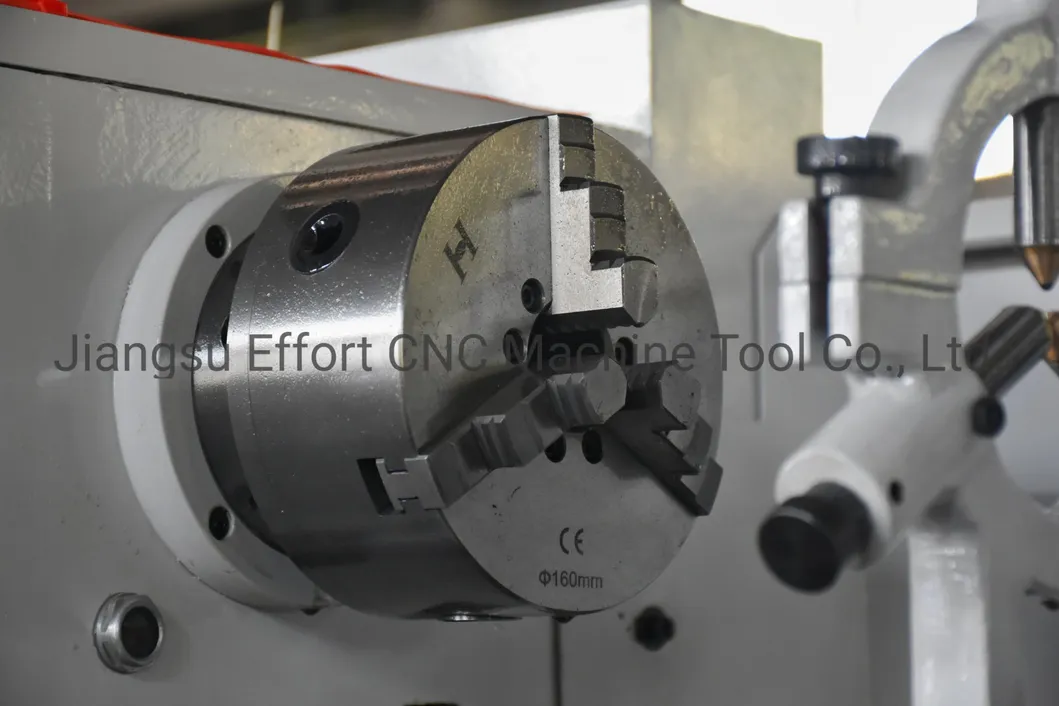

| * 3 Jaw self-centering chuck/ 160mm | * Leadscrew cover |
| * 4 Jaw independent chuck/ 200mm | * Tool post cover |
| * Face plate / 250mm | * Digital read out, 2 axis/ 3 axis |
| * Manual tailstock | * Quick change tool post |
| * Change gears | * Taper turning attachment |
| * Steady rest & Follow rest | * Living center |
| * Monoblock cast iron base | * Drill chuck |
| * Work light, Coolant system | * Electromagnetic brake |
| * Foot brake | * Cast iron base as optional |
| * Reduction sleeve, Dead center | * Φ51mm spindle bore with big chuck |
| * Thread dia indicator | 3Jaw chuck/ 200mm, 4Jaw chuck/ 200mm |
