China High Precision 7500W Metal Turning Lathe Machine (mm-D560X1500)

Product Description

MM-D560X1500 Lathe Machine / Metal Lathe / Engine Lathe / Torno / máquina del torno / machine de tour / Manual Lathe / Gap-bed Lathe / MAXNOVO MACHINE / High Precision Machine For Demanding Users / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Heavy-Duty Lathe / Horizontal Lathes / Mechanics Lathe

This MM-D560X 1500 is the 22 X 60 inch Heavy Duty Engine Lathe / Lathe / Metal Lathe / Lathe Machine / Manual Lathe / Gap-bed Lathe / Precision Lathe / Turning Lathe / Horizontal Lathes with THREE PHASE INDUSTRY Powerful MOTOR has many main Features for demanding users.

Heavy Duty 22" X 60" inch High Precision Gear Head Metal Turning Engine Lathe Machine with Adavanced Technology. Such kind of lead screw universal turning lathe machine is specifically designed for quick and economical single part or series production. The large number of spare part equipments makes this metal lathe incredibly versatile for demanding users.

Heavily Centre Metal Lathes which are outstanding due to high Flexibility, Precision and Economy. The Digital Position Display is Optional for Demanding Users.

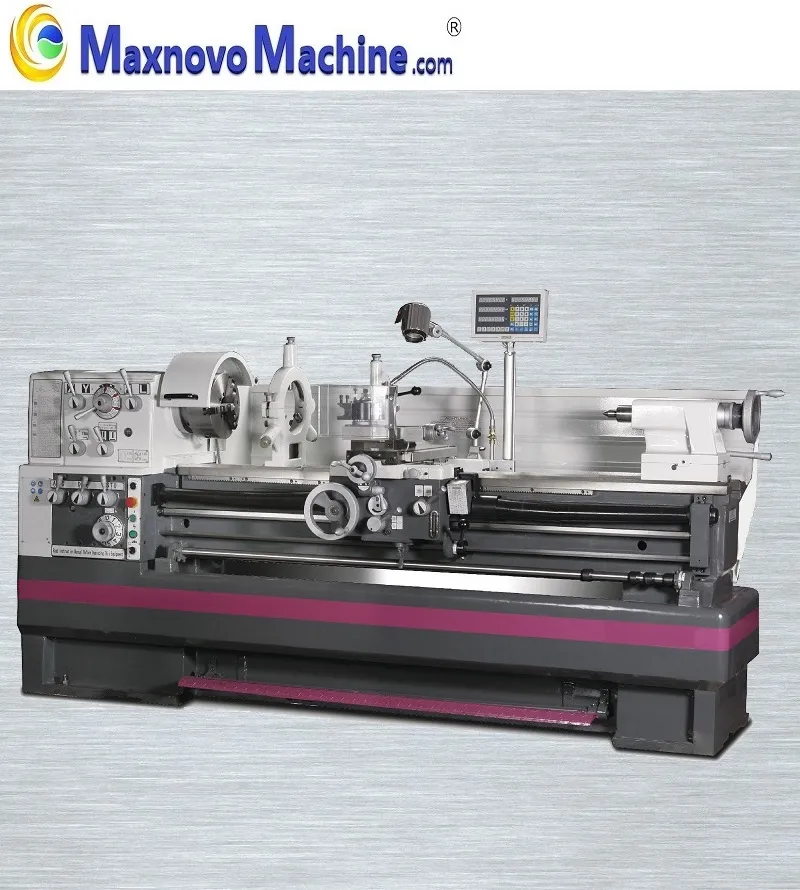

High Precision 7500W Metal Turning Lathe Machine (mm-D560X1500)

High Precision 7500W Metal Turning Lathe Machine (mm-D560X1500)

Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Hardened and ground bed guide-ways
-Camlock spindle seat DIN ISO 702-2 No.8
-Coolant equipment with separate coolant tank separately with filling level display and oil separator
-Easy and compete draining and cleaning according to DIN
-Guaranteed true running accuracy of the spindle nose of better than 0.015 mm
-Clearly arranged gear selector levers to switch the feed speeds
-Emergency-stop push button, protective motor switch, lockable main switch
-Right-handed / Left-handed rotation on the bed slide switchable via stem
-Cover for leading spindle
-Foot brake
-Electrical system with Siemens components
-First filling with high grade Mobil oil
-Adjustable scale of the threading gauge
-Quick action tool holder with tool holder for square tools
-Digital position display is optional
-Considerable reduction of the manufacturing times
-High working accuracy
-Error rate is reduced
-Clearly-arranged keyboard
-Large number of thread leads
-The gears are hardened and precision-ground
-Cam-lock spindle mount D1-8
-Wide bed, ground and hardened
-Cost-effective, lasting value
-Logical clearly designed and easy-to-use and feed settings
-Connecting voltage is Three Phase 400V
-Certificate of Original (CO, FORM A, FORM E, FORM F )

Technical Data :

Product Name :	Heavy Duty Metal Centre Engine Lathe Machine
Product Item :	MM-D560 X 1500
Machine Data
Max Swing over Bed :	Ø 560 mm
Distance between Centers :	1500 mm
Turning over Cross Slide :	Ø 355 mm
Turning Diameter in Bed Bridge :	Ø 790 mm
Centre Height :	280 mm
Length of Bed Bridge :	270 mm
Bed Width :	350 mm
Spindle Speed :	25-2000 RPM
Number of Steps :	12 Steps
Headstock
Spindle Taper :	MT 7
Spindle Seat :	Camlock DIN ISO702-2 Nr.8
Spindle Hole, rod passage :	Ø 80 mm
Slide
Travel Top slide :	130 mm
Travel Cross slide :	316 mm
Longitudinal feed in range of :	0.059-1.646 mm/rev (35 feeds)
Transverse feed in range of :	0.020-0.573 mm/rev (35 feeds)
Pitch-Metric in the range of :	0.2-14mm / rev (47 thread pitches)
Pitch-Inch in the range of :	2-112 TPI (60 thread pitches)
Trapezoid thread in range of :	4-112 (50 trapezoid thread)
Modular Thread in range of :	0.1-7 (34 modular thread)
Height of quadruple tool holder :	Max. 25 X 25 mm
Tailstock Taper :	MT 5
Tailstock -- Sleeve Travel :	180 mm
Main Motor :	7500W
Coolant Pump Motor :	100W
Connecting Voltage :	Three Phase 400V
Gross Weight :	2700 KGS
Packing Size:	2950 X 1250 X 1750 mm
Standard Accessory :	3-Jaw Chuck Ø 315mm, 4-Jaw Chuck Ø 350mm, Face clamping disc Ø 450mm, Machine Substructure, Coolant Equipment, Change Gear Kit, Machine Lamp, Tools and Toolbox

We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.

FAQ:

1. Question: Are you a factory or trading company?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question: Why choose cooperate with us?
Answer: Right people, Right product, Right price;
Company-wide customer awareness;
Reliable Quality and All components from world leading suppliers;
Cost-effective export infrastructure and total supply chain management;

3. Question: Where is your factory located? How can I visit there?
Answer: With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P. R. China. It takes about 2 hours from Shanghai by train. It is very pleasure for clients to visit us.

4. Question: Can you do OEM?
Answer: Yes, we have the ability to do OEM / ODM to meet clients' requirements.

5. Question: How does your factory do regarding quality control?
Answer: Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
