China Reliable Large Spindle Bore Conventional Horizontal Lathe Light-duty Lathe CW6193x6000 Torno

Product Description

Model	Unit	CW6163C CW6263C	CW6180C CW6280C	CW6193C CW6293C
Swing over bed	mm	630	830	930
Swing in gap	mm	890	1090	1190
Swing over cross slide	mm	350	550	650
Distance between centers	mm	1000,1500,2000,3000,4500,6000
Effective length in gap from face plate	mm	300
Spindle nose		C11 or D11
Spindle bore	mm	105,130 (optional)
Spindle speed/Step	rpm/steps	10-800/18
Cross slide travel	mm	480
Top rest travel	mm	225
Rapid traverse	mm/min	Z:3240mm; Z:1870mm
Tailstock quill diameter	mm	100
Tailstock quill travel	mm	260
Tailstock quill taper		MT6
Bed width	mm	550
Metric threads	mm/kinds	1-240/53
Inch threads	Tpi/kinds	30-2/31
Module threads	Mm/kinds	0.25-60/46
Diametrical pitch threads		60-1/2/47
Main motor power	kW	11
Gross weight of machine	kg	4200 4400 4650 5450 6500 7800	4400 4600 4850 5650 6700 8000	4500 4700 5000 5800 6800 8100

Standard Accessories:
3-jaw chuck; dead center; reduction sleeve, foundation bolts;

Optional Accessories:
4-jaw chuck, face place, drive plate, steady rest, follower rest, electric turret

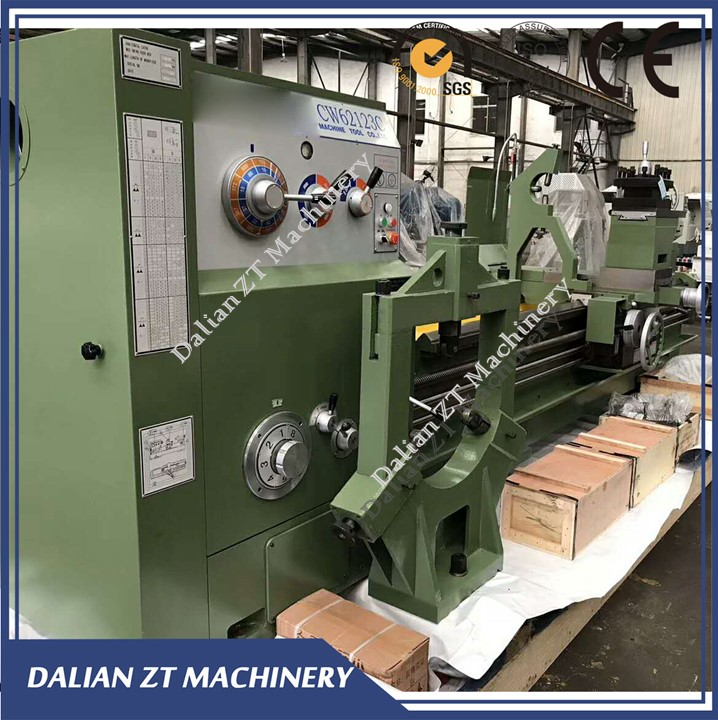

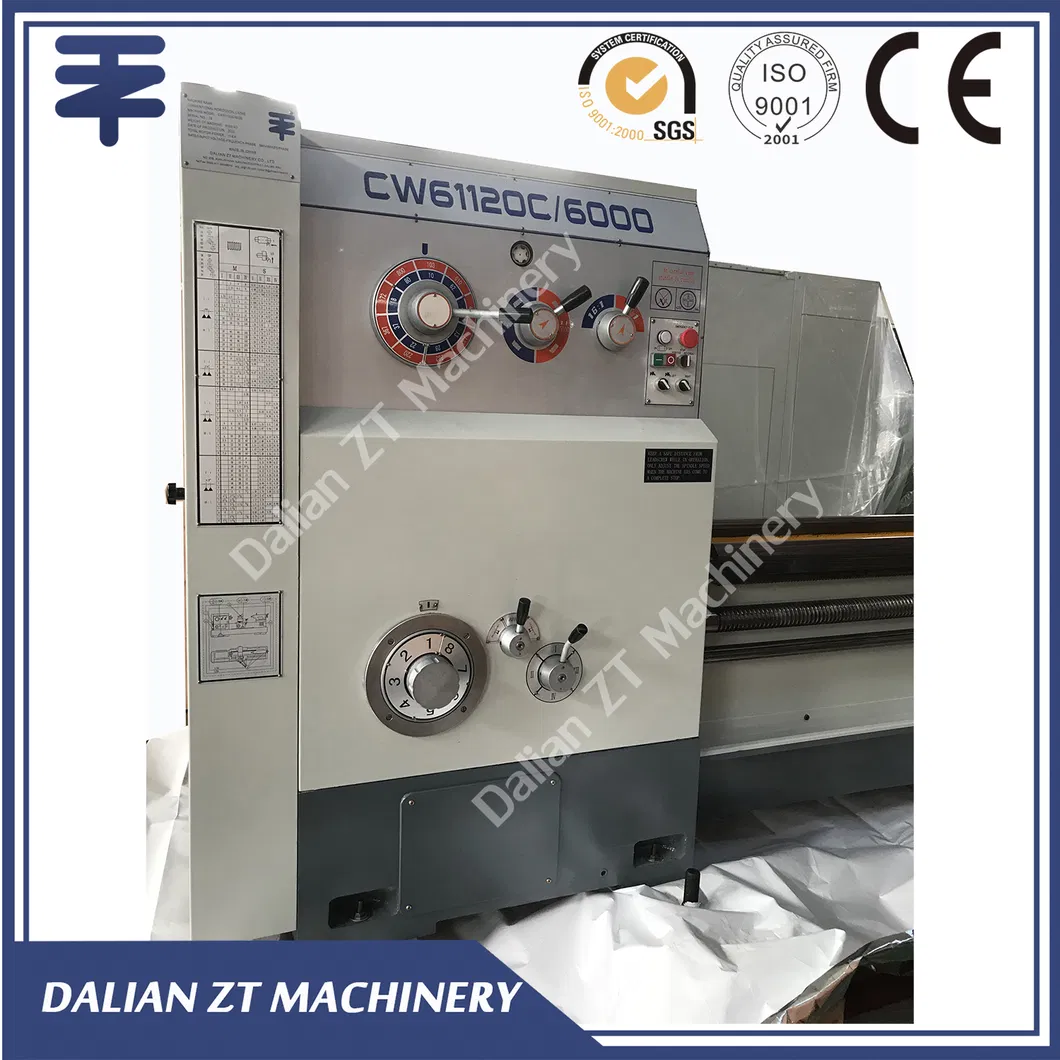

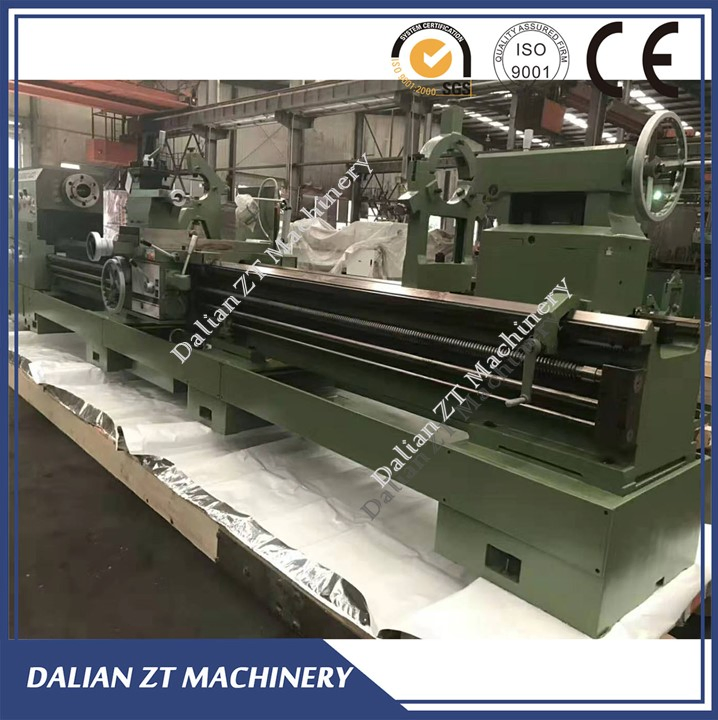

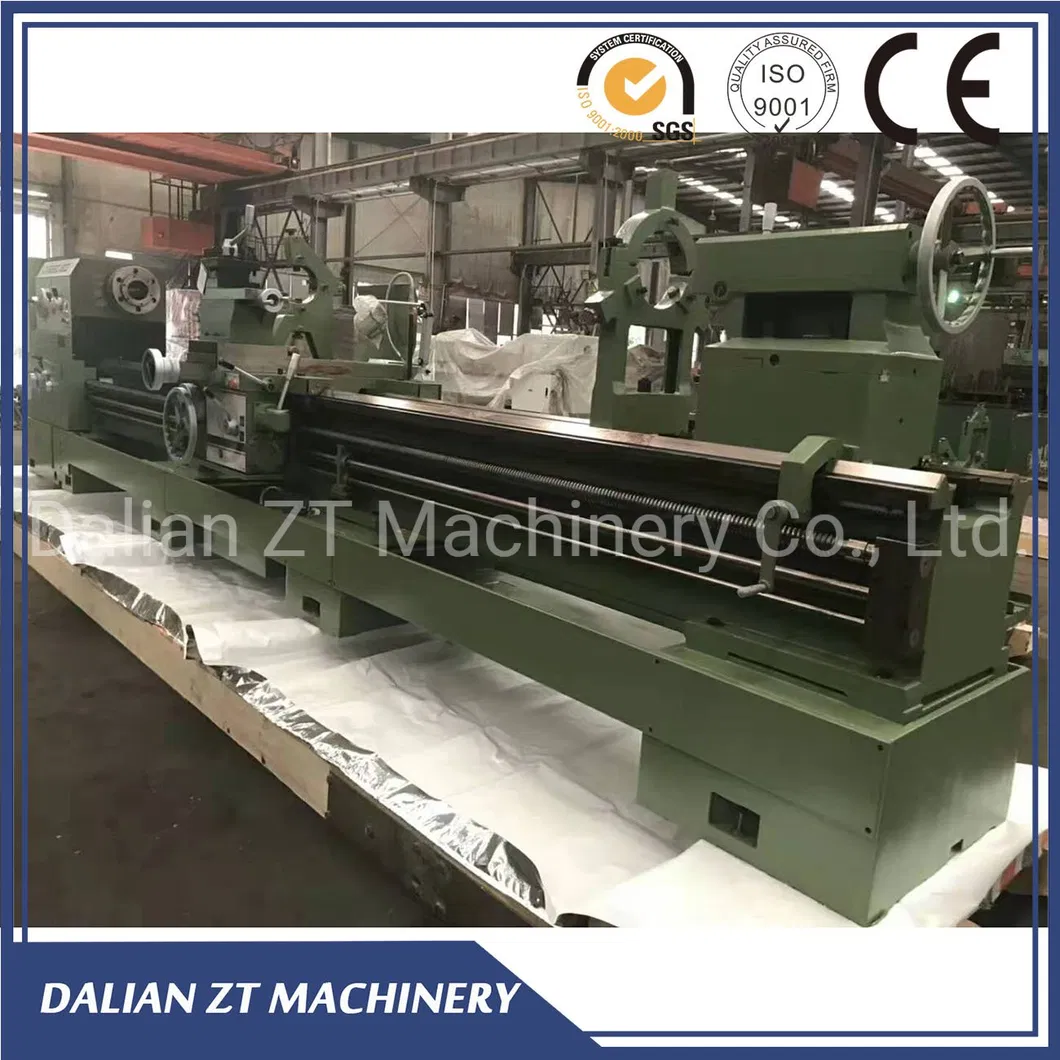

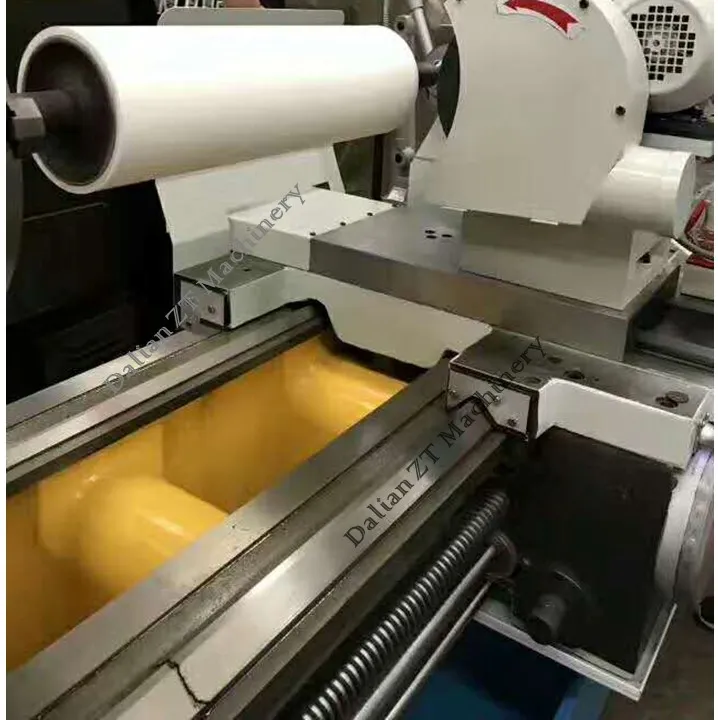

Reliable Large Spindle Bore Conventional Horizontal Lathe Light-duty Lathe CW6193x6000 Torno

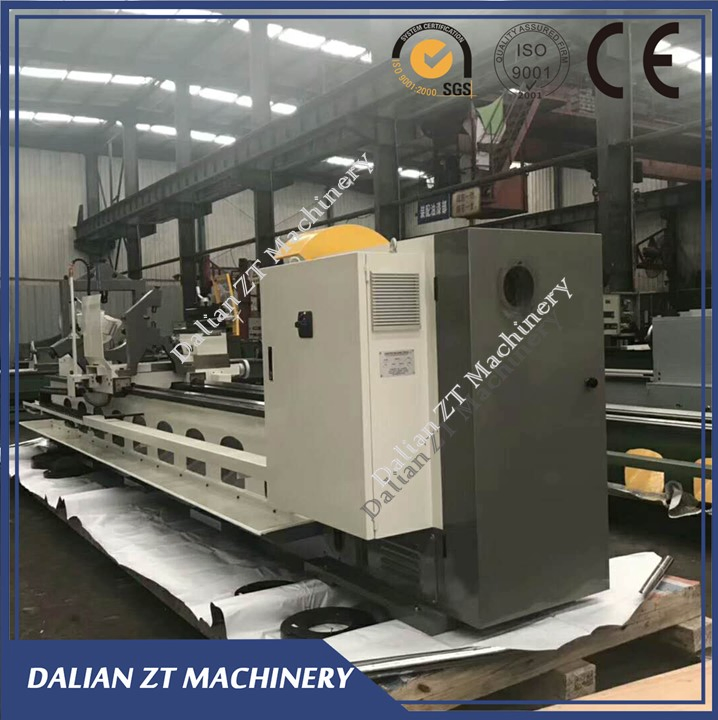

Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item.

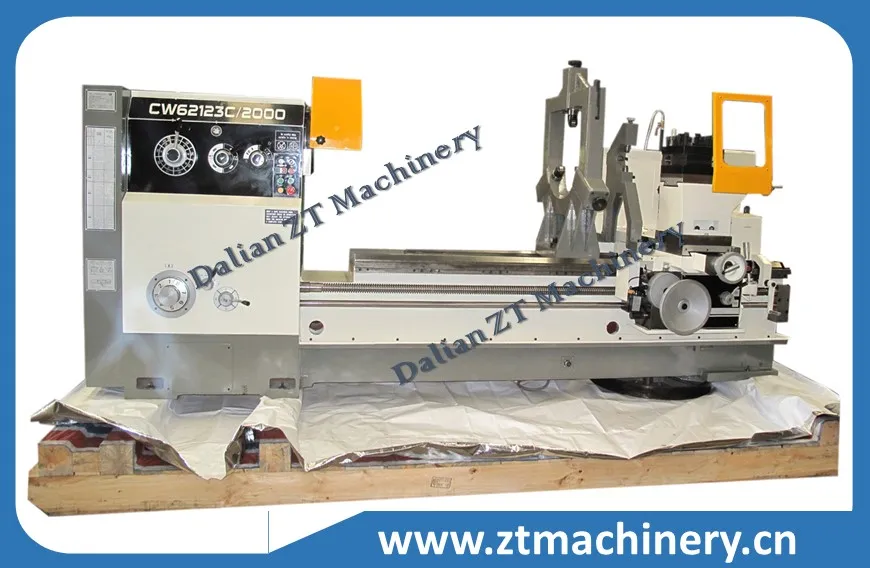

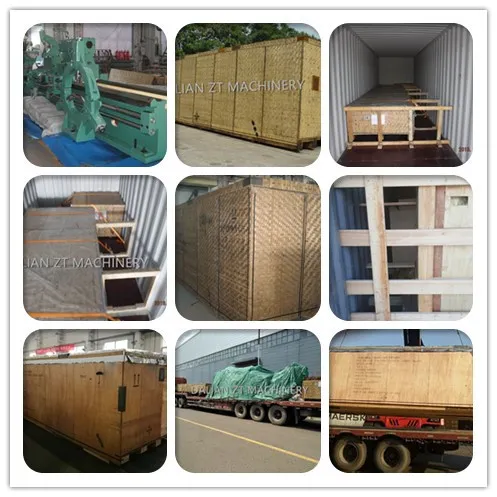

Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
