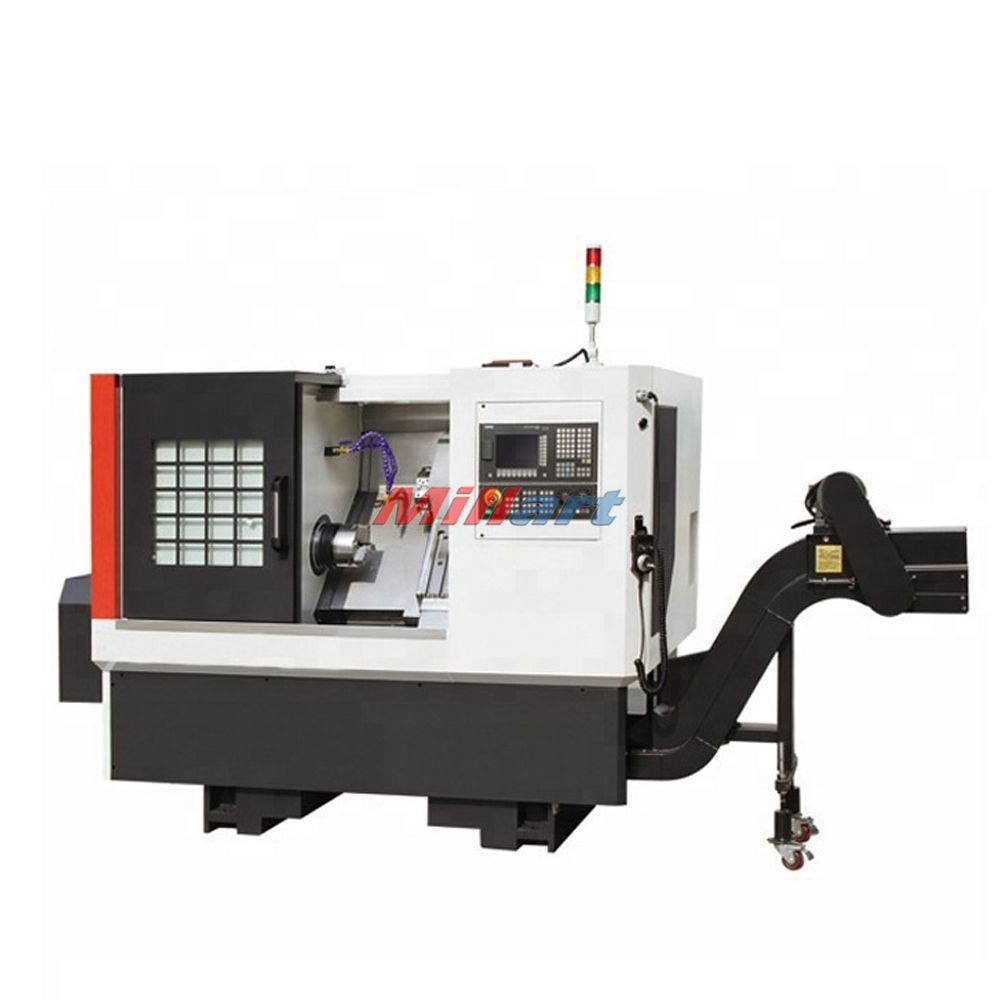

China Slant Bed CNC Lathe Machine (TCK6336S)

Product Description

Slant Bed CNC Lathe Machine(TCK6336S)

Features:
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level 7
Technical parameter:

Model	unit	TCK6336S
Max. swing over bed	mm	Φ390
Max. swing over cross slide	mm	Φ130
Max. processing length	mm	400
X/Z axis travel	mm	400/500
Spindle unit	mm	170
Spindle nose		A2-6
Spindle bore	mm	56
Spindle drawing pipe diameter	mm	45
Spindle speed	rpm	3500
Chuck size	inch	8
Spindle motor	kw	5.5
X/Z feed motor power	kw	1.5
X/Z feed motor torque	N.m	6/6
X/Z position accuracy	mm	0.016/0.016
X/Z repeatability	mm	0.006/0.006
X/Z rapid feed speed	m/min	18/18
Cutting tool shape size	mm	20*20
Total power capacity	kva	11
Guide type		Taiwan linear guide way
Machine dimension (LWH)	mm	2500x1340x1710
N.W.	kgs	2500

Standard accessories
1.GSK980TDC or Siemens 808D NC system
2.servo motor 3.7 kw
3.4 station gang type tool post
4.6" domestic thru-hole type hydraulic chuck
Optional accessories
1.NC System: KND1000Ti, Fanuc Oi Mate-T
2.Main Motor: Servo5.5/7.5KW
3.Inverter 7.5KW
4.Turret: 4 station electric turret , 6 station electric turret
5. Chuck: 6″Non-through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
6.Chip conveyor
7.Steady Rest
8.Other optional item: Driving tool turret, automatic feeding device and manipulator.
