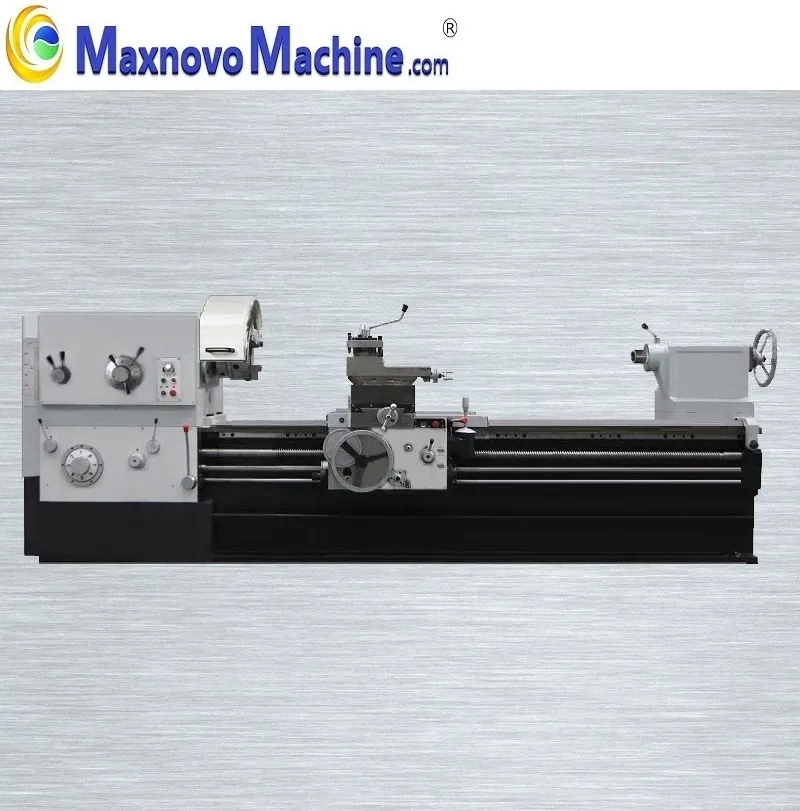

Universal Heavy Duty Tornos Lathe (mm-DLS515)
Universal Heavy Duty Tornos Lathe (MM-DLS515) / MAXNOVO MACHINE / High Precision Machine For Demanding Users / MM-DLS515 Heavy Duty Lathe / Floor Lathe / Lathe Machine / Engine Lathe / Metal Lathe / Gap-bed Lathe / Horizontal Lathes / Conventional Lathe / Universal Lathe / Precision Lathe / Turning ......
Send Inquiry
Product Description
Universal Heavy Duty Tornos Lathe (MM-DLS515) / MAXNOVO MACHINE / High Precision Machine For Demanding Users / MM-DLS515 Heavy Duty Lathe / Floor Lathe / Lathe Machine / Engine Lathe / Metal Lathe / Gap-bed Lathe / Horizontal Lathes / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Manual Lathe This kind of MM-DLS515 series is high precision metalworking Horizontal Universal Heavy-duty Engine Lathe which is been made in the ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe has larger machine bed width 600 mm, big spindle bore 105 mm diameter, Max. Swing Over Bed 1000 mm, and center widths up to 8000 mm.
Universal Heavy-duty Engine Lathe with Constant Machining Power for Easy Handling of Heavy Work-pieces
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
Technical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ:
1.Question:Are you a factory or trading company ?
Answer:We are an SGS recognized OEM/ODM manufacturer factory with export license.We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2.Question:Why choose cooperate with us ?
Answer: Right people, Right product, Right price;
--Company-wide customer awareness;
--Reliable Quality and All components from world leading suppliers;
--Cost-effective export infrastructure and total supply chain management;
3.Question:Where is your factory located ? How can I visit there ?
Answer:With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P.R.China.It takes about 2 hours from Shanghai by train.It is very pleasure for clients to visit us .
4.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
Universal Heavy-duty Engine Lathe with Constant Machining Power for Easy Handling of Heavy Work-pieces
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
--Max. Load Weight of work-piece 4000 KGS
--Larger Rigid Machine Bed Width 600 mm
--Max. Swing over bed Ø 1000 mm
--Solid One-Piece Complete Machine Bed
--Induction-hardened ground guide slots ensure long-term accuracy and minimum wear
--Auxiliary gearbox features wide spectrum of diametric, inch, module and metric threads
--Extra heavy, wide machine bed with ribbing and one-piece mono-block construction
--11KW driving motor ensures high cutting power
--Induction hardened and ground guide-ways
--The auxiliary gearbox features a wide spectrum of diametric, inch, module threads
--Sturdy multi-disk clutch for headstock drive
--More accuracy and Lower error rate
--Overload clutch enclosed in apron
--Large Spindle Bore (Ø 105 mm diameter)
--Very quiet operating at maximum spindle speed
--Large spindle bearings
--Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
--Powerful 15KW main motor is optional
--Bigger Spindle Bore Ø 130 mm is optional
--3-axis digital position indicator is optional
--Certificate of Original (CO, FORM A, FORM E, FORM F)
--Larger Rigid Machine Bed Width 600 mm
--Max. Swing over bed Ø 1000 mm
--Solid One-Piece Complete Machine Bed
--Induction-hardened ground guide slots ensure long-term accuracy and minimum wear
--Auxiliary gearbox features wide spectrum of diametric, inch, module and metric threads
--Extra heavy, wide machine bed with ribbing and one-piece mono-block construction
--11KW driving motor ensures high cutting power
--Induction hardened and ground guide-ways
--The auxiliary gearbox features a wide spectrum of diametric, inch, module threads
--Sturdy multi-disk clutch for headstock drive
--More accuracy and Lower error rate
--Overload clutch enclosed in apron
--Large Spindle Bore (Ø 105 mm diameter)
--Very quiet operating at maximum spindle speed
--Large spindle bearings
--Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
--Powerful 15KW main motor is optional
--Bigger Spindle Bore Ø 130 mm is optional
--3-axis digital position indicator is optional
--Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data :
| Product Name : | Universal Heavy Duty Engine Lathe Machine |
| Product Item : | MM-DLS 515 |
| Max. Weight of Work-piece : | 4000 KGS |
| Max Swing over Bed : | Ø 1000 mm |
| Max. Swing over Gap Bridge : | Ø 1200 mm |
| Max. Swing over Cross Slide : | Ø 685 mm |
| Bed Width : | 600 mm |
| Distance Between Centers : | 1500 / 2000 / 3000 / 4000 / 5000 / 6000 / 8000 mm |
| Swing range of Top Slide : | ± 90 degree |
| Headstock | |
| Spindle Bore : | Ø 105 mm (Ø 130 mm is optional) |
| Spindle Taper : | Ø 120 mm (1:20) |
| Spindle Speed Range : | 5.5 - 730 RPM (18 kinds) |
| Tapping Capacity | |
| Pitch-Metric in range of : | 1 - 240 mm (52 kinds) |
| P itch-Inch in range of : | 1 - 14 TPI (26 kinds) |
| Module Threads in range of : | 0.5 - 120 mm (53 kinds) |
| Diameter Threads in range of : | 1 - 28 DP (24 kinds) |
| Longitudinal feed in range of : | 0.1-24.3 mm/rev (72 kinds) |
| Transverse feed in range of : | 0.05-12.15 mm/rev (72 kinds) |
| Rapid Feed X-axis : | 2000 mm / min |
| Rapid Feed Z-axis : | 4000 mm / min |
| Tailstock | |
| Tailstock Taper : | MT 6 |
| Tailstock Quill Diameter : | Ø 100 mm |
| Tailstock Sleeve Travel : | 240 mm |
| Travel of Top slide : | 200 mm |
| Travel of Cross slide : | 370 mm |
| Drive Capacity | |
| Main Motor : | 11 KW (15KW is optional) |
| Rapid Feed Motor : | 1.1 KW |
| Coolant Motor : | 90 W |
| Tool Shank Dimensions : | 32 X 32 mm |
| Packing Type : | Export Type Pallet Packing |
| Gross Weight : | 5380 KGS (for MM-DLS 515 X 2000) |
| Packing Size : | 4185 X 1180 X 1810 mm (for MM-DLS 515 X 2000) |
| Standard Accessory : | 4-Jaw Chuck, 3-Jaw Chuck, Steady Rest, Follow Rest, Coolant System, Tailstock Centre, Main Spindle Center, Tools and Tool box |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ:
1.Question:Are you a factory or trading company ?
Answer:We are an SGS recognized OEM/ODM manufacturer factory with export license.We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2.Question:Why choose cooperate with us ?
Answer: Right people, Right product, Right price;
--Company-wide customer awareness;
--Reliable Quality and All components from world leading suppliers;
--Cost-effective export infrastructure and total supply chain management;
3.Question:Where is your factory located ? How can I visit there ?
Answer:With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P.R.China.It takes about 2 hours from Shanghai by train.It is very pleasure for clients to visit us .
4.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
