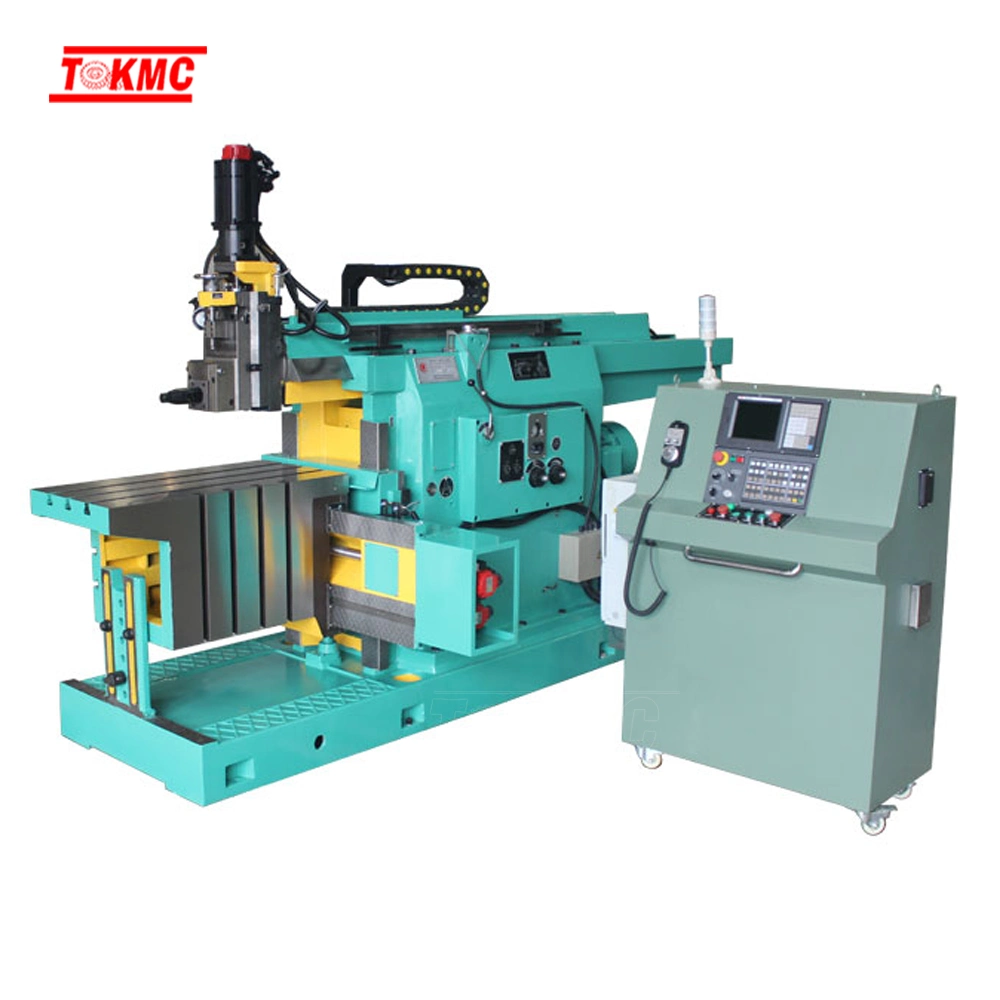

CNC Gear Hydraulic (mechanical) Shaping Machine Metal Shaper Bc6066
cnc gear shaper machine price BC6066advantages of cnc shaping machineThe CNC system can realize the planing function of special workpieces, greatly improving the processing efficiency.Features:The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple ......
Send Inquiry
Product Description
cnc gear shaper machine price BC6066
advantages of cnc shaping machine
The CNC system can realize the planing function of special workpieces, greatly improving the processing efficiency.
Features:
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
FAQ
-When do you deliver?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ,L/C
-How is the warranty ?
12 months
- If i have a problem setting the hammer up/ getting it running problem. Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Our advantage
We service the world from Zaozhuang city Shandong Province. Our knowledgeable sales staff can help you find the best industrial equipment to meet your needs. We ship world wide China Port and can find any Model, Condition, year and miles you want at unbeatable prices based on quality. The advantage productions:cnc milling machine,cnc lathe machine,radial drilling , sheet metal works, blacksmith jack hammer, surface grinding,
advantages of cnc shaping machine
The CNC system can realize the planing function of special workpieces, greatly improving the processing efficiency.
Features:
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
| Model | Unit | BC6063 | BC6066 |
| Max.planing length | mm | 630 | 660 |
| Max.distance from the bottom to worktable | mm | 385 | 385 |
| Max. Horizontal travel of worktable | mm | 630 | 630 |
| Max. vertical travel of worktable | mm | 360 | 360 |
| Table size LxW | Mm | 630x400 | 660x400 |
| The travel of tool post | mm | 120 | 120 |
| The number of reciprocations per minute of the column | No./min | 14,20,28,40,56,80 | |
| The swivel angle of tool post | degree | +/-60 | +/-60 |
| Planer shank maximum size WxThickness | Mm | 20x30 | 20x30 |
| Feeding range of worktable By Motor | horizontal | 0.2-2.5 mm 12 steps | |
| Vertical | 0.08-1.0 mm 12 steps | ||
| T-slot of worktable | Mm | 18 | 18 |
| Main motor | Kw | 3 | 3 |
| Overall size | M | 2.4x1.3x1.5 | 2.4x1.3x1.5 |
| N.W/G.W | Kgs | 1750/1870 | 1800/1920 |
FAQ
-When do you deliver?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ,L/C
-How is the warranty ?
12 months
- If i have a problem setting the hammer up/ getting it running problem. Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Our advantage
We service the world from Zaozhuang city Shandong Province. Our knowledgeable sales staff can help you find the best industrial equipment to meet your needs. We ship world wide China Port and can find any Model, Condition, year and miles you want at unbeatable prices based on quality. The advantage productions:cnc milling machine,cnc lathe machine,radial drilling , sheet metal works, blacksmith jack hammer, surface grinding,
