2021 Porfessional Circular Saw Cutting Machine for Metal (CL- 120NC )
ModelCL-75NCCL-85NCCL-100NCCL-120NCCL-150NCCL-180NCCutting CapacityRound10~75mm10~85mm20~100mm35~130mm45~150mm70~180mmRectangle10~58mm10~65mm20~76mm35~105mm45~110mm60~130mmRound Tube10~75mm10~85mm20~100mm35~130mm45~150mm70~180mmRectangle Tube10~58mm10~65mm20~76mm35~105mm45~110mm70~180mmHead SpindleT......
Send Inquiry
Product Description
| Model | CL-75NC | CL-85NC | CL-100NC | CL-120NC | CL-150NC | CL-180NC |
| Cutting Capacity | ||||||
| Round | 10~75mm | 10~85mm | 20~100mm | 35~130mm | 45~150mm | 70~180mm |
| Rectangle | 10~58mm | 10~65mm | 20~76mm | 35~105mm | 45~110mm | 60~130mm |
| Round Tube | 10~75mm | 10~85mm | 20~100mm | 35~130mm | 45~150mm | 70~180mm |
| Rectangle Tube | 10~58mm | 10~65mm | 20~76mm | 35~105mm | 45~110mm | 70~180mm |
| Head Spindle | ||||||
| TCT Superhard Circular Saw Blade | φ250/285mm, T2.0mm | φ285/315mm, T2.0mm | φ360mm, T2.6mm | φ425mm, T2.7mm | φ460mm, T2.7mm | φ560mm, T3.0mm |
| Pin Hole and Aperture | 4xφ11xPCD63xφ32 | 4xφ11xPCD63xφ32 | 4xφ11xPCD90xφ40 | 4xφ11xPCD90xφ40 | 4xφ11xPCD90xφ50 | 4xφ21xPCD120xφ50 |
| Spindle Motor | 7.5KW(10HP) | 9.5KW(13HP) | 11KW(15HP) | 11KW(15HP) | 15KW(20HP) | 22.5KW(30HP) |
| Spindle Speed | 20~160rpm | 20~180rpm | 20~120rpm | 20~140rpm | 60~100rpm | 20~200rpm |
| Cut Feed Mode | AC Servo Motor+Ball Screw /Swing Feed | 30° Feed | 45° Feed | Horizontal Feed | ||
| Main Clamp Way | Hydraulic Type/Vertical and Horizontal Clamping of Each Group | |||||
| Saw Blade Debris Removal Device | Blade Cleanning Brush | Power Blade Cleaning Brush | ||||
| Gear Gap Compensation Device | Through-type Magnetic Power Brake | |||||
| Feeding Clamps | ||||||
| Feeding Drive Mode | AC Servo Motor+Ball Screw | |||||
| Feeding Clamp Way | Hydraulic Clamped | |||||
| Trim Length | 10~99mm | |||||
| Remnant Length | 65mm+α(α is less than cut off length) | 75+α | 65+α | 95+α | 105+α | |
| Single Feed Length | 6~780mm | 6~800mm | 10~680mm | 10~800mm | 10~800mm | 10~650mm |
| Automatic Feeding Device | ||||||
| Length of Material | 3000~6000mm | |||||
| Supply Mode | Preloading/Hydraulic Lifting | |||||
| Hydraulic Device | ||||||
| Hydraulic Drive Motor | 2.25KW | 2.25KW | 2.25KW | 2.25KW | 3.75KW | 5.5KW |
| Hydraulic System Rated Pressure | 7MPa | |||||
| Hydraulic Oil Capacity | 90L | 90L | 110L | 120L | 150L | 150L |
| Cutting Fluid Cooling Device | ||||||
| Cutting Fluid Motor | 0.19KW | |||||
| Weight & Size | ||||||
| Weight(Machine+Rack) | 2750kg | 2750kg | 3000kg | 4800kg | 5280kg | 6830kg |
| Size(LxW) | 7100x2200mm | 7100x2200mm | 6500x2450mm | 7280x3900mm | 7350x3450mm | 7120x3720mm |
| Other Standard Equipment | ||||||
| Saw Blade Deflection Shock Device | Tungsten Carbide Parallel Block | |||||
| Dispenser | Pneumatic, reciprocating | |||||
| Automatic Centrialized Grease Lubrication System | Timely Quantitative Forced to the Oil | |||||
| Blade Micro-lubrication System | Quasi-dry Intermittent Oil | |||||
| Chip Conveyor | Chain Plate Type, Continuous or Intermittent Operation | |||||
| LED Work Light | Waterproof and Dustproof | |||||

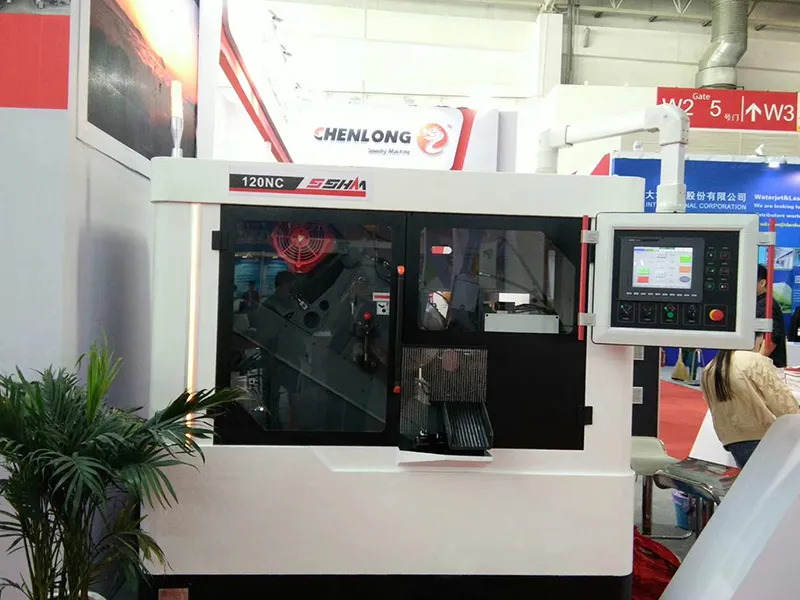

Product Photos
About Us
Our Certificate
Our Exhibition
FAQ
Q: Are you a factory or trading company?
A: We are band saw factory providing machines and blades to thousands of clients globally since 2000.
Q: What are the payment options?
A: We accept T/T and LC at sight.
Q: How to receive a quotation?
A: Please contact us through phone, email, WhatsApp or Skype and we will be happly to serve you.
Q: How to choose a suitable type/model of machine?
A: Please send us your detailed requirements, and we will recommend suitable model for you.
Q: Do you accept customized order?
A: Yes, we can not only customize band saw machines, but also integrated automatic sawing production line for you.
Q: Do you have overseas service?
A: Normally we provide online free service for clients. If clients requiest, we can send staff to offer paid service overseas.
Q: What is your warrenty?
A: Chenlong brand products are covered under a 1-year warrenty. During guaranteed period, we provide free-parts except for the quick-wear parts.
